Zenec ZE-RVC80AHD – AHD swiveling reversing camera

ZENEC ZE-RVC80AHD – Universal Car AHD Reversing Camera, Parking Aid for Cars and Motorhomes, Swivel Camera Head

The compact ZENEC ZE-RVC80AHD reversing camera, housed in a robust die-cast aluminum casing, is designed for universal use with cars, caravans, and motorhomes. The highly sensitive, low-noise CMOS image sensor delivers a high resolution of 1280 (H) x 960 (V) pixels. The ZE-RVC80AHD is compatible with infotainment, multimedia, and navigation systems that support NTSC AHD video signals with 720p resolution.

The AHD (Analog High Definition) camera model offers a higher signal transmission bandwidth with an optimized color gamut thanks to the new analog image transmission standard. Due to its analog transmission, AHD is less susceptible to interference compared to digital systems and offers maximum resolution, sharpness, color fidelity, and therefore significantly better image quality.

The vertically swiveling sensor module allows for easy manual adjustment of the desired image area: 0° to 70° upwards / 0° to 70° downwards. The wide diagonal viewing angle of 170° provides a good overview of the area behind the vehicle, thus enabling safe reversing and maneuvering.

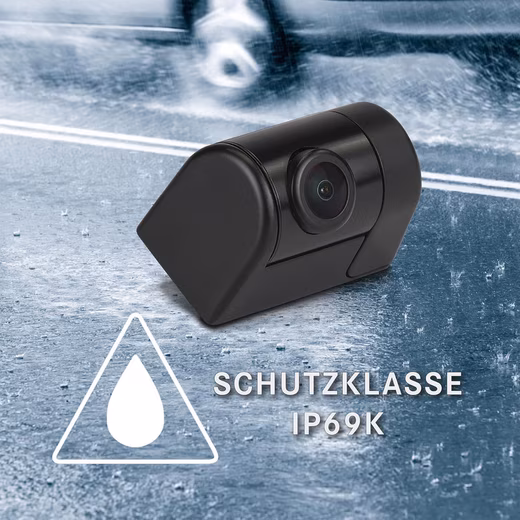

The ZE-RVC80AHD is IP69K certified. The 10 m long, divisible main system cable of the parking aid is equipped with mini 4-pin connectors to keep the cable entry hole as small as possible.

Operating temperature: -30°C ~ +75°C Scope of delivery: Camera, 3-piece 10 m system cable, cable end piece for HU-side connections, various mounting screws and mounting material Camera dimensions (L x W x H): 44 x 23 x 29 mm.

KEY FEATURES
– Compact universal AHD reversing camera for infotainment, multimedia, and navigation systems that support NTSC AHD video signals with 720p resolution
– High-quality CMOS image sensor with AHD 720p output signal and low power consumption
– Robust die-cast aluminum housing with mechanical vertical crop adjustment
– Crop adjustment via rotating sensor roller, 0° to 70° upwards / 0° to 70° downwards
– 10 m long, detachable system cable with mini 4-pin connectors
– Required cable entry hole: 6.1 mm, easy mounting via M6 hollow thread screw
– Protection class: IP69K certified

TECHNICAL SPECIFICATIONS
– Image Sensor: 1/4″ / 6.09 mm SONY IMX225LQR CMOS Sensor
– TV System: NTSC
– Viewing Angle: 170° (D) x 135° (H) x 90° (V)
– Native Sensor Resolution: 1280 (H) x 960 (V) pixels
– Video Signal Resolution: 1280 (H) x 720 (V) pixels
– Frame Rate: 30 frames/sec.
– Lens Focal Length: f/1.2
– Light Sensitivity: 0.5 Lux / 50 IRE
– Image Noise Ratio: >48 dB
– Video Output: 1.0 Vp-p (ñ0.2 V) 75 Ohm, CVBS
– White Balance, Exposure Compensation, Gain Control (AGC), Synchronization: Automatic
– Gamma Correction: 0.45
– Power Supply: 5.0 – 24 V DC
– Current consumption: 70 mA @12VDC, – Protection class: IP69K
– Operating temperature: -30°C ~ +75°C
– Dimensions (L x W x H): 44 x 23 x 29 mm
