Wastewater lifting station, 600 W, for toilet, shower, sink, 100 l/min, white

AREBOS Wastewater Sewage Lifting Station Small Lifting Station 600W

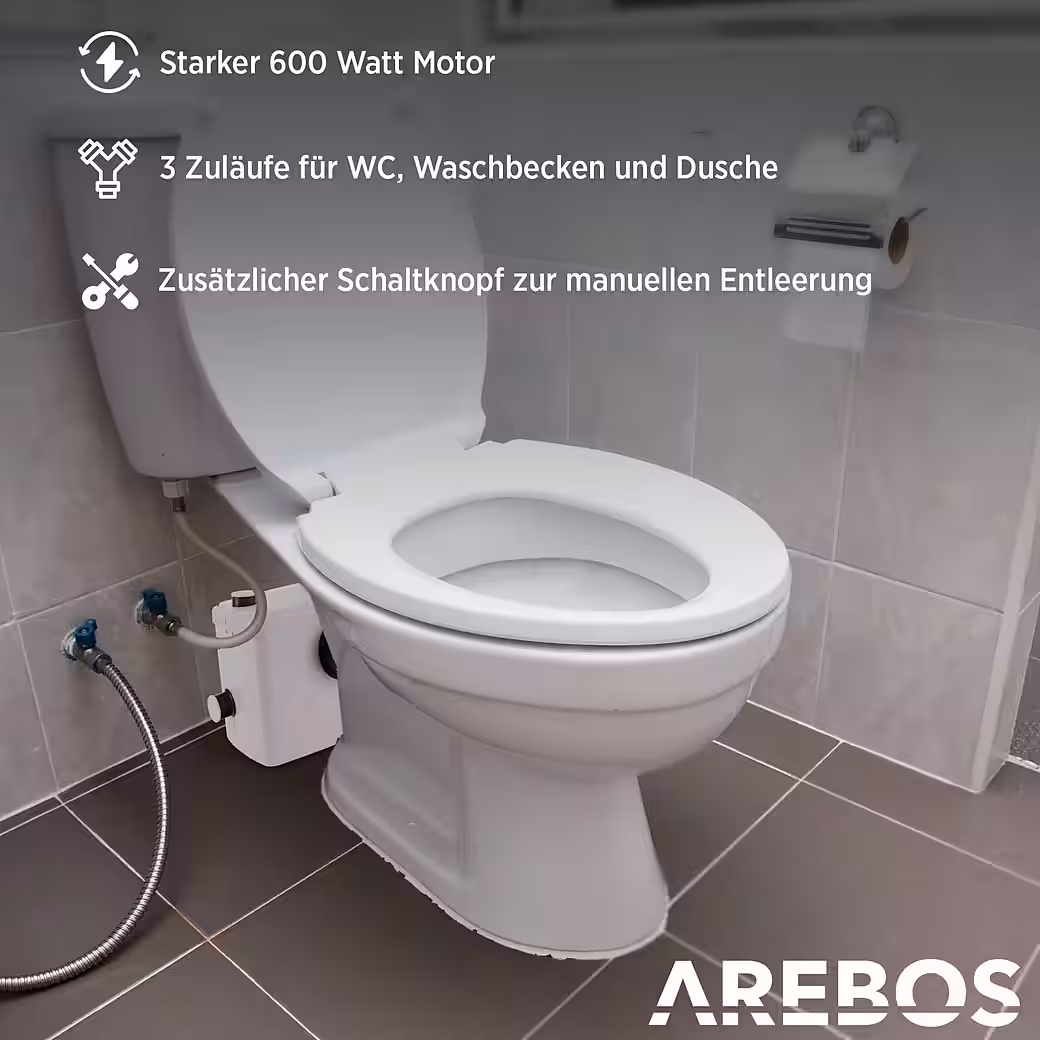

The AREBOS compact lifting station is the ideal solution for pumping wastewater from lower-lying areas. The unit can be connected directly to the toilet outlet. In addition to the large inlet, the system has two smaller inlets suitable for connecting a shower and sink. Unused inlets can be easily sealed with the included plugs.

The lifting station is powered by a high-performance 600-watt motor; this enables the lifting station to pump up to 100 liters of wastewater per minute and guarantees the crushing of solid components in the wastewater before they are then transported away.

While the pump switches on automatically as soon as the flush is activated, the unit also has a switch that allows for manual emptying of the collection tank. The lifting station requires no special care or maintenance, but should be descaled at regular intervals. The frequency of descaling depends on the hardness of your tap water.

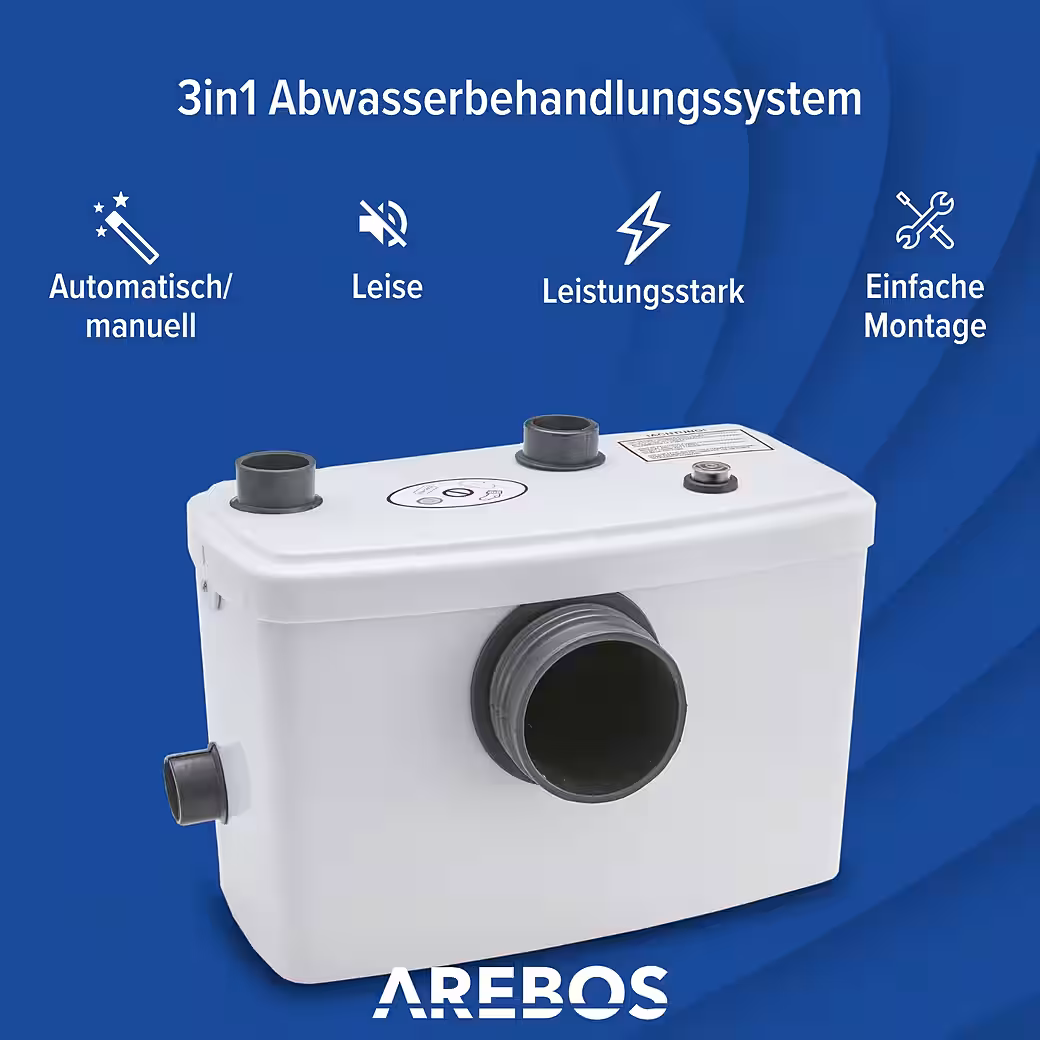

All the advantages at a glance:

• 3 water inlets for toilet, sink and shower
• Powerful and can be used for multiple purposes simultaneously.
• Motor with shredder/chopper for coarsely grinding feces
• Powerful 600-watt motor
• Pumps all wastewater up to 7 m high or 70 m far
• Additional switch for manual emptying
• Quiet operation
• Automatic intelligent operation
• Durable

600 W POWERFUL MOTOR
The lifting system is equipped with a powerful 600 W motor, yet it can ensure quiet operation, so that it can be used for pumping over long distances in actual use.

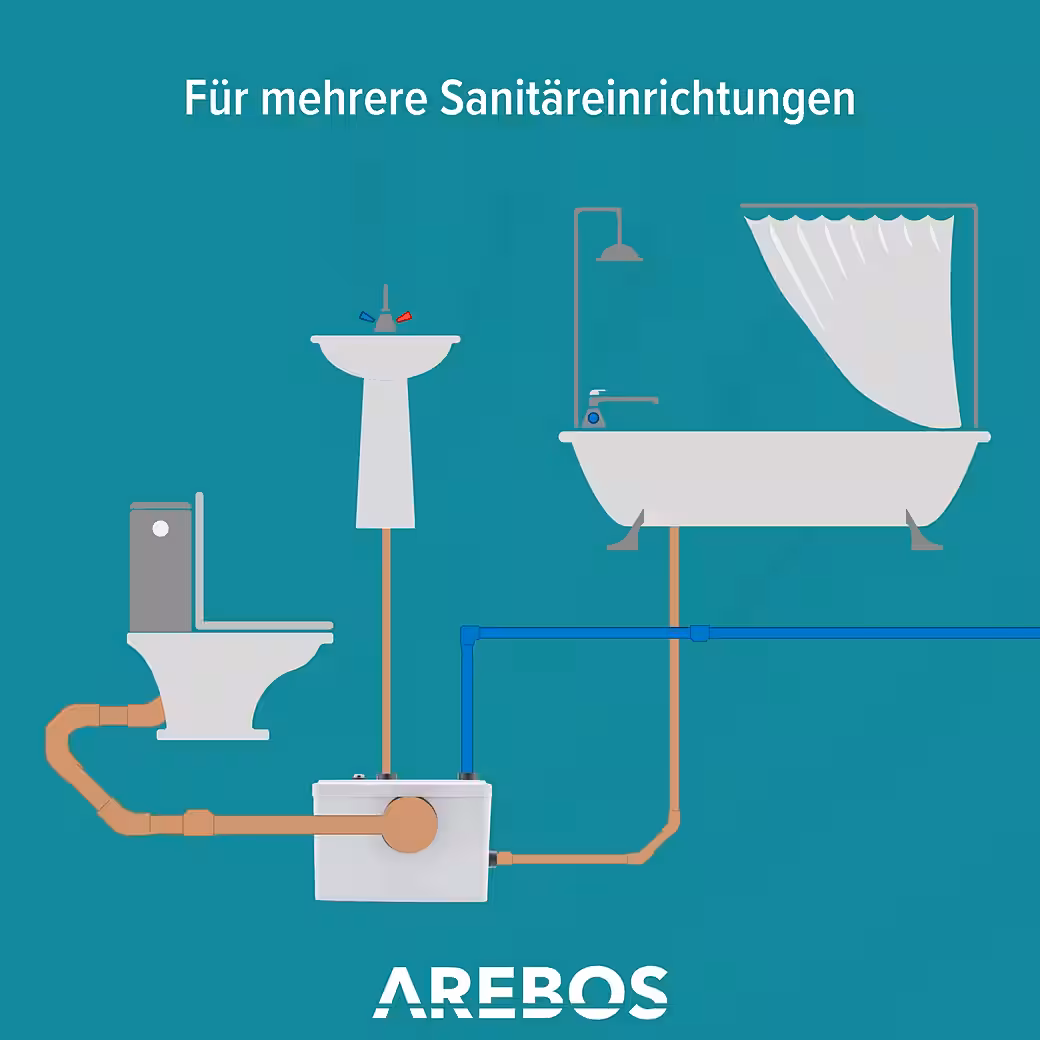

3-INLET CONNECTION:
Three water inlets on the lifting station allow for the simultaneous connection of various appliances in your bathroom or kitchen. This provides convenient and cost-effective wastewater disposal.

EASY INSTALLATION

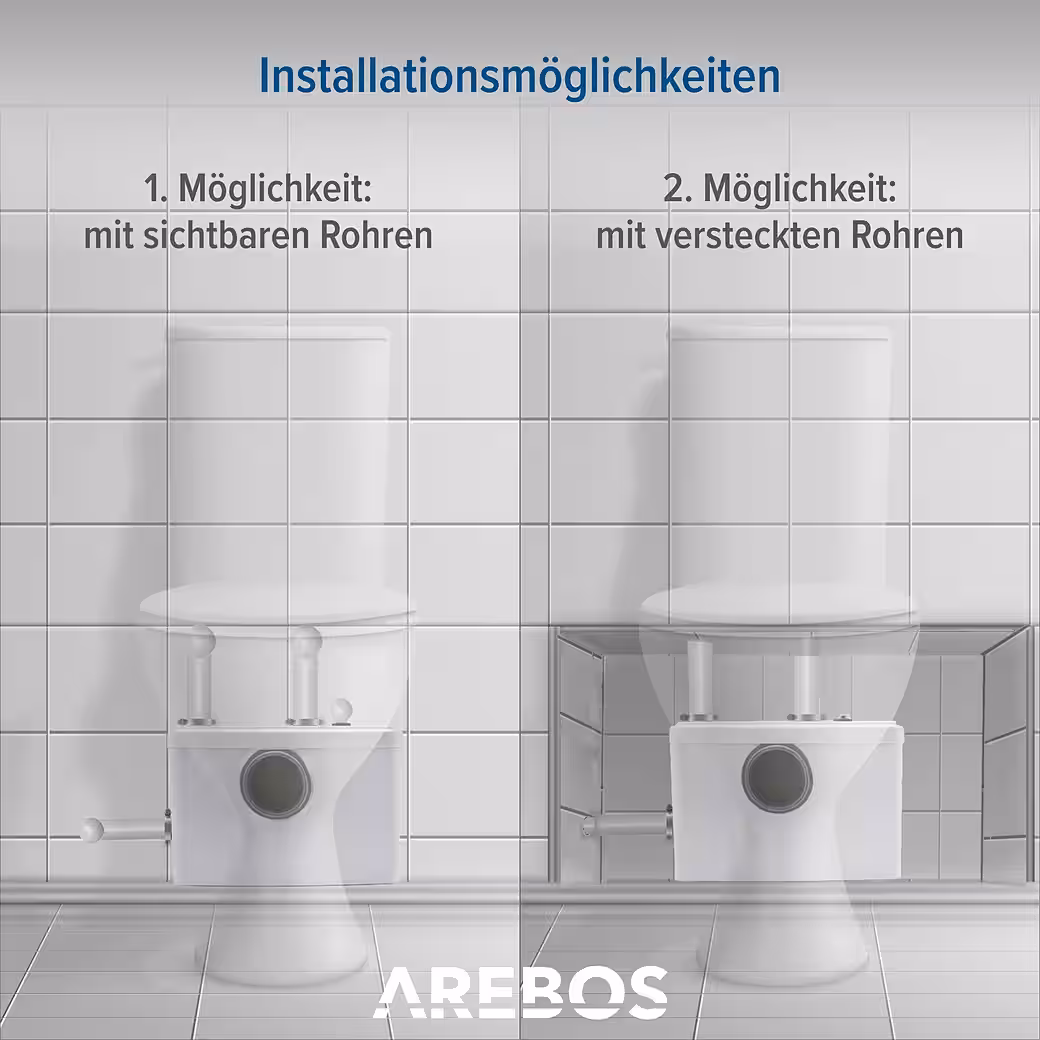

Various installation options are available to suit your needs. The lifting station can be installed behind the wall or freestanding – a quick and easy installation in just a few minutes.

LONG LIFESPAN
The advanced design guarantees not only smooth operation and long durability, but also ease of use. Fully automatic operation when wastewater is detected. The tight seal and thick housing ensure quiet operation.

Waterproof Class IPX4:
The waterproof design, including a manual button and power cord, allows the machine to achieve an IP4X waterproof rating. This makes it suitable for applications such as bathrooms, where it might get wet.

WIDE APPLICATION

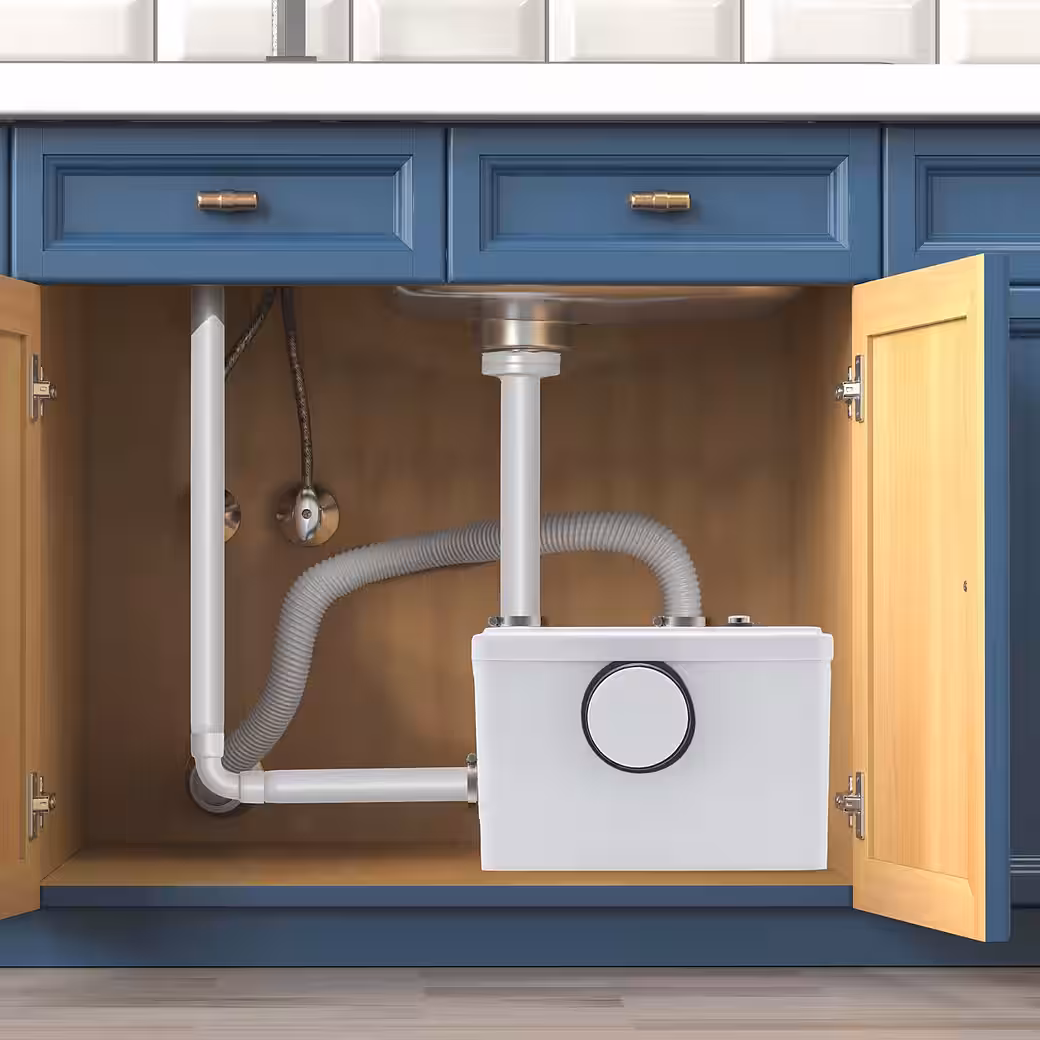

The portable lifting station is used in many situations, e.g. in basements, attics, kitchens, bathrooms, etc. A good helper for water disposal.

Technical data:

• Power: 600 W
• Input voltage: 230 V / 50 Hz
• Maximum delivery head: 7 m
• Maximum conveying distance: 70 m
• Number of blades: 3

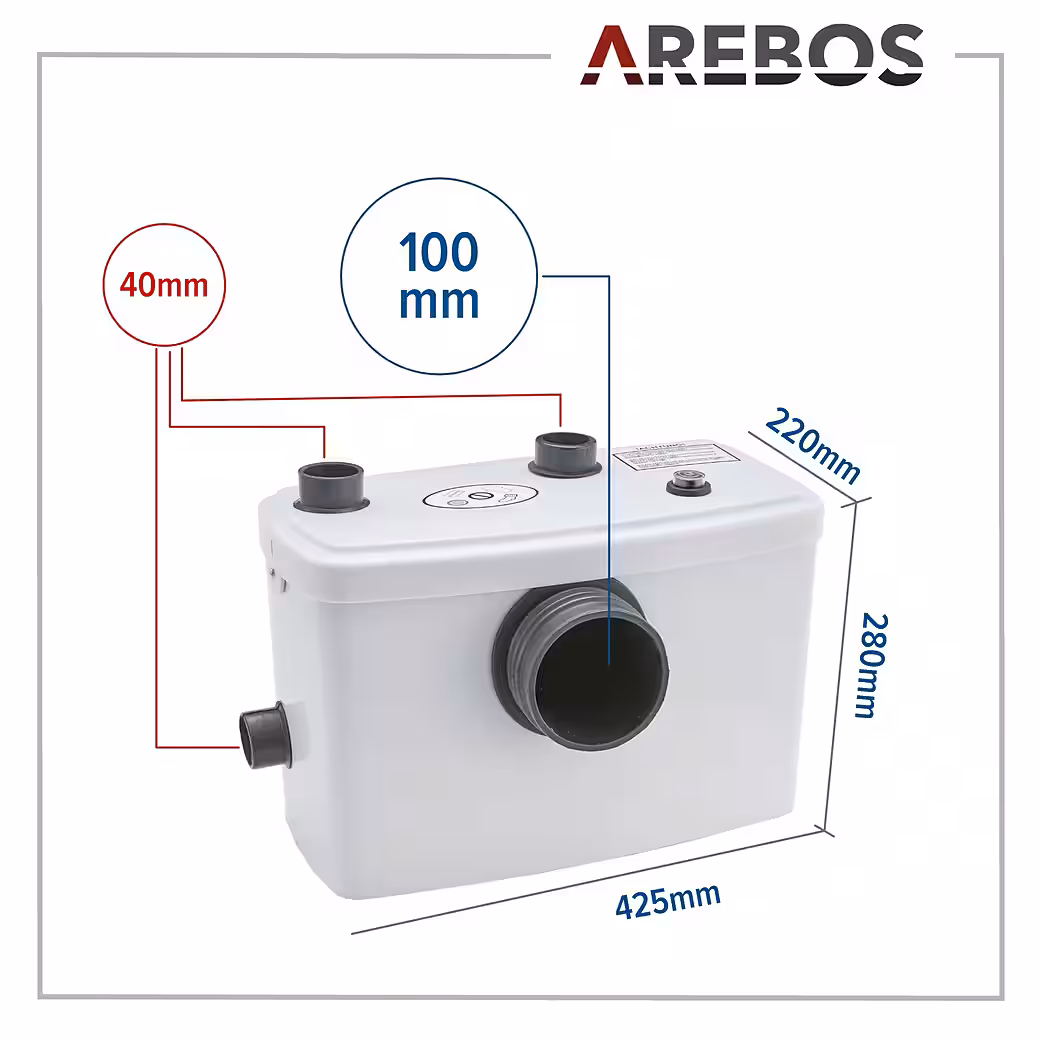

• Wastewater connection: Ø 40 mm
• Wastewater inlet: Ø 100 mm
• Pump type: Centrifugal pump
• Inlet flow: 100 l/min
• Idle speed: 2850 rpm
• Material: Polypropylen
• Control: Automatic / manual
• Pump shaft: Horizontal
• Protection rating: IPX4
• Permissible water temperature: 1 – 90 °C
• Brand: AREBOS

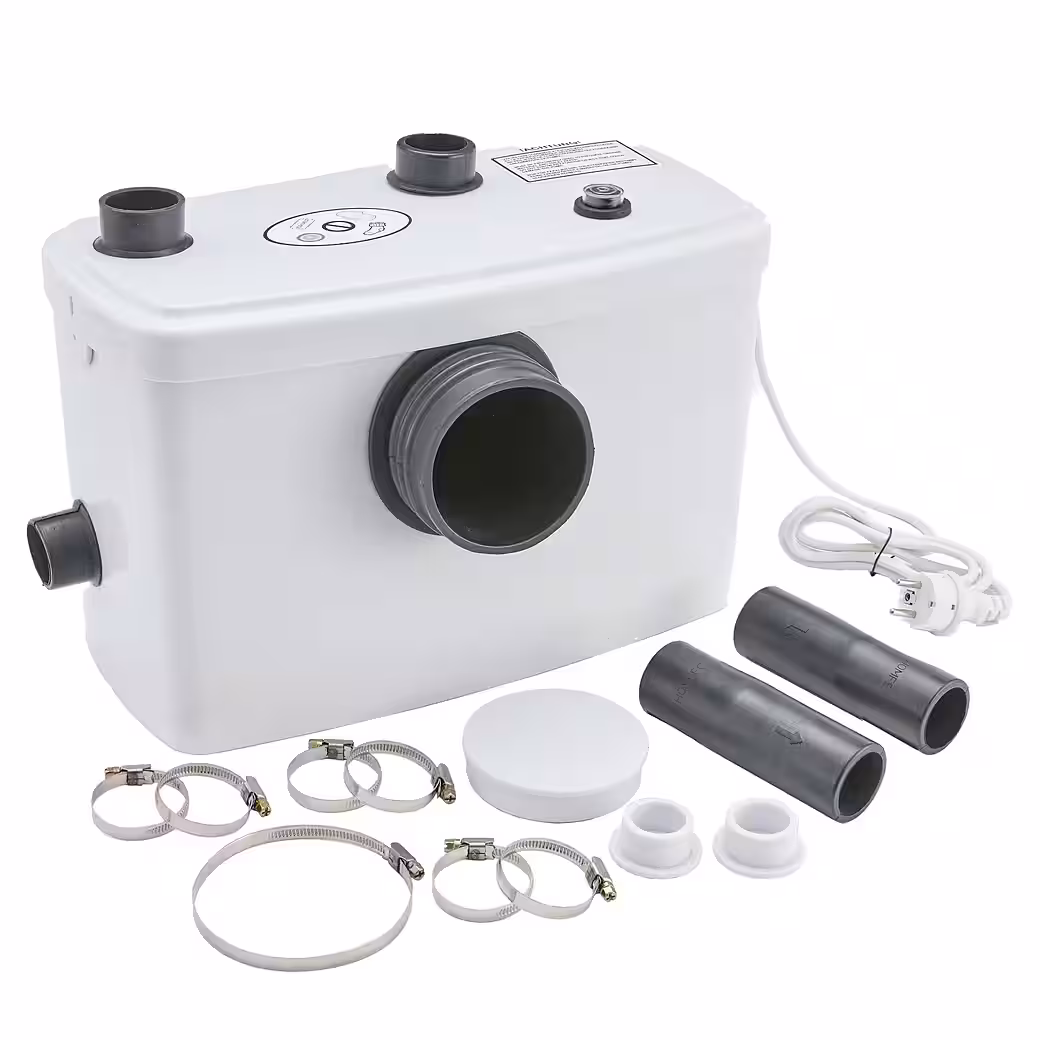

• Scope of delivery:
  1x small lifting station
  , 6x clamps for 40 mm inlet,
  1x clamp for toilet inlet,
  2x non-return valves,
  3x plugs for unused supply lines,
  1x instruction manual
