Voga wood-burning stove 6.5 kW, intermittent burning

 3.014,00

Description

Item description

Article No. 611 110 374 5
  • Steel chimney
  • Glass ceramic viewing window from SCHOTT ROBAX®
  • With a wooden compartment
  • Maximum room heating capacity for intermittent burning: 131 m³
  • For a cozy atmosphere in the cold season

Natural warmth: JUSTUS wood-burning stove, steel, 6.5 kW, vermiculite

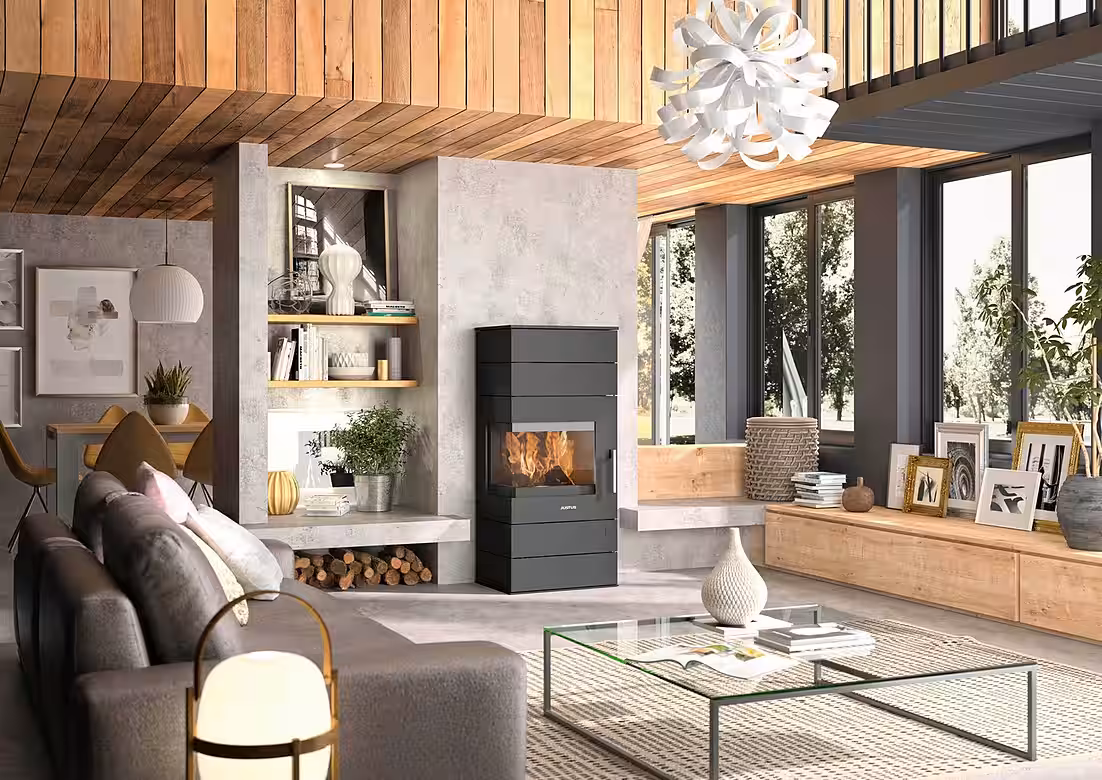

Wonderful family evenings in front of the stylish “Voga” Swedish stove from JUSTUS .

Heat output and room sizes – how do you calculate that?

With a nominal heat output of 6.5 kW and a maximum heating capacity of 131 m³, it keeps a medium-sized living area comfortably warm. Thanks to its stylish design, the steel body of this fireplace is a real eye-catcher. The attractive steel cladding makes it a striking feature in any room. The fireplace achieves an efficiency of 80%.

Here, the exterior and interior match perfectly.

With its flat, 47 x 37 cm (H x W) viewing window, you have an unobstructed view of the embers. Thanks to the tertiary air supply, the window is self-cleaning – truly convenient. The firebox is lined with vermiculite and measures 33 x 44 x 28 cm (H x W x D). Vermiculite in the firebox lining ensures efficient heating. The practical wood storage compartment with a door helps you save time! It provides ample storage space for firewood right next to the fireplace. This model features an integrated ash pan, allowing you to easily and cleanly dispose of spent, cold ash and charcoal residue with your regular household waste.

Weekend feeling: easily achievable with the “Voga” wood-burning stove from JUSTUS, featuring a nominal heat output of 6.5 kW and a steel casing.

Additional accessories can be found under »Accessories for fireplaces«.

Details

Product details
Model designation Voga (W+)
equipment Ash container,
wood compartment,
wood compartment door,
viewing window
Characteristics double-walled
external combustion air supply
Type of fuel Wood, wood
briquettes
Type of oven Time fire
Shape of viewing window straight
Type of door lock 2-point door locking
Flue pipe connection top
rear
Technical data
Nominal heat output 6.5 kW
efficiency 80%
Maximum room heating capacity 131 m³
design A1
Type of air supply Primary air supply
Tertiary air supply
Required delivery pressure at nominal heat output 12 Pa
Standards BimSchV 2nd stage
DIN EN 13240
VKF (Switzerland)
§ 15a B-VG (Austria)
Dust emissions according to the Federal Immission Control Ordinance (BImSchV) 21 mg/m³
Maximum exhaust gas mass flow 6.6 g/s
CO emissions 1 g/m³
Maximum heating output 6.5 kW
Energy efficiency class (scale) A+ (A++ to G)
Dimensions & Weight
Wide oven 62 cm
Deep oven 45.5 cm
Oven height 116.5 cm
Weight 210 kg
Wide firebox 44 cm
Deep firebox 28 cm
Firebox height 33 cm
Pipe diameter for external air supply 10 cm
Height from bottom edge to center of external air supply 347 mm
Flue pipe diameter 150 mm
Height from bottom edge to center of flue pipe connection 1038 mm
Deep rear edge to center of flue pipe connection 227.5 mm
Maximum length of fuel 40 cm
Safety distance in front 125 cm
Safety distance behind 20 cm
Safety distance lateral 40 cm
Wide viewing windows 37 cm
Height of viewing window 47 cm
Color & Material
Body material Steel
Body color black
Cladding material Steel
Color trim black
Material firebox Vermiculite
Notes
Article notes All specifications are approximate.
The Justus Vogo wood-burning stove can be expanded by up to 3 additional stove extension segments.
A fireproof surface is required for installation; otherwise, a steel or glass floor plate, which you can find under stove accessories, is required.
Scope of delivery without memory chips
