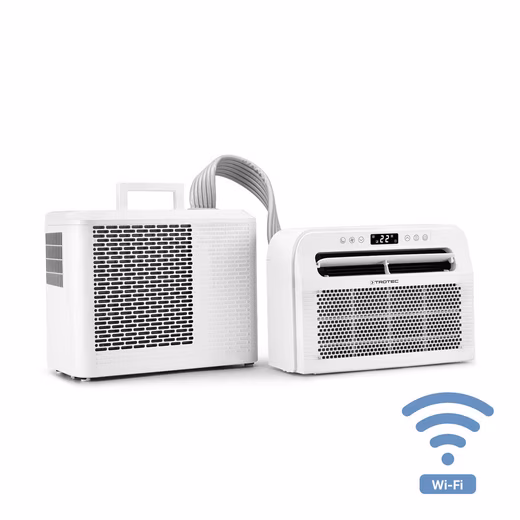

The PAC-C 1500 S WiFi is an air conditioner specifically designed for use in caravans and motorhomes. With integrated cooling, dehumidifying, and ventilation functions, it ensures a comfortable indoor climate while traveling – reliably, efficiently, and easily. The combination of indoor and outdoor units is particularly space-saving and easy to install. Three operating modes: In cooling mode, it efficiently lowers the room temperature to the desired level, with the compressor automatically adjusting its output. This keeps the room temperature constant and comfortable. In dehumidifying mode, moisture is removed from the air, significantly improving the indoor climate, especially in high humidity. The ventilation function allows for pure air circulation without changing the temperature. Operation is conveniently controlled via the control panel on the indoor unit. Additionally, the unit is WiFi-enabled and can be easily controlled via smartphone using the Trotec Assistant app. Specially developed for motorhomes – safe and flexible installation: The air conditioner consists of an indoor and an outdoor unit that are permanently connected. Both units are hung together in a window of the vehicle. The outdoor unit is located outside the vehicle, while the indoor unit is installed inside. The integrated connecting line must not be disconnected or damaged. The condensate pump in the indoor unit automatically transports any condensate to the outdoor unit, where it evaporates on the heat exchanger. Manual draining is only necessary in case of a malfunction. Easy to use – with timer, night mode, and swing function. Thanks to its well-designed controls, the PAC-C 1500 S is intuitive to operate. The timer allows for timed on/off switching in 1-hour increments up to 24 hours.
Details
Top Feature
| Top Features |
3-in-1 Air Conditioner: Cooling, Ventilation, Dehumidification. Specially designed for use in caravans and motorhomes. Environmentally friendly refrigerant R290. Integrated condensate evaporation. Night mode for particularly quiet operation while sleeping |
General
| Further advantages |
Room thermostat with temperature display
Automatic fault diagnosis
Automatic function
Timer function
WiFi-enabled: can be conveniently controlled via smartphone using the Trotec Assistant app |
Handling & Comfort
| Cooling Type |
Air |
| Operation Type |

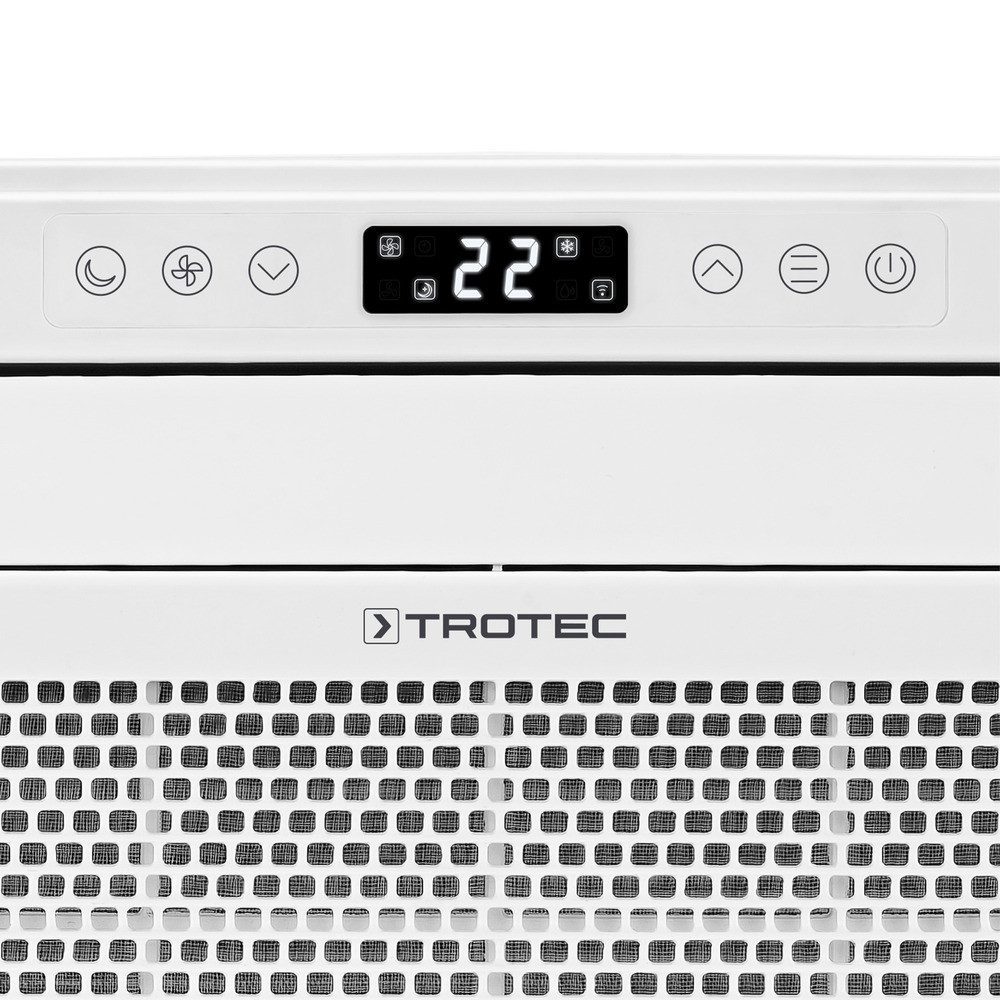

Control panel:
Conveniently via smartphone using the Trotec Assistant app via WiFi connection |
| Adjustable airflow direction |
Yes |
Color & Material
| Color |
White |
| Housing Material |
Plastic |
Dimensions & Weight
| Weight |
17.5 kg |
Technical Data
| Total Power |
1465 W |
| Voltage |
220 – 240 V |
| Fuse |
10 A |
| Dehumidification capacity |
12 l/day |
| Minimum noise level |
56 dB |
| Maximum volume |
56 dB |
| Minimum temperature |
21 °C |
| Maximum temperature |
43 °C |
| Suitable room size in cubic meters |
37 m³ |
| Suitable room size in square meters |
12 m² |
| Type mains plug |
CEE 7/7 |
| WEEE Reg. No. DE |
99663130 |
Programs & Functions
| Number of Ventilation Levels |
2 |
Features
| Air conditioner features |

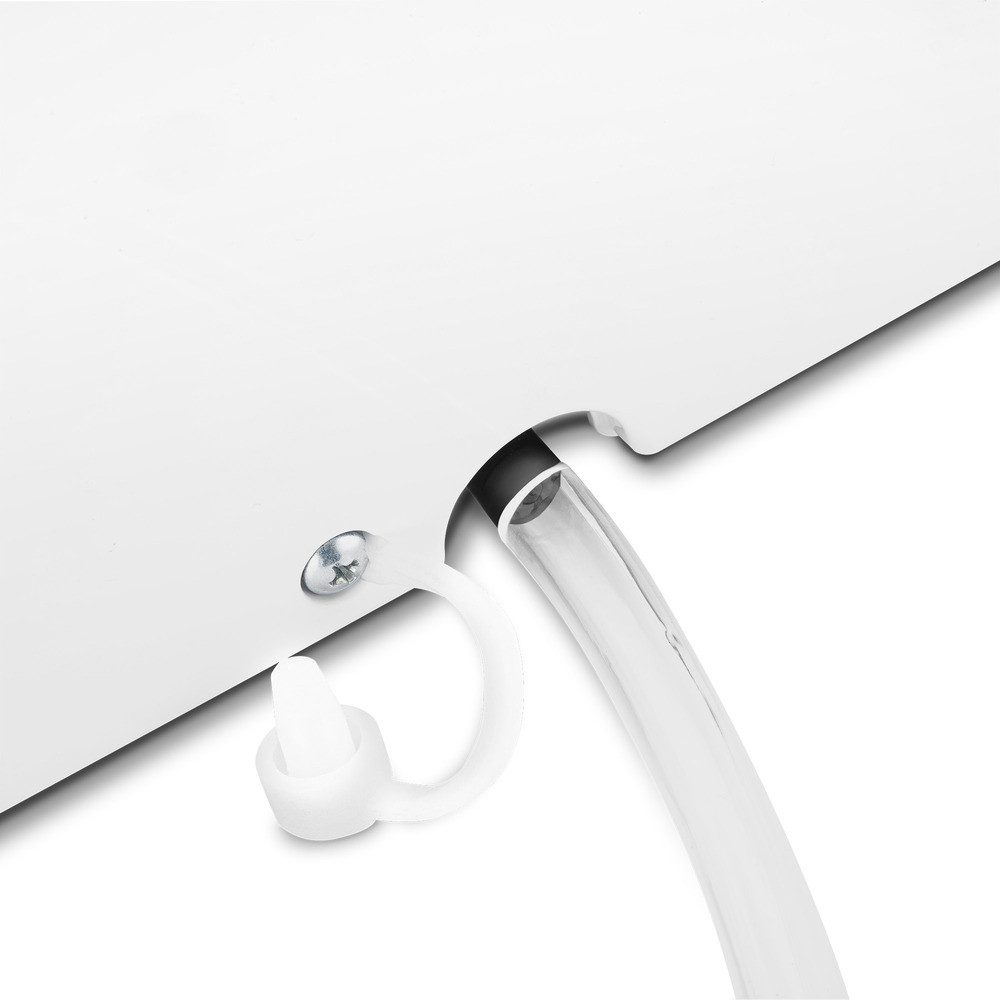

Condensate drainage with condensate drain and condensate tray, Automatic fault diagnosis, Automatic function, Ventilation function, Dehumidification function, Microprocessor-controlled operation, Room thermostat with temperature display, Swing function, Timer, Carrying handle, Plastic housing |
| Included Accessories |

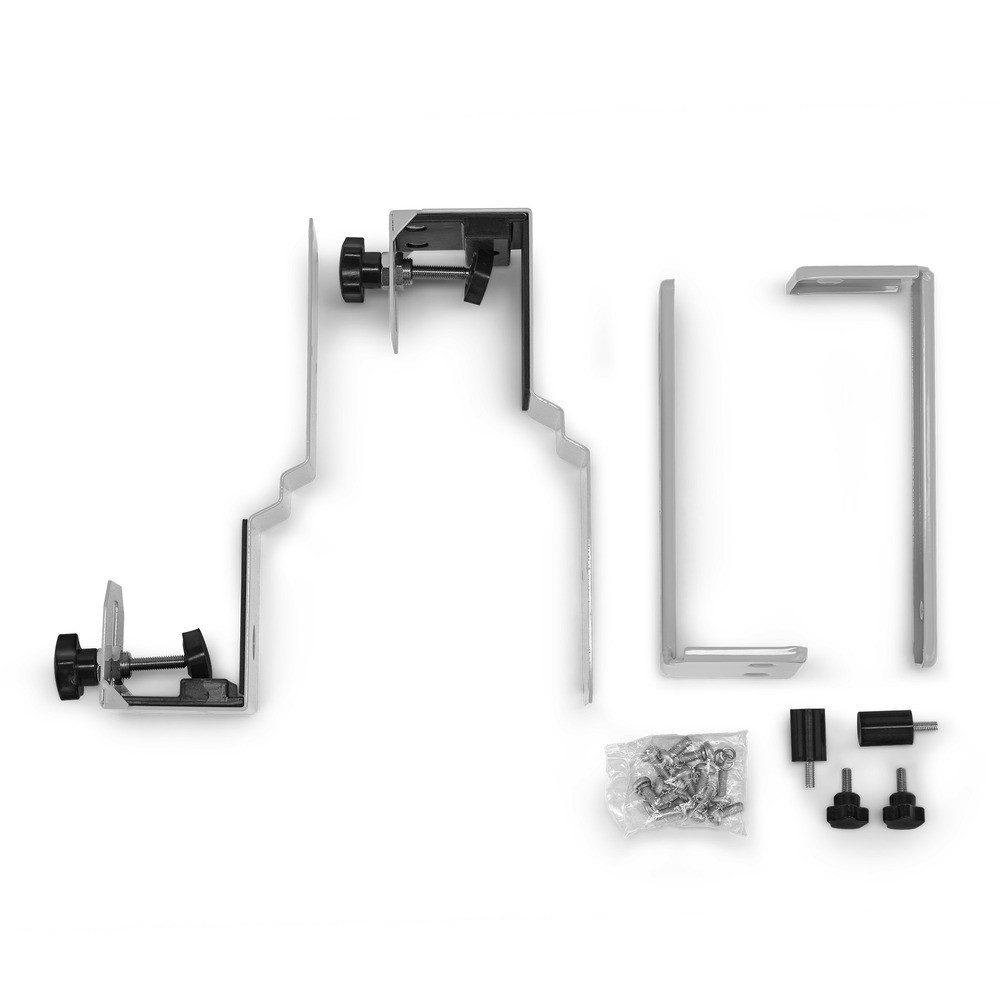

Outdoor unit, indoor unit, 2 x indoor brackets, 2 x outdoor brackets, 2 x star knob screws, 12 x screws, 2 x spacers, condensate drain hose, protective cover, instruction manual |
Important Information
| Article Instructions |

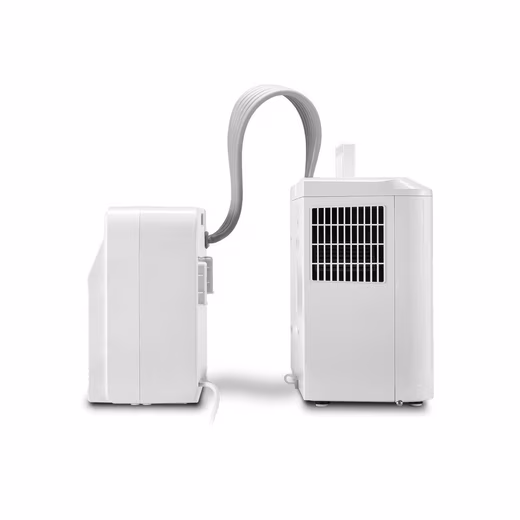

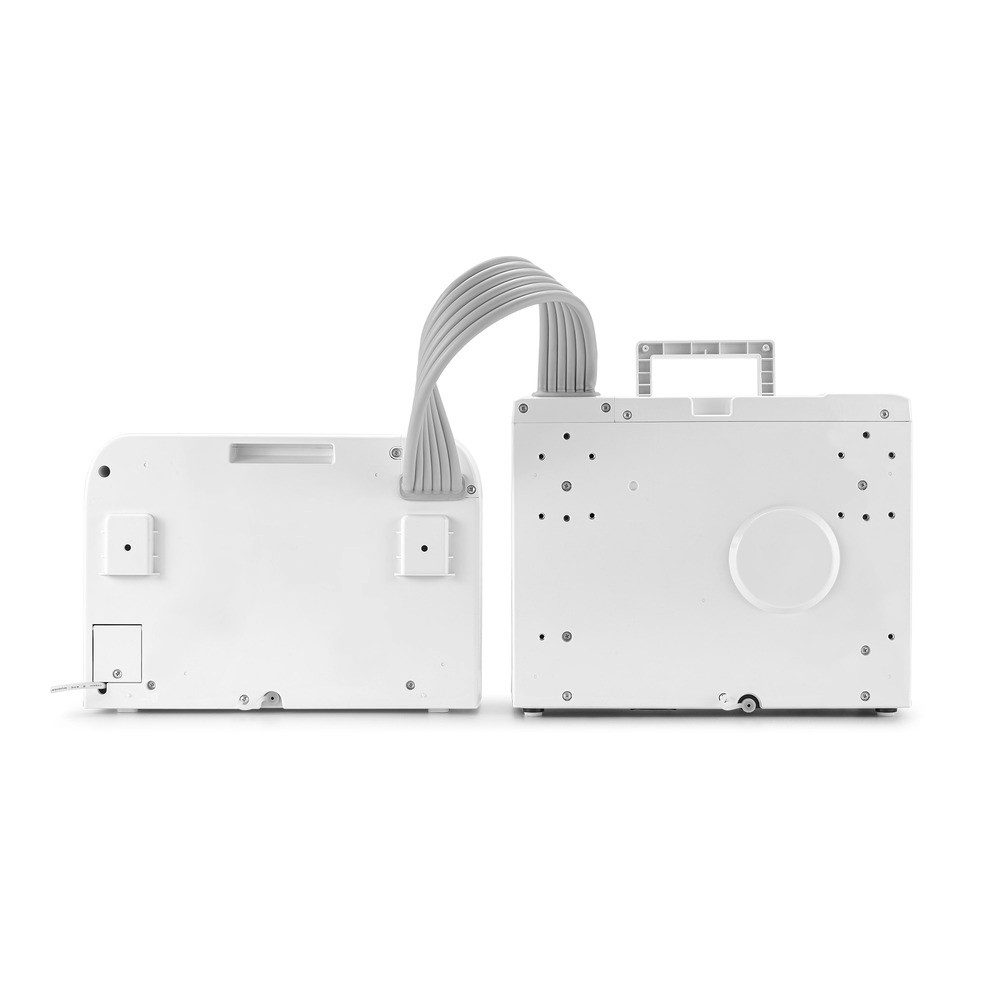

The outdoor unit is located outside the vehicle, while the indoor unit is installed inside. The integrated connecting cable must not be disconnected or damaged |
Delivery & Installation
| Installation Type |

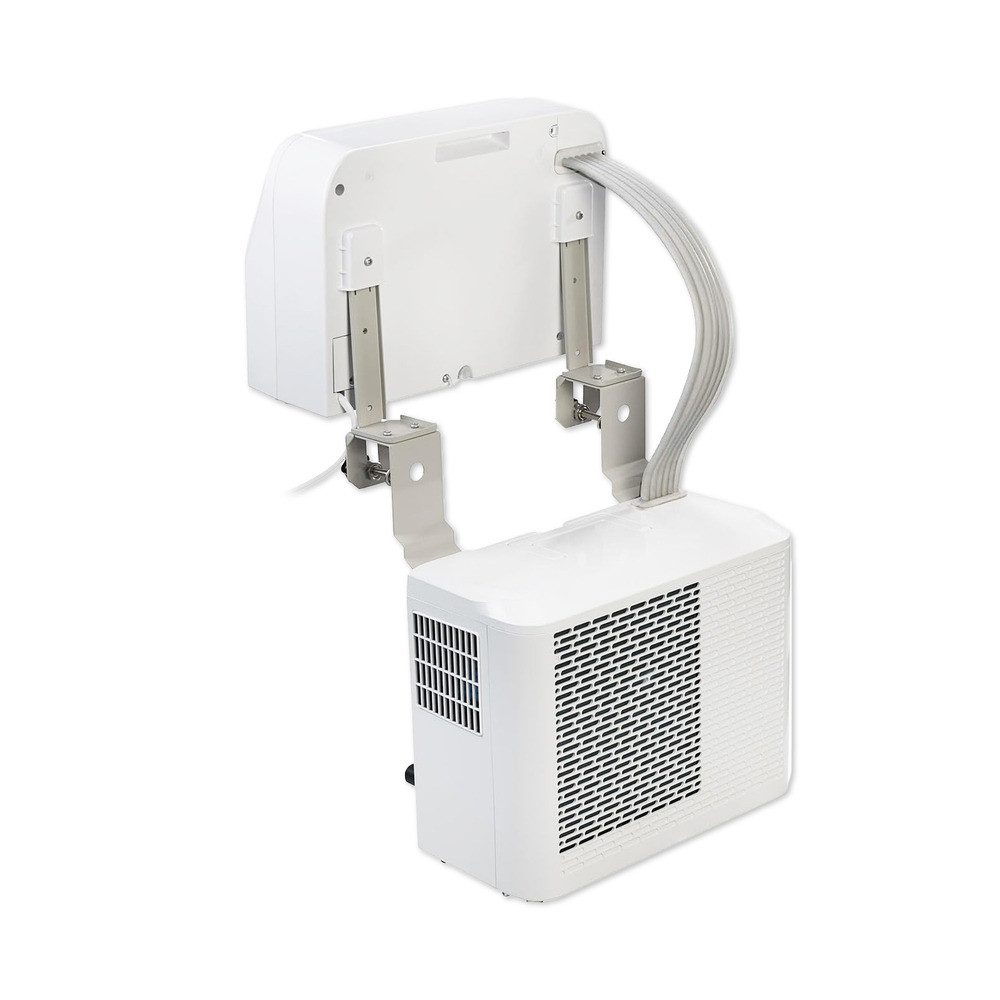

Both units are hung together in one window of the vehicle |
Performance & Consumption
| Refrigerant Type |
R290 with a GWP factor of 0.02 |
| Energy efficiency class cooling (scale) |
A (A+++ to D) |
| Maximum cooling capacity in BTU/h |
5000 |
| Maximum cooling capacity in watts |
1465 W |
| Amount of refrigerant |
0.13 kg |
| Model name |
PAC-C 1500 S |
| Rated coefficient of performance (COP) cooling |
1465 W |
| Global Warming Potential (GWP) |
0.02 |
