Sygonix Wallbox electric car charging station Type 2 Mode 3 32 A 22 kW App, WiFi, RFID

overview

Charging function according to IEC 61851 Mode 3 with up to 22 kW.
The LCD color display shows the charging status, including charging time, charging power, voltage, current, operating temperature, etc.

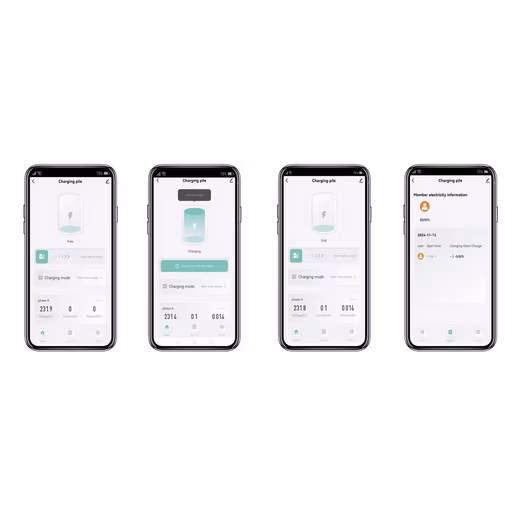

Remote controllable via mobile app using WLAN or Bluetooth®.

Description

Intelligent EVSE Type 2 Wallbox – Safe and Fast Charging.
This robust wallbox offers fast and safe charging of your electric car at home. With numerous safety features and intuitive operation, it’s the ideal companion for every EV owner.
The wallbox delivers a maximum charging capacity of 22 kW and comes with a 5-meter Type 2 charging cable. Thanks to the integrated LED display, you always have the charging process in view.

Characteristics

5 m charging cable Type 2,
LED indicator for charging status,
emergency stop switch for safely switching off the wallbox in an emergency,
overheating protection,
overcurrent
protection, overvoltage
protection, undervoltage
protection, leakage protection
, settings for timer and charging current,
charging log display,
protection class:
Wallbox: IP65,
Cable Type 2: IP65 (unplugged), IP55 (plugged in)

Scope of delivery

Wallbox + 7 x long screws + 7 x wall plugs + 4 x short screws + cable holder + 2 x metal mounting plates + 3 x cards + instruction manual
