Space-saving staircase, beech wood 3000 with wood and stainless steel railing in white, right side

Technical data for the stair model space-saving staircase beech 3000 with wood-stainless steel railing in white on the right – as shown in the photo.

Generally

• Staircase type: Solid wood stringer staircase
• Floor height up to: approx. 279.5 cm
• Material: natural beech plywood; ideal for individual finishing and color design
• Material thickness: approx. 27 mm
• Angle: 62 degrees

Dimensions of the staircase

• Projection: approx. 153 cm
• Width:
• • with wooden railing (can be mounted on the left or right): approx. 59 cm – railing on both sides: approx. 61 cm
  • with wood and stainless steel railing (silver or white stainless steel bars): approx. 59.5 cm – railing on both sides: approx. 62.5 cm
  • with wood-on-wood design railing: approx. 59.5 cm – double-sided railing: approx. 62.5 cm

• Minimum ceiling opening dimensions: This solid wood stringer staircase is suitable for ceiling openings with dimensions of approximately 59 x 120 cm or larger.
• Maximum ceiling opening: any

Steps

• Number: 12
• Gradients: 13

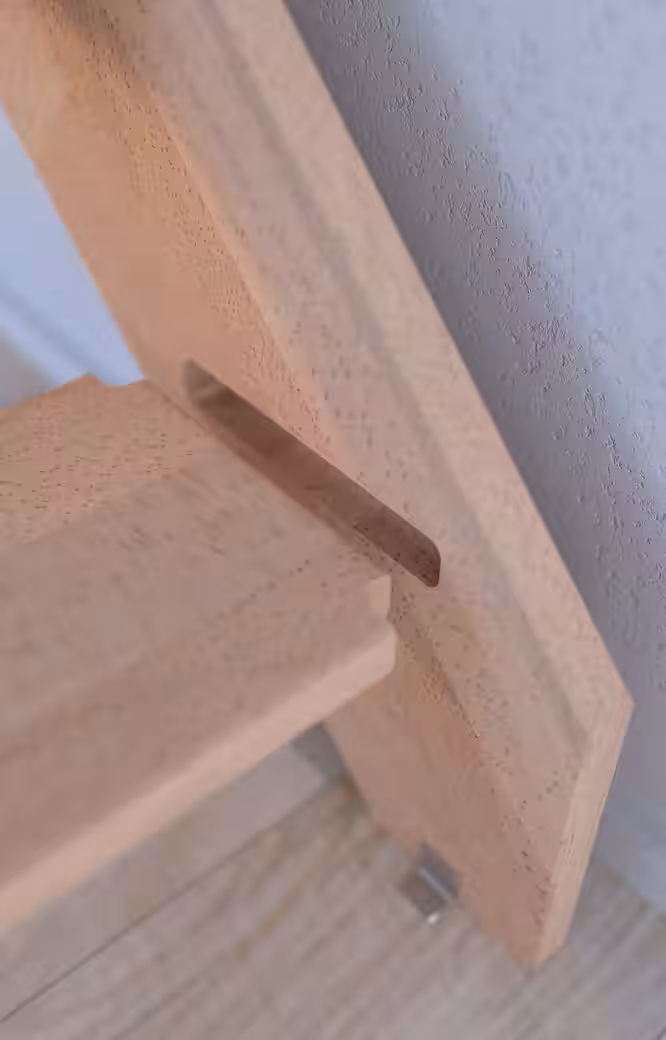

• Type: mortised steps
• Depth: approx. 14.5 cm
• Step thickness: approx. 27 mm
