Solar system 3000 W, (3 kW photovoltaic system with 8 solar panels & inverter), 3000 W, complete set, 8 modules, inverter, Wi-Fi & app

With this powerful 3 kW photovoltaic system featuring 8 solar panels and an inverter, you can produce renewable electricity from solar energy at home. The set consists of eight 400 W solar modules and an efficient, perfectly matched inverter. This allows you to effectively generate solar energy even in low-light conditions, which can be fed directly into your home’s electrical grid and used for other purposes or paid for. Thanks to the integrated Wi-Fi connection, you can monitor your electricity production at any time using your smartphone or computer. Contribute to a better future with renewable energy, lower electricity bills, and greater energy independence.

Product features:

• High-performance 3 kW PV system for electricity
• Efficient solar modules with state-of-the-art PERC technology
• Compact inverter with high efficiency
• Smart control and operation via smartphone or computer
• Weatherproof according to protection class IP65

Produce renewable electricity.

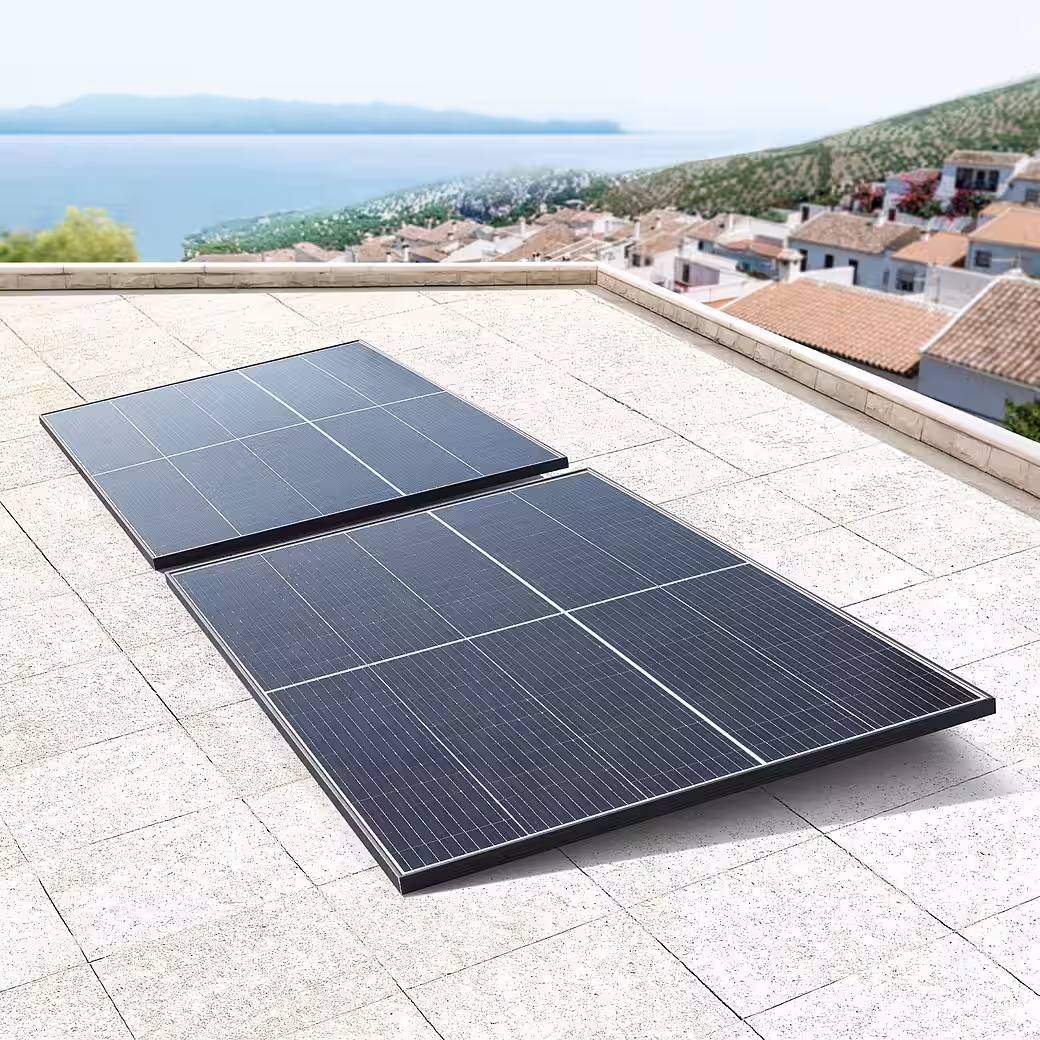

Boost your own clean energy. Eight solar panels with a system output of 3200 Wp generate plenty of electricity for your own use or for feeding into the public grid. This saves you real money.

Advanced technology:
The monocrystalline modules feature state-of-the-art PERC technology. This allows them to produce solar power very efficiently even in poor lighting conditions.

High stability:

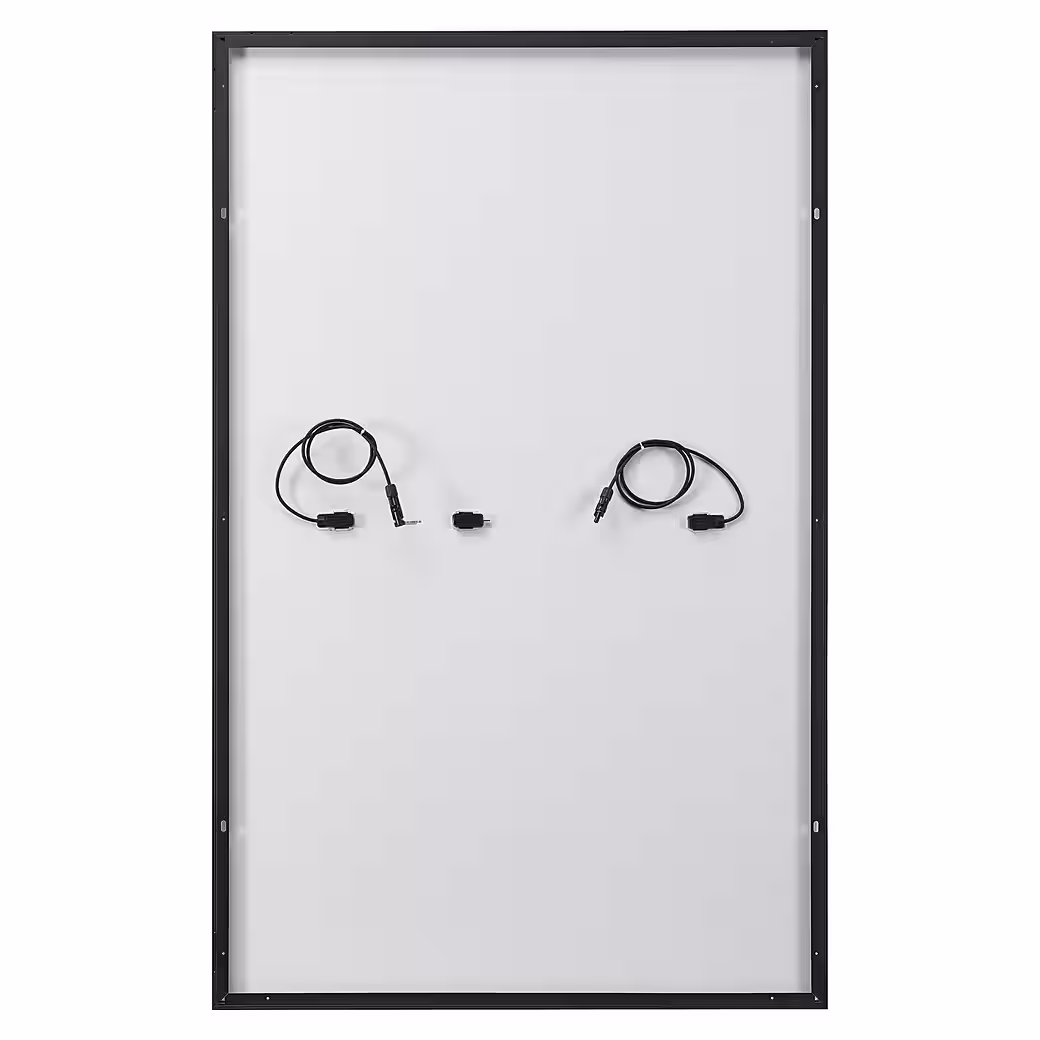

The sturdy panels feature a torsion-resistant construction made of durable aluminum, allowing them to withstand snow and storms. Thanks to a tempered glass surface, they are also exceptionally long-lasting.

Low-loss conversion:

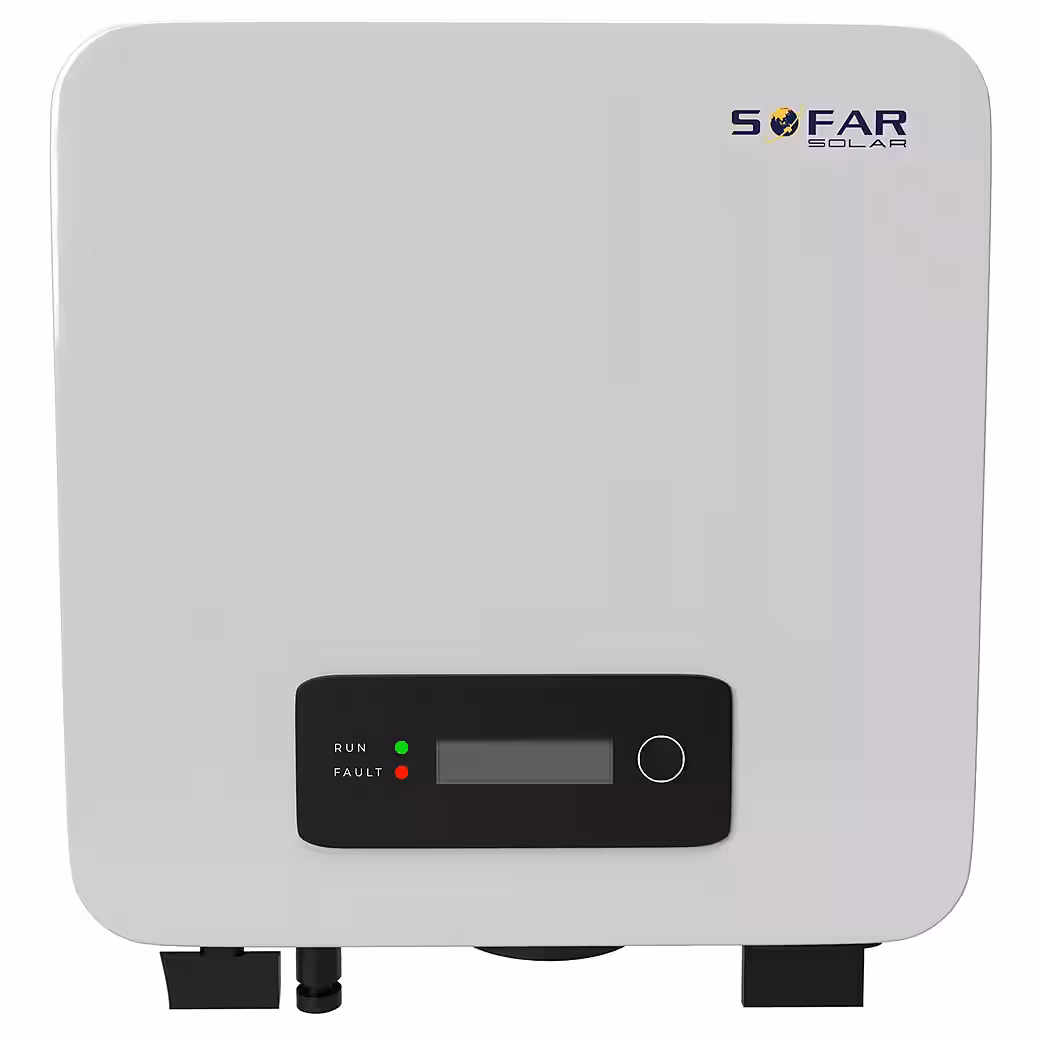

The single-phase string inverter transforms the self-generated electricity into the required alternating current suitable for the home grid. Thanks to its MPPT efficiency of up to 97.7%, it operates with virtually no loss.

With WiFi connectivity
: Using the included WiFi dongle, you can easily integrate the inverter into your smart home. This gives you constant oversight and control of your photovoltaic system, conveniently via smartphone or computer.

Safety is paramount.
Thanks to protection classes IP68 (panels) and IP65 (inverter), the system is optimally protected against wind and weather. Furthermore, the inverter features a variety of protective devices, such as DC reverse polarity protection.

Technical data:

• Color: Black
• Power: 400 W per panel
• Cells: 120x PERC, monocrystalline
• Maximum system voltage: 1500 V DC
• STC rated voltage: 34.89 V
• STC rated current: 11.76 A
• Open circuit voltage: 41.9 V
• STC module efficiency: 21.3%

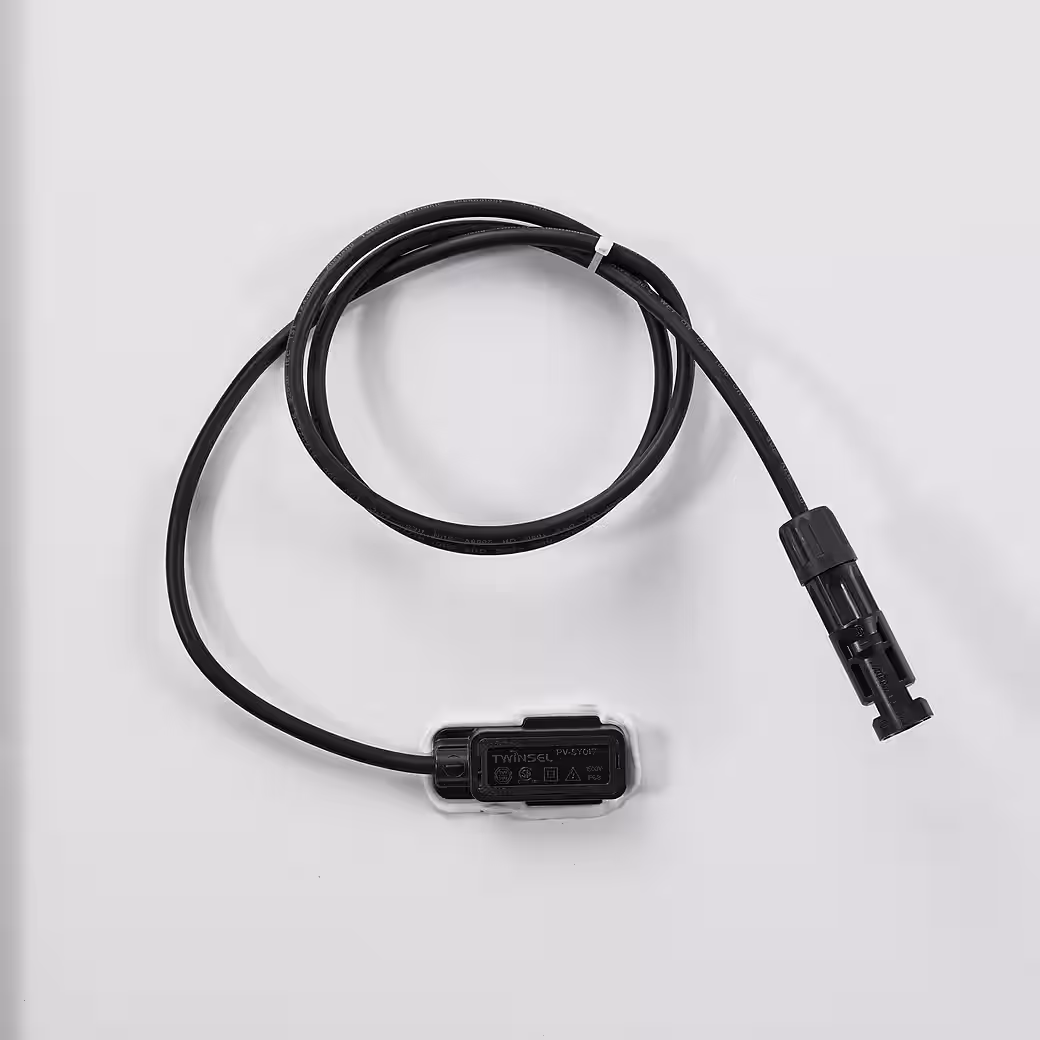

• Connection: 2x MC4 (+/-)
• Protection class: IP68 waterproof and dustproof
• Operating temperature: -40 °C to +85 °C
• NMOT: 44 ± 2 °C
• Color: White
• Rated power: 3000 W
• Maximum system size: 4100 Wp
• Maximum input voltage: 550 V
• Number of MPPTs / Strings: 1/1
• Rated output current: 13 A
• Weighted EU efficiency 97.2%
• MPPT efficiency: 97.7%
• Self-consumption at night: < 1 W
• Operating temperature: -30 °C to +60 °C
• Protection rating: IP65
• Noise level: < 25 dB
• Protection functions: Anti-islanding protection, DC reverse polarity protection, over-temperature protection, leakage current protection, over-voltage protection, over-current protection, earth fault protection
• Technical principle: transformerless, single-phase
• Cooling: natural cooling
• Mounting type: Wall mounting
• Interface: WiFi, USB, RS485
• Display: LCD + LED

Material composition:

• Solar module material: Tempered glass with anti-reflective coating (ARC), aluminum
• Housing material: Plastic

Dimensions (approximate):

• Panel size: 175 x 110 x 3 cm
• Inverter dimensions (W x H x D): 26 x 32 x 13 cm

Notes:

• All electrical work on the house’s electrical system must be carried out by qualified electricians!
• Important information: Due to individual setup requirements, this set is sold without a mounting/installation system!
• Registration – Network operator: The customer must inform himself about all conditions regarding assembly, installation and operation as well as registration with local network operators, financial authorities and the Federal Network Agency in the market master data register before purchasing.
• ¹VAT rate of 0% on the supply of solar modules to the operator of a photovoltaic system, including the essential components and storage for its operation, if the system is installed on or near private residences or the gross power of the system does not exceed 30 kilowatts (peak).
• We expressly point out that by accepting our General Terms and Conditions you also confirm that you, as an end customer, meet the requirements of Section 12 Paragraph 3 of the Value Added Tax Act and can therefore purchase the offered product with a VAT rate of 0.0% (Point 5.4 of the General Terms and Conditions).

Scope of delivery:

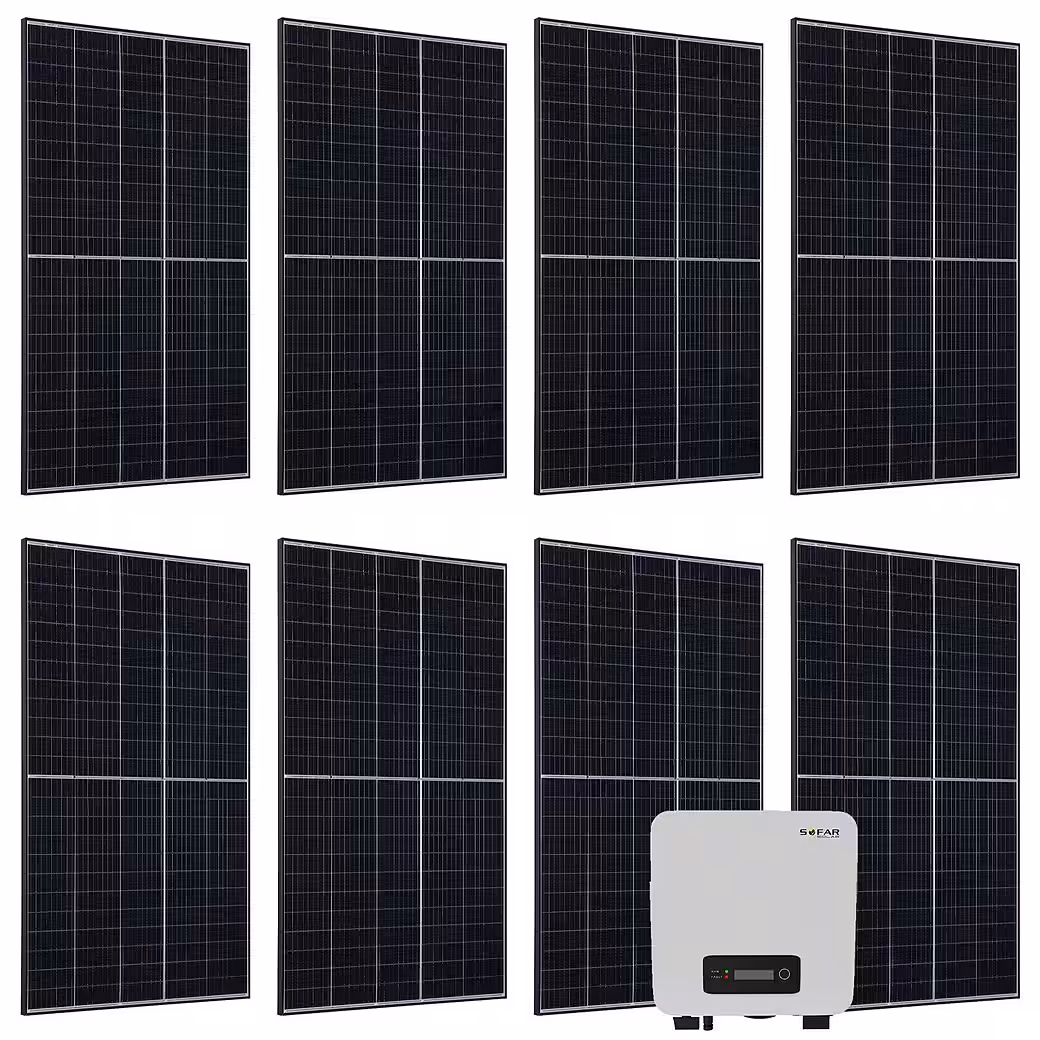

• 8 x Longi solar module RSM40-8-410M
• 1 x SofarSolar Inverter 3000TL-G3
• 1 x Set MC4 connectors
• 1 x WLAN stick
• 1 x instruction manual

The product will be delivered well-packaged as a self-assembly kit by freight carrier to your curbside. The carrier will contact you by phone to schedule the delivery date. Therefore, providing your phone number is mandatory.

The delivery will consist of multiple shipments. This may lead to delivery delays.
