Solar Panel Solar Panel 500W N-Type Bifazia Glass-Glass, 22.6% Efficiency full black

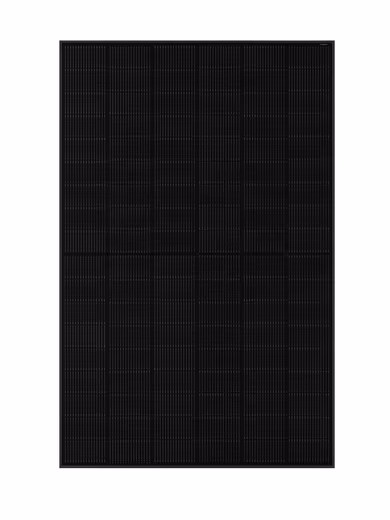

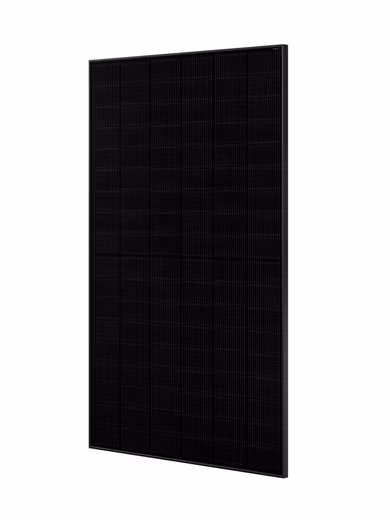

The JA Solar JAM60D41 LB is a high-performance bifacial double-glass solar module with a nominal output of 500 Wp, designed for the highest energy yields and maximum durability. Thanks to the innovative n-type Bycium+ cell technology and the 16-busbar half-cell configuration, it offers outstanding efficiency and minimal power losses.

Product features:

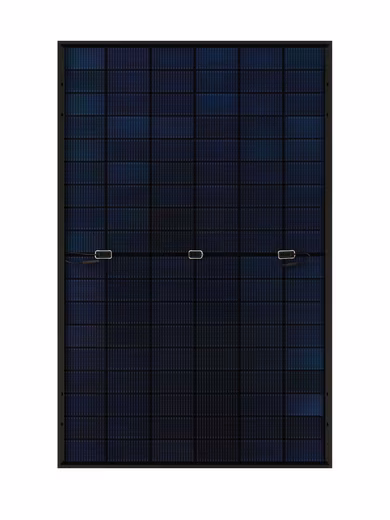

• Higher energy production through bifacial technology for additional yields on the back
• n-type cell technology with low light-induced degradation (LID) for long-term high performance
• Improved dim lighting response for higher yields even on cloudy days
• Optimized temperature coefficient for better performance in hot climates
• High-quality double-lens design (2 mm front/rear glass) for maximum stability and weather resistance
• MC4-EVO2 connector for safe and reliable installation

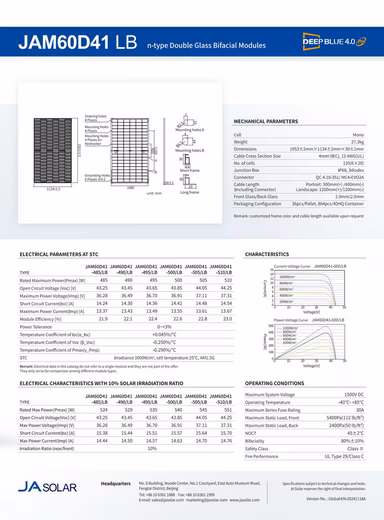

Technical details:

• Module Type: JAM60D41-500/LB
• Dimensions (H x L x W): 1953 x 1134 x 30 mm
• Weight: 27.3 kg
• Number of cells: 120 half cells (6×20)
• Rated power (Pmax): 500 Wp
• Cell Type: Monocrystalline
• Rated Voltage (Umpp): 36.91V
• Rated current (Impp): 13.55 A
• Maximum system voltage: 1500 V
• Short-circuit current (Isc): 14.42 A
• Open Circuit Voltage (Voc): 43.85 V
• Temperature coefficient Isc: +0.045 %/K
• Temperature coefficient Pmax: -0.29 %/K
• Temperature coefficient Uoc: -0.25 %/K
• Protection class: IP68 (junction box)
• Bifacial yield growth: Up to 10% additional energy yield
• Frame color: Black

Pricing Notes

The prices are net (0% VAT) – valid for use in photovoltaic systems with self-consumption. For commercial use, an additional 19% VAT is charged.

Please note: The customer is responsible for the accuracy of the information provided on the installation of the photovoltaic system. Liability may arise in the event of incorrect information.
