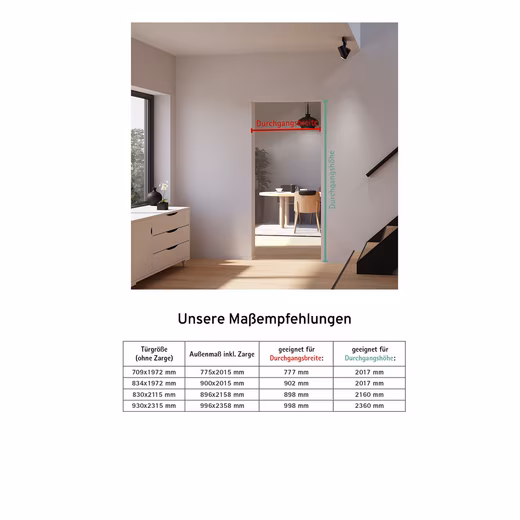

Please note the following installation dimensions:
- Selected dimensions: 1025 x 2200 mm
- Maximum wall opening width: 1000 mm
- Maximum wall opening height: 2195 mm
- Total depth: 65 mm
- Length of the track: 2000 mm
- Distance of the door to the wall: 26 mm
- Total height after assembly: 2339 mm
- Weight: 48 kg

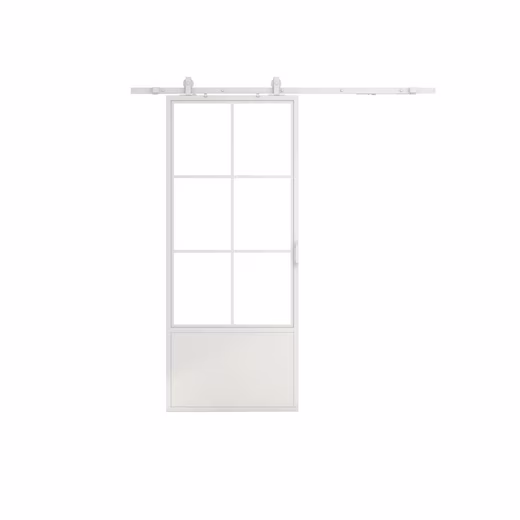

The sliding door is made of 4 mm thick clear glass with a 32 mm wide circumferential steel profile. The track is made of steel. The maintenance-free ball-bearing carriages ensure extremely smooth running – even after many years of intensive use. The floor guide pin prevents pendulum movements.
The installation of the sliding door is easy to accomplish, even for do-it-yourselfers. The complete mounting accessories including high-quality screws and dowels are included, here the enclosed additional note regarding the screws must be observed. All you need is a Phillips screwdriver and a drill with 5 mm, 6 mm and 10 mm drills. It can be attached directly to the wall or over a door frame.
Product Features:
- Sliding door hanging system with a framed sliding glass door, visible steel fittings, white powder-coated
- A 32 mm thick frame profile includes 4 mm safety glass (ESG), clear glass
- Steel bow handle on the front, recessed on the back
- incl. soft-close mechanism
- Opening direction either left or right
- Mounting holes already available
- Included floor guide pin prevents pendulum movements
- Carriage with ball-bearing smooth-running rollers
- Scope of delivery: 1 door leaf, 1 handle for the front, carriage, running rail, stopper, floor guide, mounting material, assembly instructions
