Please note the following installation dimensions:

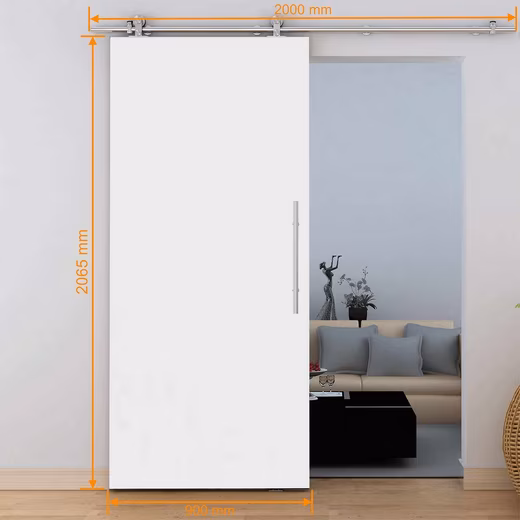

- Selected dimension: 900 x 2065 mm
- Maximum wall opening width: 875 mm
- Maximum wall opening height: 2065 mm
- Length of the track: 2000 mm
- Diameter of the track: 25 mm
- Distance of the door to the wall: 11 mm
- Total height after assembly: 2178 mm
- Weight: 44 kg
The open sliding system consists of a 38 mm thick chipboard with applied decoration. A melamine resin coating makes the décor permanently lightfast and easy to clean. The track is made of sturdy stainless steel and is therefore rust-proof. The running rail and a floor guide provide stability and prevent the door from swinging.

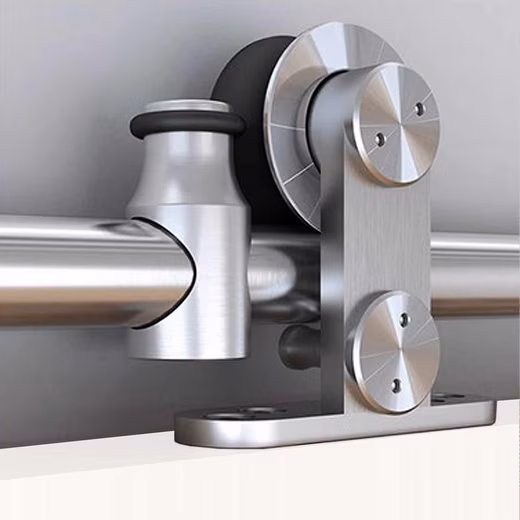

The maintenance-free ball-bearing carriages ensure extremely smooth running – even after many years of intensive use. The enclosed position stoppers prevent the door from hitting hard. The floor guide prevents pendulum movements. Thanks to the included handles, the door is easy to open and close.
The sliding door cannot be moved by its entire sash width due to the wall distance of 11 mm, as the supplied rod handle protrudes approx. 65 mm from the sliding door and thus stops the door at a certain point.
The optional soft-close retraction brakes the sliding door before it stops and allows it to slide smoothly into the end position.
This system is easy to install. The complete mounting accessories including screws and dowels are included. All you need is a Phillips screwdriver and a drill with 5 mm, 6 mm and 10 mm drills.
Product Features:

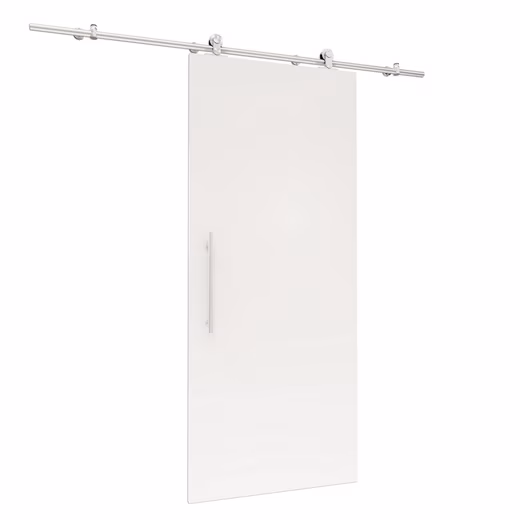

- Sliding door hanging system with a frameless door leaf, visible stainless steel hardware and stoppers
- 38 mm solid chipboard in white, similar to RAL 9010
- Handle bar in stainless steel look
- Depending on the positioning of the stopper, the door leaf can move to the end of the track
- Opening direction either left or right
- Also suitable for damp rooms
- Mounting holes already available
- Carriage with ball-bearing smooth-running rollers

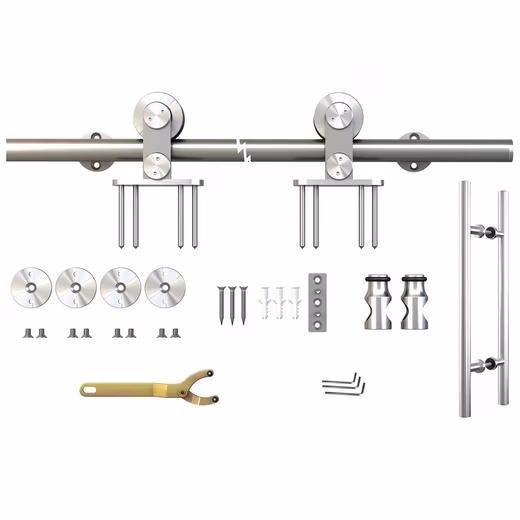

- Scope of delivery: 1 door leaf, 2 handles, carriage, running rail, stopper, floor guide, mounting material, assembly instructions
Details
Product details
| Application area |
Interior
Interior |
| Opening direction |
left or right |
| Type: Handle outside |
Bar handle |
| Type handle inside |
Bar handle |
| Features |
height-adjustable,
adjustable anchor points
, can be shortened
, easily and quietly, running,
maintenance-free
, floor-guided |
| Scope of Delivery |
1 door leaf, 2 handles, carriage, running rail, stopper, floor guide, mounting material, assembly instructions |
| Door hinge position |
without soft close |
Dimensions & Weight
| Width |
90 cm |
| Height |
206.5 cm |
| Material thickness door |
38.00 mm |
| Weight in kg |
44.00 kg |
| Note shortening |
ATTENTION: The right
of return expires with the shortening Not prepared for shortening |
| Note on correct measurement |
Important: When measuring the door opening, calculate 25 mm of installation air in width |
Colour & Material
| Color |
White, similar to RAL 9010 |
| Decor |
White |
| Material |
Stainless steel running rail |
| Wood species |
Solid chip |
| Surface coating |
Melamine Resin Coating |
| Material properties |
Shockproof
Scratch resistant |
| Structure |
Solid chip |
| Material Frame |
Stainless steel running rail |
| Material Handle |
Stainless Steel |
| Colour Handle |
silver-coloured |
Remarks
| Article note |
All information is approximate |
| Installation instructions |
Self-assembly with assembly instructions |
| Languages Instruction manual |
German (DE) |
