Rear bike rack

Alioth 3-bike rear carrier, foldable + Mizar 300L luggage box

The Menabo Alioth 3 towbar-mounted bike carrier offers space for up to 3 bicycles or 2 e-bikes. Bicycles with a total weight of up to 60 kg can be loaded (observe the maximum permissible vertical load of the towbar). The carrier is delivered pre-assembled and is therefore ready for quick use.

The set includes the towbar-mounted bike rack and the Mizar transport box. Ideal for holidays. Lockable. Easy assembly.

Features of the bicycle carrier:
for transporting up to 3 bicycles or 2 e-bikes;
mounts to the towbar;
lockable carrier; foldable
without bikes;
with quick-lock system (easy operation with long lever);
with 3 individual wheel holders
; loading and unloading of bicycles in seconds;
also suitable for e-bikes (2 pieces, the maximum load capacity of 60 kg must not be exceeded);
pre-assembled;
tire fastening with quick-release device

Bicycle carrier details:
Bicycle frame diameter: 30-50mm (round); 30×60 – 50x70mm (oval)
Tire size: 22-29 inches
Tire width: maximum 110mm
Wheelbase: maximum 126cm

Technical specifications of the bicycle carrier:
Material: steel, aluminum and plastic;
Color: black/silver;
Weight: approx. 22 kg;
Maximum payload: 60 kg

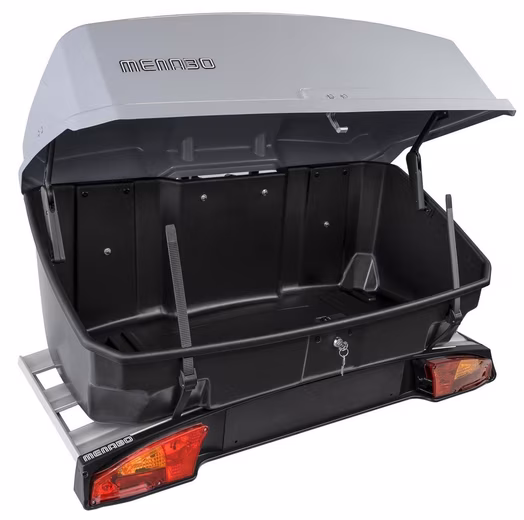

Features of the Mizar transport box:
only fits the Menabo Alcor 3 or 4 bike carrier;
attaches to the carrier via quick-release mechanism;
easier loading compared to a roof box,
therefore better driving characteristics
; lockable

Details of the Mizar transport box:
Dimensions: approx. 115 x 54 x 57 cm (L x W x H)
Maximum load capacity: 30 kg
Volume: 300 liters
