Description
Item description
Article No. S0F FM0 SY
- Large firebox / large logs possible (up to 44cm diagonally)
- Three viewing windows – wooden compartment

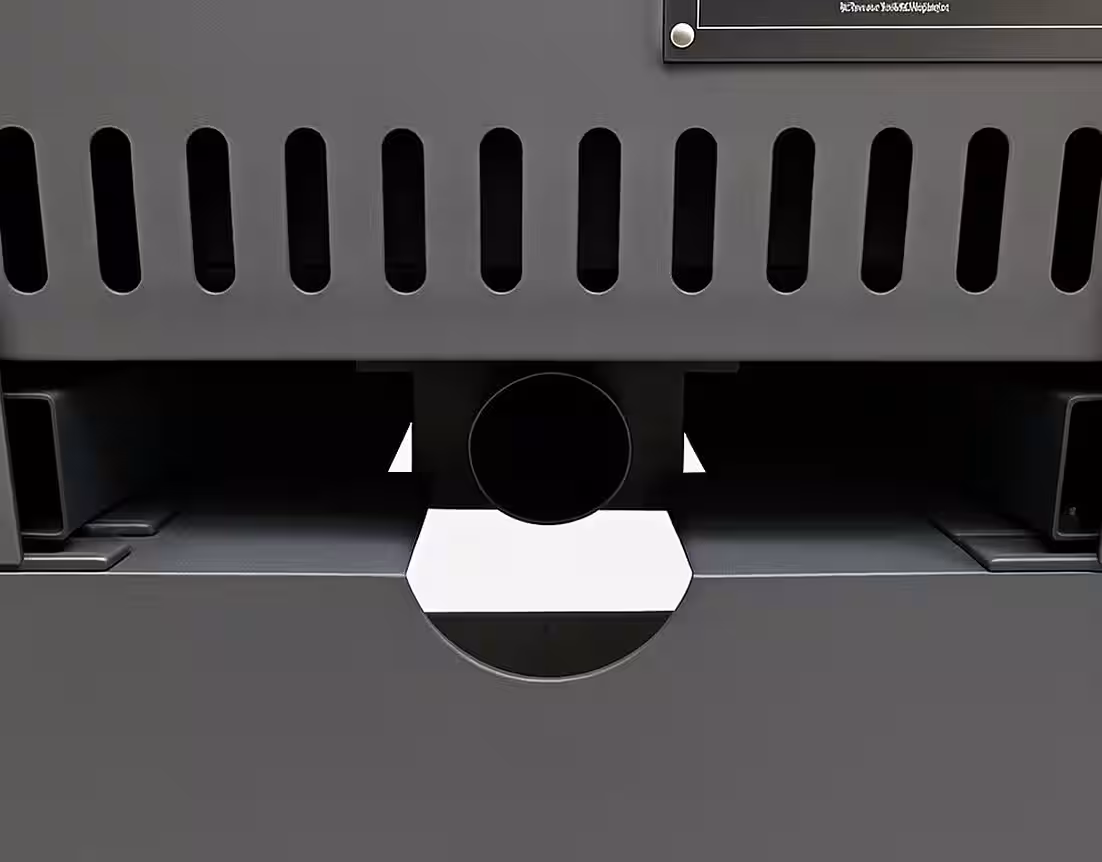

- External combustion air connection 80mm
- Suitable for continuous burning – combustion chamber lined with vermiculite
This modern model meets stringent European emissions standards. For Germany, these include, for example, the Federal Immission Control Ordinance (BImSchV) Stage II and Eco-Design 2022, as well as regional standards in Stuttgart, Regensburg, and Munich. The delivery includes, of course, German operating instructions, a manufacturer’s declaration of performance, and a type plate. Sustainability is of paramount importance with the 3W60. It represents an environmentally friendly heating solution for your home. Its A+ energy efficiency rating highlights its low consumption. This allows you to enjoy pleasant warmth while protecting both the environment and your wallet. This model is characterized by understated elegance, a high efficiency of over 81%, and state-of-the-art technologies such as double combustion, vermiculite combustion chamber lining, a two-point door lock, and much more. It is made of robust steel and painted black. A large, flat front window and two side viewing windows showcase the impressive dance of the flames and invite you to dream and relax. The spacious combustion chamber accommodates logs up to 44 cm in length. The combustion chamber is lined with vermiculite. This modern lining ensures a high core temperature of the fire and produces clean combustion. Logs can be stored in the wood storage compartment. It features an external combustion air connection (80 mm) and is therefore ideal for modern, well-insulated homes. With this connection, the stove no longer draws combustion air from the room. (However, the connection is not mandatory. This premium fireplace can also operate using only room air.) The Panorama model has a self-closing door (Type 1) and is therefore suitable for shared chimney systems.
Details
| Model designation | 3w60 |
| equipment | Three viewing windows, wood compartment , large logs possible (up to 44cm diagonally), external combustion air connection, suitable for continuous burning, self-closing door (type 1 – suitable for multiple flue connections) |
| Area of ​​application | Indoor |
| Characteristics | Continuous burning capability |
| Type of fuel | Wood and wood briquettes (coal was not tested) |
| Heat transfer | air-conducting |
| Shape of viewing window | rectangular |
| Flue pipe connection | 150 |
| Nominal heat output | 6.0 kW |
| efficiency | 86% |
| design | Self-closing door (Type 1 – suitable for multiple flue connections) |
| Required delivery pressure at nominal heat output | 10.4 Pa |
| Maximum exhaust gas temperature at the nozzle | 189 °C |
| Maximum exhaust gas mass flow | 5.3 g/s |
| Energy efficiency class (scale) | A+ (A++ to G) |
| Wide oven | 51.5 cm |
| Deep oven | 46 cm |
| Oven height | 100 cm |
| Weight | 125 kg |
| Wide firebox | 38 cm |
| Deep firebox | 27 cm |
| Firebox height | 37 cm |
| Flue pipe diameter | 150 mm |
| Safety distance in front | 80 cm |
| Safety distance behind | 30 cm |
| Safety distance lateral | 30 cm |
| Body material | Steel |
| Body color | black |
| Cladding material | Steel |
| Material firebox | Vermiculite |
| Article notes | Always consult your local chimney sweep before purchasing a fireplace. Have your chimney inspected for suitability before installing the fireplace. Always follow the operating and installation instructions and maintain the required safety distances. Have the fireplace inspected and approved by the district chimney sweep before its first use. |
| Languages ​​Operating/Assembly Instructions | DE – German |
| Special notes | Approval from the chimney sweep is required. |
