This portable storage device allows you to enjoy the cool breeze of an outdoor fan at any time, even in hot weather.

Robust and durable portable power station – PowerMax 3600 can charge 99% of basic devices.

The reinforced ABS+PC construction of the PowerMax 3600 withstands drops from up to 0.8 m. It also effectively blocks solid particles and vertical water spray. The ideal operating temperature range is between -10°C and 45°C. The UL94V-0 flame-retardant housing prevents the spread of fire.

3600 Wh high capacity. 6000 W output.

It has a capacity of 3600 Wh and offers 4 AC outputs, 4 USB-A outputs, and 2 x 100 W fast USB-C outputs. It supports more than 99% of all devices, such as air conditioners, heaters, and coffee makers. Whether camping, working outdoors, or in emergencies, this solar generator can provide stable power.

The portable power plant for all occasions

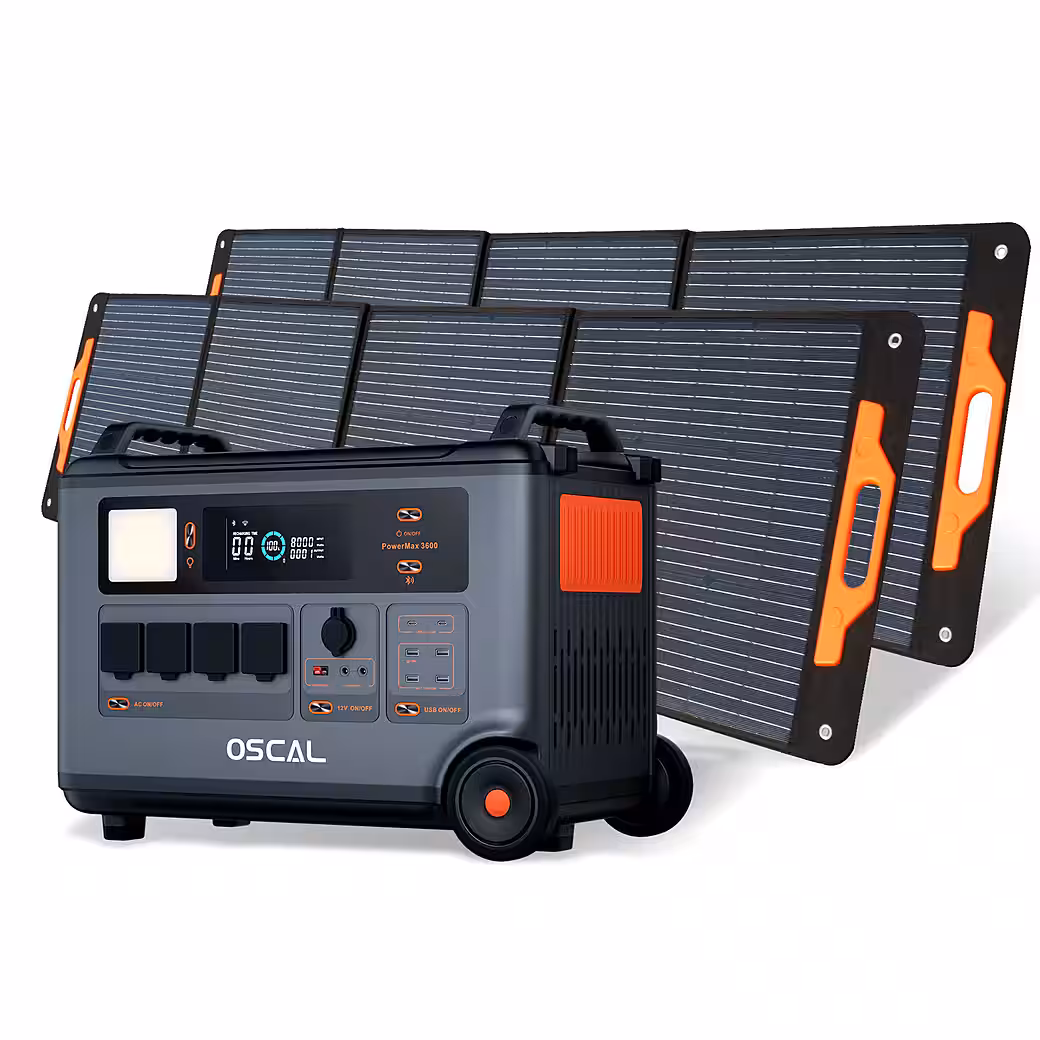

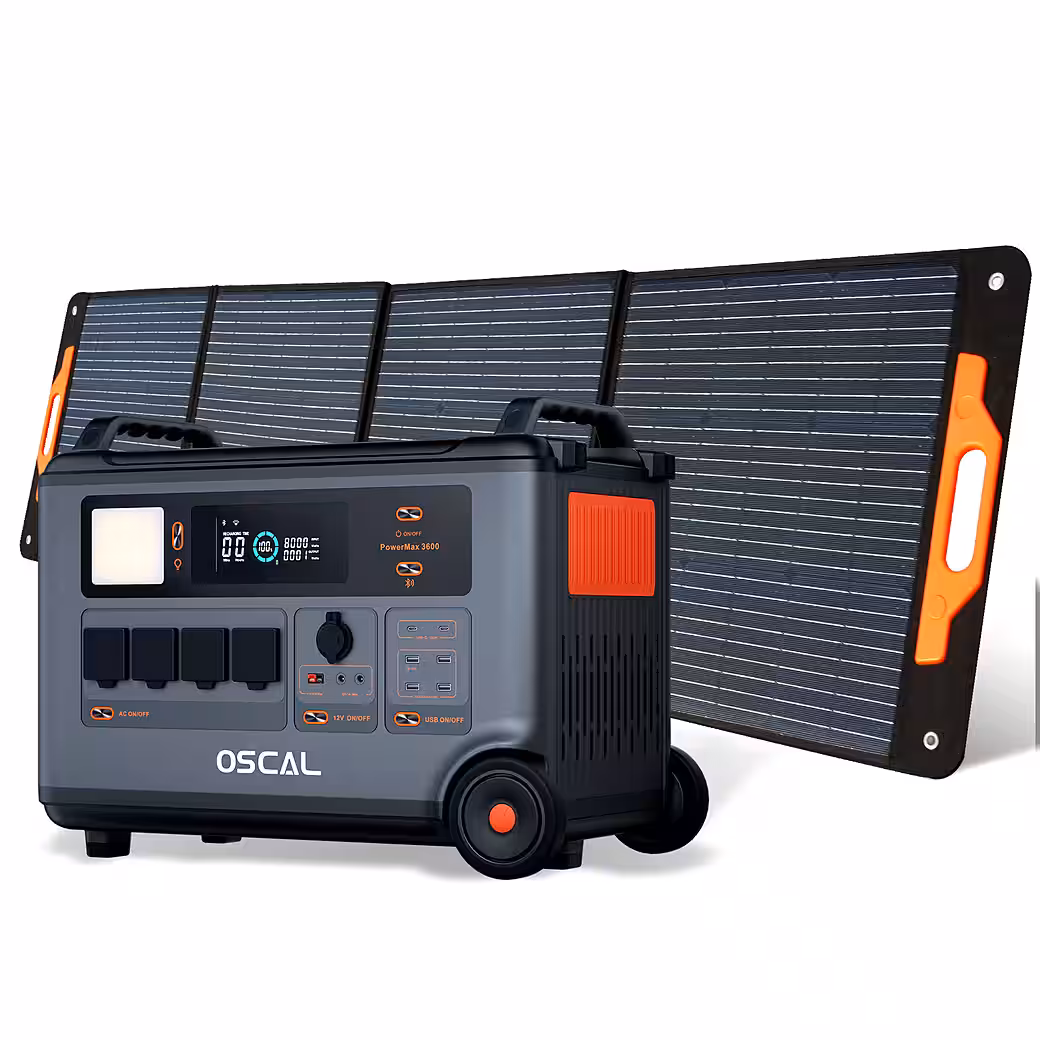

Fast and flexible charging: Whether with solar energy, mains power, or gasoline – the OSCAL PowerMax 3600 can be charged in record time and reliably supplies all devices with power. Whether at home, on the go, or in an emergency, you can choose from six different charging methods to suit your needs and optimally meet your energy requirements.

• 1800W AC fast charging: The power station is 80% charged in just 57 minutes.
• AC + Solar Charger: The ideal combination of mains power and solar energy enables a full charge in just 1.2 hours with a maximum input power of 2400W.
• EV charging station: Take advantage of the 2200W fast charging function at EV stations across the country and achieve a full charge in just 1.57 hours.

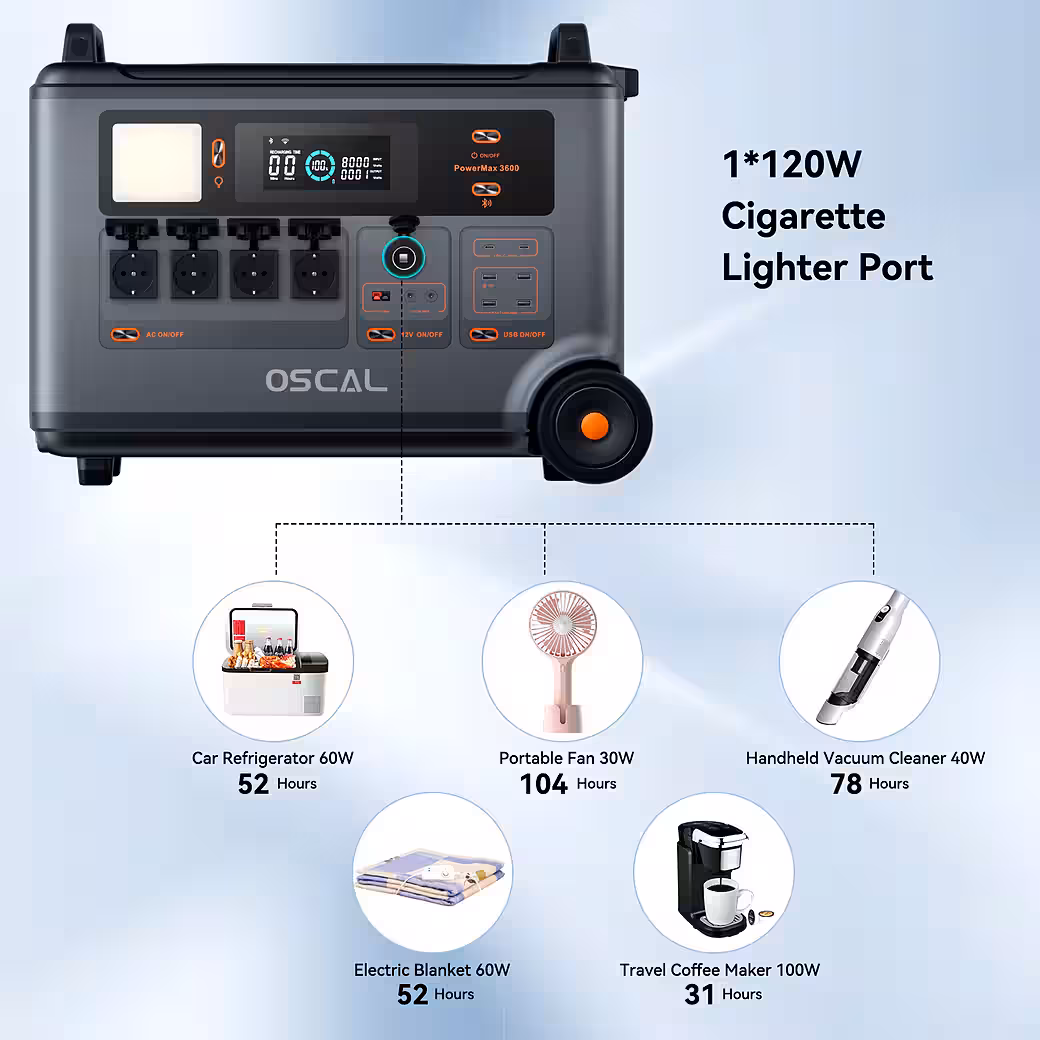

• Charging via cigarette lighter: Stay powered up even while driving and use the power station conveniently in your car.
• Smart generator charging: Generate your own electricity using gasoline and feed it into the PowerMax3600. Devices with a maximum output of 2200 W can be fully charged in 1.57 hours.
• Charging lead-acid batteries: The PowerMax 3600 also supports charging lead-acid batteries. This ensures you’re covered even during a power outage.

Long-lasting LiFePO4 batteries

Our portable power station is powered by long-lasting and robust LiFePO4 batteries, supported by an advanced eight-stage safety battery management system (BMS). Protection features against overcharging, over-discharging, overvoltage, overcurrent, short circuits, and temperature fluctuations enable up to 3,500 charge and discharge cycles and a lifespan of up to 10 years.

5-8 ms UPS fast switching

Equipped with an uninterruptible power supply (UPS), the device automatically switches to internal battery power within 5-8 ms in the event of a power outage or interruption. Ideal for home emergencies, network devices, and outdoor applications requiring uninterrupted power.

Intelligent remote control

Download the corresponding app to your smartphone and easily connect the portable power station to the OSCAL app via Wi-Fi or Bluetooth. Monitor energy consumption and easily perform remote control tasks.

Capacity up to 57,600 Wh

The PowerMax 3600 is fully modular and offers space for up to 15 additional battery packs (3.6 kWh each). With an average consumption of 2 kWh per day, 57.6 kWh is sufficient for up to 30 days.

Package contents – The package includes the portable PowerMax 3600 charging station, an AC charging cable, a car charging cable, a solar charging cable, a user manual and a warranty card.

2-year free warranty after purchase.

Technical data

General Information

Net weight: approx. 44.45 kg

Dimensions (LxWxH): 590 x 350 x 441mm (23.2 x 13.8 x 17.5 inches)

Power: 3600Wh

Wi-Fi: Frequency range 2412-2462 MHz Maximum output power: 0.05862 W

Bluetooth: Frequency range 2402-2480MHz Maximum output power: 0.0006 W

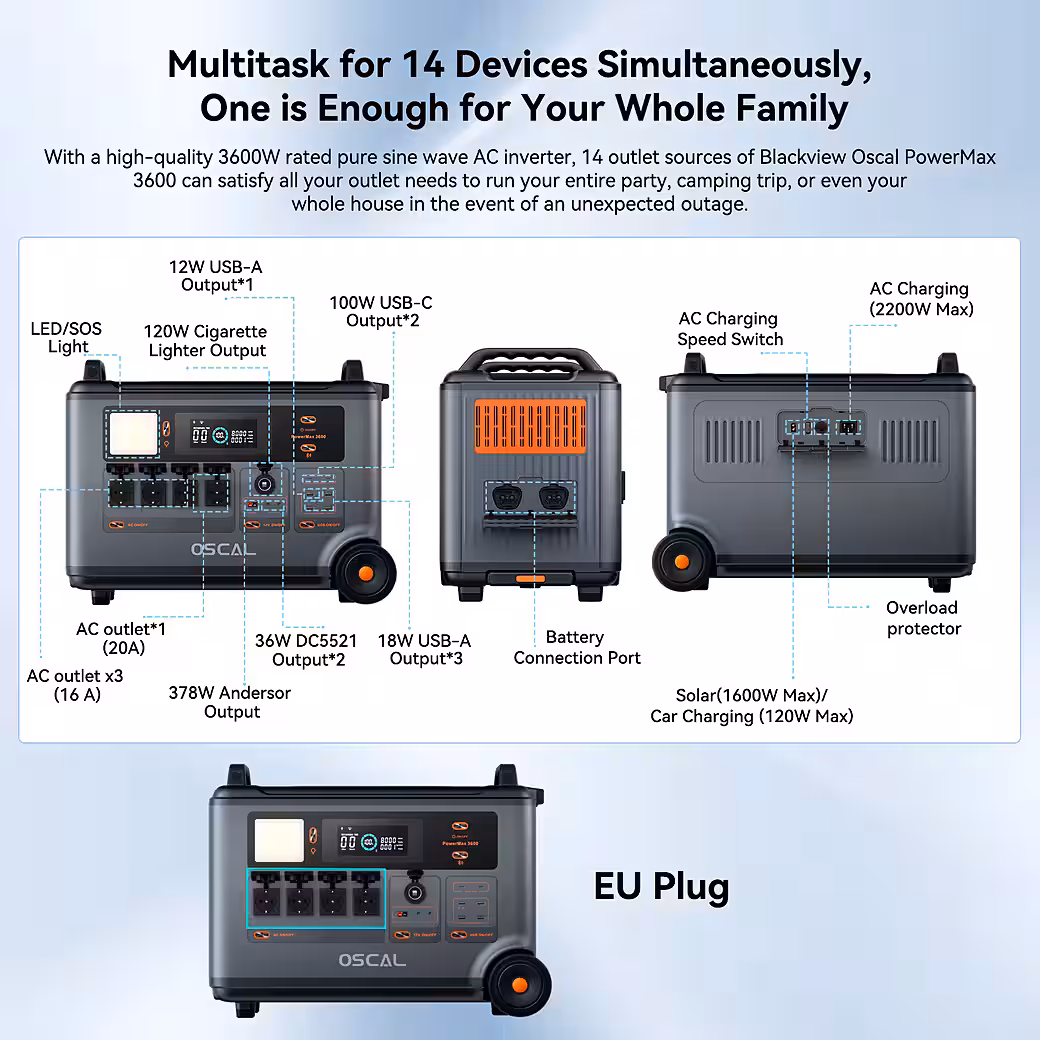

Output connections

AC (x4): Pure sine wave, total 3600W, 210-240Vac (50Hz/60Hz)

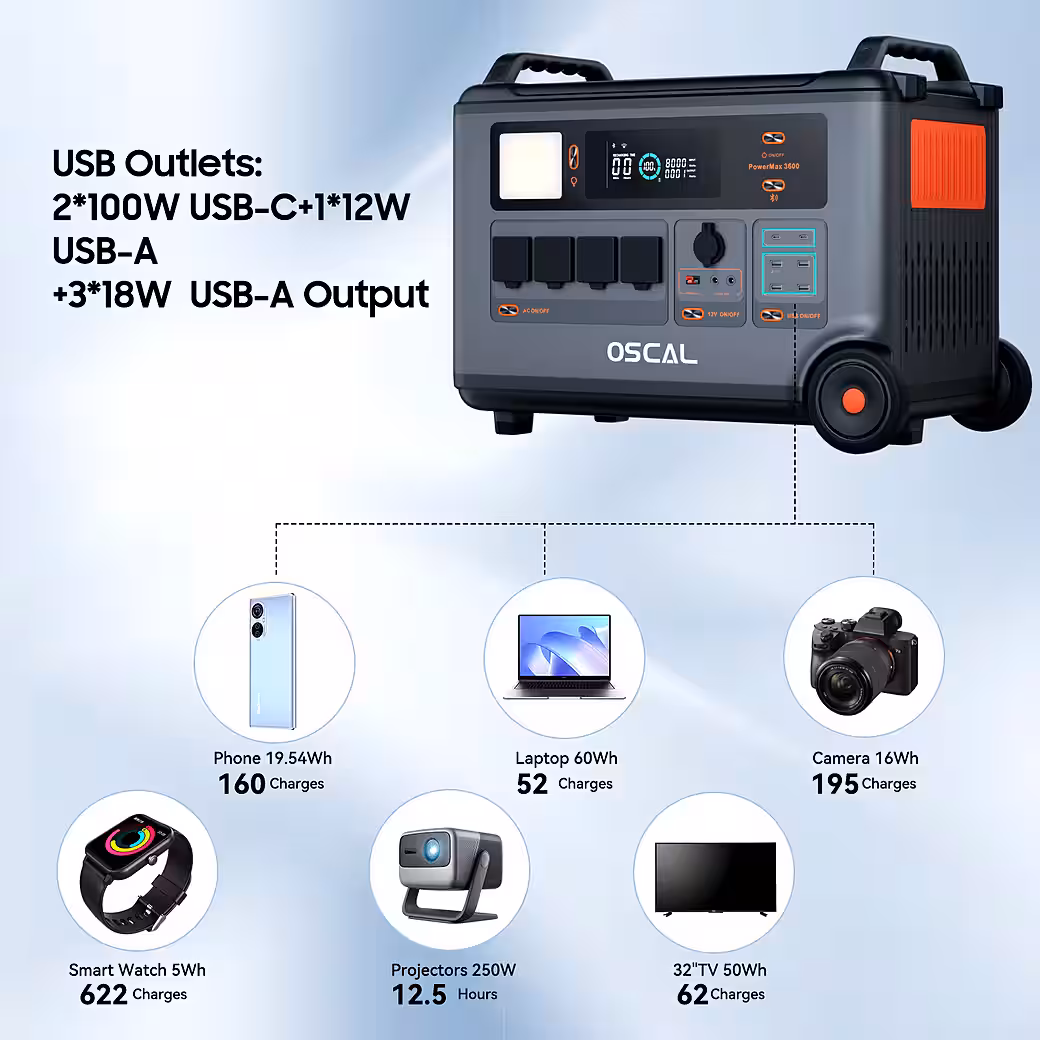

USB-A (x1): 12W max.

USB-A fast charging (x3): 18W max per port, 54W total

USB-C (x2): Max. 100W per port, 200W total

Car charger: 12V/10A, 120W Max

DC5521 output (x2): 12V/3A, 36W

Anderson output: 12.6V/30A, 378W max

Input connections

AC charging: Fast charging 2200W, slow charging 1200W

AC input voltage: 210-240Vac 10A

Solar charger: 11-150V/15A max, 1600W max

Ktz charger: 12/24V/Max 8A, Max 192W

Battery Info

Cell chemistry: LFP

Cycle life: 3,500 cycles to 80% + performance

Protection: Overvoltage protection, overload protection, overtemperature protection, short-circuit protection, low-temperature protection, undervoltage protection, overcurrent protection

Operating temperature

Optimal operating temperature: 20°C-30°C (68°F-86°F)

Discharge temperature: -10°C-45°C (14°F-113°F)

Charging temperature: 0°C-45°C(32°F-113°F)

Storage temperature: -10°C-45°C(14°F-113°F)

Additional features (sold separately)

Lithium battery charging pack: Up to fifteen units, the total capacity is 16*3.6 kWh=57.6 kWh, the power pack is available separately.

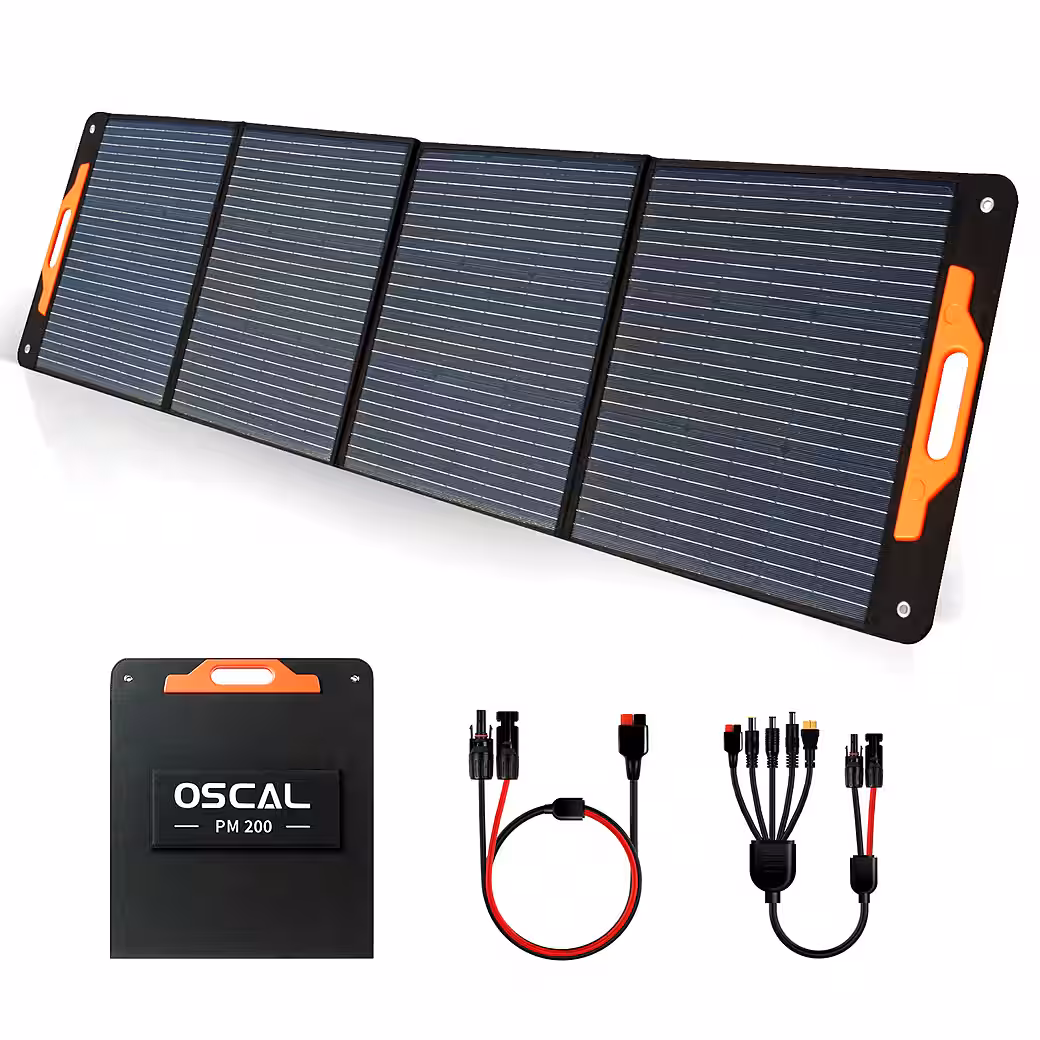

Solar panel: Supports solar charging, 11-150V/15A max, 1600W max.

Model: PM200Pro

Maximum power: 200W

Weight: 7.5kg

Expanded size: 215.7 x 59.1 x 2.1 cm

Closed size: 59.1 x 58.1 x 5 cm

Battery cell efficiency: 23%

Open circuit voltage: 21.6V

Operating voltage: 21V

Operating current: 11.1A

Short-circuit current: 13.9A

Operating temperature range: -10 to +65 °C

Optimal operating temperature: +25 °C
