Power Generator PowerMax 3600W Power Station

Description

Product Description
Item no. S01C9067D4I
With a capacity of 3600 Wh, a power of 3000 W, 4 AC outputs, 4 USB-A and 2 USB-C outputs (100 W), the OSCAL Powermax 3600 effortlessly powers all devices.
Dual charging via solar and alternating current brings the power station to full power in just 1.2 hours. An AC charging process also takes only 1.96 hours.
Long-lasting LiFePO4 batteries and an advanced eight-layer safety BMS provide comprehensive protection against overcharging, over-discharging, and more.
With the built-in UPS function, the Power Station automatically switches to battery operation within 5-8 ms if the power fails.
Control and monitor your Power Station conveniently via the OSCAL app on your smartphone via Wi-Fi or Bluetooth – for easy remote control and consumption control.

Weniger anzeigen
This portable storage device allows you to enjoy the cool breeze of an outdoor fan at any time, even in hot weather.

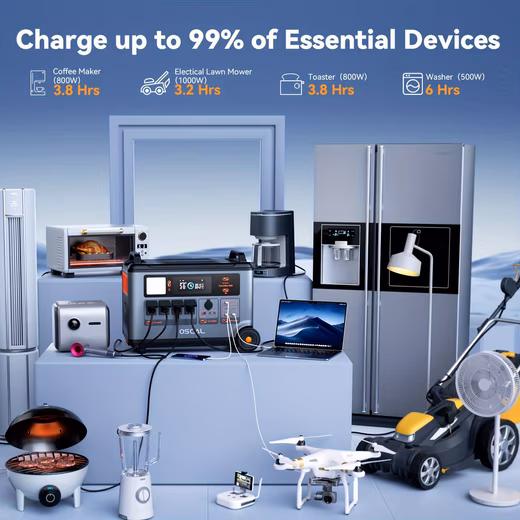

Rugged and durable portable power station – PowerMax 3600 can charge 99% of base devices.

The reinforced ABS+PC construction of the PowerMax 3600 resists drops from a height of up to 0.8 m. It also effectively blocks solid particles and vertical splashes. The ideal operating temperature range is between -10°C and 45°C. The UL94V-0 flame retardant housing prevents the spread of fire.

3600Wh high capacity. 6000 W output

It has a capacity of 3600Wh and offers 4*AC output, 4*USB-A output, and 2*100W fast USB-C output. Supports more than 99% of all appliances such as air conditioners, heaters, and coffee makers. Whether camping, working outdoors or in emergencies, this solar generator can provide stable energy.

The portable power station for all occasions

Whether with solar energy, mains power or petrol – the OSCAL PowerMax 3600 can be charged in record time and reliably supplies all devices with electricity. Whether at home, on the road or in an emergency, you can choose from six different charging methods to suit your scenario and optimally cover your energy needs.

1800W AC Fast Charging: In just 57 minutes, the Power Station is charged to 80%.

AC + Solar Charger: The ideal combination of mains power and solar energy allows you to fully charge in just 1.2 hours with a maximum input power of 2400W.

EV Charging Station: Use the 2200W fast charging feature at EV stations across the country and get a full charge in just 1.57 hours.

Charging via cigarette lighter: Stay powered while driving and use the power station conveniently in the car.

Smart generator charging: Generate your own electricity with gasoline and feed it into the PowerMax3600. Devices with a maximum output of 2200W can be fully charged in 1.57 hours.

Lead-acid battery charging: The PowerMax 3600 also supports lead-acid battery charging. So you are on the safe side even in the event of a power failure.

Long-lasting LiFePO4 batteries

Our portable power station is powered by long-lasting and robust LiFePO4 batteries, which are supported by an advanced eight-stage safety BMS. Protection functions against overcharge, over-discharge, over-voltage, over-current, short circuit and temperature fluctuations enable up to 3500 charge and discharge cycles and a service life of up to 10 years.

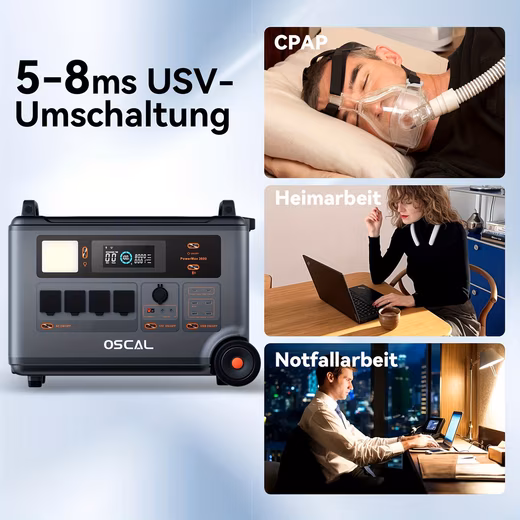

5-8 ms UPS Quick Switching

Equipped with an uninterruptible power supply (UPS), the device automatically switches to internal battery power supply within 5-8 ms in the event of a power failure or interruption. Ideal for home emergencies, network equipment, and outdoor applications that require uninterruptible power supply.

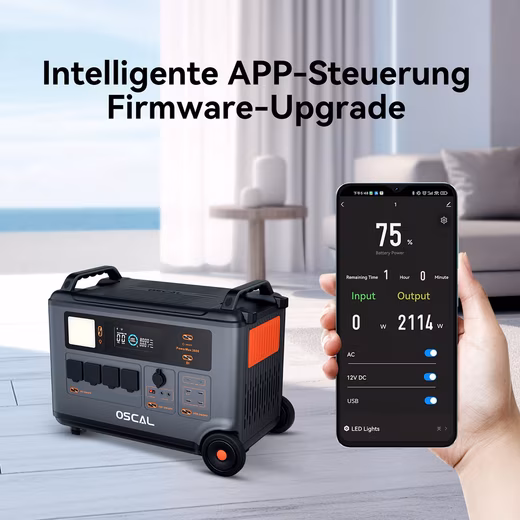

Intelligent remote control

Download the corresponding app to your smartphone and simply connect the portable power station to the OSCAL app via Wi-Fi or Bluetooth. Monitor energy consumption and easily perform remote control tasks.

Capacity up to 57,600 Wh

The PowerMax 3600 has a fully modular design and offers space for up to 15 additional battery packs (3.6 kWh/unit). With an average consumption of 2 kWh per day, 57.6 kWh is enough for up to 30 days.

What’s in the Box – The package includes the PowerMax 3600 portable charging station, an AC charging cable, a car charging cable, a solar charging cable, a user manual and a warranty card.

2-year free warranty after purchase.

Technical data

General information

Net weight: approx. 44.45 kg

Dimensions (LxWxH): 590 x 350 x 441mm(23.2 x 13.8 x 17.5 inches)

Power: 3600Wh

Wi-Fi: Frequency range 2412-2462 MHz Maximum output power: 0.05862 W

Bluetooth: Frequency range 2402-2480MHz Maximum output power: 0.0006W

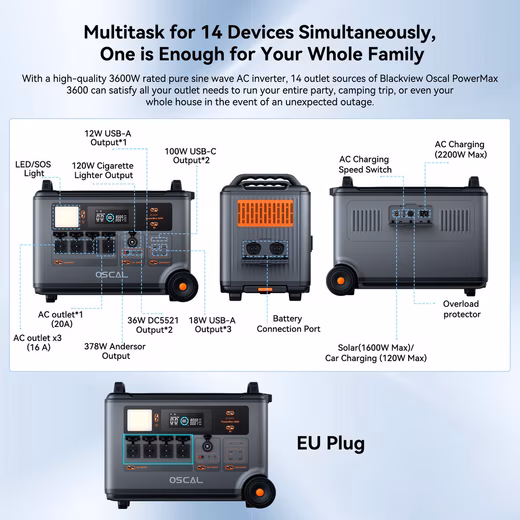

Output Ports

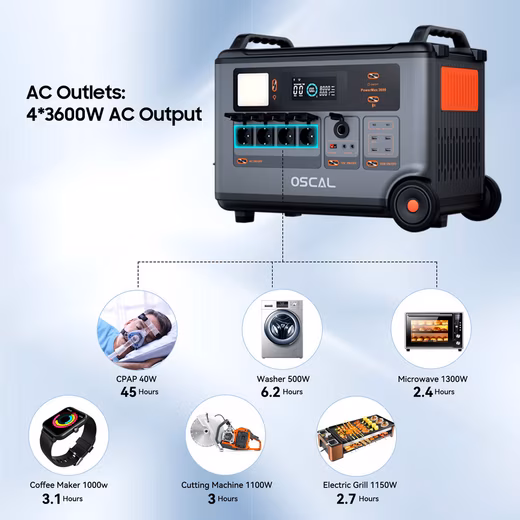

AC (x4): Pure sine wave, total 3600W, 210-240Vac (50Hz/60Hz)

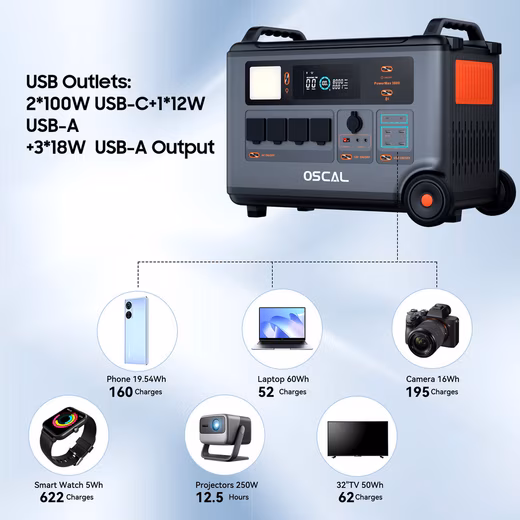

USB-A (x1): 12W max.

USB-A fast charging (x3): 18W max per port, total 54W

USB-C (x2): Max 100W per port, total 200W

Car charger: 12V/10A,120W Max

DC5521 Output (x2): 12V/3A, 36W

Anderson Output: 12.6V/30A, 378W max

Input Ports

AC charging: fast charging 2200W, slow charging 1200W

AC Input Voltage: 210-240Vac10A

Solar charger: 11-150V/15A max,1600W max

Kitz charger: 12/24V/Max 8A,Max 192W

Battery Info

Cell chemistry: LFP

Cycle life: 3,500 cycles to 80% + performance

Protection: Overvoltage Protection, Overload Protection, Overtemperature Protection, Short Circuit Protection, Low Temperature Protection, Undervoltage Protection, Overcurrent Protection

Operating Temperature

Optimal Operating Temperature: 20°C-30°C(68°F-86°F)

Discharge Temperature: -10°C-45°C(14°F-113°F)

Charging Temperature: 0°C-45°C(32°F-113°F)

Storage Temperature: -10°C-45°C(14°F-113°F)

Additional features (sold separately)

Lithium Battery Charging Package: Up to fifteen units, the total capacity is 16*3.6kWh=57.6kWh, the Powerpack is sold separately.

Solar Panel: Supports solar charging, 11-150V/15A max, 1600W max.

Model: PM200Pro

Max Power: 200W

Weight: 7.5kg

Extended Size: 215.7×59.1×2.1 cm

Closed size: 59.1×58.1×5 cm

Battery cell efficiency: 23%

Open Circuit Voltage: 21.6V

Operating Voltage: 21V

Operating Current: 11.1A

Short circuit current: 13.9A

Operating temperature range: -10+65 °C

Best operating temperature: +25 °C
