Power generator Diesel generator Power generator 19.8kVA 400V Emergency generator 66260

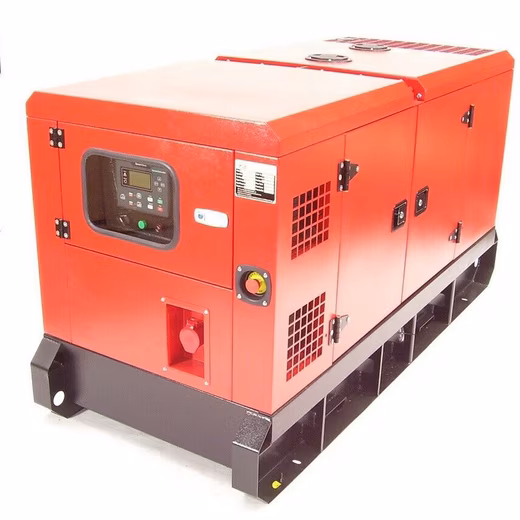

Water-cooled diesel power generator
economical 2,417 cc 4-cylinder diesel engine, 400V/32A, 19.8 kVA max. Power, LCD generator control

The robust and quietly water-cooled D+L power generator with a 4-cylinder diesel engine is extra soundproof and offers a max. Power of 19.8 kVA. The voltage decrease takes place directly via a 32A 400V CEE plug-in coupling. The powerful 4-cylinder diesel in-line engine with a displacement of 2,417 cc offers an economical, low nominal engine speed of 1500 U/min as a direct injection engine and ensures very high smoothness and a long generator life. The integrated electric start via the electronic LCD engine control unit ensures good starting behavior even at low temperatures. The brushless synchronous generator used has a maximum power of 25kVA at a nominal voltage of 400V/50Hz. The integrated electronic voltage control ensures excellent voltage stability. Due to the special type of winding, this robust generator is suitable for inclined loads. Therefore, phases can also be subjected to unequal stress. The digital one, central Engine Control Unit clearly displays all generator and engine data. In addition to the operating hour counter, all typical generator data such as current mains and strand voltages, mains current, generator mains frequency, cosPhi, current total power (kW) as well as working power in kWh are shown. In addition, the engine data such as oil pressure, coolant temperature and alternator voltage are shown. In addition to the engine characteristics, the control also monitors the generator data such as voltage, currents, frequency and current power. The generator can be started and stopped directly via the control. The delay times and alarm limits can be variably adjusted using a menu guide using plain text displays.

Product Advantages:
– water-cooled powerful 4-cylinder diesel power generator 19.8 KVA with E-Start and LCD display
– smooth running, economical water-cooled 4-cylinder 2,417ccm diesel engine
– low engine/generator speed of 1,500 U/min for long service life
– menu-guided LCD control with plain text display
– 3-phase brushless 400V/25kVA industrial generator part with electronic voltage regulation (AVR regulated)
– the generator is inclined load suitable, socket CEE-32 A, phase loads can be different
– extra large, integrated 70 liter tank
– economical diesel engine with low fuel consumption, only approx. 0.33 L/kWh at full load
– electronic motor control unit with plain text display
– digital LCD display and monitoring of voltage, current, frequency, power, etc.
– automatic engine stop for engine/generator malfunctions

Technical data:
Generator Type: Synchronous
Generator mains voltage: 400 V / 50 Hz
max. Power: 16.5 kW / 19.8 kVA (400 V)
Continuous power / apparent power: 15 kW / 18 kVA (400 V)
Rated Voltage: 400 (230) V, 50 Hz
Plug-in coupling: CEE – 400V/32 A
Generator design: 3-phase brushless synchronous generator in star connection with zero conductor
Voltage control: Voltage regulator AVR electronically controlled,
max. Phase current: 27.1 A
Engine design: 2,417 cc 4-cylinder in-line diesel engine, direct injection
Engine power at 1500 U/min: 18.0 kW
Engine cooling: Water cooling with forced-ventilated radiator and coolant pump
Fuel: diesel
Fuel consumption when idling: approx. 1.5 l/h
Fuel consumption 7.5 kW electrical load approx: 3.0 l/h (353 g/kWh)
Fuel consumption 15 kW electrical load approx: 4.9 l/h (270 g/kWh)
Tank volume: 70 liters
Volume Lpa: 71 dB (A) (at 7 meters)
Sound power level LwA: 85 dB (A)
Ambient temperature min/max: – 10 C° to 40 C°
Engine control: electronic LCD
Dimensions (lxbxh): 2135 x 915 x 1110 mm
Weight: 250 kg

Scope of delivery:
1 piece, water-cooled 4-cylinder diesel power generator 400V, 2417ccm
1 piece, tool bag

Notes:
– Delivery takes place without operating materials such as oil, diesel and battery. Pour in oil and diesel before starting for the first time.
– Forwarding shipping, please let us know your telephone number, which can be reached every day.
– no shipping to packing station, no island shipping.
