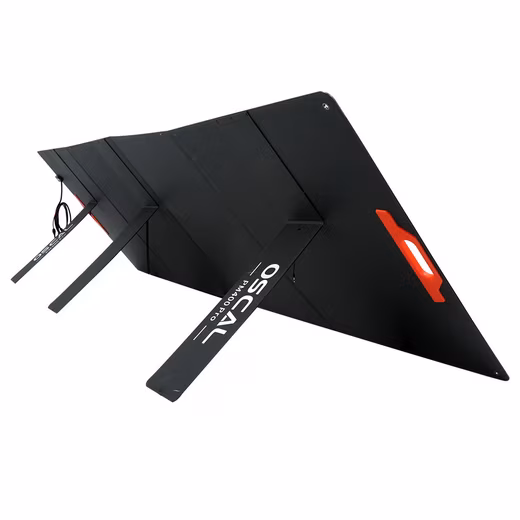

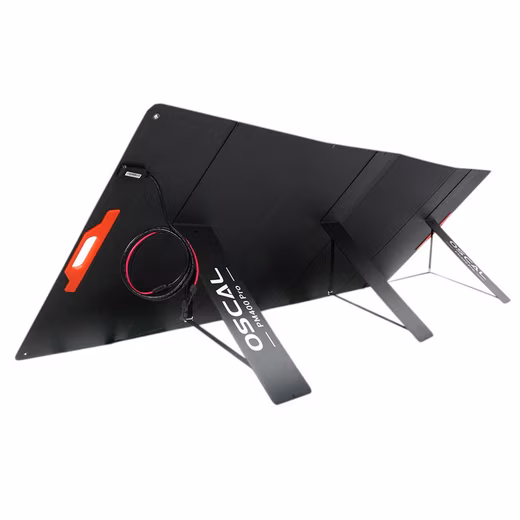

PM400 Pro 400W Foldable Solar Panel

Improved ETFE protective layer

With an upgraded ETFE protective layer and a high-quality “Dragon Parade” fabric exterior, the OSCAL PM400 Pro solar panel is designed to be waterproof, durable and wear-resistant.

Up to 23% cell efficiency

Get the most out of your energy with the OSCAL PM400 Pro – a 400W solar panel with high-efficiency monocrystalline silicon cells and a 23% conversion efficiency. This keeps your devices charged and ready for use at all times – no matter where your adventure takes you.

Briefcase-like foldable design

Thanks to the briefcase-like foldable design and sturdy PC handle, the OSCAL PM400 Pro is easy to carry and transport. Weighing only 17 kg, it is the ideal choice for camping – space-saving in the vehicle and convenient to take with you to any solar charging station.

IP65 water and dust resistance

Wherever you go, the OSCAL PM400 Pro’s IP67 protection ensures a stable supply of clean energy, whether by the sea, on the mountaintop or camping.

Compatible with 98% of portable power stations

Equipped with an MC-4 to 5-in-1 solar charging cable, the OSCAL PM400 Pro solar panel is widely compatible with most solar generators on the market and works particularly well with the OSCAL PowerMax 3600 and PowerMax 6000 portable power stations.Specifications

Peak Power: 400W
Coating Material: ETFE
Solar Cell Material: Monocrystalline Silicon
Cell Efficiency: ≥23 %
Rated Voltage: 36V
Rated Current: 11.1A
Open Circuit Voltage: 43.2V
Short Circuit Current: 13.9A
Operating Temperature Range: -10~65°C
Waterproof Level: IP67

Weight & Size

Product Weight: 17 kg
Package Weight: 20.05 kg
Product Dimensions (L × W × H):

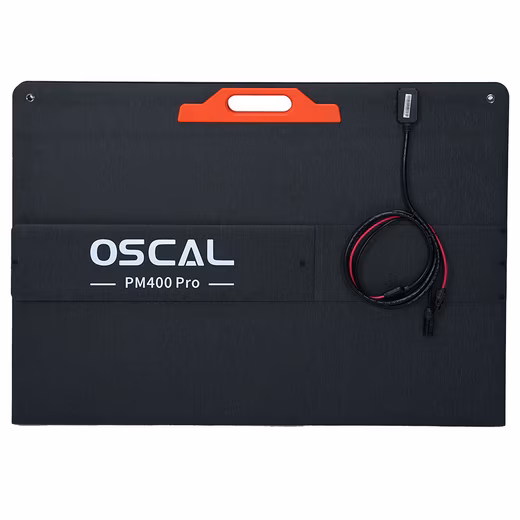

Folded Size: 95.9 × 67.9 × 5 cm

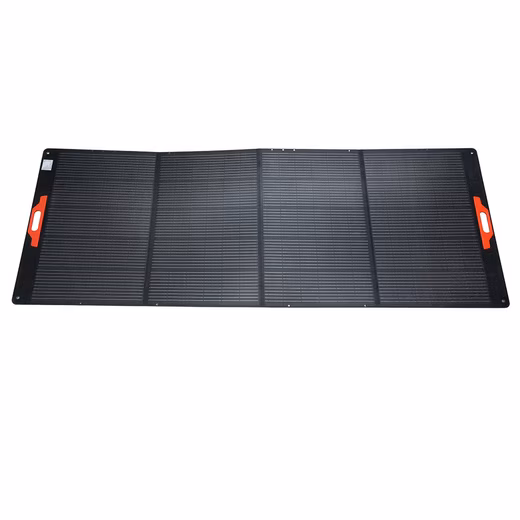

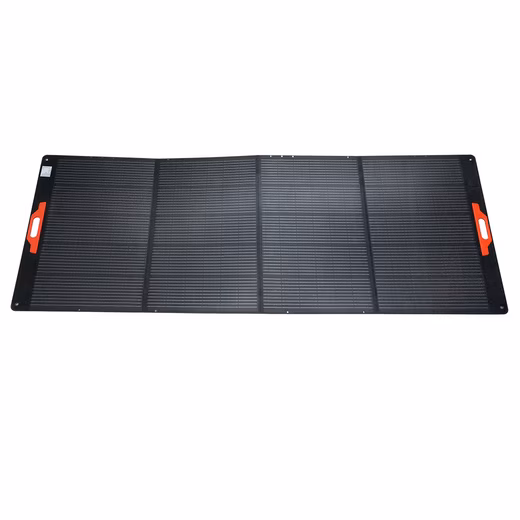

Unfolded Size: 255.4 × 95.9 × 2.1 cm
Package Dimensions (L × W × H): 112 × 72.5 × 10.5 cm

Package Contents1

× foldable solar panel
1 × MC-4 cable
1 × MC-4 to 5-in-1 cable
1 × MC-4 to Anderson cable
1 × instruction manual
