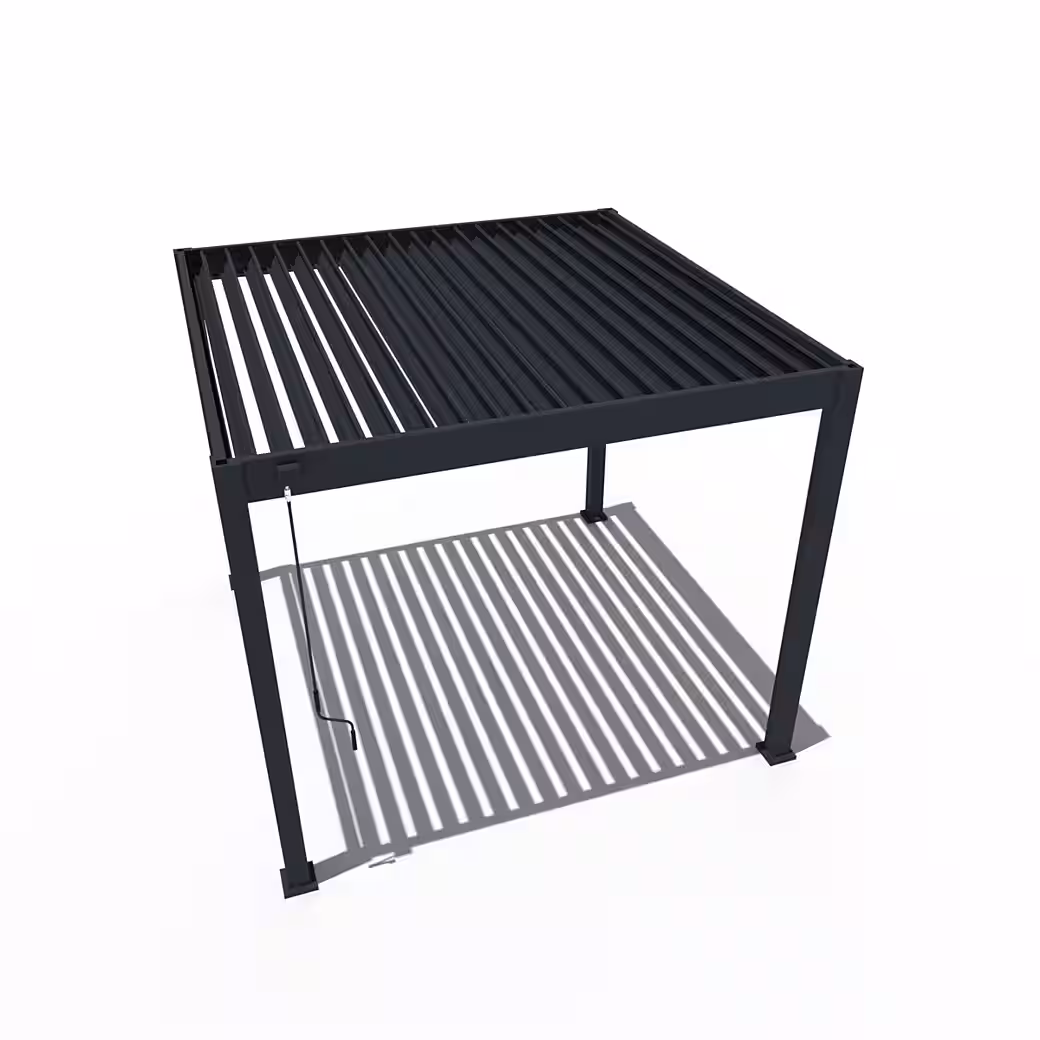

Pergola Classic Pavilion Terrace Roof Aluminum 3 x 3 M anthracite

Premium aluminum pergola in anthracite – compact 3 x 3 meters

Our compact anthracite aluminum pergola, measuring 3 x 3 meters, is perfect for small gardens or patios. It offers exceptional durability and weather resistance. The sturdy 116 x 116 mm posts and louvers guarantee maximum stability. The hand crank allows you to adjust the louvers continuously up to 135° to optimally regulate light and provide UV protection. Thanks to the integrated rainwater management system, your outdoor space stays dry even in the rain. This pergola is environmentally friendly and fully recyclable.

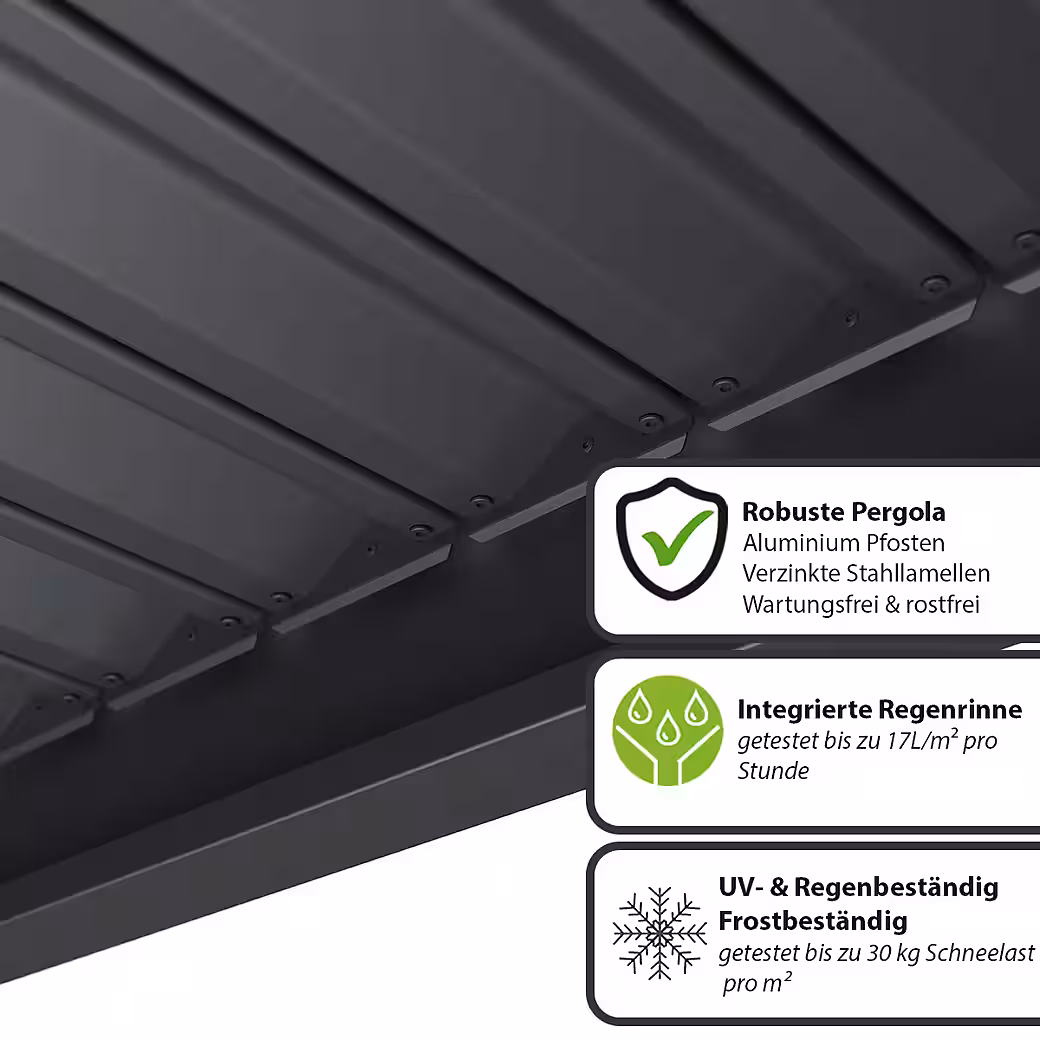

Premium quality thanks to aluminum structure

• Durable, weather-resistant and rust-free
• Sturdy posts made of aluminum
• Environmentally friendly and fully recyclable
• Large post dimensions of 116 x 116 mm
• Robust galvanized steel slats measuring 169 x 30 mm
• Strong beams and cross braces for added stability
• Note: Smaller components such as screws are made of stainless steel for added durability.

Manually adjustable louvers for optimal light control

• Stepless adjustment of the slat tilt via hand crank up to 135° .
• Rapid adjustment of light incidence and shadow formation .
• Effective UV protection
• Adjustable ventilation through the roof
• Protection from light rain when the louvers are fully closed.
• Integrated rain gutter for controlled water drainage

Effective rainwater management

• Rainwater runs through the lamellar channels to the beams and is drained away through the posts.
• Drainage holes on the undersides of the posts ensure controlled water drainage.
• Recommendation for integrating a drainage channel into the floor covering
• Regular cleaning of drains and gutters to remove leaves and dirt is required.

Technical data:

• Slat height: 17.5 cm
• Construction time: 2 people / approx. 2 to 3 hours
• Manual: in Box 1/Box 2
• Foundation: Recommended concrete foundation
• Crank mounting: on the side, outside
• Post wall thickness: 1.5 mm
• Rain gutter system:     Tested up to 17L/m2 per hour
• Snow load:     Tested up to 30kg per m2
• Wind force:     Tested up to Beaufort scale 9
• Height: 255 cm
• Color: Anthracite (powder coating)
• Post dimensions:  116 mm x 116 mm
• Post material: Aluminum, rustproof
• Material of crossbeams: Aluminum, rustproof
• Material of slats: galvanized steel
• Scope of delivery: Support structure, slats, crank
• Delivery condition:  disassembled (4 packages)
• Mounting type: Freestanding / Floor mounted
• Weight (3×3): 153 kg
