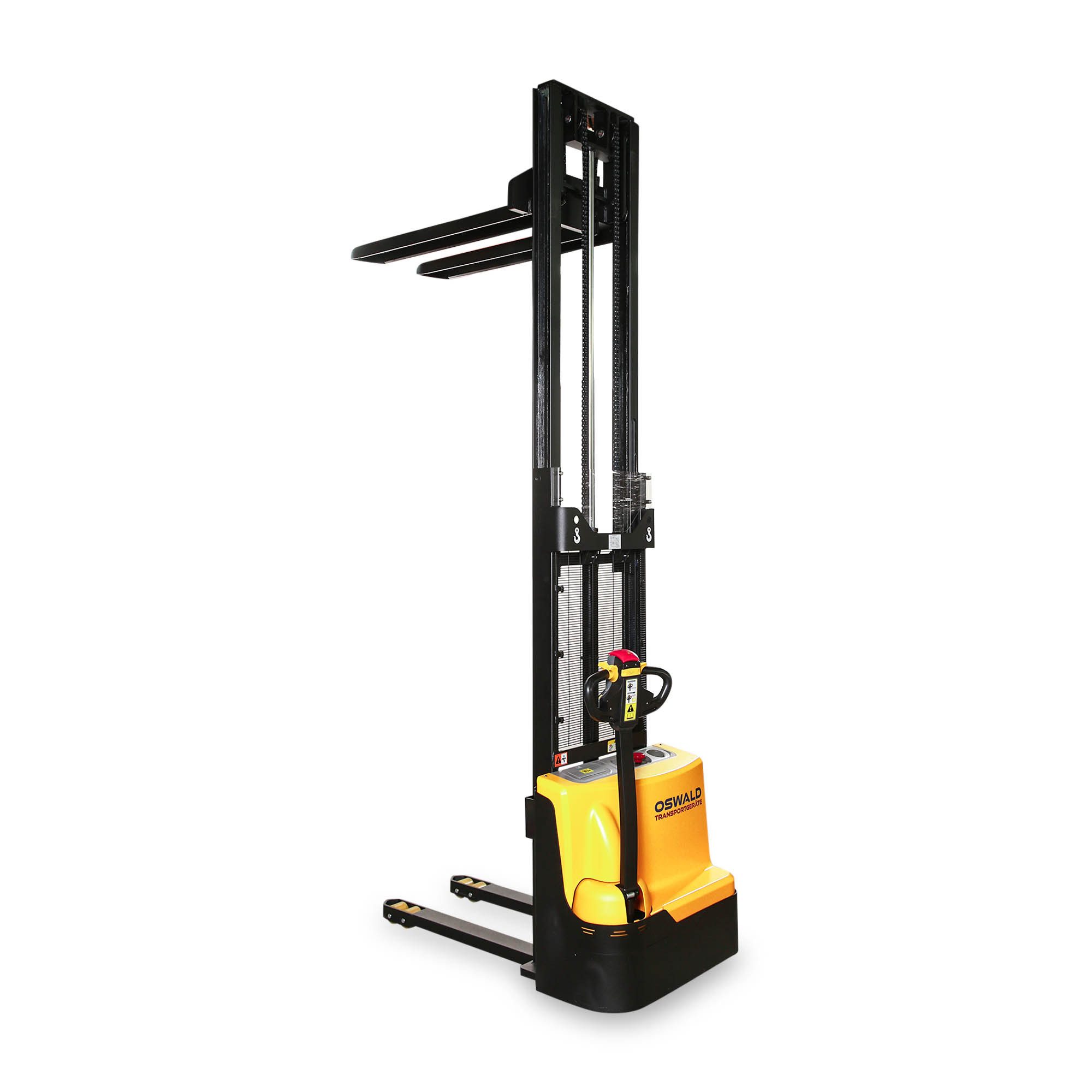

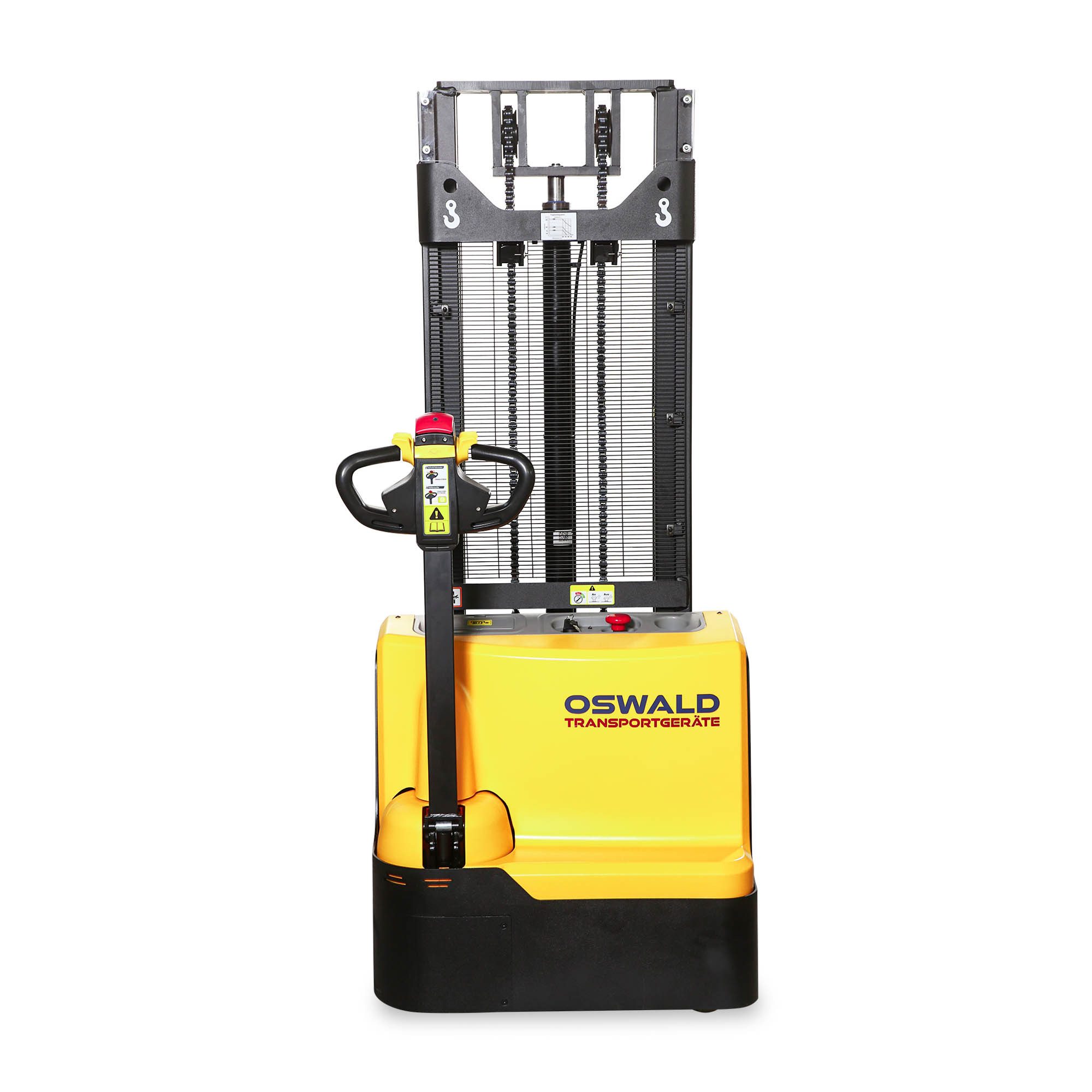

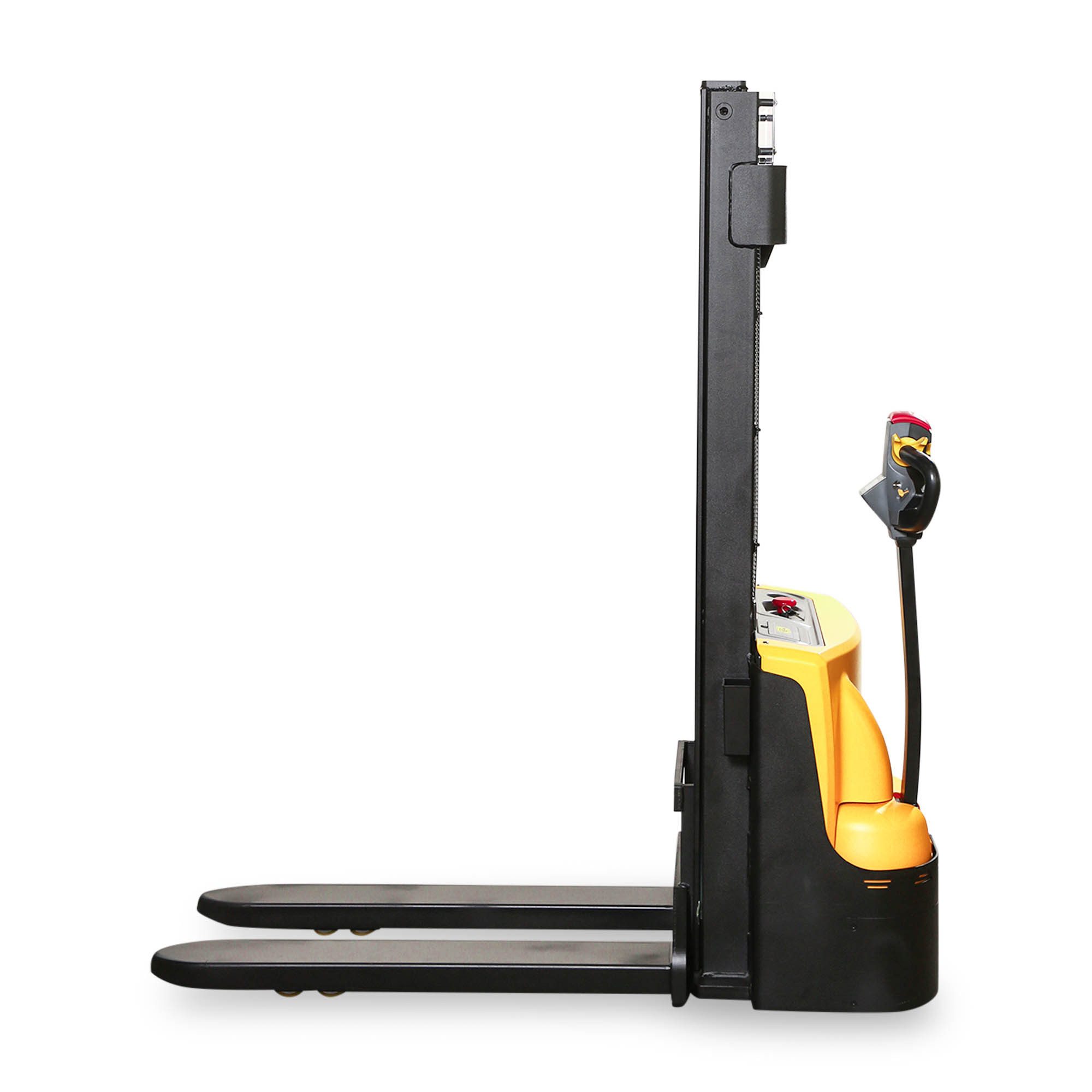

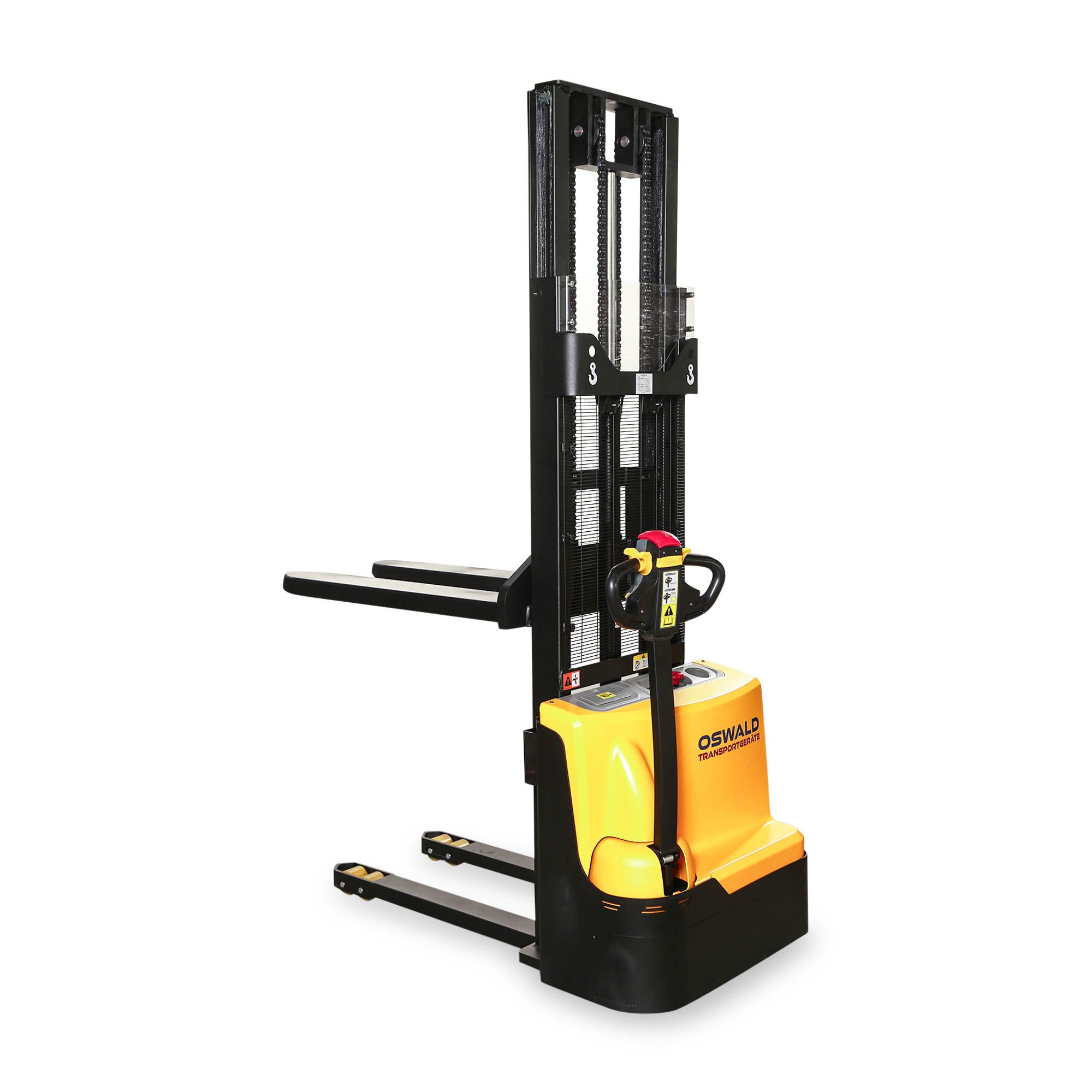

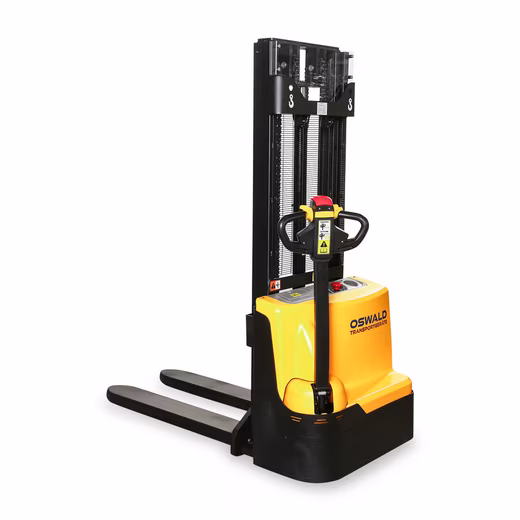

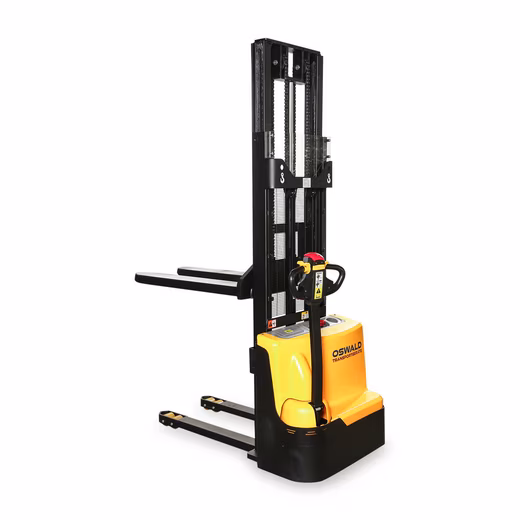

Pallet truck DS1530 1.5 t – 3.0 m lifting height OSWALD Transport Equipment

Pedestrian stacker – 1.5 t lifting capacity, 3.0 m lifting height from OSWALD Transportgeräte

Forklifts are indispensable in many warehouse and logistics operations. However, their use is not always economical or feasible, especially in smaller businesses. Acquisition and operating costs can be too high, and trained forklift operators are not always available. Furthermore, efficient operation requires sufficient maneuvering space.

In such cases, the OSWALD Transportgeräte electric pallet stacker offers a practical solution. This maneuverable electric pallet stacker is a cost-effective alternative that can be operated by any employee after a short training session. It enables fully electric lifting and lowering and has a load capacity of 1.5 tons and a lifting height of 3,000 mm.

The pallet stacker impresses with a robust steel mast and a stable 5 mm thick frame, which significantly extends its service life. The double chain construction ensures not only greater strength but also additional safety. The forks are manufactured in one piece with a thickness of 8 mm.

An integrated safety speed limiter ensures that the driving speed is automatically reduced as soon as the forks are raised above 500 mm to guarantee safe maneuvering.

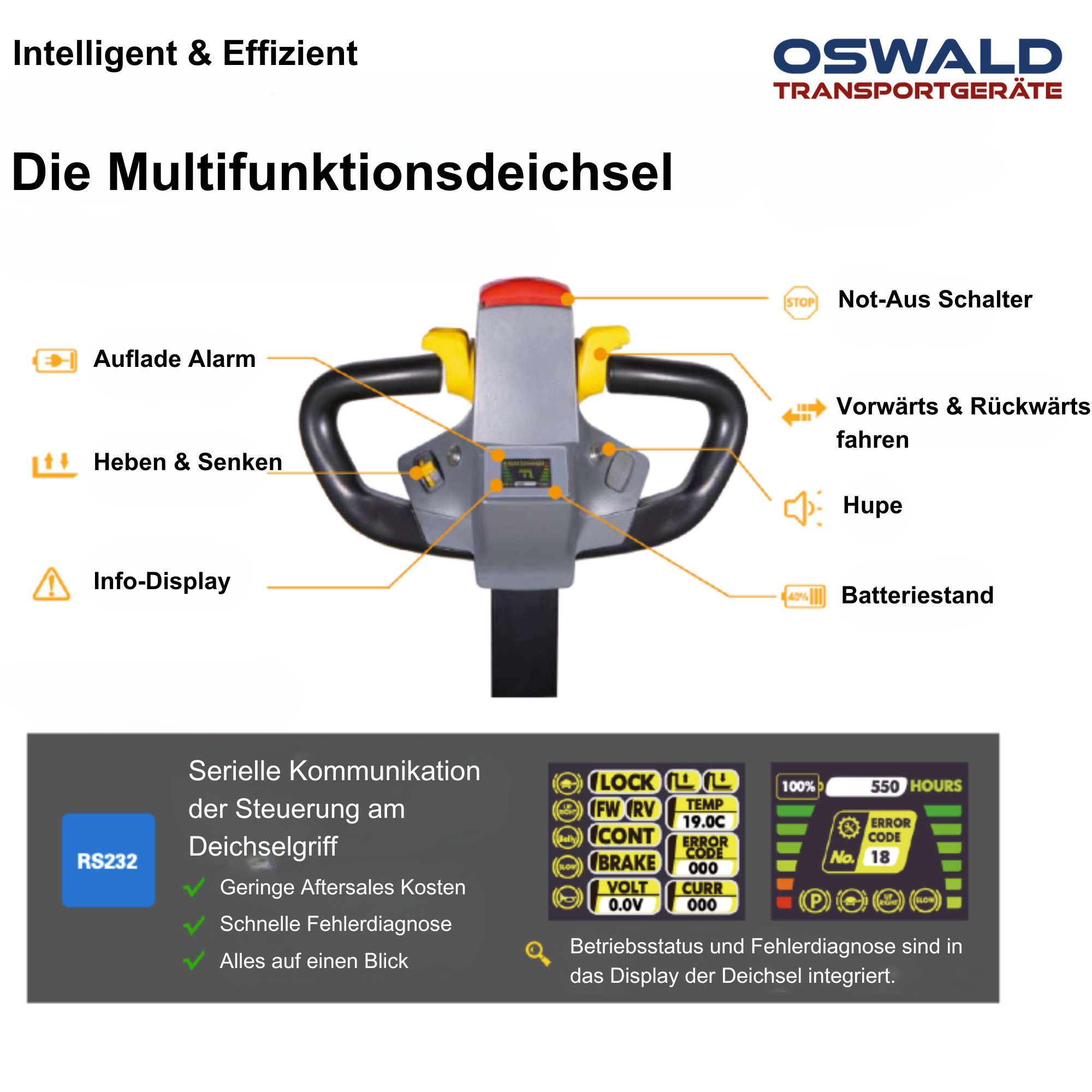

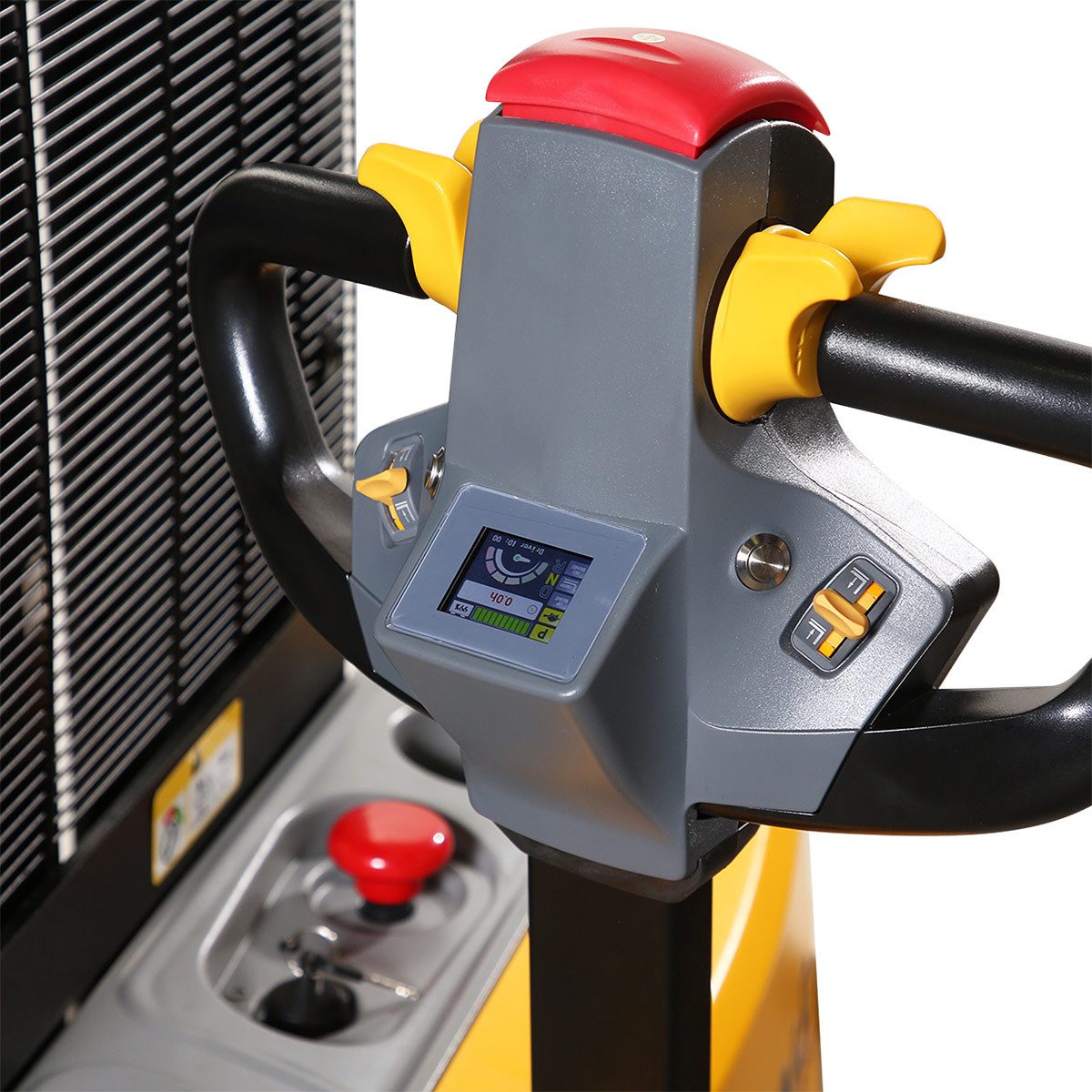

The lifting and lowering speed of the pallet stacker can be adjusted via a switch on the tiller , enabling precise load handling and contributing to energy savings. This finely tuned control protects delicate goods and reduces wear on critical parts of the stacker. The result: a longer service life for the machine and more sustainable logistics.

The steering and load wheels are made of wear-resistant polyurethane (PU) , which ensures smooth and quiet driving.

Characteristics:

• easy handling and high maneuverability
• low weight for economical operation
• Side-mounted drawbar for better visibility
• Automatic speed reduction from 500 mm lifting height
• telescopic duplex mast
• Steering and load casters made of polyurethane (PU)
• Maintenance-free 2x 12V / 85Ah lead-acid battery
• The integrated charger allows you to charge the device at standard 230V sockets.
• Undervoltage protection for the batteries
• When retracted, it fits through most doors.

Technical data:

Load capacity: 1,500 kg;
Maximum lifting height:
3,000 mm ;
Overall height: 1,980 mm; Minimum fork height : 90 mm
; Fork dimensions (L x W x H): 1,150 x 160 x 70 mm; Fork spacing : 560 mm ; Load center of gravity: 600 mm; Turning radius: 1,490 mm; Battery: 2 x 12V / 85 Ah; Drive motor power: 0.75 kW; Lift motor power: 2.2 kW ; Travel speed (no load/with load): 4.5 / 4.0 km/h ; Gradeability (no load/with load): 15% / 5% ; Dimensions (L x W x H): 1,710 x 820 x 1,980 mm ; Maximum mast height: 3,435 mm
