OBD2 Diagnostic Tool CR MAX OBD2 Scanner + Free Online Updates GERMAN

Scope of delivery:

• 1x iCarsoft CR MAX Diagnostic Tool
• 1x OBD Connection Cable

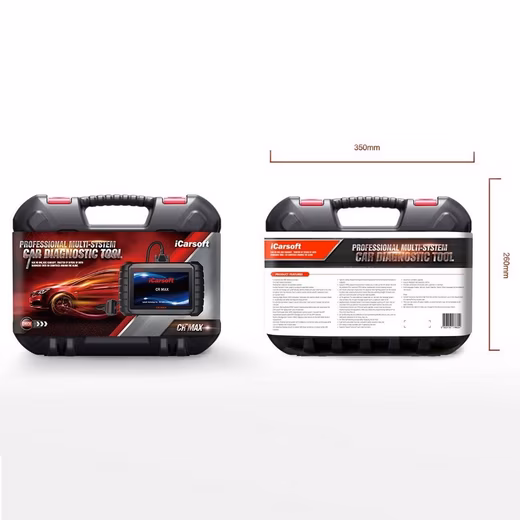

• 1xHard plastic storage case
• Accessories: Micro-USB charging cable, user manual (languages: DE / EN / NL)

  Suitable vehicle models:

  The following vehicle manufacturers from 1996 onwards with OBD connection:
  Abarth, Acura, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Chrysler, Citroen, Dacia, Daewoo, Dodge, DS Automobiles, Ferrari, Fiat, Ford, GM, Holden, Honda, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, KIA, Lamborghini, Lancia, Land Rover, Lexus, Lincoln, Maserati, Maybach, Mazda, Mercedes-Benz, Mercury, Mini, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Rolls Royce, SAAB, Seat, Skoda, Smart, Sprinter, Subaru, Suzuki, Toyota, Vauxhall, VW / Volkswagen, Volvo

  Note: For older vehicles, an additional plug / adapter is required!

  General information:

• Make sure that your vehicle has a 16-pin OBD2 diagnostic port!
• Stay up to date with free updates directly from the manufacturer iCarsoft.
• German menu navigation (other languages can be selected)
• For older vehicles, an additional cable or plug may be required!
• iCarsoft offers a precise compatibility list for all OBD diagnostic devices. This can be requested directly from iCarsoft!!
• The iCarsoft CR PRO is the successor to the CR Plus
• Technical details:
• The iCarsoft CR MAX is the successor to the CR PRO
• Display: 7″ capacitive LCD touchscreen with a resolution of 1024×600
• Internal memory: 16GB
• Connections: OBD-2 / Wi-Fi / Bluetooth / MINI USB 2.0
• Operating System: Android 8.1
• Processor: 4NUCLEAR 1.3 GHz
• Power Supply: 3.7V/5000mAh Lithium Polymer Battery
• Battery life: about 5 hours of continuous use
• Power consumption: 500 mA (LCD on with standard brightness, Wi-Fi on) at 3.7 V
• Menu Language: English, German, French, Spanish, Dutch, Portuguese, Russian
• Operating temperature: 0°C to max. 50°C
• Storage temperature: -20°C- 70°C
• Size LxWxH: 150mm x 240mm x 35mm
• Weight: 750g
• Manufacturer’s description:

  The iCarsoft CR MAX is the successor of the CR PRO and thus combines all V1.0 / V2.0 / V3.0 iCarsoft devices in one system! The device offers fast and uncomplicated vehicle diagnostics. The CR MAX is compatible with over 50 vehicle brands for manufacturer-specific diagnostics! In addition, the standard OBD-2 diagnostics are supported on all vehicles with a suitable connection. The device offers tips on the cause of the error code and thus leads you to the source of the error more quickly. This saves diagnostic and repair time. Operation is child’s play, thanks to the 7″ LCD touchscreen and the Android 8-based operating system in German / English / Spanish / French / Portuguese / Russian / Dutch.



  Overview of the functions for the listed vehicle brands:

• Readout of real-time data (fuel system status, coolant temperature, etc.)
• Read and clear engine control unit trouble codes, transmission, ABS and airbag*
• The VIN function allows the CR Max to automatically identify your vehicle in no time at all
• Service reset for e.g. oil and other service intervals*
• Extinguishing warning lights: engine, ABS, airbag*
• SAS / LWS (Steering Angle Sensor Calibration): Calibrates and recalibrates the steering wheel*
• EPB (Electric Parking Brake): Open, close and calibrate the EPB for maintenance as well as when replacing the brake pads / brake discs*
• DPF (Diesel Particulate Filter): Reading out the DPF data, triggering the DPF regeneration*
• BMS (Battery Management System): Registering a new battery after a replacement*
• ETC (Electronic Throttle Control): Teaching of the throttle valve after replacement or cleaning*
• TPMS/TPK (Tire Pressure Monitoring System): Get the tire sensor IDs from the vehicle’s ECU, enter the IDs of new sensors, and test sensors
• ABS Venting*
• AFS (Advanced Frontlighting System): Headlight Reset*
• Calibrate / reset air suspension*
• Reset / delete adaptations of the transmission control*
• Calibrate air conditioning*
• Fuel Pump Activation*
• Coding of injectors*
• Full ECU / Actuator Diagnostics
• Automatic software upgrade
• Supports freeze frames
• DTC library for reference
• Overview of the functions for all vehicles with OBD-II function:
• Read and clear fault codes*
• Readiness Test, O2 Sensor Test, Leak Test (Evap System Test)
• Readout of real-time data
• Readout of all relevant vehicle information such as: VIN, CVN
• Readout of generic (P0, P2, P3, and U0) and manufacturer-specific (P1, P3, and U1) engine control error codes
• *Please do not remove any warning lights, error codes or service instructions until the repair has been successful!!

  *Note: Certain features may be restricted or non-existent by the vehicle manufacturer due to the requirement of a special factory access code!! (Please ask us for compatibility beforehand!)
