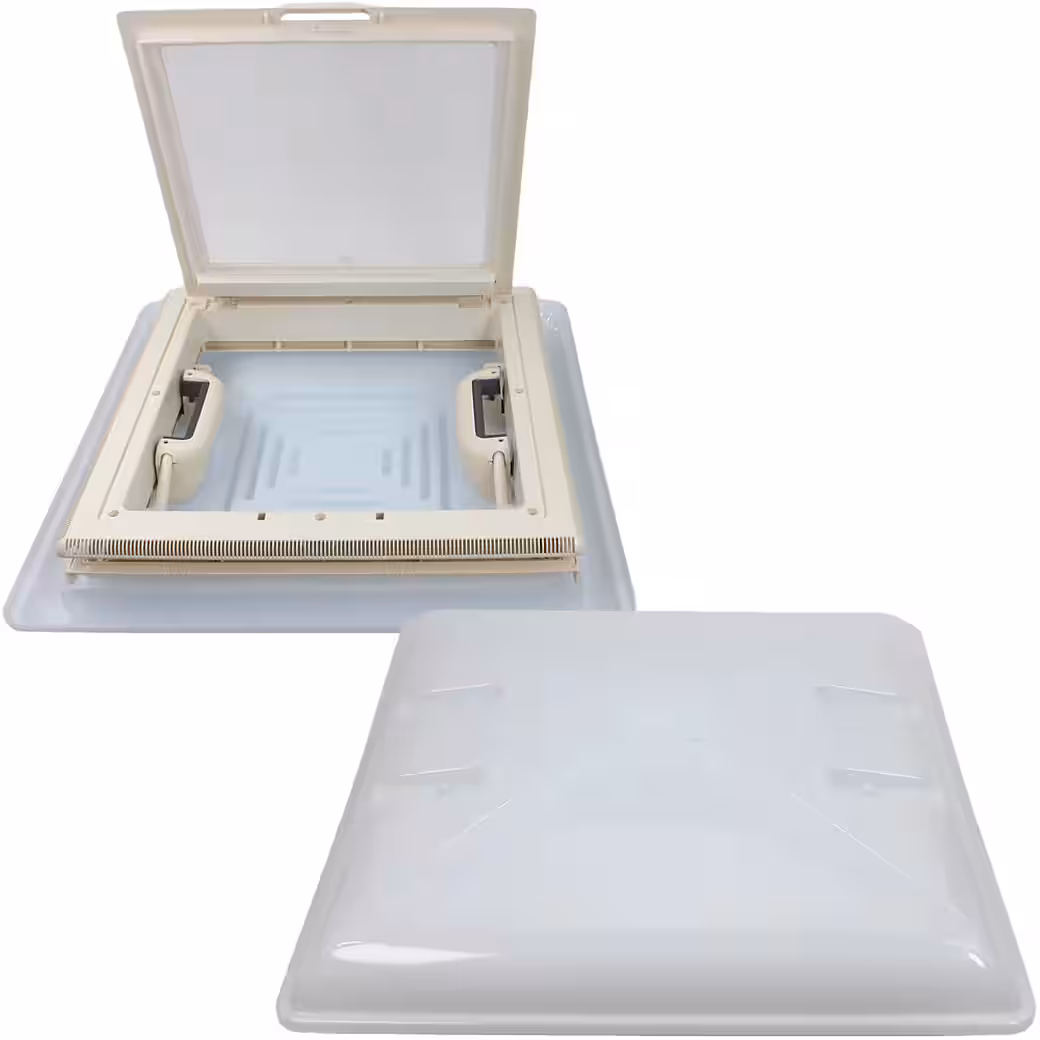

MPK Model 46 roof window, roof hatch 40×40 cm + roller blind for motorhomes and caravans

Roof hatch

Frosted glass hood model 46 for 40 cm x 40 cm roof opening with roller blind and insect screen in pearl white

Mass:

• Installation dimensions / roof cutout: 40 cm x 40 cm to 42 cm x 42 cm
• Hood size (outer dimensions): 56 cm x 56 cm
• for roof thicknesses from 2.4 cm to 5.6 cm
• External dimensions of the cover frame (inside): 47 cm x 47 cm
• Installation height of the outdoor part above the roof: 9.2 cm

Product features:

• high-quality, solid-colored, pearly white plastic

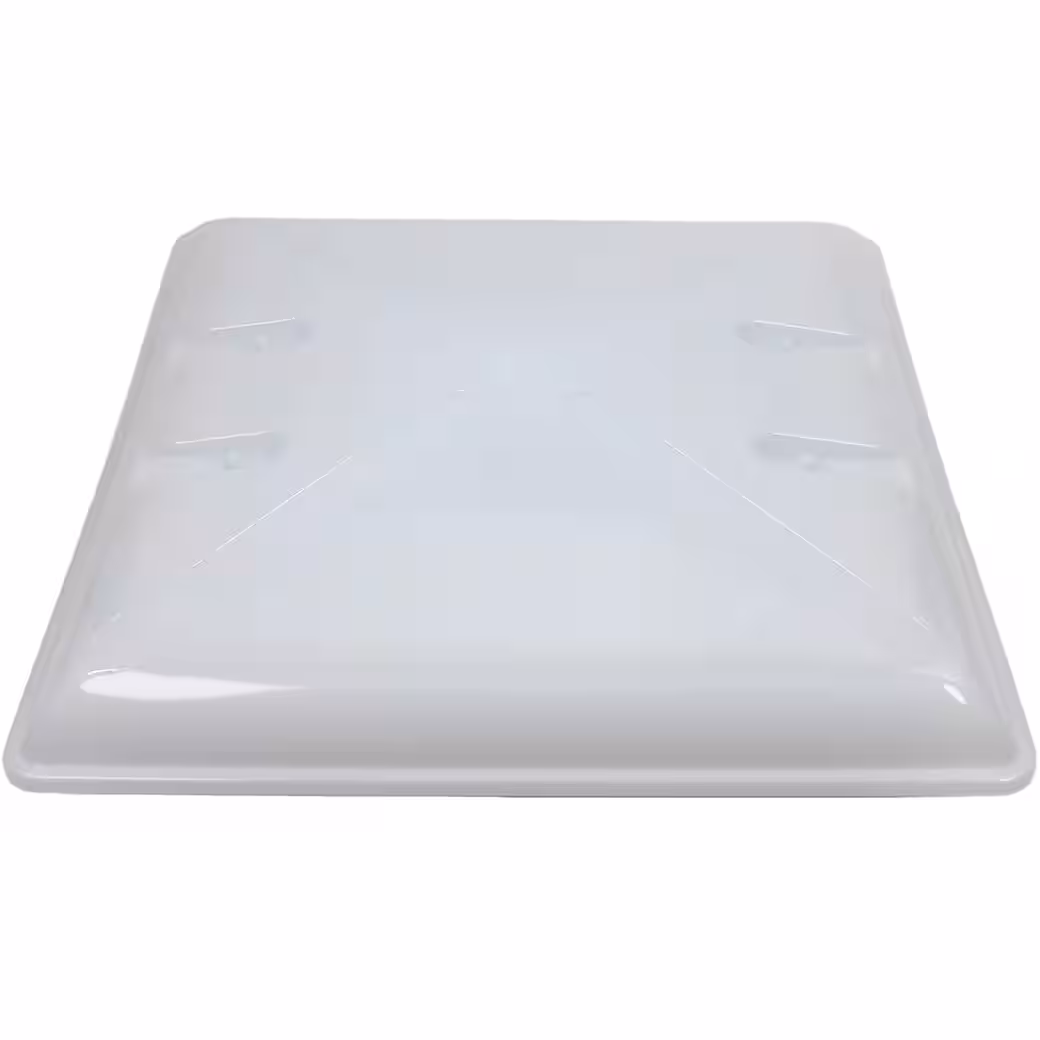

• Frosted glass dome with a large overhang provides ample brightness in the interior
• with snow and splash guard edge

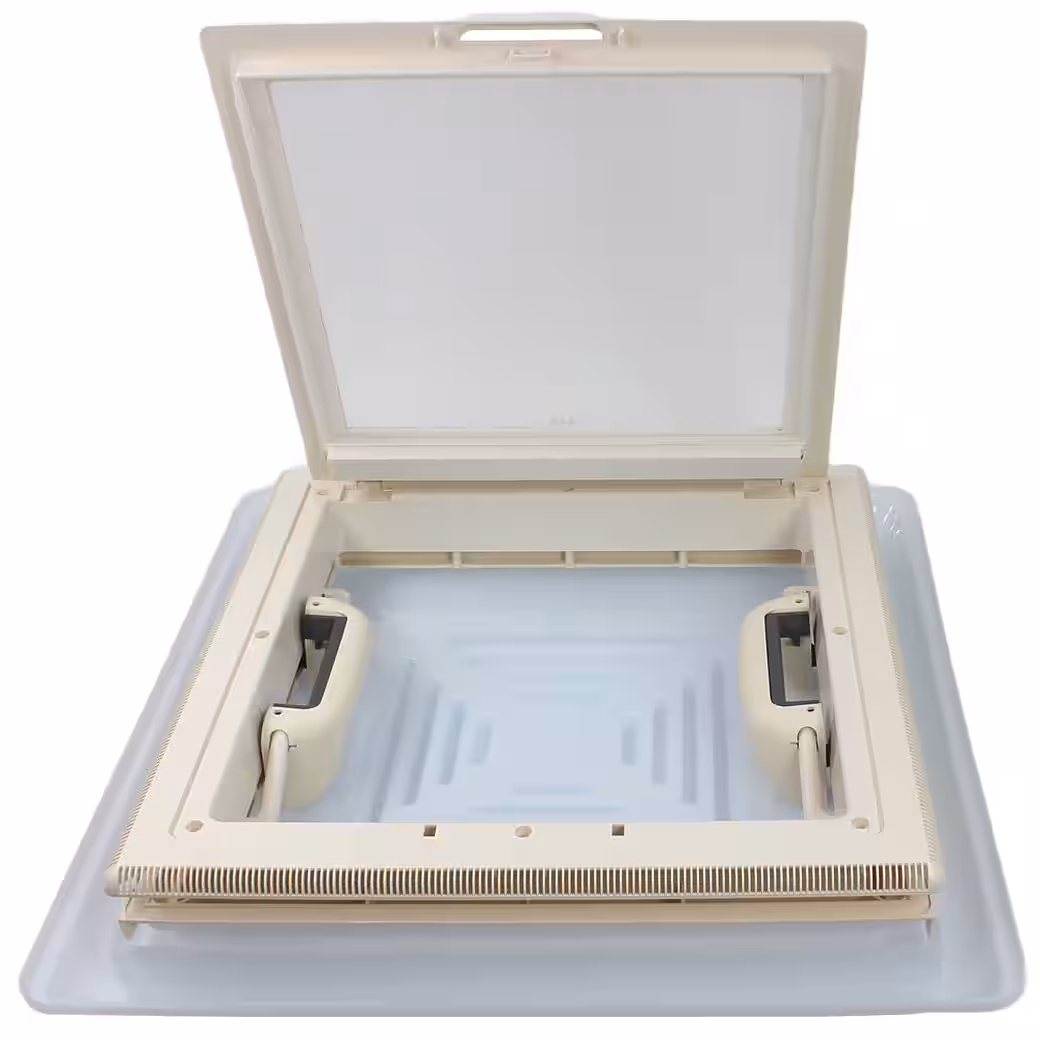

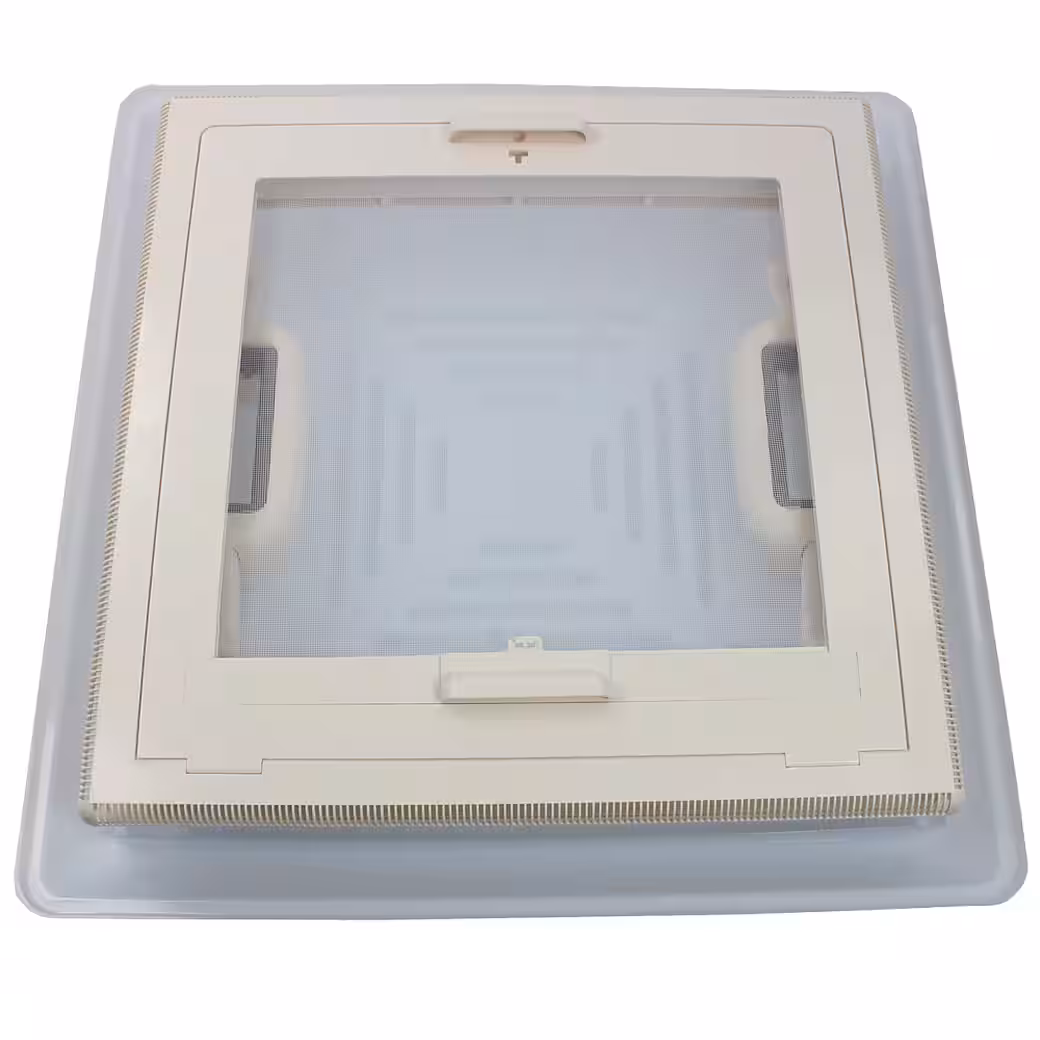

• Foldable frame with mosquito net and blackout blind
• The aluminum-laminated back of the roller blind makes it more difficult for heat or cold to penetrate.

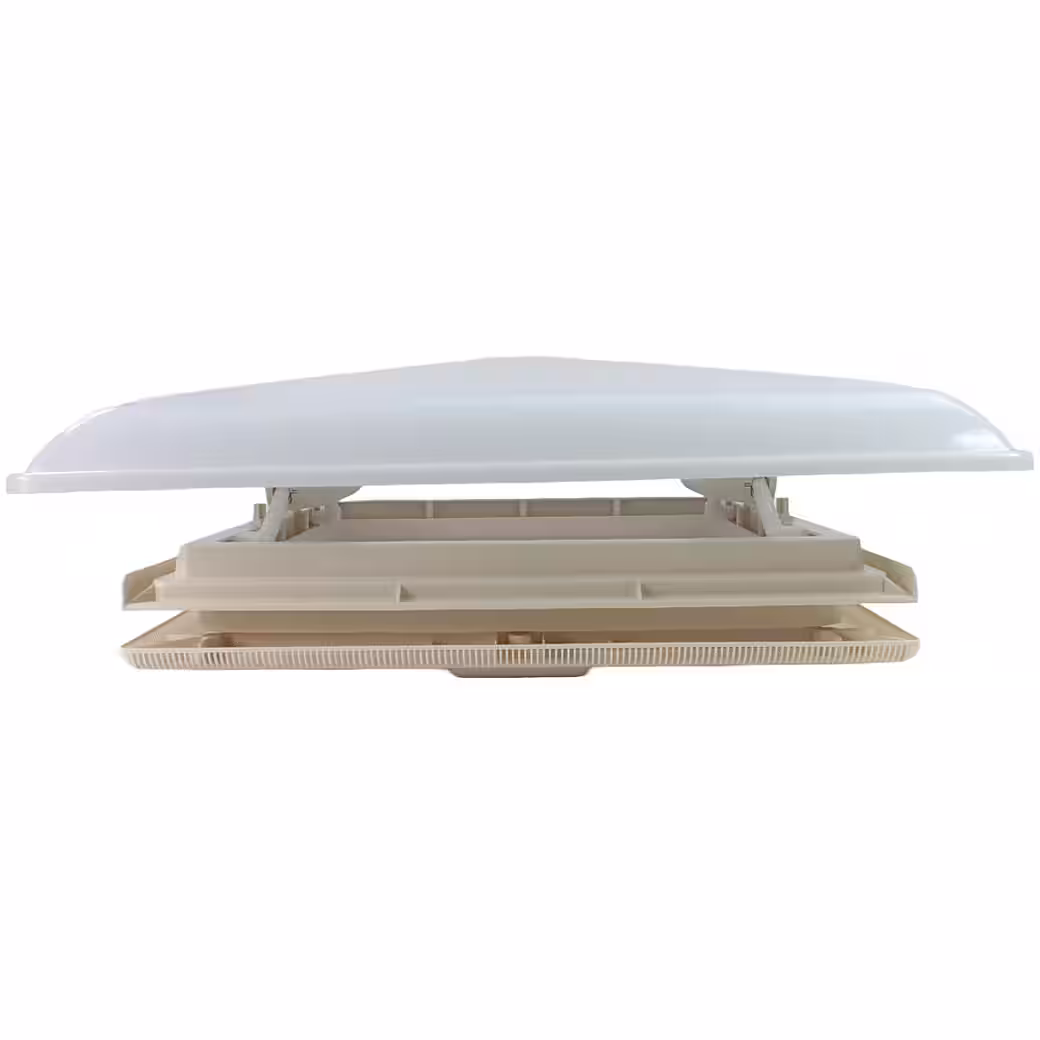

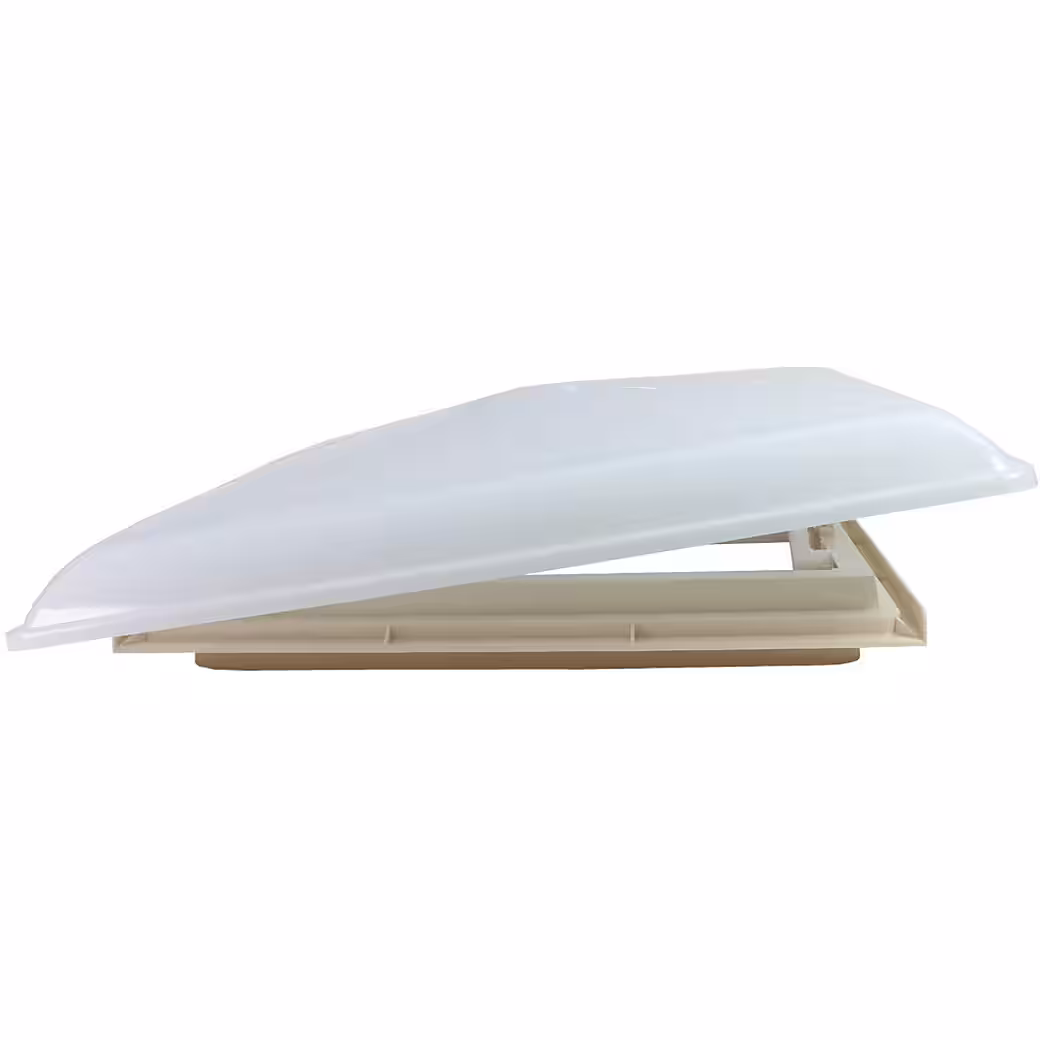

• to open to all sides via telescopic extension
• with locking mechanism for the opening handles
• Continuous ventilation system
• 8 x 3.5 mm countersunk holes in the inner part of the screw-on frame
• Weatherproof
• UV-resistant
• Top quality from the original equipment manufacturer
• Made in Germany
• New

Scope of delivery:

• a roof vent (without mounting screws)
