Scissor lift 3.5 t with electric release and wheelset
Tire service Scissor lift, 100 cm stroke, electr. Unlocking, 230 Volt, 2200 W

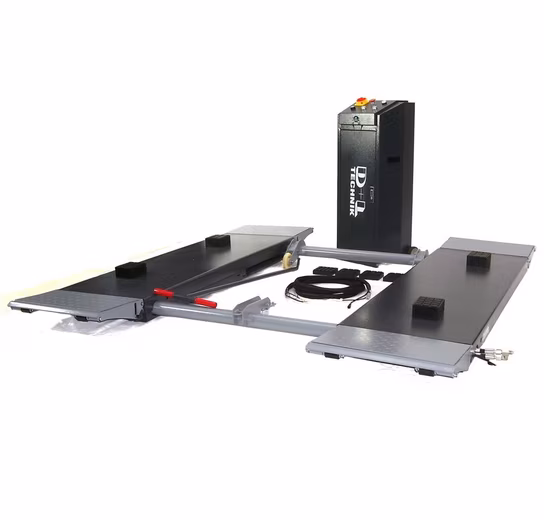

Mobile, electro-hydraulic short-stroke scissor lift with 3500kg load capacity for cars and vans incl. electric safety release and wheelset.
This D+L mobile tire service scissor lift with 1m stroke is ideal for tire services, body construction and vehicle preparation.
The scissor lift is easy to move thanks to the integrated wheelset and can therefore be used as an additional workstation on any sufficiently paved flat floor.

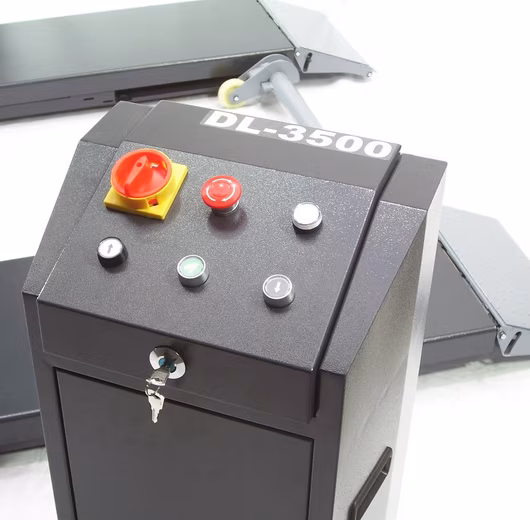

The platform can be raised and lowered electrically on the clearly designed control panel, with automatic safety locking.
The scissor lift is locked and unlocked electromagnetically.
A compressed air connection is not required for this.
The lifting device is ideal for mobile working in garages or workshops and, thanks to its mobility, enables ideal working even in small workshops with limited space.
Thanks to the integrated wheelset, the lift can be positioned anywhere in the workshop.
The sturdy swivel arms are adjustable and telescopic. The platform offers a low drive-over height.
Product advantages:
– stable, mobile scissor lift 3.5 tons incl. electr. Unlocking and wheelset
– low drive-over height, mechanical synchronization control of both lanes for perfect synchronization
– fully automatic lifting and lowering at the touch of a button, no more compressed air required
– the scissor lift 3500 kg is delivered with a mobile kit and can therefore be
moved easily – stable deflection system on the hydraulic cylinder for powerful lifting in the lower area
– Safety bolt system with monitoring of the detent position
– Large contact surface due to lockable ramps
– High-quality and solid construction
– Low drive-over height, only 115 mm
– Automatic safety locking and unlocking
– High-quality powder coating, incl. wheelset and rubber pads
– Low space requirement, electronic stroke limitation by limit switch
Technical data:
Mains voltage: 230V / 50Hz
Motor power: 2.2 kW, 3hp
Fuse: 16A, C-inertia
Load capacity: 3500 kg
Drive-over height: 115 mm
Lifting height max.: 1000 mm
Pick-up width: 1850 mm
Pick-up length: 1440–2030 mm
Rail width: 500 mm
Rail spacing: 850 mm
Set-up width: 1860 mm
Lifting time: approx. 35 sec. (unloaded)
Control panel (lxwxh): 470 x 370 x 890 mm
Stage dimensions (lxwxh): 2030 x 1860 x 115 mm
Weight: 525 kg
Scope of delivery:
1 piece, mobile scissor lift 3500kg
1 piece, control panel
1 piece, hydraulic line 3.5 m
3 pieces, wheels 100mm / 80mm
1 piece, pull rod
8 pieces, rubber pads
Notes:
– Fill up hydraulic oil before commissioning, not included
in delivery- Forwarding shipping, please let us know
your phone number after purchase -no shipping to Packstation – no island shipping-
