Water security system LK 365 CubicSecure Set
The LK 365 Cubic series offers efficient water monitoring to prevent water damage and provides an optimal water security system, 24/7.
With LK 365 Cubic products, water consumption is not only measured, monitored, and controlled, but the monitoring function also offers an efficient tool for optimizing consumption data, leading to cost savings.
LK 365 CubicSecure and LK 365 CubicDetector can be used individually or linked together to shut off the water supply. Both Cubic units can be monitored and controlled via the MyLK app, but can also be operated without the app.
The water security system features automatic water supply shut-off and highly accurate consumption measurement.

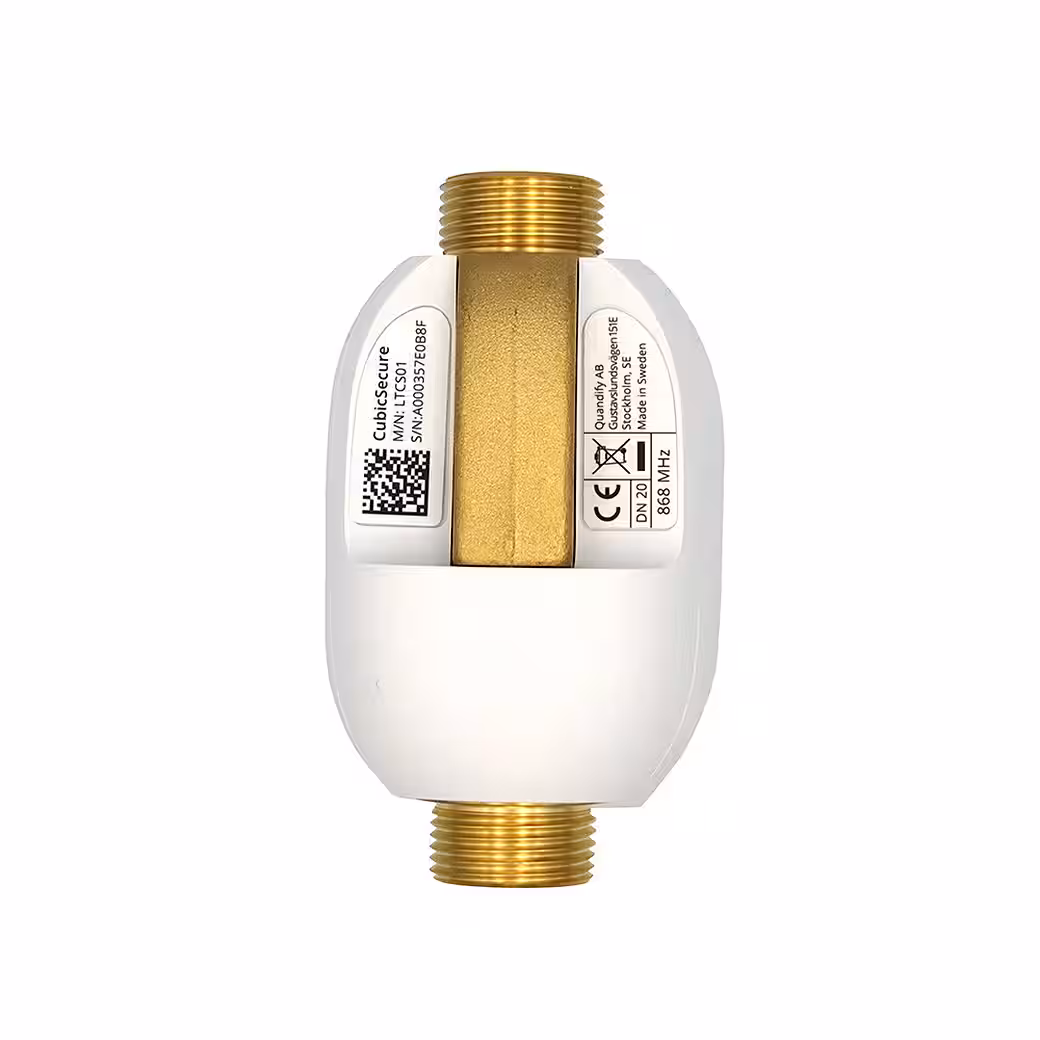

LK 365 CubicSecure not only determines precise water consumption but also detects micro-leaks as low as 0.01 l/h using ultrasonic measurement. The MyLK app allows for automatic water shut-off, or manual shut-off directly on the device. The LK 365 CubicSecure boasts the smallest and most compact dimensions currently available on the market, enabling easy installation in various pipe systems. Features include
: automatic water shut-off
; a compact size of 110 mm
; ultrasonic leak detection
; micro-leak detection
; installation in hot and cold water lines
; flow measurement;
humidity measurement
; and temperature measurement.

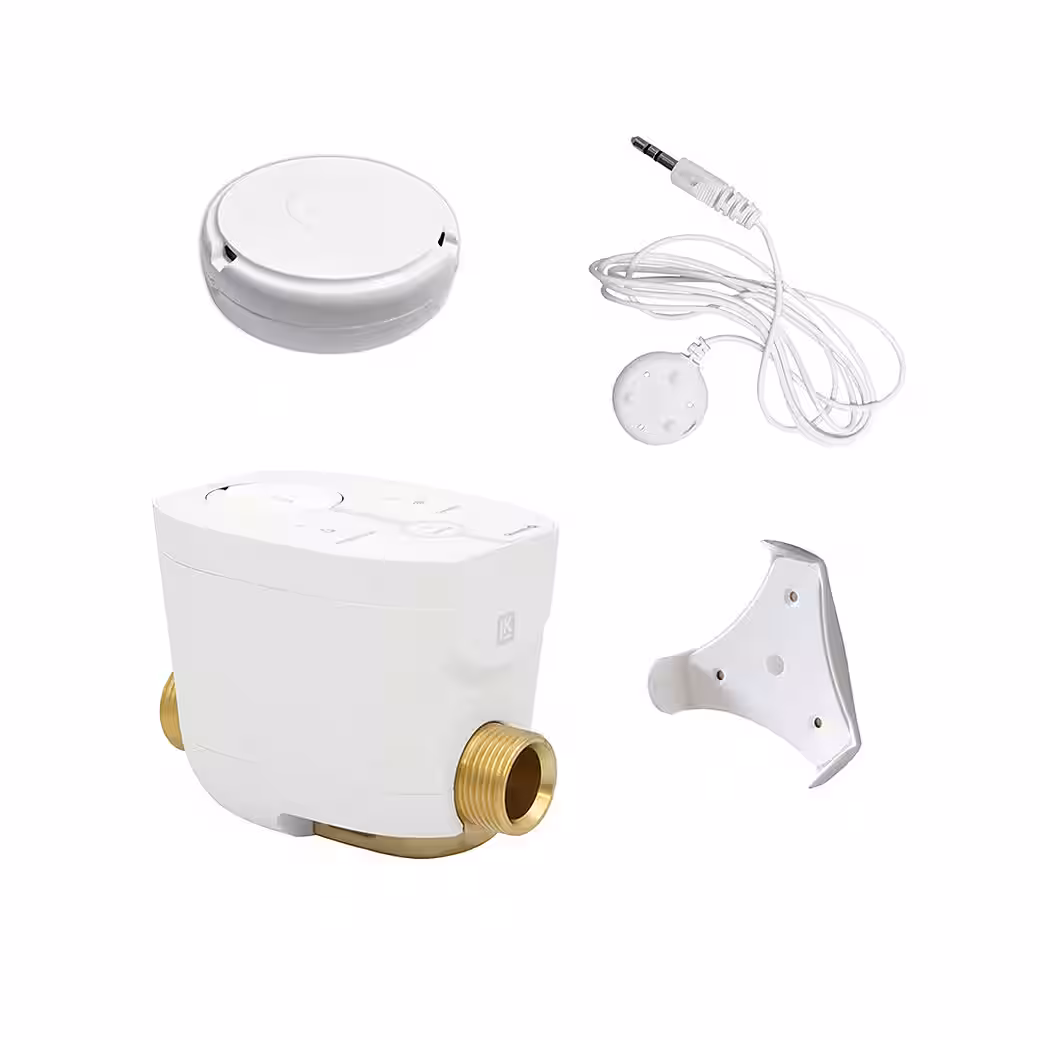

The set includes the LK 365 CubicSecure, LK 365 CubicDetector, and the LK 365 CubicSensor. This set offers an all-inclusive package for detecting water damage and automatically or manually shuts off the water supply. It is controlled via the MyLK app.
SYSTEM DESCRIPTION
The LK CubicSecure is a compact unit that can be installed in confined spaces. The device is easy to install inside a water pipe in a house or apartment. The water safety system can be operated manually in the event of a power outage or emergency.
ALARM SIGNALS MICRO-LEAK
A micro-leak is detected by automatically closing the valve daily for up to 45 seconds to measure whether there is a pressure drop of more than 0.5 bar.
MEDIUM LEAK
The device sounds an alarm and shuts off the water after detecting a continuous flow for at least 45 minutes.
MAJOR LEAK
The device sounds an alarm and closes the valve after a continuous flow of more than 1500 l/h for at least 90 seconds.
| Operating temperature: |
0.1-70 °C |
| Ambient temperature: |
5 °C … 30 °C |
| Storage temperature: |
5 °C … 55 °C |
| Max. working pressure: |
16 bar (briefly) |
| Operating pressure: |
PN 10 |
| Max. flow rate: |
4,000 l/h (Q3) |
| Miscellaneous: |
Environment: Indoor use
Application area: House, terraced house, apartment
Temperature range: -25 °C … 60 °C
Temperature accuracy: ±1.5 °C
Humidity range: 0-100% RH
Humidity accuracy: ±5%
Alarm sound level: 85 dB
Radio frequency: 2.4 GHz Wi-Fi, 802.11 bgn
Data resolution: The CubicDetector measures temperature and humidity every 30 minutes and sends the data to the cloud every 24 hours.
Kvs: 4.6 m³/h
Radio frequency: 2.4 GHz Wi-Fi
Leak sensor cable: 1219 x 27 x 8 mm
Replaceable battery: CR123A lithium cell, up to 3 years battery life*
Warranty: 2 years |
| Miscellaneous: |
Start 6 l/h
Microleakage >0.5 bar pressure loss
Medium leakage >6 l/h for min. 45 minutes
Large leakage >1500 l/h for min. 90 seconds
|
