HEIKO BRISA split air conditioner, wall-mounted unit, 3.2kW

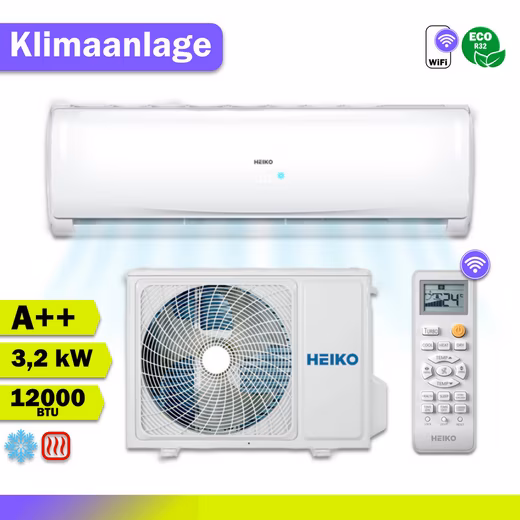

HEIKO BRISA Split Air Conditioner Wall Unit 3.2kW

Modern design meets intelligent climate technology.
Stylish, efficient and smart – climate comfort on a new level.

The HEIKO BRISA 3.2kW split air conditioner combines state-of-the-art technology with an elegant design. It not only ensures pleasantly tempered rooms but also clean, healthy air – all with exceptional energy efficiency (A++). Ideal for living spaces, offices, or small commercial premises.

Top features at a glance:

• 3-in-1 comfort: Cooling, heating, drying – perfect indoor climate all year round
• Energy efficiency class A++ – low power consumption thanks to ECO mode
• WiFi Ready: Control via Smartphone & INTELLIGENT AIR App
• Integrated air filters: For clean and healthy indoor air
• SMART airflow: Automatic air distribution according to operating mode
• Turbo mode: Rapid cooling for hot summer days
• Sleep function: Extra quiet night mode with temperature reduction
• Auto-restart: Automatic restart after a power outage
• Timer & LED display: Convenient programming & temperature display
• Airflow test: Monitors airflow for reliable operation

Efficient heating and cooling – all year round.
With a cooling capacity of 3.2 kW, the BRISA wall-mounted unit is ideal for rooms up to approximately 50 m². Thanks to its integrated heating function, you can also use the unit efficiently during the transitional seasons or in winter – without an additional heating system.

Smart control from anywhere.
Simply connect the air conditioner to your Wi-Fi network and conveniently control it via the free INTELLIGENT AIR app – whether you’re at home or on the go. Temperature, operating mode, timer, and more can be controlled intuitively.

More comfort with less consumption.
The ECO mode automatically reduces energy consumption without compromising comfort. Especially practical in combination with the Sleep mode, which ensures quiet operation and an optimal room climate at night – with minimal noise and maximum energy savings.

Clean air – healthy breathing comfort.
The integrated multi-filter reliably removes dust, pollen, and other pollutants from the air. This means the BRISA air conditioner actively contributes to a better indoor climate and greater well-being – ideal for allergy sufferers.

Technical Data
Product Type Air Conditioner
Product Type Split Air Conditioner
Brand / Manufacturer HEIKO
Model BRISA
Drive Type Electric
Suitable for Rooms up to 50m²
Operating Mode Cooling / Heating / Dehumidifying / Fan / Auto
Features ECO Mode, WiFi Ready, Integrated Filters, SMART Airflow, Auto Mode, TURBO Mode, Airflow Control, Auto Restart Function, Quiet Operation, LED Temperature Display, Timer Function
Suitable for Office, Practice, Home, Living Room, Bedroom, Children’s Room

Performance
data Cooling output Nominal (Min.-Max.) 10920 (2730-12286) Btu/h 3.2 (0.8-3.6) kW
Heating output Nominal (Min.-Max.) 11603 (2730-14330) Btu/h 3.4 (0.8-4.2) kW
Power consumption Nominal (Min.-Max.) Cooling: 1.06 (0.30-1.60) kW Heating: 1.0 (0.30-1.60) kW
Supply voltage 1/220-240/50 f/V/Hz (Power supply via the outdoor unit
Connection type AC 230V)
Sound pressure level max. Indoor unit: 38dB(A) Outdoor unit: 50 dB(A)

Energy values
​​Energy efficiency 6.1/3.01 SEER/EER
Energy efficiency class Cooling mode: A++ Heating mode Average climate/Hot/Cold climate: A+/A+++/-
Annual energy consumption Cooling mode: 184 kWh Heating mode: 980 kWh

Temperature range:
Temperature setting from 16 to 30 °C.
Operating range: Cooling mode: -10 °C ~ +43 °C;
Heating mode: -15 °C ~ +24 °C. Dimensions: Indoor unit: 820/195/280 mm; Outdoor unit: 700/245/544 mm.
Weight: Indoor unit: 8.2 kg; Outdoor unit: 23.5 kg.
Refrigerant type: R32

Refrigeration Line Specifications
: Liquid refrigerant line diameter: 1/4 inch (6.35 mm);
Gas refrigerant line diameter: 3/8 inch (9.52 mm)
; Max. pipe length: 20 m;
Max. height difference: 10 m;
Max. length of refrigerant lines without additional refrigerant: 5 m;
Amount of additional refrigerant per meter of pipe: 20 g/m

Package contents:
1x indoor unit
, 1x outdoor unit
, 1x remote control,
1x instruction manual

Installation note:
According to EU regulations, installation must only be carried out by a certified specialist company. This ensures proper commissioning and preserves the manufacturer’s warranty.
