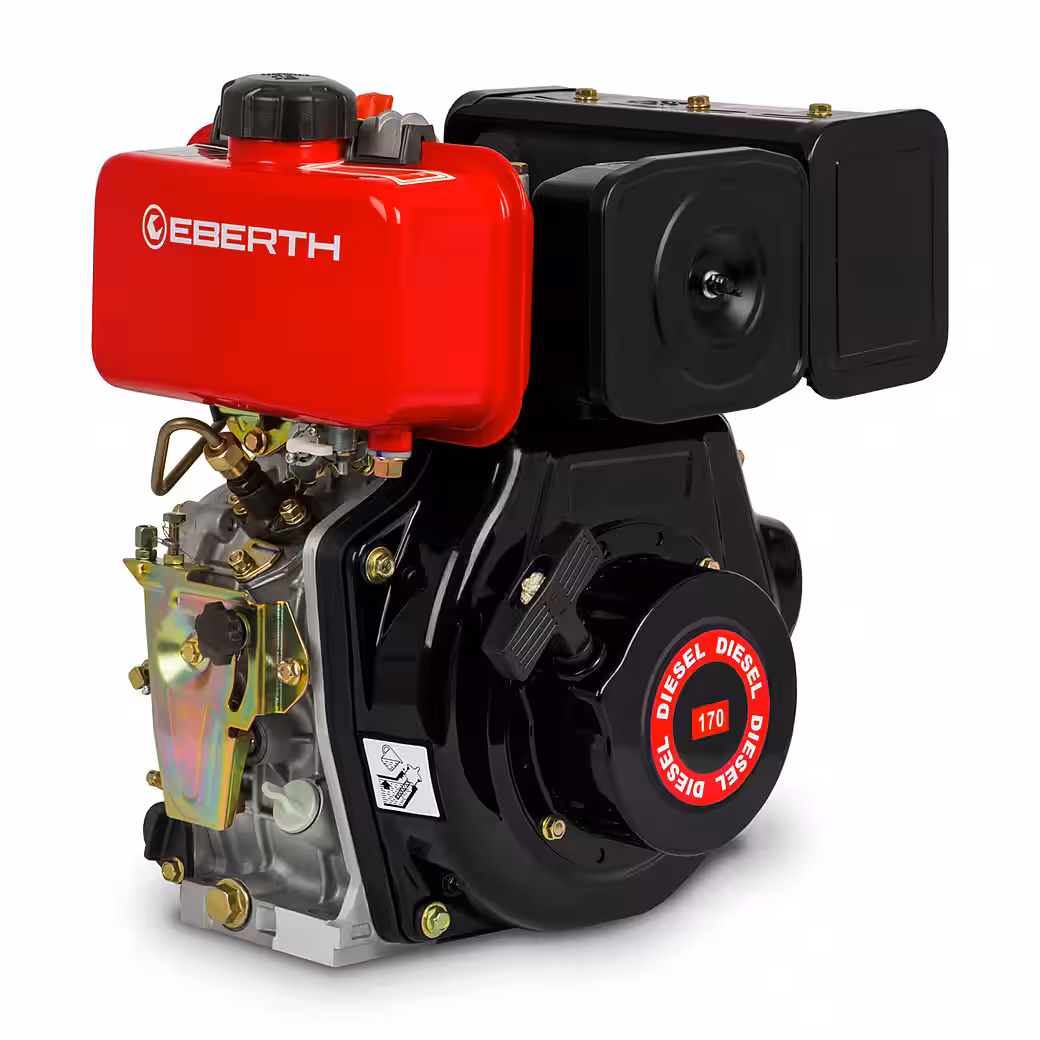

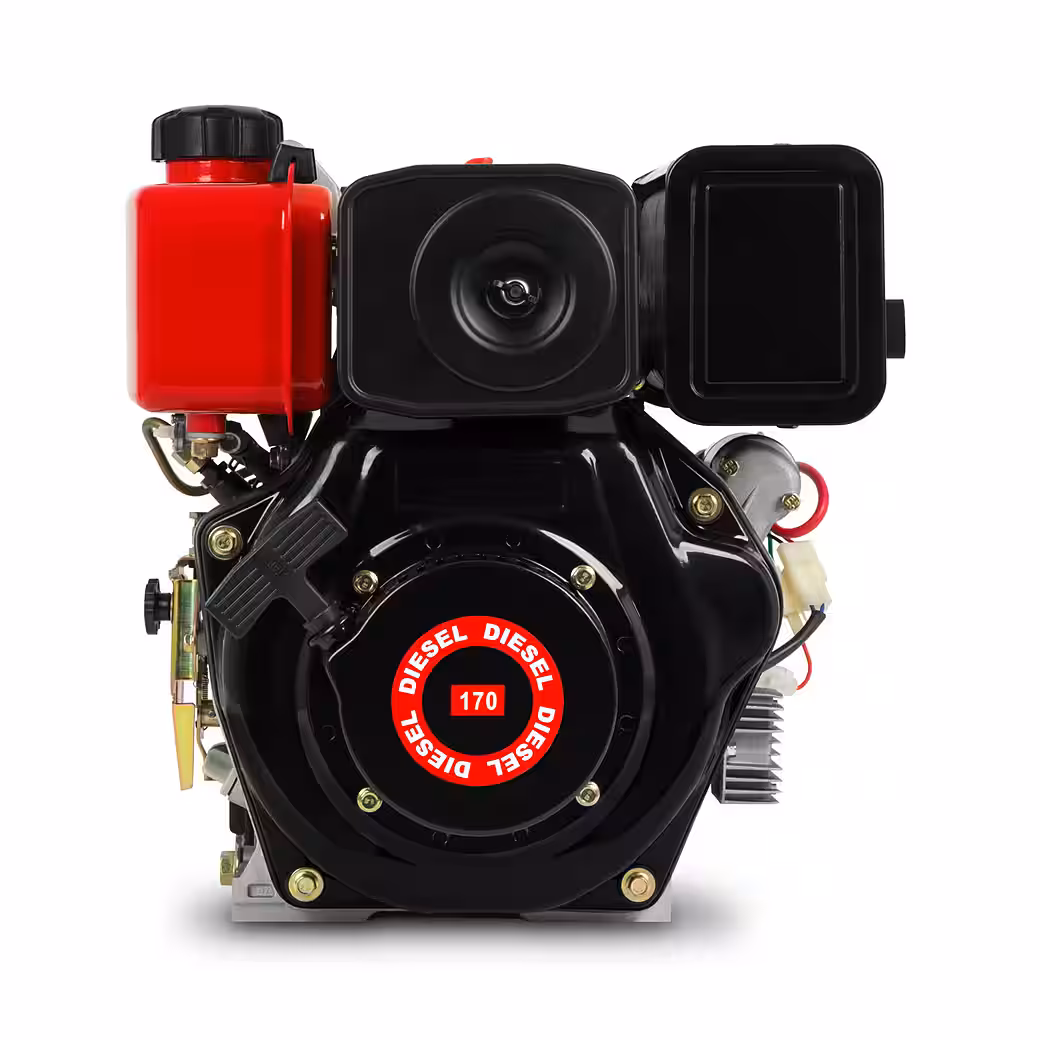

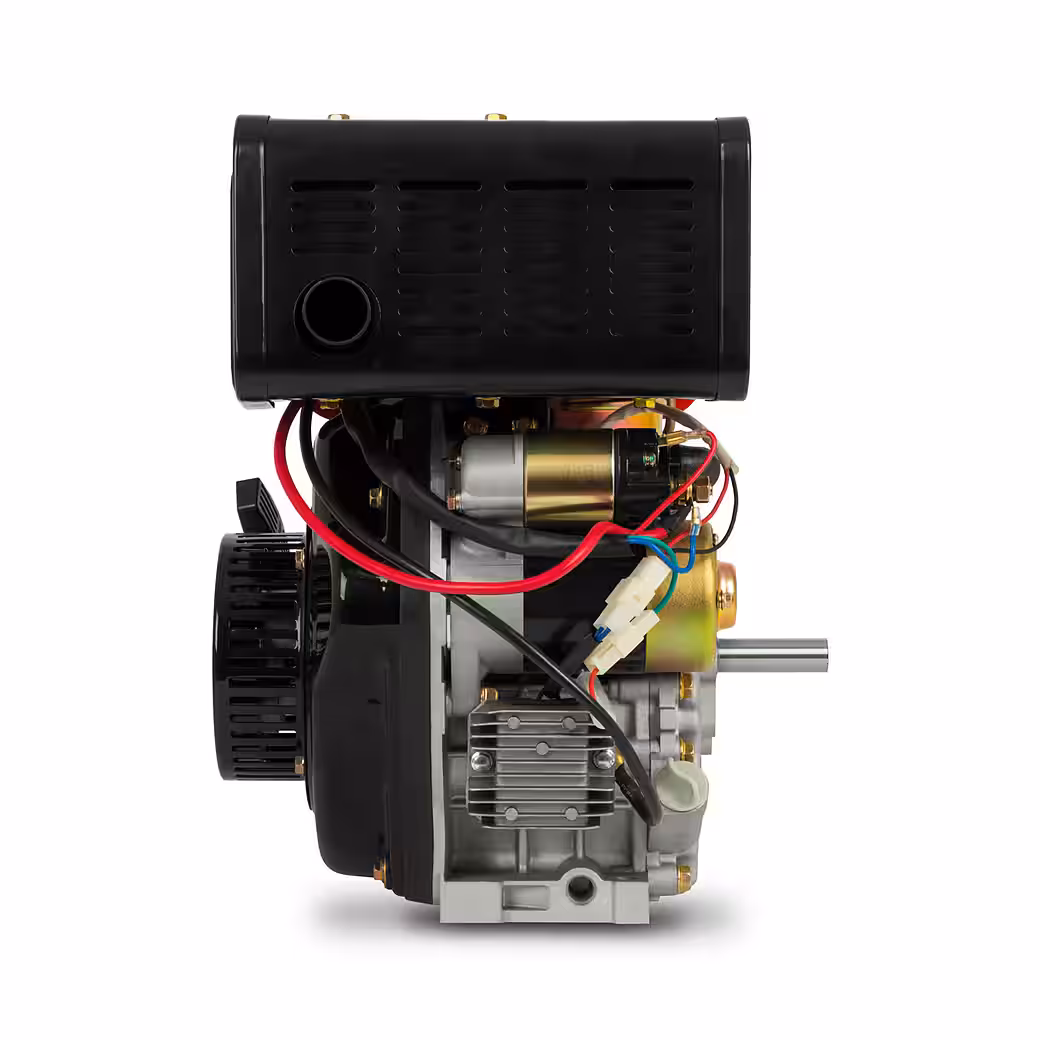

This EBERTH 4-stroke 4.2 HP diesel engine is a standard air-cooled engine used in many common industrial and agricultural machines . It is ideally suited as a replacement engine for water pumps , vibratory plates , log splitters , sickle bar mowers , single-axle tractors , scarifiers , sweepers , snow blowers , generators , and many other diesel-powered devices .
With matching shaft and base plate dimensions, replacement is straightforward .

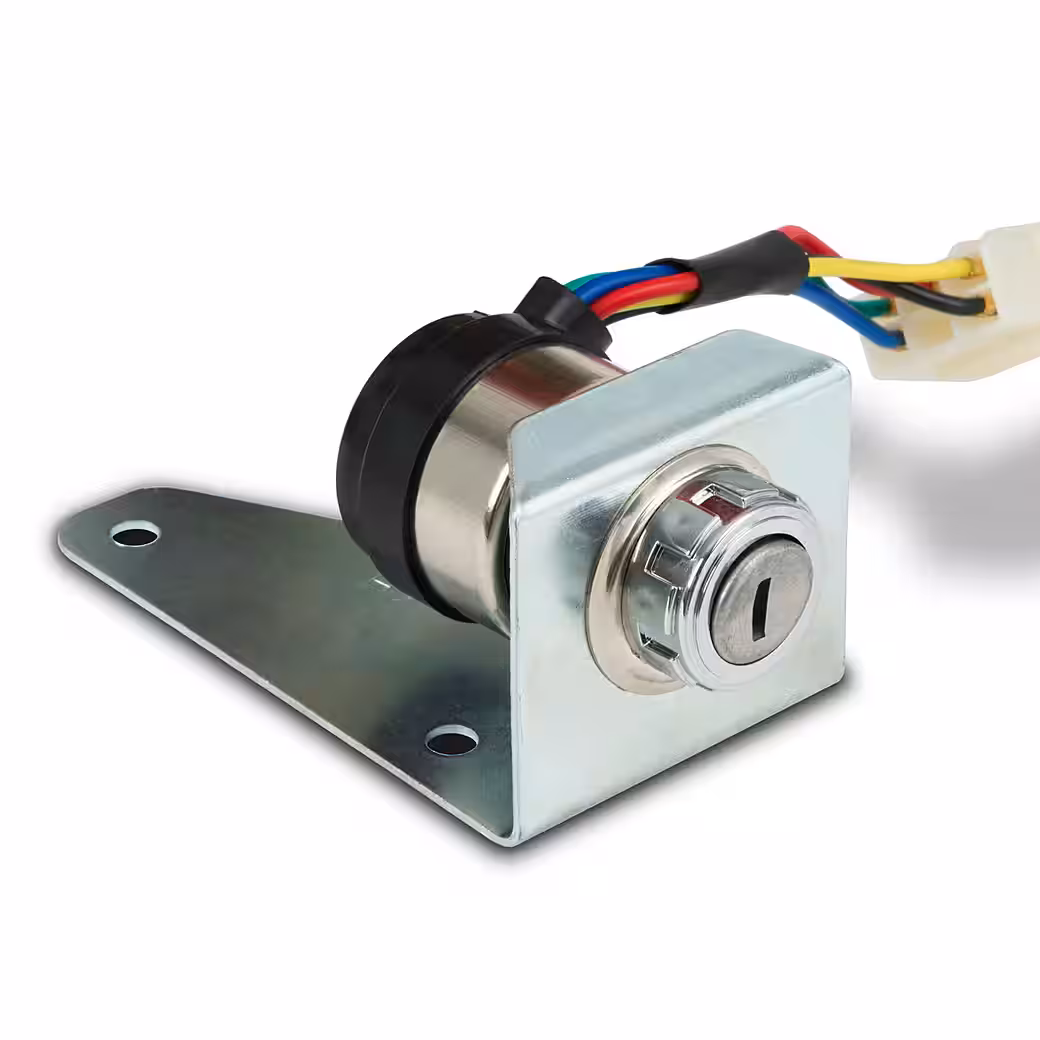

The engine features an electric start and can be conveniently started with the ignition key . Alternatively, it can also be started with a recoil starter . The engine is equipped with a low-oil shutdown system for engine protection . Once the engine is running, the shaft rotates counter-clockwise. With this engine, you are purchasing a product that, with proper maintenance and care, offers excellent conditions for reliable operation and a long service life . Delivery is without oil and fuel; use only diesel! Top Features
- The powerful 4.2 hp / 3.1 kW diesel engine from EBERTH is a proven quality product; the air-cooled four-stroke engine has 1 cylinder and a displacement of 219 cc, can be started by electric starter or pull cord, and impresses with its smooth running at a maximum of 3600 rpm.
- The EBERTH diesel stationary engine has a left-hand rotating shaft with a diameter of 19.05 mm. The reliable diesel engine is equipped with a high-quality carburetor and low oil level protection; the protection shuts off the engine if the oil level is too low.

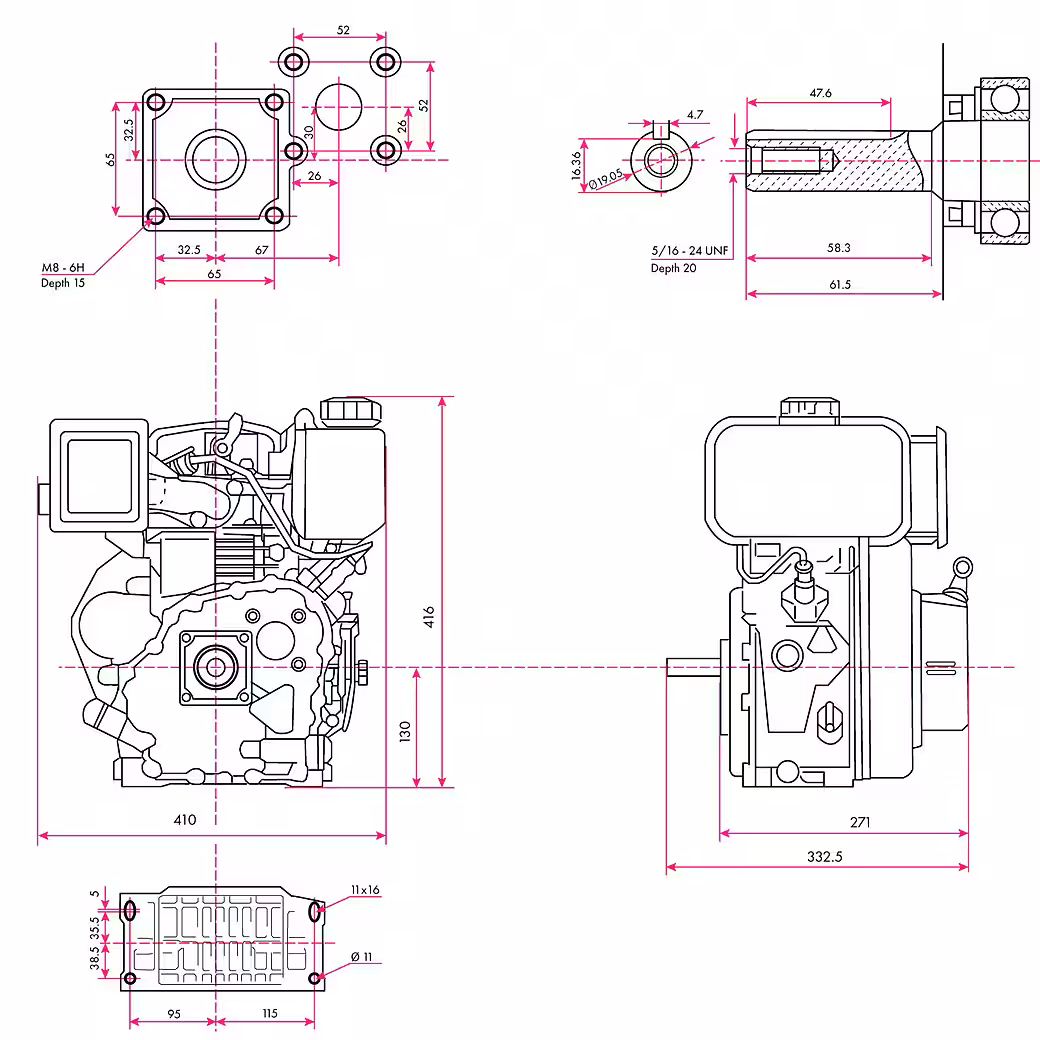

- Without much effort, the diesel engine can be installed as a drive motor in numerous machines, e.g., go-karts, lawnmowers, lawn tractors, vibratory plate compactors, generators, snow blowers, log splitters, garden tillers, and rotary cultivators; see the engine diagram for details.
- Included in the delivery are tools for commissioning and maintaining the engine, a 17Ah 12V battery, and two ignition keys. The German brand EBERTH operates a large spare parts warehouse in Germany; spare parts are always available and can be delivered to your home within 1-3 working days.
- The engine has a long lifespan, it features a threaded oil dipstick with a sealing ring, the air filter is easily removable and serviceable, it runs on diesel fuel with a 2.5L tank capacity, and the powerful battery recharges automatically during operation.
Datasheet
- Engine power: 4.2 hp / 3.1 kW
- Engine displacement: 219 cc
- Speed: max. 3600 rpm.
- Idle speed: approx. 1500 rpm.
- Fuel: Diesel
- Oil quantity: 0.75 liters
- Engine oil: 10W-30
- Dimensions (L x W x H): 420 x 340 x 425 mm
- Weight: 31.4 kg
Scope of delivery
- 1x EBERTH diesel engine GG1-ERD-4.2E with electric start
- 1x starter battery
- 2 ignition keys for starting
- 1x on-board tool for operation and maintenance
- 1x Instruction manual
