Gear jack 500 kg motor jack Faulenzer, 0.5t motor & gear jack

Description

Product Description
Item no. S0QBL0YD
[LOAD CAPACITY] Load capacity of up to 500 kg. Use in garages, workshops, agriculture, trades, industry, gardening and landscaping.
[HEIGHT ADJUSTMENT] Adjustable height between 105 and 185 cm: the AREBOS motor jack can be used universally for many assembly jobs under the vehicle.
[HYDRAULIC LIFTING FUNCTION] Comfortable hydraulic lifting by foot pedal. Child’s play, simple operation of the motor jack.
[REGULATION VALVE] The lowering speed can be infinitely regulated via the handwheel and enables controlled lowering.
[STABLE CONSTRUCTION] High-quality and robust construction. With the 4 stable and steerable steel rollers, the lifter is flexible and always ready for use.

Weniger anzeigen
AREBOS Transmission Jack 500 kg

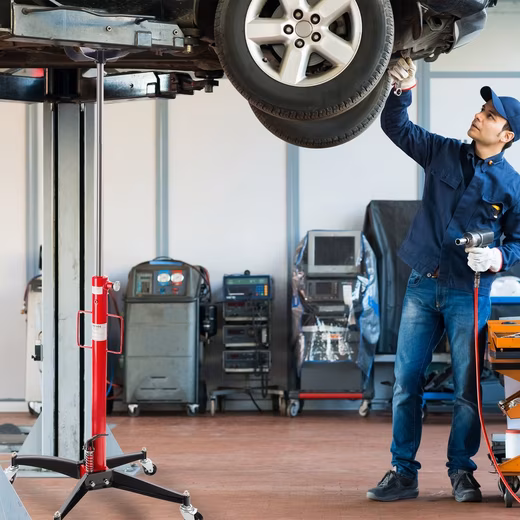

Our AREBOS transmission jack should not be missing in any workshop. Thanks to the hydraulic cylinder, it is ideal for installing and removing transmissions and other engine parts, as well as for many service and maintenance tasks. In accordance with our AREBOS quality standards, we have designed this article in such a way that it is based on your needs as a customer in terms of structure and function.

The result is a robust transmission jack that lifts up to 500 kg safely and stably. The pumping up is carried out by a hydraulic foot pump, which thus enables simultaneous work with the hands. The wide wheelbase of the transmission jack provides stability when lifting and manoeuvring heavy loads. The rollers are ball-bearing mounted and have a diameter of 75 mm and are particularly stable.

The side-mounted handles allow the transmission jack to be easily transported, and together with its light weight of 23.5 kg, it can be used comfortably anywhere. With the hand crank, you can manually regulate the lifter particularly finely and gradually lower it gently. The dimensions of the motor jack are 57 × 57 × 110 cm.

Get this practical helper in your workshop!

EASY HANDLING

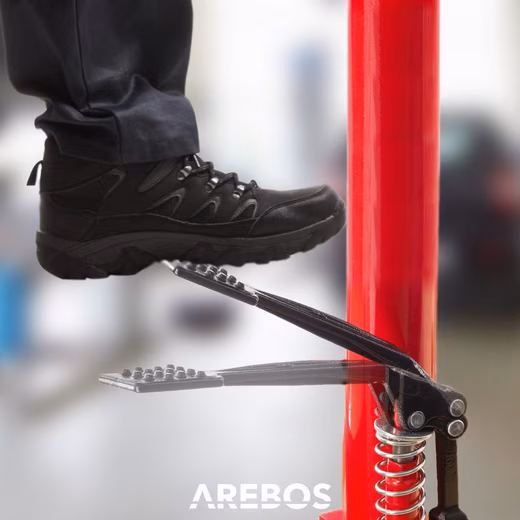

No more tedious turning up! Benefit from the integrated hydraulics of the AREBOS gear jack. Step on the pedal to build up pressure in the transmission jack and pump the gripper claw upwards.

After the work is done, you can simply let the pressure escape via the valve and the claw lowers again.

ADJUSTABLE HEIGHT & LOAD-BEARING
An adjustable height can be adjusted between 105 and 185 cm, depending on the type of work you want to do.

The load capacity of half a ton distinguishes our product in a very special way and makes it one of the best in its class.

MANOEUVRING MADE
EASY The wide wheelbase of the transmission jack ensures stability when lifting and manoeuvring heavy loads. The rollers are ball-bearing mounted and have a diameter of 75 mm and are particularly stable.

A PRACTICAL HELPER
The side-mounted handles allow the transmission jack to be easily transported, and together with its light weight of 23.5 kg, it can be used comfortably anywhere. With the hand crank, you can manually regulate the lifter particularly finely and gradually lower it gently. The dimensions of the motor jack are 57 × 57 × 110 cm.

The
AREBOS transmission jack has been chosen by our customers as the best in terms of quality and price. Convince yourself of the great quality and workmanship of our gear jack. Thanks to the hydraulic cylinder, it is ideal for installing and removing transmissions and other engine parts, as well as for many service and maintenance tasks.

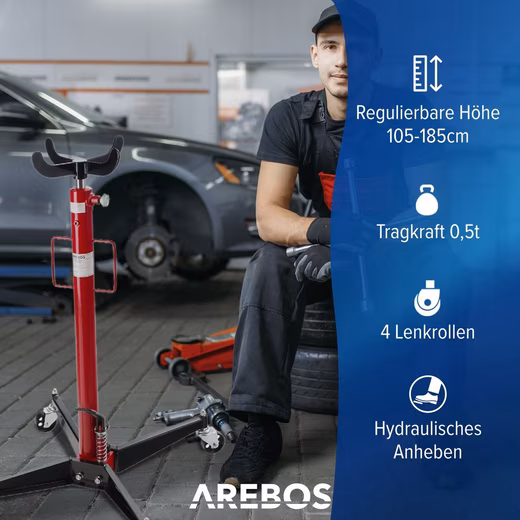

Highlights at a glance:

Load capacity of 0.5 T
Adjustable height between 105 and 185 cm
Hydraulic lifting by foot pedal
Lowering by handwheel
Lowering speed particularly finely adjustable
With 4 swivel castors for easy manoeuvring and handles
Mounting plate rotatable

GET OFF
TO A FLYING START Life in the fast lane requires a fast vehicle – annoying when it comes to defects or damage. Fortunately, AREBOS offers exactly the right workshop equipment such as transmission and jacks, motorcycle jacks, ramps, tension belts, car care, brake bleeders, brake piston returns, wheel bearings or valve compression and repair kits. So you are prepared for anything.

Technical data:

Dimensions: 57 x 57 x 110 cm
Drive: Hydraulic
Working height: 105 – 185 cm (measured at the bottom of the receiving cross)

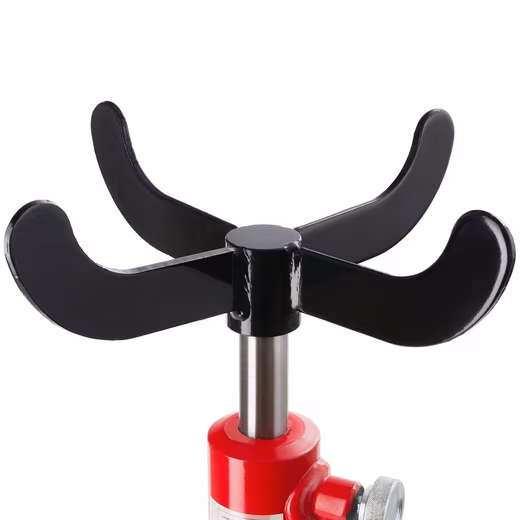

Pick-up cross: yes
Chassis: With 4 swivel castors
Material: Tool steel
Product Type: Trolley and transmission jacks

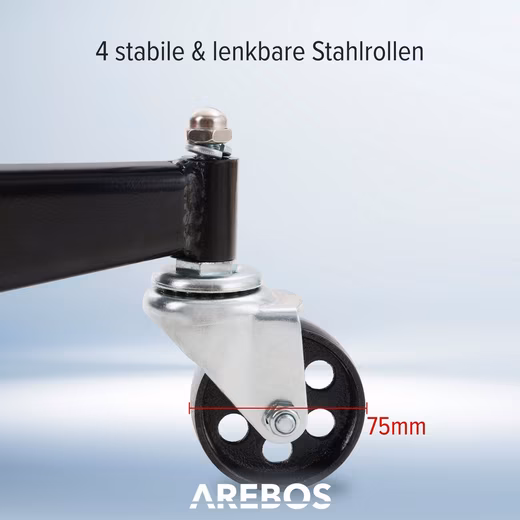

Roller diameter: 75 mm
Max. load capacity: 500 kg
Base width: 80 cm
Weight: 23.5 kg
Color: Red
Mounting plate rotatable: yes
Brand: AREBOS
Scope of delivery:
1x gear jack with castors
1x user manual

Your AREBOS additional tip:

A high-quality transmission jack, such as our model from AREBOS, adapts perfectly to the required distances in height and thus distinguishes itself as a flexible helper in any workshop. Whether it’s a private car, a commercial van or an agricultural commercial vehicle – a stable engine jack can cope with all requirements. The criteria for the purchase decision refer to the maximum load that the transmission jack is capable of supporting, as well as the maximum possible height, quality and material.

What should you look for when buying a transmission jack?

The advantages of a transmission jack:
If you decide to buy a transmission jack, you should not ignore a few criteria. Thanks to the jack, popularly known as the “lazy man”, it is possible to maintain the gearbox of a jacked-up car without having to use cranes or rope hoists to secure the gearbox block. This support tool is therefore a classic tool for your vehicle maintenance.
