Fireplace kits »Nebraska Bank Right« 8 kW, intermittent burning, assembly material up to a room height of 250cm incl.
Fireplace kits »Nebraska Bank Right« 8 kW, intermittent burning, assembly material up to a room height of 250cm incl. - Image 2
Fireplace kits »Nebraska Bank Right« 8 kW, intermittent burning, assembly material up to a room height of 250cm incl. - Image 3
Fireplace kits »Nebraska Bank Right« 8 kW, intermittent burning, assembly material up to a room height of 250cm incl. - Image 4

Fireplace kits »Nebraska Bank Right« 8 kW, intermittent burning, assembly material up to a room height of 250cm incl.

€ 3.414,00

Categories: , , Tags: , , Brand:

Description

Item description

Article No. 623 284 148 8
  • Glass ceramic viewing window from SCHOTT ROBAX®
  • Firebox lining made of fireclay
  • Maximum room heating capacity for intermittent burning: 220 m³
  • Due to the bench on the right side, it is suitable for the left corner of the room.

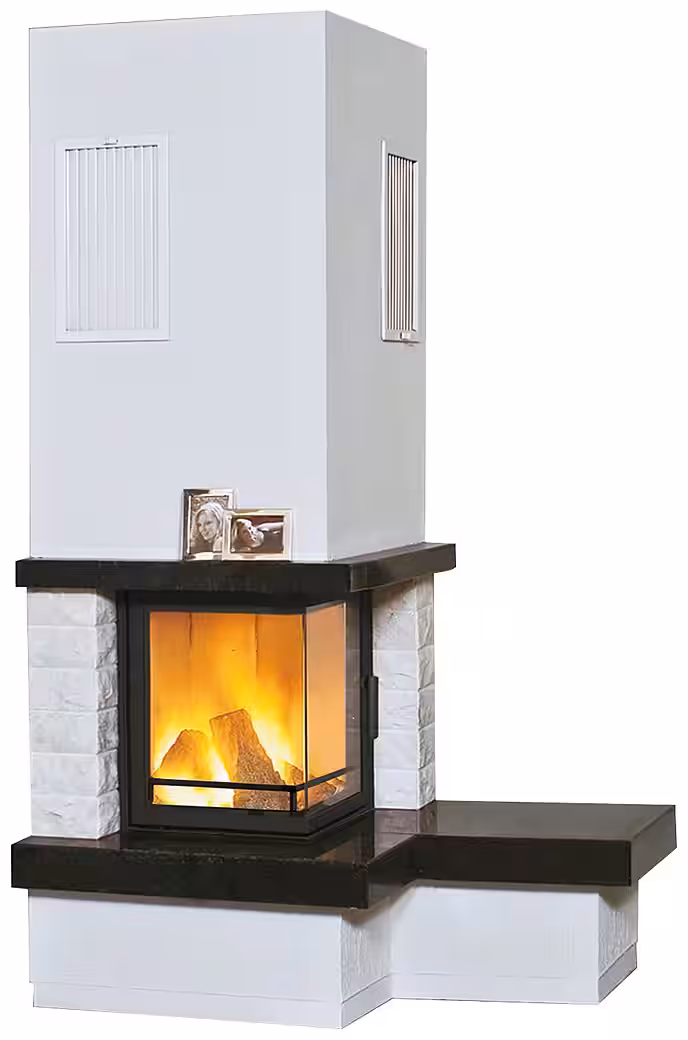

Stylish and cozy at the same time! The “Nebraska” fireplace kit, with genuine natural white marble and a black granite mantel, lends an elegant ambiance to any room. The large corner viewing window offers a perfect view of the mesmerizing flames, while the bench on the right can be used as comfortable seating or a stylish surface for creative decorative items. With a nominal heat output of 8 kW, this fireplace kit provides a maximum heating capacity of 175 m³ when burning intermittently.

Details

Product details
Model designation Radiante 500/57 K
equipment Ash container,
flat grate,
viewing window
Type of fuel Wood
Type of oven Time fire
Shape of viewing window straight
Type of door lock 1-point door locking mechanism
Flue pipe connection rear
Technical data
Nominal heat output 8 kW
efficiency 81%
Maximum room heating capacity 175 m³
design A1
Type of air supply Primary air supply
Required delivery pressure at nominal heat output 12 Pa
Standards BimSchV 2nd stage
DIN EN 13229
Ecodesign 2022
VKF (Switzerland)
Maximum exhaust gas temperature at the nozzle 305 °C
Dust emissions according to the Federal Immission Control Ordinance (BImSchV) 22 mg/m³
Maximum exhaust gas mass flow 7 g/s
CO emissions 1.25 g/m³
Test number RRF-29153847
Maximum heating output 8 kW
minimal heating output 4 kW
Energy efficiency class (scale) A+ (A++ to G)
Dimensions & Weight
Wide oven 135 cm
Deep oven 85 cm
Oven height 250 cm
Weight 498 kg
Wide firebox 34 cm
Deep firebox 34 cm
Firebox height 50 cm
Flue pipe diameter 180 mm
Maximum length of fuel 30 cm
Safety distance in front 80 cm
Safety distance behind 6 cm
Safety distance lateral 6 cm
Wide viewing windows 40 cm
Height of viewing window 47.5 cm
Color & Material
Body color black
Cladding material Granite
Marble
Color trim white
Material firebox fireclay
Notes
Manufacturer’s warranty 5 years according to the warranty conditions
Article notes All figures are approximate.
Scope of delivery Operating instructions
for oven glove
