Fan unit, 53 cm wide, exhaust/recirculation, anthracite, NEW DLN53AA70

Discover the Bosch DLN53AA70 fan unit – the perfect addition to your modern kitchen!

With its quiet operation, it’s the ideal companion for cooking. Enjoy optimal extraction performance with minimal noise.
The integrated LED lighting provides perfect illumination of your cooktop while saving energy. Bathe your kitchen in a pleasant light as you create culinary masterpieces.
With an impressive extraction rate of up to 302 m³/h, the extractor fan quickly creates an ideal kitchen environment. Whether it’s steam or odors, this appliance effortlessly removes them, allowing you to fully concentrate on cooking.
The Bosch DLN53AA70 extractor fan impresses not only with its performance but also with its stylish anthracite design. At just 53 cm wide, it fits perfectly into your kitchen.

Discover the future of kitchen ventilation with Bosch!

Generally

• Device width: 53 cm
• Color: Anthracite
• Installation type: Built-in
• Airflow type: Exhaust air, recirculation air (special accessories available separately)
• Total fan power: 115 W
• Controls: None, slide switch
• Regulation of performance levels: 3
• Maximum exhaust air fan capacity: 302 m³/h
• Noise level at maximum speed (2010/30/EC): 62 dB
• Maximum fan output (recirculated air): 300 m³/h
• Grease filter material: Aluminum, washable
• Energy efficiency class: D
• Average annual energy consumption: 67.7 kWh/year

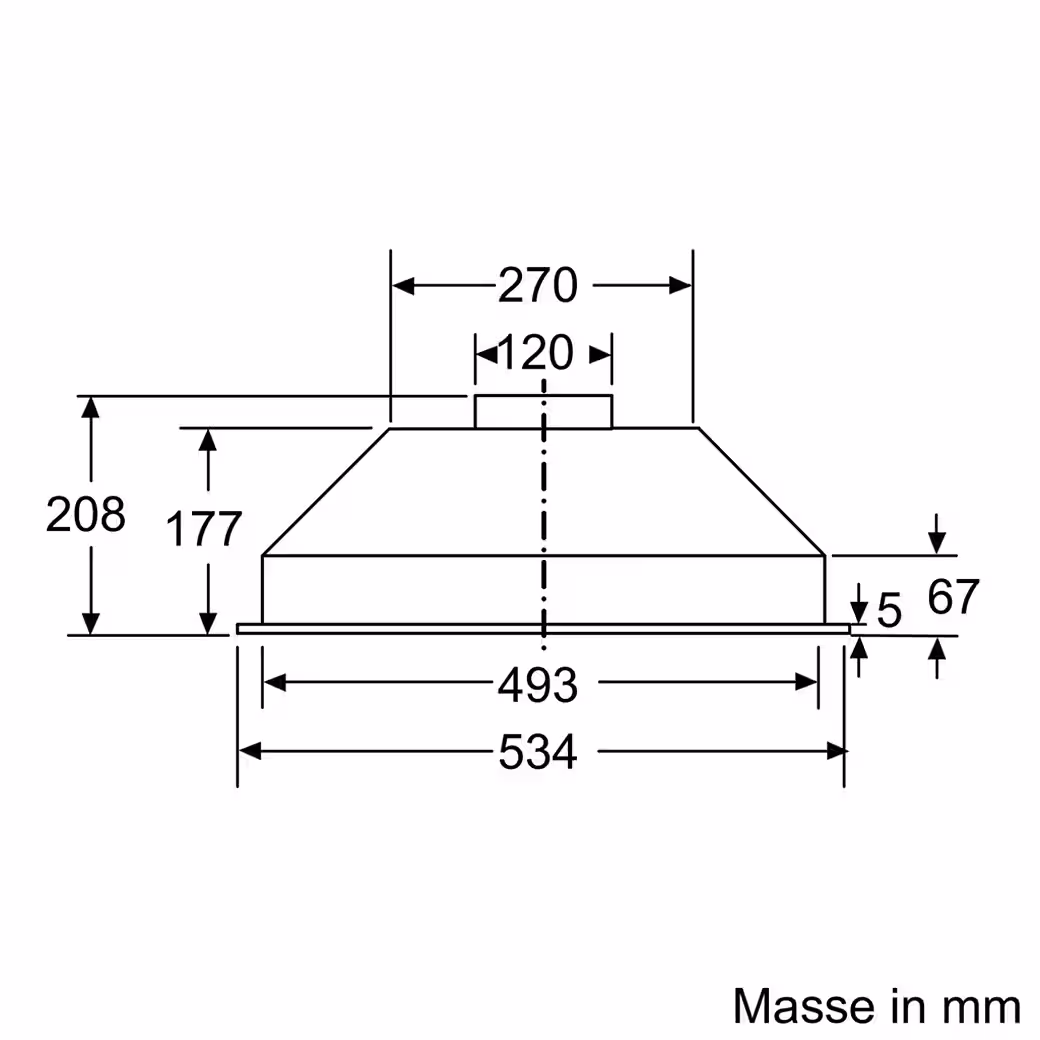

Mass

• Device width: 534 mm
• Device depth: 300 mm
• Minimum distance to electric cooktop: 550 mm
• Minimum distance to gas cooktop: 650 mm
• Exhaust vent diameter: 120 mm
• Backflow preventer
• Power cord length: 150.0 cm
• Net weight: 6.4 kg
• Max. appliance height (exhaust air): 208 mm
• Minimum appliance height for exhaust air: 208 mm
• Max. appliance height (convection fan): 208 mm
• Minimum appliance height for recirculation: 208 mm
• Minimum niche width: 493 mm
• Maximum niche width: 493 mm
• Niche depth: 257 mm

lighting

• Number of lamps: 2
• Total power consumption of the lamps: 6 W
• Total illuminance: 78 lux
• Average illuminance of the lighting system on the cooking surface (E_middle, 2009/125/EC): 78 lux
