With road approval ABE: With the RCB electric scooter you can ride safely on public roads. It has a 400-watt motor and a large-capacity 7.8Ah battery, which allows for up to 30km of battery life.

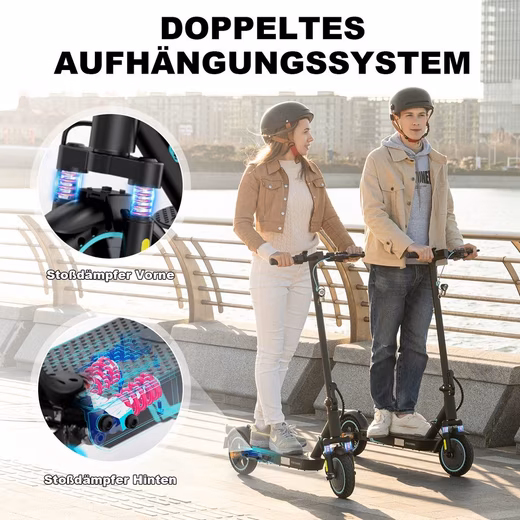

Convenient Riding Experience: The e-scooter has a dual suspension system for comfortable shock absorption, which allows for easy travel. In addition, it offers dual brakes as well as headlights and taillights to accompany your travels.

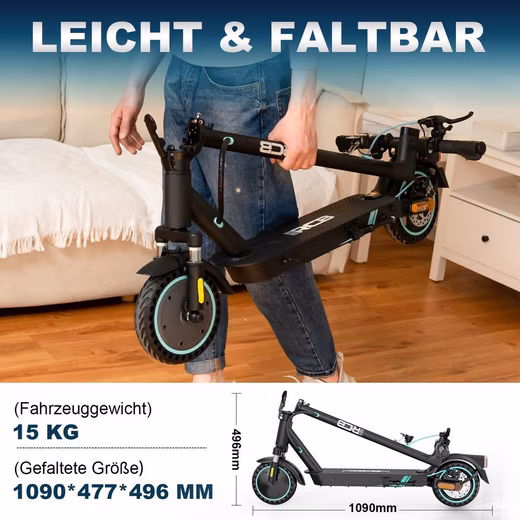

Ultra Portable & Foldable: This lightweight electric scooter folds up in just 3 seconds, making it easy to carry or store anywhere.
APP Control: You can view the data of the electric scooter and control the electric scooter through your mobile phone.
What You Get: RCB EV85F ABE Electric Scooter, User Manual, Charger, Screw, L-Shaped Key, Our Worry-Free Customer Service and Friendly Customer Service.
Important note:Â In order to accurately anticipate the delivery time of your parcel and to avoid unsuccessful delivery due to your absence, please leave your telephone number when placing your order so that the delivery person can reach you if necessary.
The use of this product on public roads, footpaths, cycle paths or other public areas may be subject to local legal restrictions, such as registration and labelling requirements, a safety helmet requirement or driving bans. Please check local regulations before purchasing and using this product.
DIMENSIONS & WEIGHT
Length folded: 109.00 cm
Width folded: 47.70 cm
Height folded: 49.60 cm
Diameter wheels in inches: 8.5 ”
Scooter weight: 15.00 kg
MOTOR & BATTERY

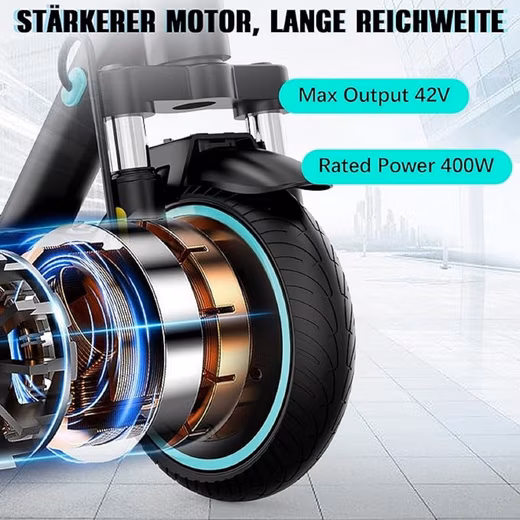

Power Motor: 400 W
Charging time Battery: 6.00 hours
Voltage battery: 36.00 V
Range Battery: 30.00 km
Top speed: 20.00 km/h
PRODUCT DETAILS
IP Rating: IP54
Load Weight: 120kg
Max Rise Angle (%): 10-12°

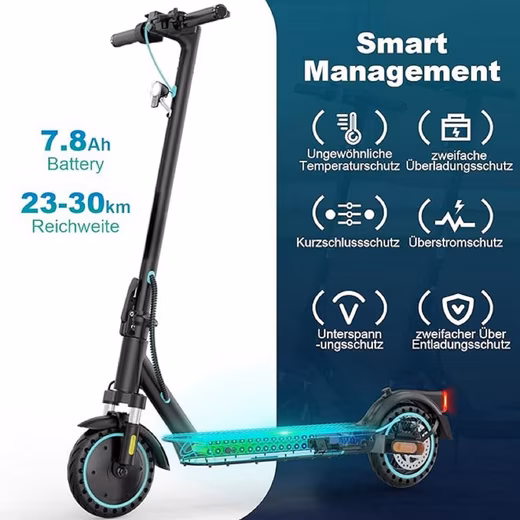

Intelligent Battery Management System: Unusual Temperature/Short Circuit/Undervoltage/Over Current/Double Overcharge/Double Over-Discharge Protection
Details
Material
| Material wheels |
Rubber |
Motor / Battery
| Top speed |
20.00 km/h |
| Engine power |
400 W |
| Power engine ECO mode |
400.00 W |
| Engine Details |
maintenance-free
brushless |
| Starter |
Electric starter |
| Drive form |
Hub drive |
| Battery Details |
maintenance-free
high-performance cells |
| Battery range |
23.00 km |
| Battery range ECO mode |
30.00 km |
| Battery charging time |
6.00 hrs. |
| Type Battery |
Lithium-ion battery |
Power supply
| Type: Power supply |
Battery (permanently installed) |
| Battery/rechargeable battery technology |
Lithium ions |
| Number of batteries required |
1 pc. |
| Battery capacity |
7800.00 mAh |
| Battery Performance |
280.8 Wh |
| Voltage battery |
36.00 V |
Product details
| Type Wheels |
8.5 inch solid tire with honeycomb structure |
| Number of wheels |
2 pcs. |
| Climbing ability |
12,00 ° |
| Suspension |
Front Shock
Absorber Rear Shock Absorber |
| Condition of the tread |
Non-slip |
| Features |
foldable |
| Front brake design |
Electromagnetic |
| Rear brake design |
Mechanical |
| Details Handles |
non-slip |
| Cockpit display |
Speed Battery
Level
Speed Level |
Facilities
| Type of front bulb |
LED |
| Type of rear bulb |
LED |
| Reflectors |
Rear |
| Stand |
yes
Side stand |
| Facilities |
Lighting
Bell
Foot Stand Mudguards |
Dimensions & Weight
| Length folded |
109.00 cm |
| Width folded |
47.70 cm |
| Height folded |
49.60 cm |
| Diameter of wheels in inches |
8,5 “ |
| Weight Scooter |
15.00 kg |
Remarks
| Installation instructions |
The item is delivered fully assembled.
Checking the wheels |
| Age recommendation |
from 16 years |
| User weight maximum |
120.00 kg |
| Area of use |
within the StVZO |
| Legal obligations |
Helmet requirement |
| Special regulation |
This article is accompanied by a general operating permit (ABE). |
| Languages Instruction manual |
DE
EN |
| Warnings |
Do not drive in the rain. Do not drive through puddles or other (water) obstacles. |
| Order note |
If you brake suddenly, you risk serious injury due to loss of traction and falls. Please maintain a reasonable speed and be aware of potential hazards. |
Technical data
| WEEE-Reg.-Nr. DE |
48721470 |
