EU vehicle license plate holder, front/rear view camera with distance indicator, reversing camera

EU car license plate holder, front or rear view camera with night vision function and color distance display

Probably the most ingenious and simplest solution for retrofitting a reversing camera. Without any major drilling or sawing, simply replace the license plate holder.
The camera module is already integrated into the holder and can be adjusted to the desired viewing angle.
Difficult parking situations, such as in the dark, rain, fog, or bright sunlight, are a thing of the past.
You always maintain a clear view and minimize the risk of damage to your vehicle and, of course, to other vehicles.
The RCA video output allows connection to virtually any monitor. Delivery includes a 5m video cable and a 12V power cable.

Highlights

• Can be used as a front camera or rear-view camera upon request
• Camera with good resolution and high-quality color distance display.
• Night vision function for optimal performance in darkness
• Waterproof, suitable for rain and storms
• Holder suitable for EU license plates
• Camera already integrated into the license plate holder
• The camera module can be adjusted in angle.
• Obstacles are much easier to see thanks to the wide-angle lens with a 170° field of view.
• Invoice including VAT + 2-year warranty

compatibility

Fits 100% with the following vehicle models:

All vehicles with EU license plates

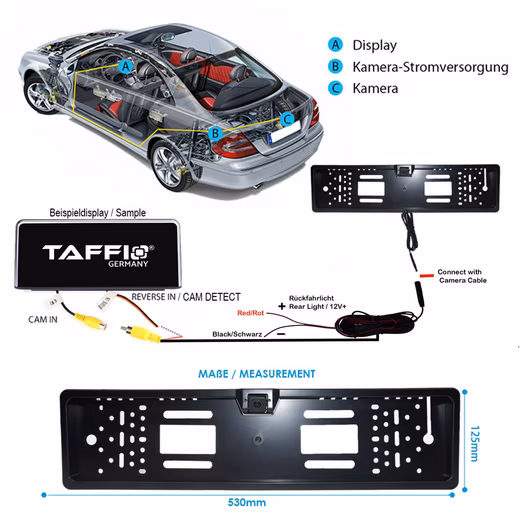

Installation:
Simply replace the existing EU license plate holder and connect the power cable to the taillight wires.
Run the RCA video cable to the monitor and connect it.

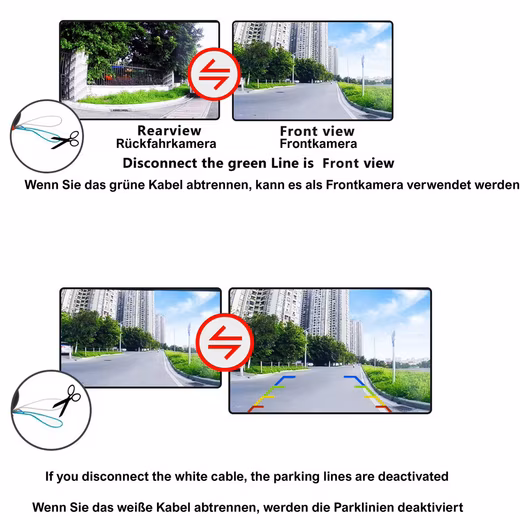

Caution! The camera is set up as a front camera. If you wish to use it as a reversing camera, please cut the thin white wire on the power cable.
This will automatically reduce the camera’s glare and display distance indicators.

Key features

• 1/3 image sensor, 3.6mm lens, 170° viewing angle
• Color TV system with a resolution of 420 TV lines
• good resolution 628(H)×586(V) pixels
• automatic white balance
• automatic backlight compensation
• Light sensitivity only 0.1 lux (IR on)
• RCA video output Vpp/75 Ohm mirror function
• Operates on 12V DC / approx. 150mA, including 12V power cable and video cable.
• Maximum dimensions of holder: 530mm wide / 136mm high

***Optional equipment: Not included in the scope of delivery, but can be ordered separately.

• 2.4GHz wireless transmitter and receiver for reversing camera Universal wireless set***: 4260555381719
• Universal 7″ Monitor Display Screen for Rearview Camera: 4260555382136

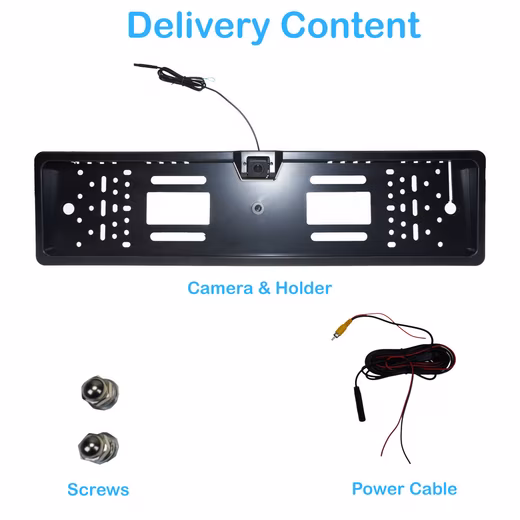

Scope of delivery

• 1x camera (with license plate holder)
• 1x RCA video cable (5 meters)
• 1x power cable
• 1x invoice (warranty certificate)
