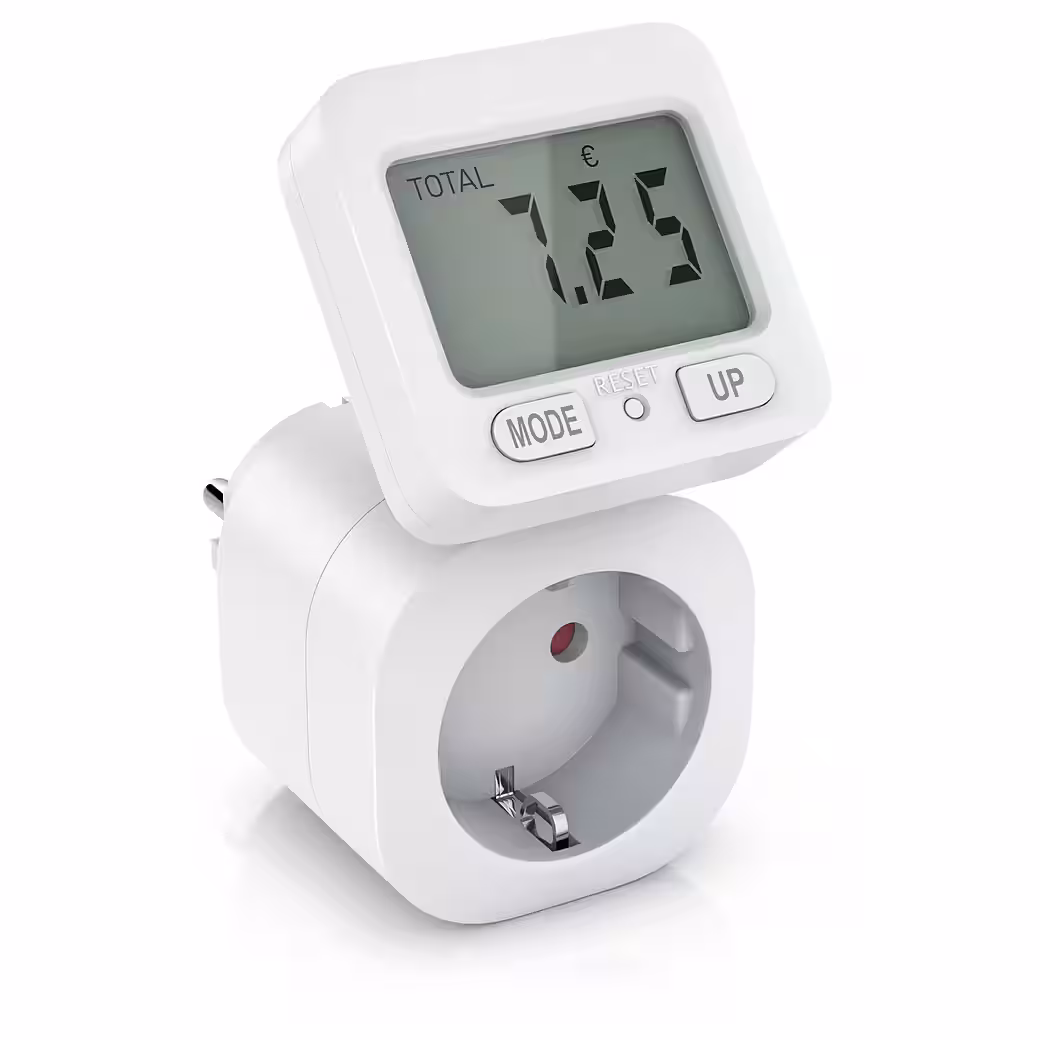

Keep an eye on your energy costs and save real money!
The Brandson plug-in electricity meter monitors your electricity consumption in real time and shows you
directly how you can save energy and money. This energy cost meter provides you with all the important
data: simply enter the electricity price and insert the appliance into the meter.
You will immediately see the current energy consumption, the calculated electricity costs, and much more.
Product features
- Display of energy consumed within a specific period

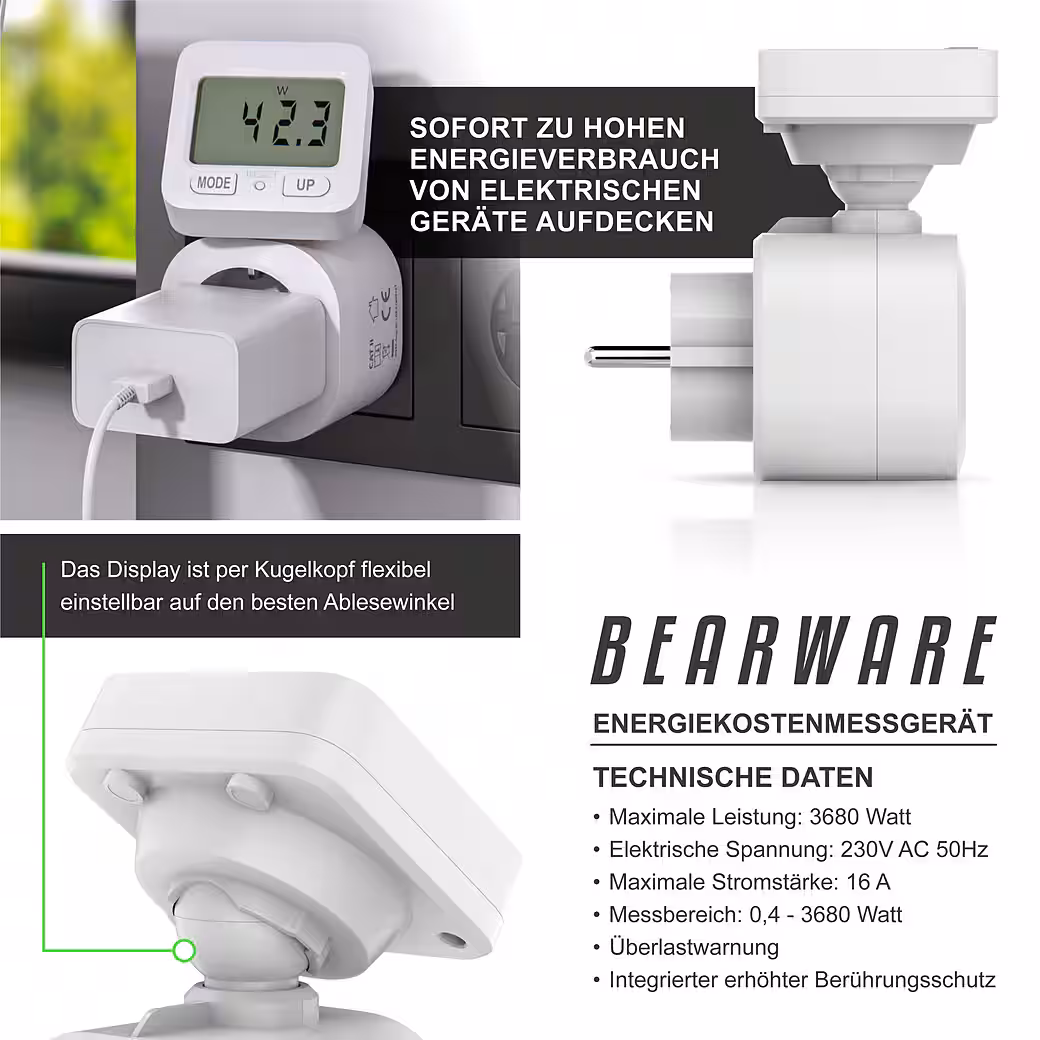

- Display flexibly adjustable via a ball joint
- Structured in an easy-to-understand way
- Quick and easy measurement of energy consumption
- Overload warning
- Integrated enhanced contact protection
Technical data
- Electrical voltage: 230 V, 50 Hz
- Maximum current: 16 A
- Measuring range: 0.4 watts to 3680 watts
- Voltage 200 – 276 V AC
- Current: 0.001 – 16 A
- Power: 0.4 – 3680 W; 0 – 9999 kWh
- Standby power consumption: < 0.5 watts
- Accuracy: Voltage +/- 2%; Current +/- 2%; Power +/- 2%
- Ambient temperature: -10°C to +40°C

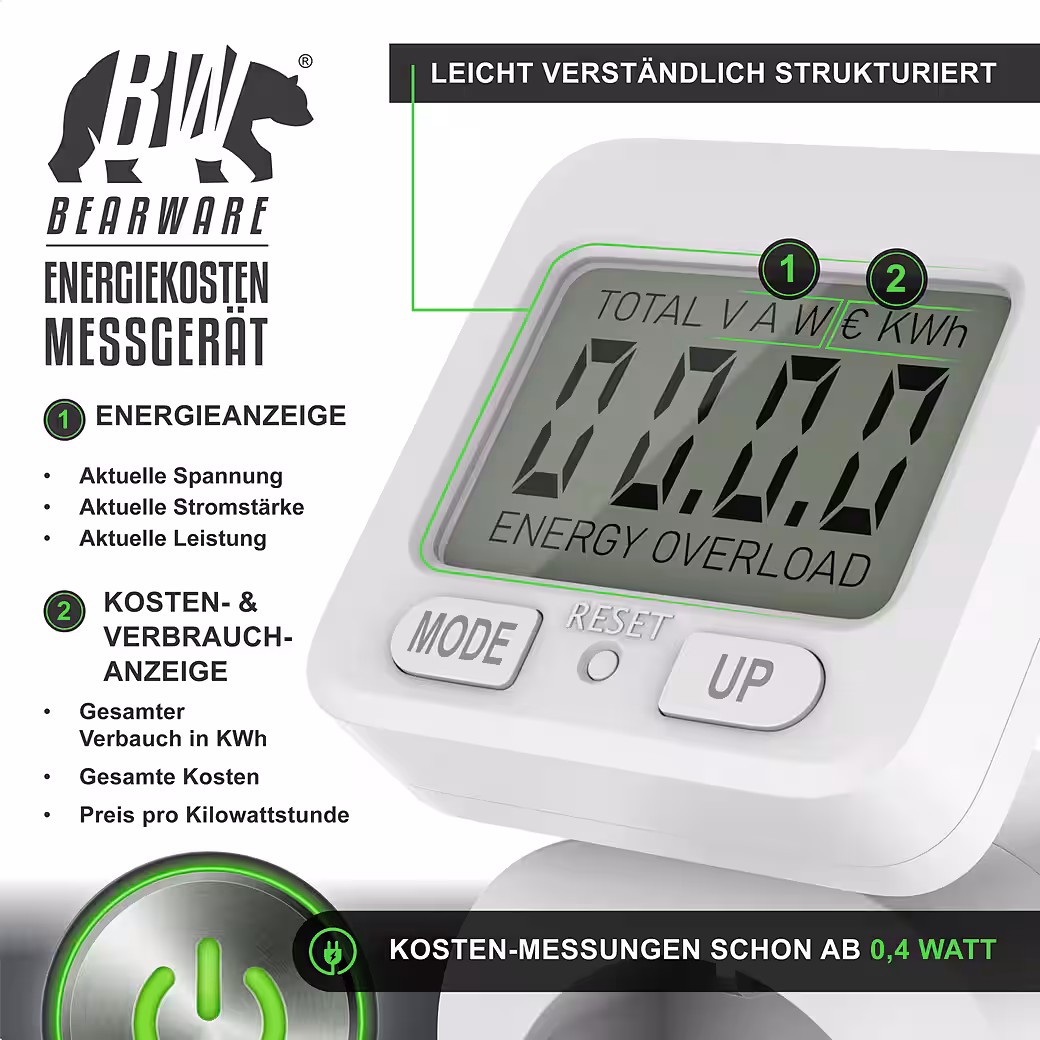

Display
- V – electrical voltage
- A – Current
- OVERLOAD – Overload limit
- W – Power
- kW/h – Kilowatt hours
- €/kWh – Price per kilowatt hour
DIMENSIONS: 10.5 x 5.4 x 8 cm | Display size: 1.8 inches (4.6 cm) | COLOR: white
| WEIGHT (measuring device): 122 g
PACKAGE INCLUDES: Energy cost meter and operating instructions
Details
Product details
| Number of electrical outlets |
1 pc. |
| functions |
Power consumption measurement; cost calculation; overload warning; flexible display settings |
| Measurement functions |
Electricity
consumption,
power
(kWh calculation) |
| Measurement category |
CAT II |
| equipment |
Display,
flexibly mounted display,
three function keys
, reset key, touch
protection |
| Display |
V – voltage; A – current; W – power; kWh; €/kWh; overload warning |
| Characteristics |
Flexible display orientation,
overload protection
, precise measurement |
| Type of operation |
Function keys (Set, Up, Down), Reset |
| Area of ​​application |
Computers,
household appliances,
multimedia |
| Type of assembly |
Power outlet |
| Number of parts |
1 pc. |
Technical data
| Maximum measuring range |
0.4 W |
| Minimum measurement accuracy |
2% |
| Maximum measurement accuracy |
2% |
| Maximum ambient temperature |
40 °C |
| minimum ambient temperature |
10 °C |
| WEEE Reg. No. DE |
67896761 |
power supply
| Operating mode |
power cable |
| Type of power supply |
power cable |
| current |
16 A |
| Tension |
230 V |
Measurements
| length |
8 cm |
| Width |
5.4 cm |
| Height |
10.5 cm |
| Weight |
122 kg |
| Display size |
1.8″ |
| Wide display |
4.6 cm |
Color & Material
| Color |
white |
| material |
plastic |
| Material Display |
3680 |
Notes
| Scope of delivery |
Energy cost meter
operating instructions |
| Article note |
Only power consumption under load is measured, not standby power consumption. |
| Languages ​​Operating/Assembly Instructions |
German (DE)
English (EN)
French (FR)
Italian (IT)
Spanish (ES) |
| Warning notices |
Only power consumption under load is measured, not standby power consumption. |
