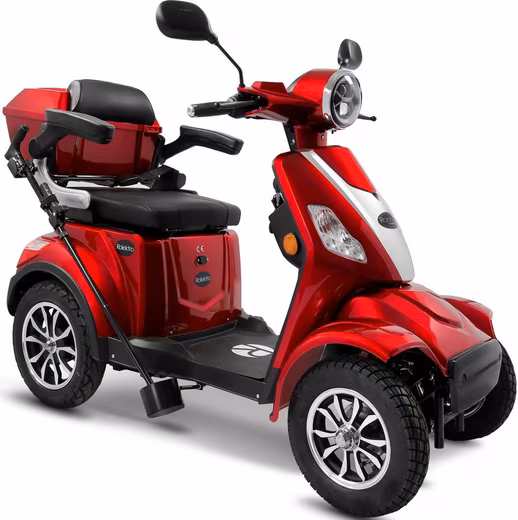

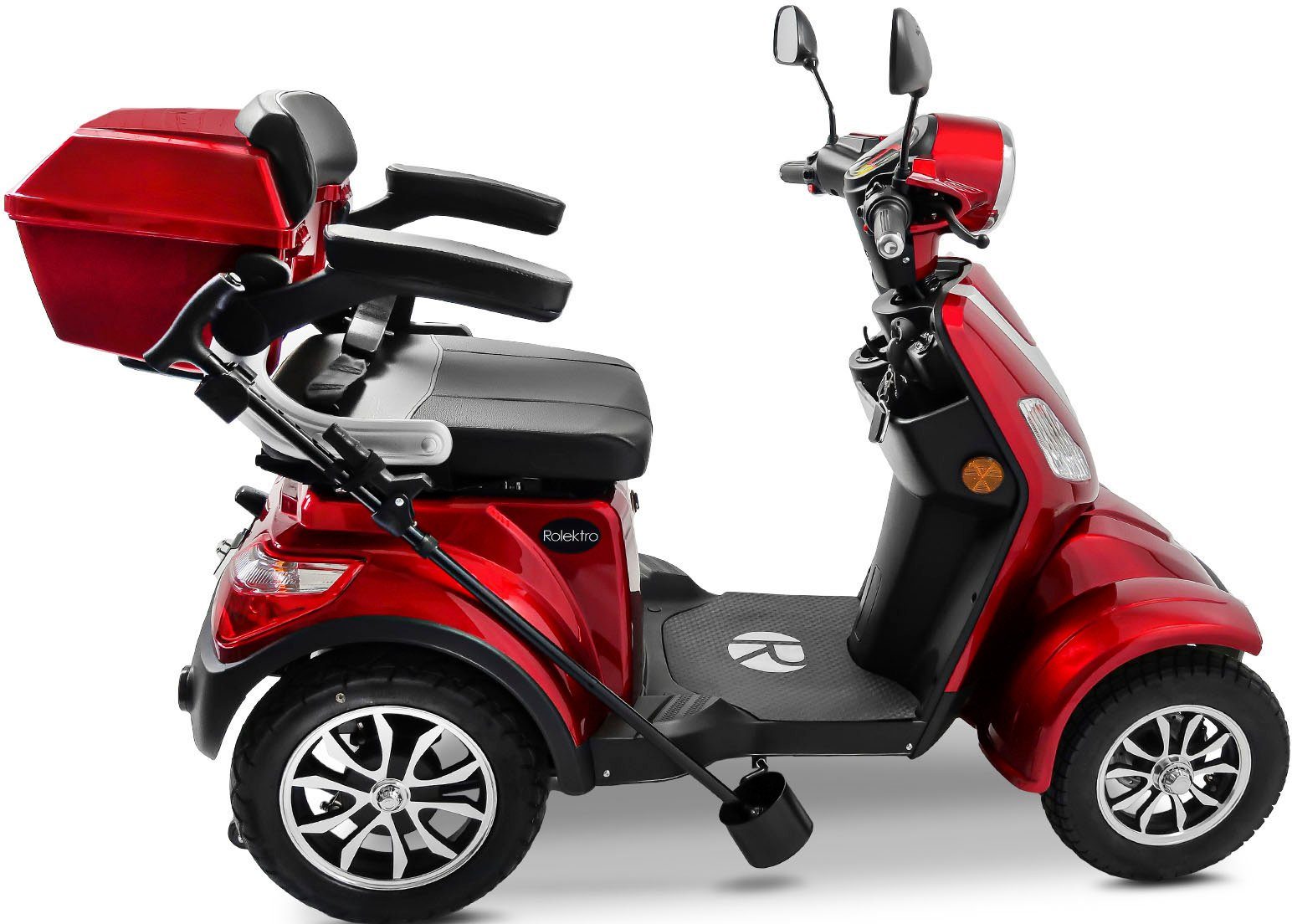

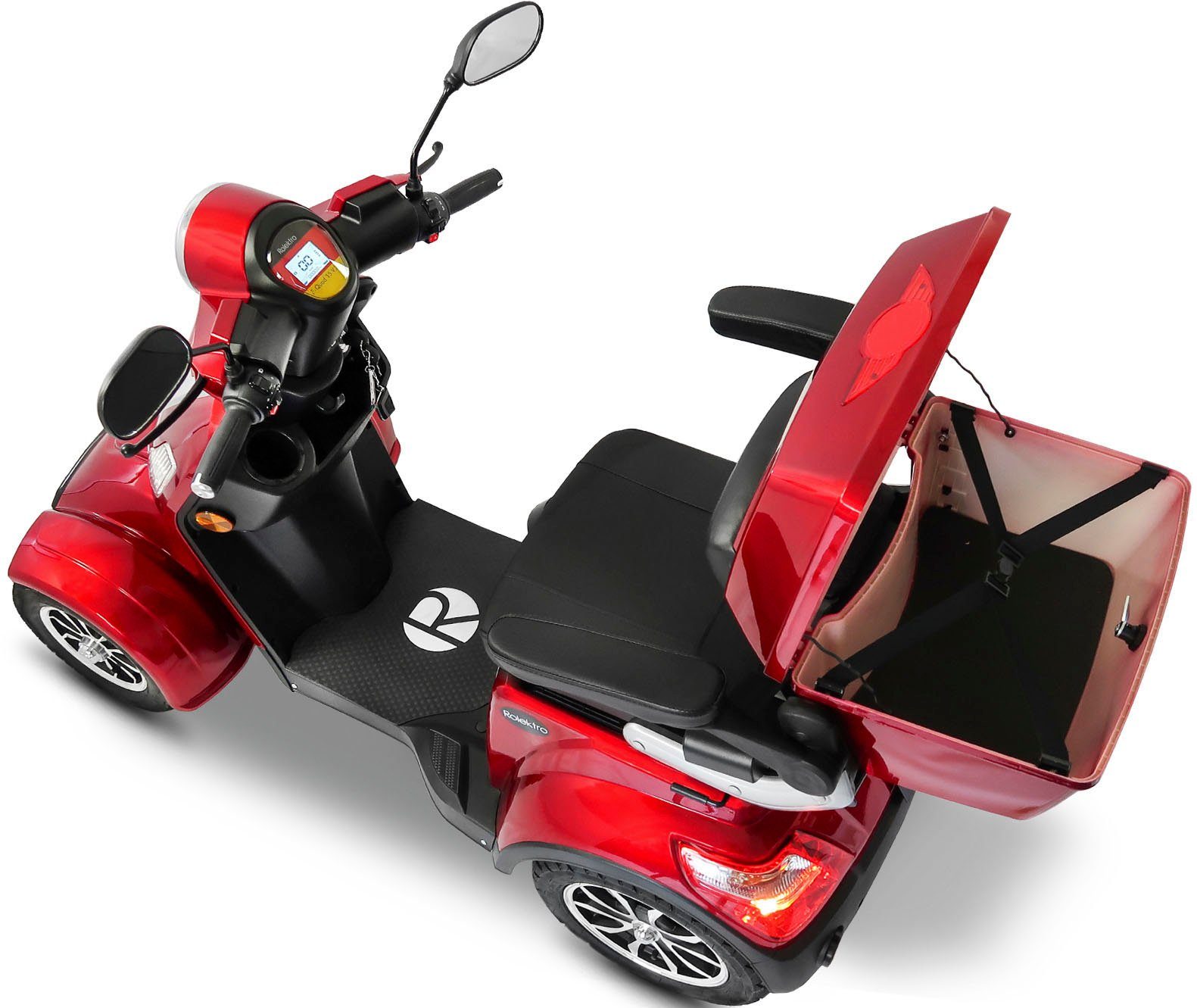

The Rolektro E-Quad 15 V.3 Lithium is the ideal alternative for those seeking a safe and stable four-wheeled vehicle without the need for a full-size electric mobility scooter. Its powerful 60V-30Ah lithium battery provides a range of up to 90 km. The battery can be charged both internally within the vehicle and externally.
The E-Quad 15 V.3 is a four-wheeled electric mobility scooter that produces no emissions and is very economical to maintain. Due to its technical specifications, the E-Quad 15 V.3 is classified as an electric mobility scooter and is permitted on sidewalks and in pedestrian zones.
The E-Quad 15 V.3 reaches speeds of up to 15 km/h and is powered by a 1000-watt motor. Three speed settings (6, 10, or 15 km/h) are available, offering a comfortable and safe driving experience for beginners and seniors.
The E-Quad 15 V.3 is equipped with the following features:
- Digital speedometer
- USB charging port
- 1000W motor
- reverse gear
- Rear luggage case
- cup holder
- Front storage compartment
- Adjustable backrest
- Cane holders, etc.
The comfortable seat with foldable elbow rests also features a safety belt. With the belt fastened, the electric scooter can be driven without a helmet. The Rolektro E-Quad 15 V.3 is your guarantee of mobility for short distances, uniquely combining driving safety, comfort, and driving pleasure at a surprisingly affordable price! Rolektro is an innovative German brand with over 10 years of sales and service experience. All spare parts are in stock in Germany.
Technical specifications:
- Dimensions (L x W x H): 1500 x 700 x 1020 mm (without mirror)
- Dimensions (L x W x H): 1500 x 840 x 1020 mm (with mirror)
- Motor power: 1000 watts
- Batteries: 60V – 30 AH replaceable lithium battery
- Battery weight: 14 kg
- Maximum speed: 15 km/h
- Range: approx. 90 km
- Charging time: 6-8 hours
- Climbing ability: ≤12%
- Instrument panel: Digital speedometer with odometer and battery charge indicator
- Lighting: LED low beam and high beam at the front, rear and brake lights at the rear
- Turn signals, horn
- Reverse gear available
- Brakes: 2x front disc brakes / rear drum brakes
- Suspension: 2x front shock absorbers, 2x rear shock absorbers
- Front mudguard
- 2 x rearview mirrors
- Seat: Seat with armrests, adjustable forwards and backwards, storage space under the seat plus top case
- steel tube frame
- Net weight: 85 kg
- Maximum payload: 160 kg
- Color: Red
LEGAL PROVISIONS AND GENERAL INFORMATION:
1. Helmet Requirement
: There is no helmet requirement.
2. Liability Insurance:
The E-Quad 15 V.3 requires liability insurance. Upon taking out this insurance, you will receive an insurance license plate (colloquially known as a moped license plate), which must be affixed to the vehicle (proof of existing insurance is required).
An EU Certificate of Conformity (EEC) is included with the E-Quad. With this vehicle registration document, you can obtain a license plate from the insurance company of your choice.
3. Driver’s License:
No driver’s license is required. Minimum age: 15 years.
4. Vehicle Class:
The Rolektro E-Quad 15 V.3 is classified as vehicle class L6e.
ASSEMBLY CONDITION UPON DELIVERY:
The item is delivered 95% pre-assembled. Final assembly for safe riding must be carried out by a qualified person.
Scope of delivery:
1 x E-Quad 15 V.3,
1 x EEC EU road approval,
1 x charger,
1 x rear case,
2 x mirrors,
1 x walking stick holder
Details
Product details
| drive |
Rear-wheel drive |
| transmission |
automatic transmission |
| suspension |
Rear shock absorbers, front
shock absorbers |
| Suspension details |
spring-loaded |
| steering |
Steering head |
| Display Cockpit |
Battery charge level,
speed,
speed setting
, mileage,
trip mileage |
| Details Handles |
ergonomically shaped,
padded, non-
slip |
| Number of rearview mirrors |
2 pcs. |
| equipment |
Armrests,
lighting ,
turn signals
, brake light,
parking brake
, luggage hook,
glove compartment
, horn
, steering lock,
mudguard,
safety belt
, mirror,
walking stick holder |
| Climbing ability |
8° |
| Scope of delivery |
2 keys,
battery charger,
instruction manual
, top case |
| Climbing ability in percent |
12% |
Motor / Battery
| Drive type |
Direct drive |
| Engine details |
brushless,
maintenance-free |
| Maximum electric motor power |
1000 W |
| Continuous power output electric motor |
1000 W |
| Top speed |
15 km/h |
| Type of power supply |
Battery (replaceable) |
| Battery details |
High-performance cells |
| Battery power in Wh |
1800 Wh |
| Battery charging cycles |
800 |
| Battery charging time |
6 hours |
| Battery range |
90 km |
| Speed ​​control |
rotary handle |
brake
| Type of brake rear wheel |
drum brake |
| Rear brake design |
mechanically |
| Type of brake: front wheel |
disc brake |
| Front brake design |
hydraulic |
Tires
| Type of wheels |
pneumatic tires |
| Number of wheels |
4 pcs. |
| Wide tires |
90 mm |
| Wide tires at the rear |
90 mm |
| Wheel diameter in centimeters |
38 cm |
| Front wheel diameter in centimeters |
38 cm |
| Art rims |
alloy wheels |
lighting
| lighting |
Low beam headlights
, cockpit lighting,
high beam headlights, taillights , daytime
running lights , hazard warning lights |
| Type of light source: front light |
LED |
| Type of bulb: rear light |
halogen |
| reflectors |
Front reflector
, front
reflectors; rear reflector
, rear reflectors;
side reflector,
side reflectors |
seat
| Seat cover material |
plastic |
| Seat features |
padded non-
slip |
Dimensions & Weight
| length |
150 cm |
| Width |
70 cm |
| Height |
102 cm |
| Weight |
85 kg |
| maximum weight allowed |
235 kg |
| wheelbase |
105 cm |
| Wide bench seat |
43 cm |
| Deep seat bench |
47 cm |
| Seat height |
64 cm |
| Maximum seat height |
64 cm |
| Handlebar height |
94 cm |
| Maximum handlebar height |
94 cm |
| Height of tread surface |
22 cm |
| Maximum height of tread surface |
22 cm |
Color & Material
| Color |
Red/Black |
| Frame material |
Steel |
Notes
| Area of ​​use |
within the German Road Traffic Licensing Regulations (StVZO) |
| Required driver’s license |
no |
| Legal obligations |
License plate requirement,
insurance requirement |
| Assembly instructions |
The item is almost completely pre-assembled. Final assembly by a qualified person is recommended. |
| Still to be assembled |
Mirror |
| Age recommendation |
Ages 15 and up |
| Special regulation |
This item comes with an EU Certificate of Conformity (COC). With this certificate, the item can be registered with an insurance company of your choice to obtain the required insurance license plate. |
| Languages ​​Operating/Assembly Instructions |
German (DE) |
| Ordering information |
Please note your test drive rights: You are permitted to test drive the vehicle on public roads or private property using a temporary license plate or insurance plate. We accept a maximum distance of 5 km (as shown on the speedometer) as a test drive. If you drive more than 5 km, you will be responsible for any depreciation in value upon return. Please also note that failure to register the item, as well as failure to return the relevant vehicle documents (e.g., Certificate of Conformity) or important accessories (e.g., vehicle keys), will result in a depreciation in value that you will be responsible for. |
power supply
| Battery/accumulator technology |
Lithium-Nickel-Manganese-Cobalt (NMC) |
| Battery capacity |
30000 mAh |
| Number of batteries |
1 pc. |
| Battery performance |
30000 Wh |
| Battery voltage |
60 V |
