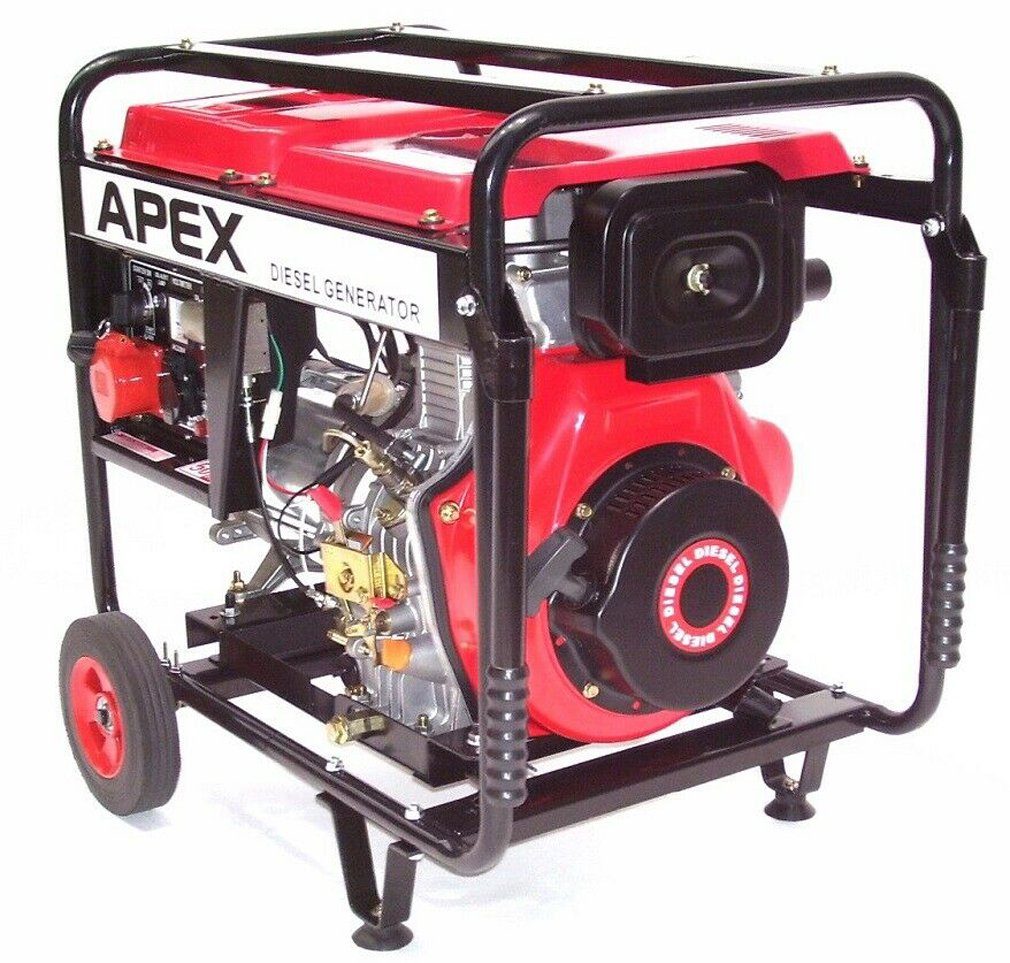

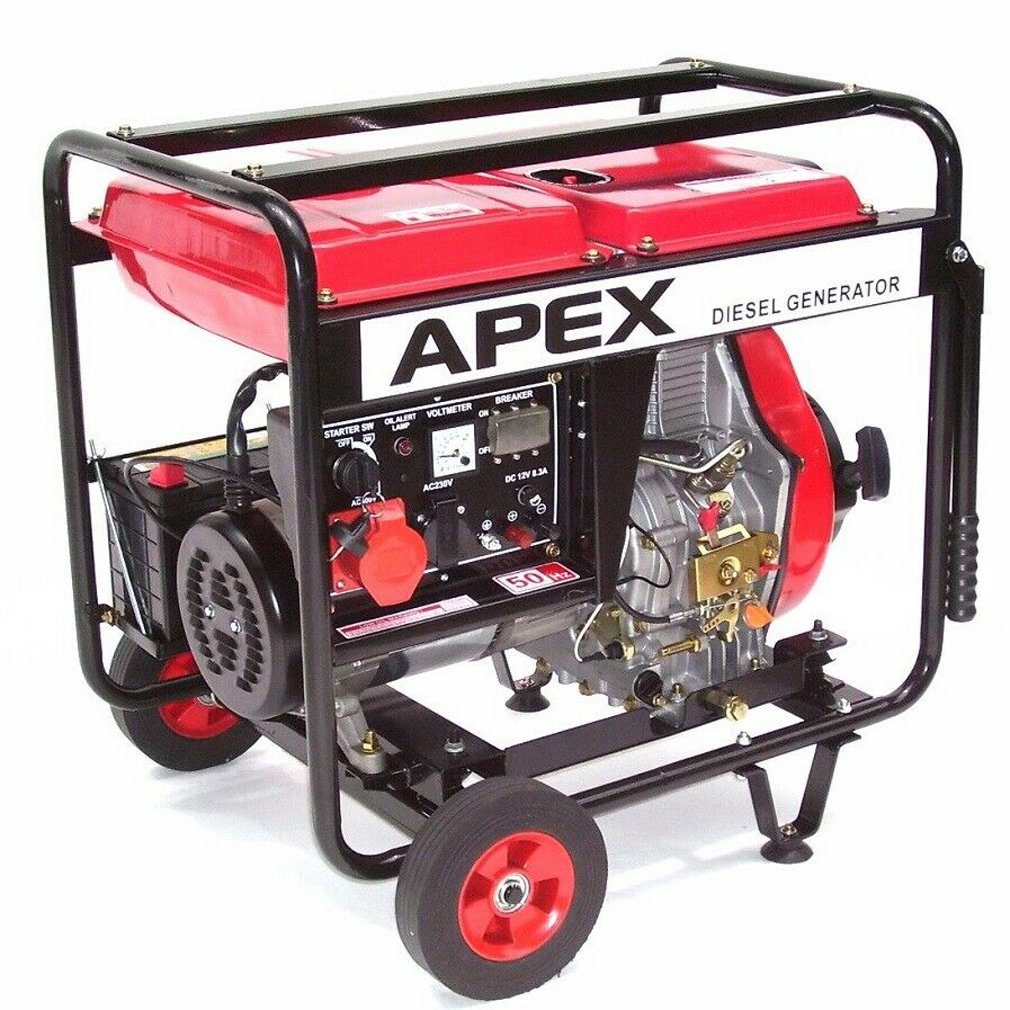

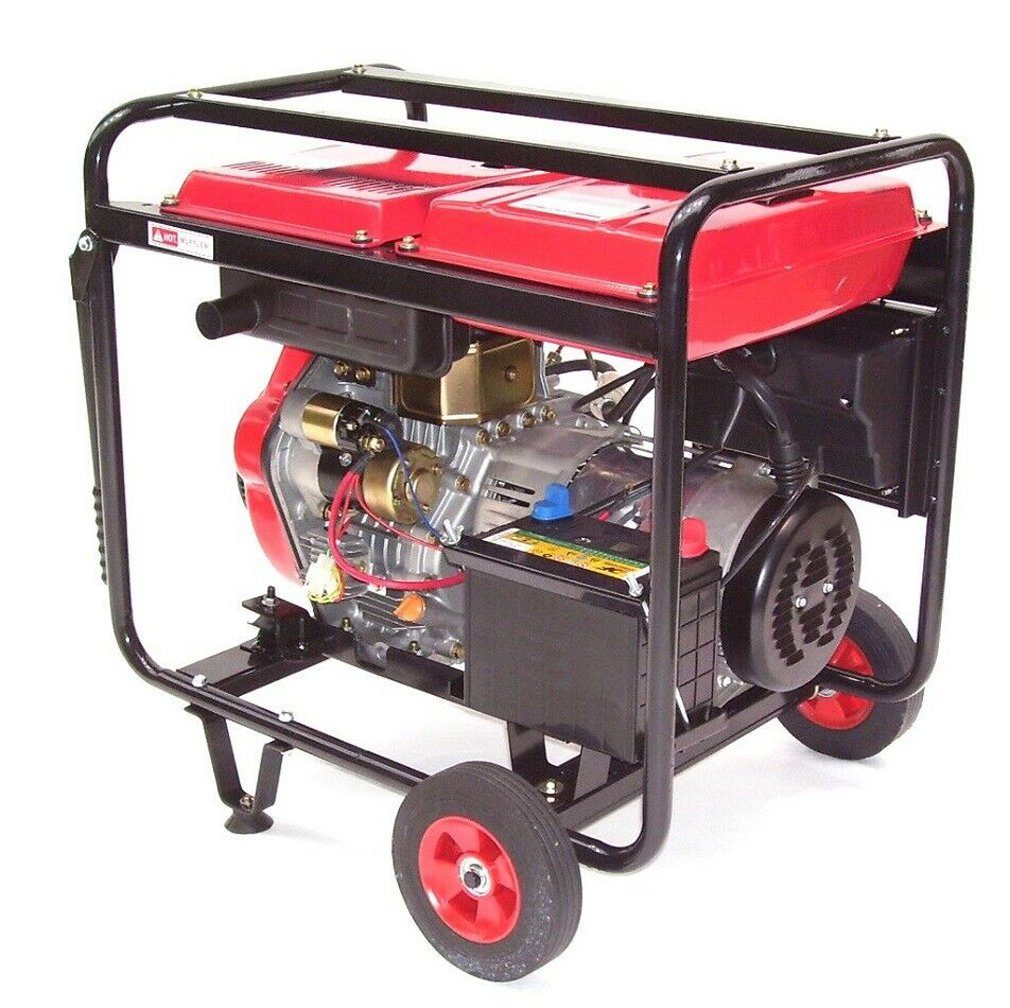

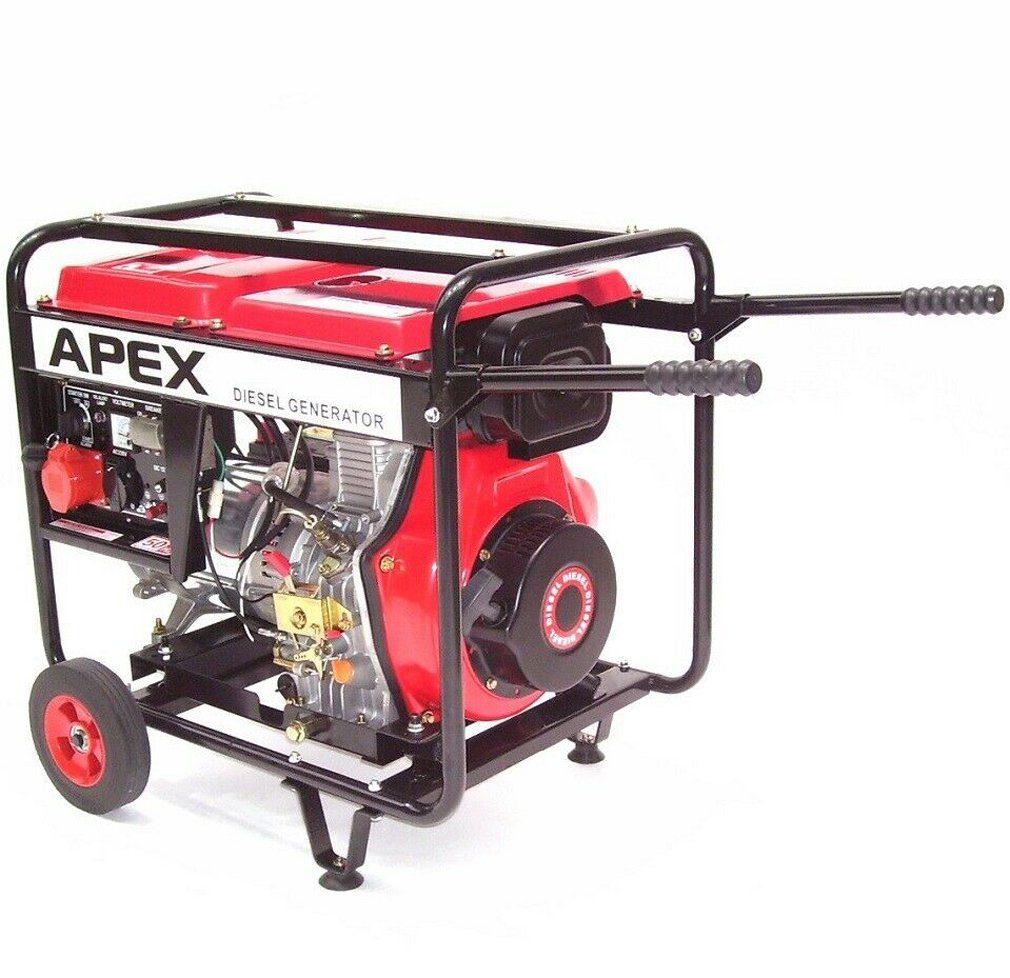

Electric start diesel generator 5500 400V 06281

E-Start Diesel Generator 5500C
, 10 HP, 406 cc Diesel Engine, 400 V, 230 V, 12 V.

The H5500A generator provides a reliable power supply for the most demanding applications. This generator features a highly economical 406 cc diesel engine with direct injection. High efficiency and reliability characterize this unit; its fuel consumption is significantly lower than comparable gasoline generators. This high-quality, extremely powerful generator delivers the necessary energy to reliably and safely power machinery and equipment during power outages and in remote locations. Thanks to the electric starter with ignition key, it can be conveniently started and easily secured against unauthorized use. Its generator, in combination with the smooth-running, robust diesel engine, provides a maximum output of up to 5500 watts. With a 230-volt Schuko socket, a CEE-16A 400V socket, and a 12-volt socket, this generator is equipped for virtually any application.
The automatic voltage regulator (AVR) protects connected devices by ensuring a stable output voltage, quickly compensating for load changes, and reducing undervoltages and overvoltages. A recoil starter and decompression lever ensure effortless starting of the diesel engine. Additionally, the overload switch provides the necessary operational safety. With a 12.5-liter capacity, the large fuel tank offers ample reserves for extended use, which the durable, double-bearing crankshaft easily handles. A fuel gauge keeps the remaining fuel level in view at all times. Thanks to a protective roll bar, large wheels, and carrying handles, the generator is easy to transport.

Product advantages:
– Powerful, economical 406cc diesel synchronous generator
– Convenient electric starter with ignition key and alternative recoil starter
– AVR regulation for stable output power with voltmeter
– 1x400V CEE, 1x230V Schuko socket and 1x12V DC
– Includes overload switch for device safety
– Large 12.5-liter tank with fuel gauge
– Built-in alternator
– High-quality wheels, protective bar and carrying handles for easy transport

Technical data:
Generator type: Synchronous
Frequency: 50 Hz
1-cylinder diesel engine: 406 cm³ / Four-stroke, air-cooled
Max. engine power: 9.4 hp
Engine speed: 3000 rpm
Start: Electric start and recoil start
Continuous power 12V DC: 100 W
Continuous power (S1) at 400V: 4500 W
Max. power (S2) 400 V: 5500 W
Rated current DC: 12 V, 8.3 A
Tank capacity: 12.5 L Diesel
Oil: 1.65 L, 10W-30
Consumption approx.: 1.5 l/h, 50% load
Sound power level LWA: 84 dB(A) (7 m)
Dimensions (l x w x h): 76 x 62 x 71 cm
Weight approx.: 100 kg

Scope of delivery:
1 x Diesel generator 5500C
, 1 set of tools and accessories.

Notes:
– Delivery does not include operating fluids (oil and diesel). Fill with oil and diesel before first use!
– Shipping via freight carrier; therefore, please provide us with a telephone number where you can be reached daily.
– No shipping to parcel lockers – no shipping to islands.
