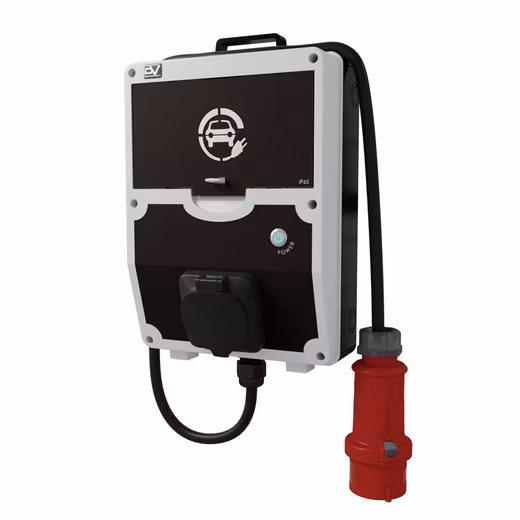

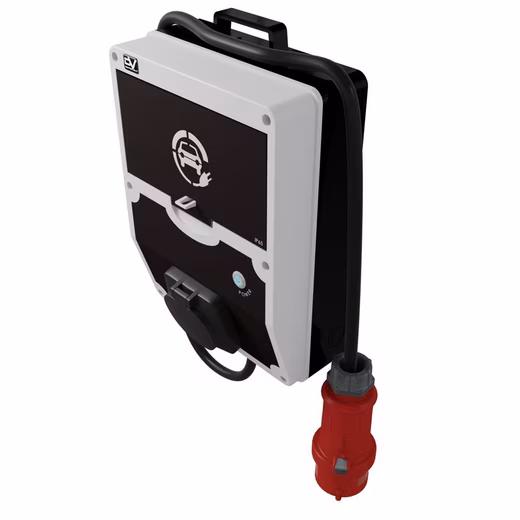

Electric car charging station, mobile charger, home charging station, 11kW Type 2, WALLBOX DOKTORVOLT mobile, 3-phase, 1-pc.

Mobile charger for safely charging your electric or hybrid vehicle.

Enables charging of the battery on your own property and anywhere there is no dedicated car charging station . Extremely compact and easy to use.

Designed for charging with up to 3.7 to 11 kW alternating current.

Sockets conforming to standard type 2 (IEC 62196-2).

Equipped with vehicle communication control and START/STOP button with optical LED charging status indicator.

Built-in RCD protection type A + RCM module.

WALLBOX 11 kW Type 2 DOKTORVOLT, equipped with:

Type 2 16A 5P car charging socket without locking mechanism

16A CEE plug with 1 m cable

Charging control

START/STOP button with optical LED charging status indicator

Actuating flap 12 modules

 ergonomic handle

Car charging
Nominal load current 16A/400V AC
Charging mode Mode 3 Power 3.7 – 11 kW
Connection to vehicle


Type 2 charging socket according to IEC 62196-2

Equipment
Vehicle communication controlCharging control unit that supports communication between the station and the connected vehicle. Automatic shutdown of the charging process in case of a fault.

START/STOP button with optical LED charging status indicatorCharging status is indicated by an optical LED status indicator in the push button.

Cable with plug
Version with 1 m cable and permanently attached CEE 16A 400 V plug

Fuses
and surge protection
C16A

FI switch RCD type A + RCM module Technical data of the housing
Dimensions (without charging socket)

355 x 255 x 125 mm

Material: Plastic (suitable for outdoor use) Color (front/back): Grey/Black Installation conditions: Operating temperature: -20 °C ~ +50 °C Protection class
IP44

UV resistanceYes

Stationary/mobile applicationstationary/mobile

Manufacturer information,
manufacturer certificates and standards

TÜV SÜD, ISO 9001:2015, CE, IEC 61439 EN 62196-2

ModelDV-7280-EVManufacturerDoktorvolt
EAN5907589337280
