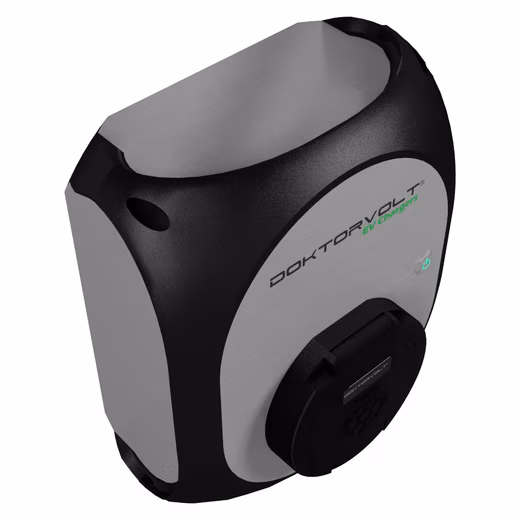

Wall-mounted charger for electric and hybrid vehicles WALLBOX DOKTORVOLT®
Wall-mounted charger for safely charging your electric or hybrid vehicle at home. Compact housing and easy operation.
Designed for charging with up to 3.7 to 22 kW alternating current.
Sockets conforming to standard type 2 (IEC 62196-2).
Equipped with vehicle communication control and START/STOP button with optical LED charging status indicator.
Built-in RCCB protection type A + RCM module.
It is recommended to install the charger in a location away from strong sunlight, as this could cause the device to overheat. Ambient temperature: -5 °C to +40 °C.
WALLBOX 22 kW Type 2 DOKTORVOLT, equipped with:
Type 2 32A 5P car charging socket without locking mechanism
Charging control

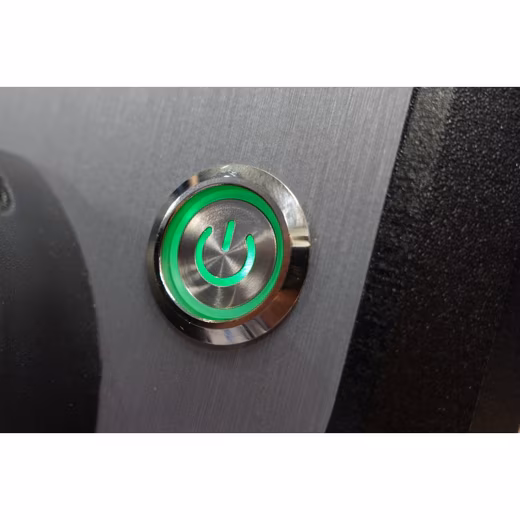

START/STOP button with optical LED charging status indicator
PG21 cable gland
| Carload |
| Rated load current |
32A/400V AC |
| Charging mode |
Mode 3 |
| Performance |
3.7 – 22 kW |
| Connection to the vehicle |
Type 2 charging socket according to IEC 62196-2 |
| equipment |
| intelligent charging control |
Charging control unit that supports communication between the station and the connected vehicle. Automatic shutdown of the charging process in case of a fault. |
| START/STOP button with optical LED indicator |
Illuminated main switch with operating status indicator for the charger |
| cable gland |
PG21 |
| Built-in protective devices |
| DC leak detection |
YES – RCM |
| RCD (residual current device) |
RCCB Type A |
| Technical specifications of the housing |
| Dimensions (excluding sockets) |
255 x 205 x 112 mm |
| material |
Plastic (suitable for outdoor use) |
| Color of the casing |
grey/black |
| Installation conditions: |
| Ambient temperature |
-5 °C ~ +40 °C |
| Protection against the ingress of solid objects and against the ingress of water |
IP54 |
| UV resistance |
Yes |
| Stationary/mobile application |
Stationary |
| Manufacturer information |
| Manufacturer certificates and standards |
TÜV SÜD, ISO 9001:2015, CE, IEC 61439 EN 62196-2 |
| Model |
DV-9574-EV |
| Manufacturer |
Doctorvolt |
| EAN |
5907589339574 |
