Description
Item description

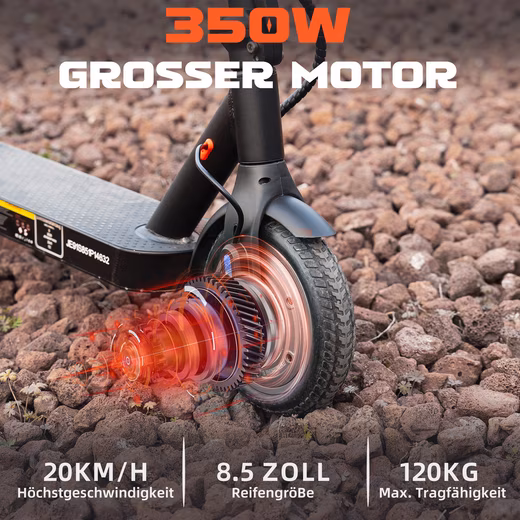

- The e-scooter is equipped with a 350W motor and allows speeds of up to 20 km/h.
- The powerful motor can easily and quickly carry a 120 kg adult over roads, grass and even climbing.

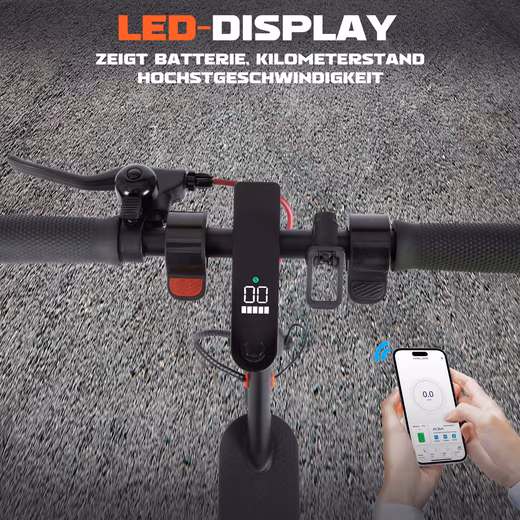

- The LED display shows the scooter on a large screen, displaying the remaining battery charge, mileage, and maximum speed.
- Electric motorcycles have received a general operating permit (ABE) from the Federal Motor Transport Authority (KBA).

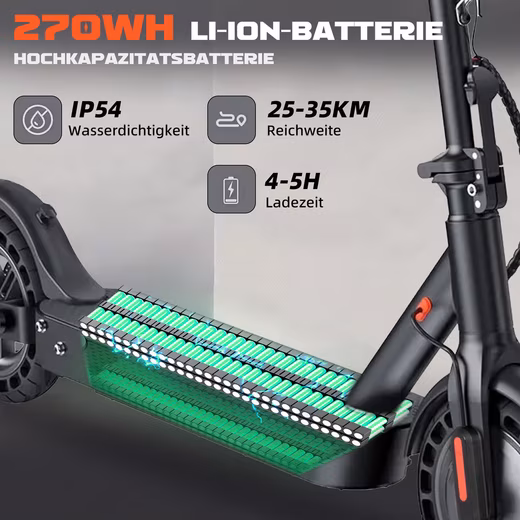

- The 36V 270Wh battery allows a range of up to 20-35km.
Electric scooter with road approval and license plate holder
Our electric scooter has official road approval (General Operating Permit, ABE) and is equipped with a practical license plate holder. This allows for legal use in various countries, including Germany, Switzerland, Austria, Sweden, the Netherlands, and more.
Comfortable driving experience thanks to solid rubber tires and dual suspension system
The 8.5-inch solid rubber tires not only offer a long lifespan but also provide a comfortable ride. The dual rear suspension system adds extra comfort and minimizes the risk of flat tires. With this setup, no regular maintenance is required, and the tires offer excellent traction.
Safety in focus
Our electric scooter prioritizes your safety. An effective dual braking system with disc brakes prevents skidding during braking and ensures a safe riding experience.
Lightweight and practical
With a net weight of approximately 13 kg, the electric scooter is easy to handle. Its top speed of 20 km/h allows for swift travel, while the maximum range of 20-35 km offers flexible journeys (maximum mileage depends on temperature, weather, weight, and other factors). Thanks to its innovative folding mechanism, the scooter is easy to transport and can be stored in a space-saving manner.
Technical data
Maximum speed: 20 km/h
Maximum range: 20-35 km (depends on temperature, weather, weight and other factors.)
Charging time: 4-5 hours
Motor power: 350 W
Battery: 36V 7.5Ah (270Wh)
Maximum load capacity: 120 kg
Solid rubber tires: 8.5 inchesÂ
Brakes: Dual braking system with disc brakes
Waterproof rating: IP 54
With cruise control system
3-second quick folding
With ABE road approval
Note on charging
1. Do not turn on the power while charging: Do not turn on the power or attempt to start the skateboard while it is charging. Otherwise, the circuit may be overloaded or other malfunctions may occur.
2. Use the original charger:Â Â Please ensure that you use the original charger supplied with the board to avoid any potential risks due to incompatibility.
3. Avoid high ambient temperatures:Â Â Please place the card in a well-ventilated environment with a suitable temperature for charging and avoid direct sunlight or proximity to heat sources.
4. Charging time:Â Â Please adhere to the charging time recommended in the manual. Once charging is complete, please disconnect the power supply immediately, as overcharging can reduce the battery’s lifespan.
Scope of delivery:
ZWHEEL E9 electric scooter
ABE certificate
Scooter Datasheet
Charging cable according to European standard
manual
Tool bag
Buying insurance, teaching
Notes
Range: The actual range of an e-scooter can be affected by external factors such as weather, temperature, road conditions and the rider’s driving behavior.
Standard Warranty: Throughout the warranty period, defective or damaged parts can be replaced or repaired. This warranty covers defects in materials and workmanship not caused by misuse, accident, or unauthorized repairs.
We are always happy to assist you with your e-scooter use and hope you are satisfied with our service and warranty. If you have any questions or concerns, please contact our customer service.
Thank you for choosing our products. To ensure you receive your order without any problems, please use your correct name and valid contact details when providing your delivery address.
We promise that we will strictly comply with data protection regulations and will not use your personal data for purposes other than providing the service or pass it on to third parties.
Important reminder
Instructions for getting started:
Hold the start button down for 3-5 seconds until you hear a beep and your electric skateboard is ready to go!
Speed ​​Start:
Please note that the electric skateboard is equipped with a zero-speed switch, and you need to give the skateboard some initial speed to activate the electric boost. Gently push the skateboard to get it gliding, and then you will feel the power of the electric skateboard.
Charging safety:
When charging, please ensure the electric skateboard is switched off; avoid switching the skateboard on while charging to ensure safety and extend battery life.
We look forward to helping you use your e-scooter and hope you are satisfied with our service and warranty. If you have any questions or concerns, please contact our customer service.
Details
| Frame material | aluminum |
| Handlebar material | aluminum |
| Handlebar grip material | plastic |
| Wheel material | rubber |
| Speed ​​control | 0-20 |
| Top speed | 20 km/h |
| Engine performance | 350W W |
| Engine performance in ECO mode | 350 W |
| Engine details | brushless |
| Drive type | Hub drive |
| Battery details | High-performance cells |
| Battery range | 20 km |
| Battery range in ECO mode | 20 km |
| Battery charging time | 5.00 hours |
| Battery type | Li-ion battery |
| Type of power supply | BATTERY |
| Battery/accumulator technology | LI-LON |
| Number of batteries required | 1 pc. |
| Battery capacity | 7500.00 mAh |
| Battery performance | 270 Wh |
| Battery voltage | 36 V |
| Type of wheels | honeycomb tires |
| Number of wheels | 2 pcs. |
| Climbing ability | 15.00 ° |
| Suspension details | rear shock absorbers |
| ABEC rating | 24932 |
| Characteristics | foldable collapsible |
| Front brake design | electronic brake |
| Rear brake type | disc brake |
| Rear brake design | Rear disc brake |
| Level | Beginners Intermediate Professionals x |
| Display Cockpit | Speed, battery charge level, mileage, speed setting |
| Scooter lighting | handlebars |
| Type of light source front | LED |
| Type of rear light source | LED |
| Stand | side stand |
| equipment | Mudguards, speedometer with odometer, kickstand, lights, taillight |
| Color | E9 |
| Handlebar height | 110.00 cm |
| Handlebar height adjustable up to | 110cm cm |
| Wheel diameter in inches | 8.5″ |
| Wide wheels | 50 mm |
| Ground clearance | 9.60 cm |
| Scooter weight | 13.00 kg |
| Assembly instructions | The item is almost completely pre-assembled. |
| Age recommendation | Ages 14 and up |
| Maximum user weight | 120.00 kg |
| Area of ​​use | within the German Road Traffic Licensing Regulations (StVZO) |
| Required driver’s license | no |
| Legal obligations | License plate requirement, insurance requirement, helmet requirement |
| Still to be assembled | handlebars |
| Languages ​​Operating/Assembly Instructions | DE EN |
| Warning notices | The rider of the E9 must be at least 14 years old. A valid insurance sticker must be affixed to the rear fender of the E9 moover. A driver’s license is not required. Protective gear, including a helmet, is strongly recommended. The electric scooter has the necessary road approval and is therefore LEGAL and safe to use on German roads. This item comes with a general operating permit (ABE). Please insure the item. The serial number is located on the side of the vehicle. If you have any questions, please feel free to contact us. Never charge the battery while it is switched on. Please check the screws again after each use and tighten them securely. This is not only safer but also extends the product’s lifespan. This product uses a lithium battery. Use in standing water or on rainy days is strictly prohibited. Before use, please check that all screws on the folding part of the electric scooter are engaged in their grooves. |
| WEEE Reg. No. DE | 59776788 |
