  2. E-Bike Trekking Bike Electric Bicycle for Men & Women, 48V Battery, 55 Nm Motor

Shop

E-Bike Trekking Bike Electric Bicycle for Men & Women, 48V Battery, 55 Nm Motor
E-Bike Trekking Bike Electric Bicycle for Men & Women, 48V Battery, 55 Nm Motor - Image 2
E-Bike Trekking Bike Electric Bicycle for Men & Women, 48V Battery, 55 Nm Motor - Image 3
E-Bike Trekking Bike Electric Bicycle for Men & Women, 48V Battery, 55 Nm Motor - Image 4
E-Bike Trekking Bike Electric Bicycle for Men & Women, 48V Battery, 55 Nm Motor - Image 5
E-Bike Trekking Bike Electric Bicycle for Men & Women, 48V Battery, 55 Nm Motor - Image 6
E-Bike Trekking Bike Electric Bicycle for Men & Women, 48V Battery, 55 Nm Motor - Image 7
E-Bike Trekking Bike Electric Bicycle for Men & Women, 48V Battery, 55 Nm Motor - Image 8
E-Bike Trekking Bike Electric Bicycle for Men & Women, 48V Battery, 55 Nm Motor - Image 9
E-Bike Trekking Bike Electric Bicycle for Men & Women, 48V Battery, 55 Nm Motor - Image 10

E-Bike Trekking Bike Electric Bicycle for Men & Women, 48V Battery, 55 Nm Motor

€ 2.765,00

Categories: , , Tags: , , Brand:

Description

Item description

Article No. S06 AF0 C9
  • DERUIZ DownTube, 48V 644Wh powerful motor offers strong propulsion, maximum range up to 145km.
  • 250W 55Nm rear wheel motor, high quality and good looking.
  • Extra strong 6061 aluminum alloy for added safety.

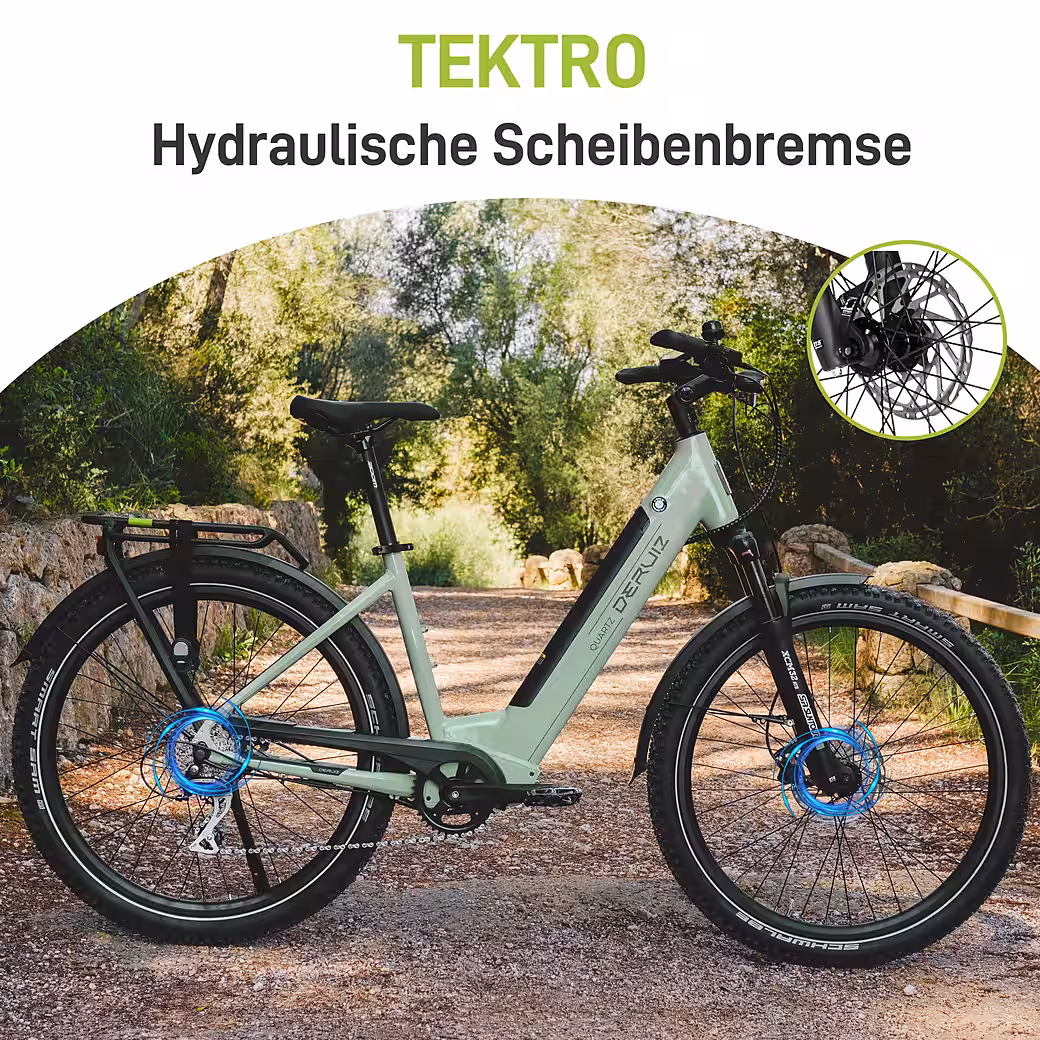

  • TEKTRO T275 hydraulic disc brakes provide greater safety.
  • The electric bicycle arrives 85% pre-assembled.

Discover the beauty of the world with the Deruiz QuartzSUV e-mountain bike

Designed for versatility

The Deruiz Quartz SUV combines the features of a mountain bike and a city bike for a variety of scenarios, whether traversing rugged mountain trails or navigating city streets



Powerful and with a long range

The Quartz SUV is equipped with an integrated hose system and a 48V 644Wh high-performance battery offering a maximum range of 145 km. The battery is durable, easily removable, and lasts more than 20 times longer than a standard car battery, allowing you to save money and live in harmony with the environment.



First-class quality

The Deruiz Quartz SUV features a sturdy aluminum frame, a Shimano 8-speed derailleur, and high-quality Tektro hydraulic disc brakes. This ensures a smooth ride and precise braking. The Suntour fork blends seamlessly into the bike’s overall color scheme. The robust suspension system provides a smooth and comfortable ride on all types of terrain.



Intelligent, user-friendly design

The Quartz SUV features a 40-lumen, road-legal headlight. Good lighting ensures safe driving, especially in forests or on unpaved roads. It also comes equipped with a rear luggage rack, making it easier to transport items and increasing driving comfort



Comfort and convenience at the same time

The Quartz SUV is based on modern, ergonomic design principles. It is ergonomically designed for comfortable, extended periods of sitting and features a durable, water-repellent surface. The design offers both excellent seating performance and comfort.



Environmentally friendly and energy-saving

The Quartz SUV uses an electric drive system to reduce pollution. This allows you to experience a green and healthy way of traveling and interact harmoniously with nature



Technical Specifications

Frame Material: Aluminum Alloy 6061

Frame Type: Step-Through

Suspension fork brand: Suntour

Motor: Deruiz 250W 55Nm rear motor

Battery: Deruiz 48V / 644Wh

Range: maximum 145 km

Charger: Deruiz 48V 2A

Pedal sensor: Cadence sensor, 0-5 display levels, starting aid

Braking system: TEKTRO hydraulic disc brake

Rear derailleur: SHIMANO 8-speed

Weight: 26 kg

Maximum load capacity: 130 kg

APP: Deruiz Smart App

Deruiz Quartz SUV With a mountain bike, no path is off-limits

Deruiz Quartz SUV With a mountain bike, no path is off-limits

This bicycle was specifically designed for versatile riding and handles both city streets and forest trails with ease. It perfectly combines the practical features of an everyday e-bike: frame, mudguards, luggage rack, and front and rear lighting system, so you don’t have to worry about the weather.

Powerful power for your bicycle

Powerful power for your bicycle

With a powerful rear hub motor and 55 Nm of torque, you can conquer any terrain. Most Deruiz e-bikes are equipped with a highly efficient 48-volt system, providing ample power for effortless hill climbing and unimpeded riding.

Strong stamina, full of energy

Strong stamina, full of energy

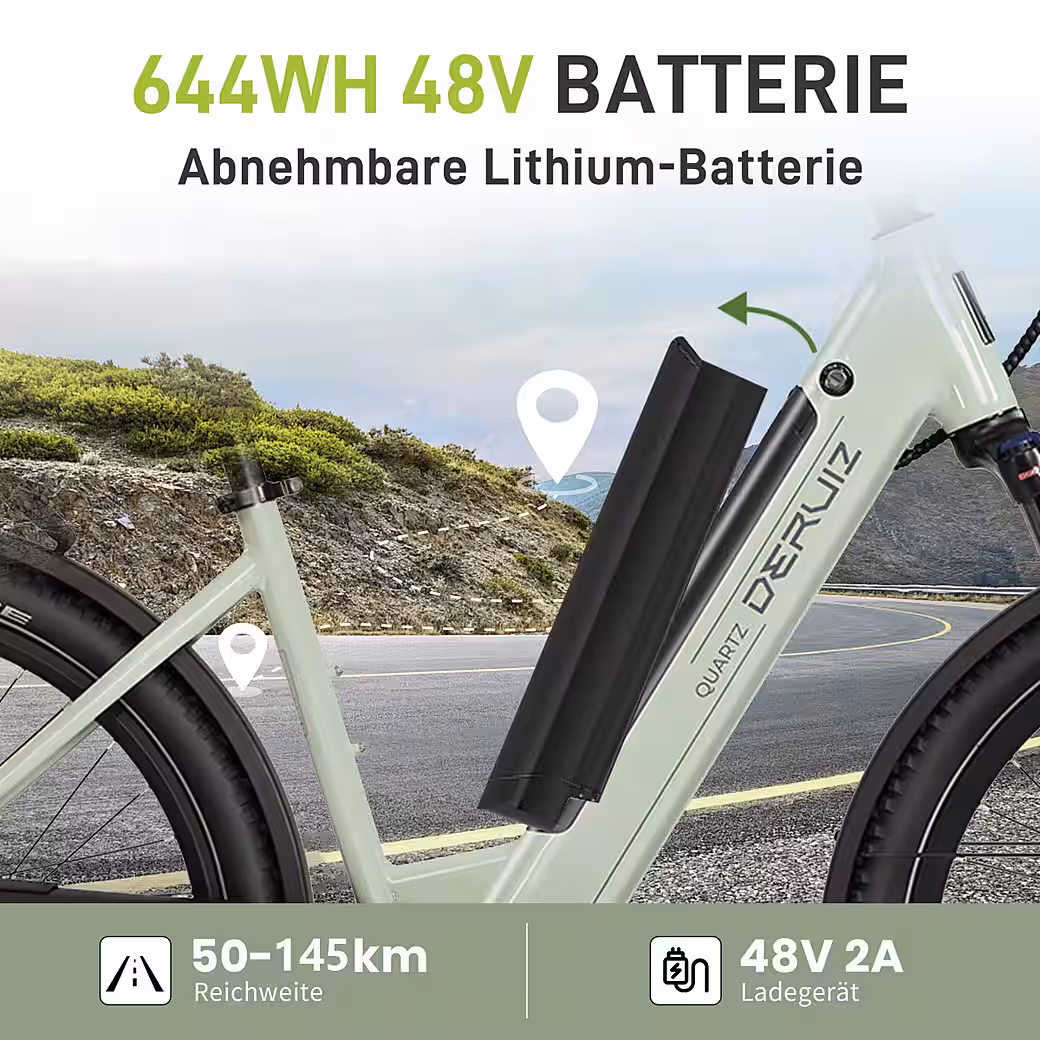

The high-capacity 644Wh battery features an integrated tube design and is easily removable for charging. The Quartz SUV electric bike offers long-lasting, reliable power, ensuring you’re fully energized for every ride.

Safety and driving pleasure

Safety and driving pleasure

Drez electric bicycles have been specially designed for your safety and are equipped with safety features: a 120 lumen lighting system and front and rear warning lights that are clearly visible day and night, ensuring that you are easily seen in all lighting conditions.

Optimized shock absorption

Optimized shock absorption

We have equipped the SUV bicycle with a Suntour XCM suspension fork with 100 mm of travel to improve contact with the ground and offer you additional comfort on unpaved routes.

Smooth gear changes

Smooth gear changes

The Acera 8-speed derailleur features a longer cage design, making every climb a breeze. Shifting is smooth, consistent, and reliable. Safety first, be well prepared.

Details

Product Details
Type: E-Bike Trekking Bike
Intended Use Everyday Use
Training Computer Display Battery Level
Assistance Level
Speed
​​Total Kilometers
Trip Kilometers
Menu Languages DE
EN
Special Features 644Wh high-capacity batteries, 250W 55Nm rear wheel motor
Equipment Bicycle stand
, bell
, lights,
luggage rack
Bicycle weight 26.30 kg
Bicycle stand Rear stand
Frame
Frame Model Aluminum Alloy 6061
Frame Material Aluminum alloy 6061
Frame design Step-through frame
Frame type details Single pivot, stable, durable
Frame color green
Fork
Model Fork SUNTOUR XCM32 ATB, disc brake, hydraulic lockout, 100mm travel, e-bike ready
Fork Material Aluminum
Fork Design Suspension Fork
Fork Suspension Details SUNTOUR XCM32 ATB, disc brake, hydraulic lockout, 100mm travel, e-bike ready
Fork Damping Hydraulic
Fork Color black
Wheels
Tire width in inches 2.35″
Rim Material Aluminum
Tire Brand Schwalbe
Tire Model SCHWALBE Smart Sam, K-Guard, 60-584 (27.5 X 2.35)
Tire Details SCHWALBE Smart Sam, K-Guard, 60-584 (27.5 X 2.35)
Gears / Drive
Drive Type Chain Drive
Number of gears 8
Gear type Derailleur gears
Gearbox Details SHIMANO Acera
Derailleur Brand SHIMANO
Model Rear Derailleur Acera RD-M360 SGS
Hub Details Freewheeling
Gearshift Lever Brand SHIMANO
Gearshift Lever Model Altus SL-M315-8R RAPIDFIRE
Pedal Details Trekking Slipper Set
Brake
Front Brake Brand TEKTRO
Front Brake Model TEKTRO HD-T275 Hydraulic Disc Brake (180/160)
Front brake design Hydraulic
Rear brake brand TEKTRO HD-T275 Hydraulic Disc Brake (180/160)
Rear brake model TEKTRO HD-T275 Hydraulic Disc Brake (180/160)
Rear brake type Disc brake
Rear brake design Hydraulic
Motor / Battery
Motor model Rear Wheel Motor
Motor Type Rear Wheel Motor
Motor Position Rear
Maximum speed 25 km/h
Motor power 250.00 W
Motor power in V 48 V
Motor torque in Nm 55 Nm
Motor details Brushless
Power supply type Battery
Battery brand DERUIZ
Battery Details High-Performance Cells
Battery Technology Lithium-Ion
DERUIZ DownTube
Battery Power 644 Wh
Battery Voltage 48.00 V
Battery Capacity 13400 mAh
Battery charging time 6.00 hours
Battery range 145.00 km
Battery range details Dependent on several factors
depending on driving style
Driving aids Push aid
Technical Specifications
WEEE Reg. No. DE 84923408
Handlebars
Handlebar Brand DERUIZ
Handlebar Type Trekking Handlebars
Handlebar Color black
Handlebar Grip Features Ergonomically Shaped
Stem Brand DERUIZ
Model Stem DERUIZ Comfort Stem, 31.8mm, Adjustable
Stem Features Adjustable
Saddle
Saddle cover material Leather-like surface
Saddle Features Selle Royal leather-like surface
Saddle suspension material Aluminum
Saddle color black
Seatpost features Height adjustable
Frame features reinforced,
stable
, durable
Lighting
Type of bulb, front light LED
Type of bulb, rear light BÜCHEL Edge
Parking Light Taillight
Details Front Light LED
Rear light details BÜCHEL Edge
Notes
Scope of delivery Battery charger
Tools
Assembly instructions The item is almost completely pre-assembled
Assembly still required pedals
handlebars
front wheel
saddle
Age recommendation 18 years and over
Warnings Caution! Not permitted for use by children under 14 years
Area of ​​use within the German Road Traffic Regulations (StVZO)
Required driver’s license none
Legal obligations Helmet requirement
Maximum permissible weight 130 kg
Languages ​​Operating/Assembly Instructions DE
EN

Additional information

Weight 130 kg
