Compact, safe and incredibly practical – the foldable e-bike for limitless mobility!
The Camp-20D, with its particularly low entry, allows for maximum comfort when getting on and off.
Maximum flexibility, powerful motor support, and top-level safety – this innovative folding e-bike is the ideal companion for commuters, camping enthusiasts, and anyone who simply wants to stay mobile.

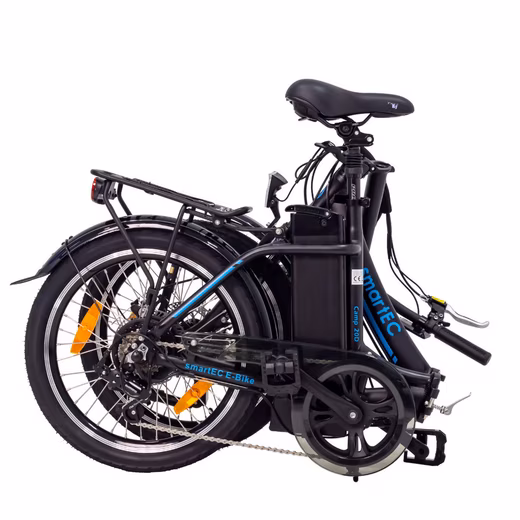

Thanks to its clever folding mechanism, it can be folded up in a flash and stored in a space-saving manner – perfect for the trunk of a car, the rear garage of a motorhome, or for taking on buses and trains.
Safety is our top priority!
That’s why our folding mechanism on the frame is equipped with a double safety lock – this ensures maximum stability and prevents accidental folding while riding.
The folding mechanism on the handlebars also features an additional double safety lock, so you can always rely on a safe riding experience.
Camp-20D highlights at a glance:
TÜV-certified quality and safety.
Double safety lock on the frame and handlebars.
Powerful 250W rear motor for dynamic propulsion.
Lithium-ion battery with a range of up to 100 km.
Robust, foldable aluminum frame – lightweight and stable.
Reliable disc brakes for maximum safety.
20-inch tires with perfect grip on any terrain.
Space-saving transport in a camper van, car, or train.
No bike rack or trailer hitch required – more flexibility!
Technical data:
• Motor: 250-watt rear hub motor
• Battery: 562 Wh (36V / 15.6Ah)
• Range: Up to 100 km
• Assistance levels: 5
• Max. assist speed: Up to 25 km/h
• Walk assist: Up to 6 km/h
• Brakes: Mechanical disc brakes (front & rear)

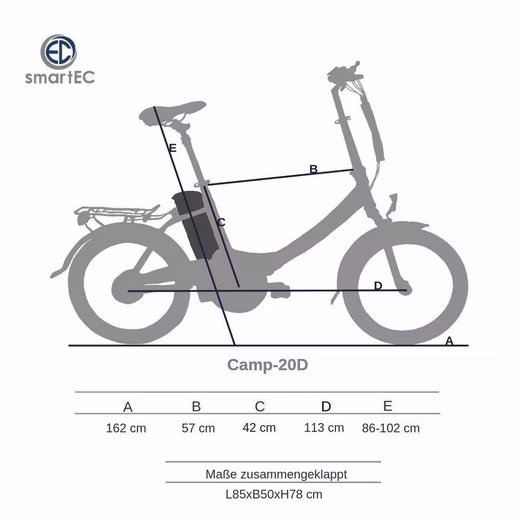

• Dimensions when folded: approx. 85 x 50 x 78 cm
• Maximum permissible weight: Up to 125 kg
You can find further technical details in the Details tab .
Scope of delivery:
E-folding bike Camp-20D (with low step-through frame)
Battery & charger
Pedals & bell
Tool set
User manual (German)
The Camp-20 meets the needs of modern commuters and leisure cyclists alike…
Order now and get free shipping!
A notice:
The Camp-20D model is the women’s version with a low step-through. The men’s version with a high step-through can be found under the model name Camp-20H.
Details
Motor / Battery
| Motor brand |
Brushless hub motor in the rear wheel |
| Type of engine |
rear wheel hub motor |
| Motor position |
Hub motor in the rear wheel |
| Top speed |
25 km/h |
| Engine performance |
250.00 W |
| Motor power in V |
36 V |
| Motor power in Nm |
45 Nm |
| Engine details |
36V/250W brushless hub motor in the rear wheel |
| Number of support levels |
5 |
| Type of power supply |
Battery, accumulator |
| Battery model |
Li-Ion 36V/15.6AH – 562Wh |
| Battery position |
Under/Behind the saddle |
| Battery details |
removable |
| Battery/accumulator technology |
Lithium-ion battery 562Wh (36V/15.6AH) |
| Battery performance |
562.00 Wh |
| Battery voltage |
36 V |
| Battery capacity |
15600.00 mAh |
| Battery charging time |
5.00 hours |
| Battery range |
100.00 km |
| Details Battery Range |
up to 100 km (depending on road conditions and driving style) |
| Number of batteries |
1 pc. |
| Driving aids |
Starting aid |
Frame
| Frame material |
Aluminum frame with safety folding mechanism |
| Frame design |
Folding frame |
| Frame color |
Black |
| Frame height |
42 cm |
Fork
| Brand Fork |
ZOOM |
| Fork design |
suspension fork |
| Suspension travel |
30.00 mm |
Circuit / Drive
| Drive type |
Rear-wheel drive |
| Number of gears |
7 |
| Circuit type |
chain drive |
| Circuit details |
7-speed Shimano Tourney derailleur gears |
| brand derailleur |
Shimano |
| Model shifter |
Tourney |
| Number of chainrings |
7 |
| brand of crank |
Prowheel 48T |
| gearshift lever |
thumb shift lever |
| Chain guard |
Half chain cover |
| Type of chain guard |
Half chain cover |
| Pedal details |
Wellgo folding pedals F178 |
| Pedal type |
Folding pedal |
brake
| Front brake brand |
Tektro |
| Front brake model |
Tektro mechanical disc brake MD-M300 |
| Front brake type |
Tektro mechanical disc brake MD-M300 |
| Front brake design |
mechanically |
| Rear brake brand |
Tektro |
| Rear brake model |
Tektro mechanical disc brake MD-M300 |
| Rear brake type |
disc brake |
| Rear brake design |
mechanically |
wheels
| brand balance bike |
KENDA |
| Wheel size |
20 inches |
| Rear wheel size |
20 inches |
| Tire width in inches |
20.00 “ |
| Tire brand |
Kenda |
| Tire model |
20″ x 1.95″ KENDA tires |
| Type of tire |
20″ x 1.95″ KENDA tires |
| Tire details |
20″ x 1.95″ KENDA tires |
| Tire pressure |
2.80 bar |
handlebars
| Handlebar type |
Folding bike handlebars |
| Handlebar color |
Black |
| Features of handlebar grip |
ergonomically shaped, non-slip |
| Stem features |
Height adjustable by approx. 10 cm, aluminum, black |
saddle
| Saddle brand |
Selle Royal Freeway A094D Black |
| Saddle model |
Selle Royal Freeway A094D Black |
| Saddle features |
ergonomically designed |
| Saddle color |
Black |
| Seatpost features |
Suspension seatpost, tube diameter 27.2 mm |
| Frame properties |
foldable |
lighting
| Type of light source: front light |
Spanniga headlights HL5201, approved for road use in Germany (StVZO). |
| Type of bulb: rear light |
Spanniga LED light DUXO, approved for road traffic regulations (StVZO). |
| Parking lights |
Front light |
| reflectors |
spoke reflectors |
| Details Front light |
Continuous light, parking light (when the control computer/display is switched on) |
| Details rear light |
Spanniga LED light DUXO, approved for road traffic regulations (StVZO). |
Product details
| Type E-bike |
Folding bike |
| Area of application |
Everyday |
| Display Training computer |
Battery charge level, support level, speed, daily mileage, distance |
| Special features |
Women’s/Men’s support 25 km/h start-up aid disc brake StVZO |
| equipment |
Bell, battery, folding pedals, kickstand, mudguard, lights |
| Weight of bicycle |
23.00 kg |
| bicycle rack |
rear wheel stand |
| Model year |
2024 |
Notes
| Scope of delivery |
Folding bike, battery, charger, pedals, bell, tool set, instruction manual |
| Assembly instructions |
The item is almost fully assembled; check handlebars, saddle, tires, and battery. |
| Area of use |
within the German Road Traffic Licensing Regulations (StVZO) |
| Required driver’s license |
no |
| Legal obligations |
no legal obligations |
| maximum weight allowed |
125 kg |
Technical data
| WEEE Reg. No. DE |
70748130 |
