E-bike city bike OT05pro men’s electric bike 700C*50C inch 22.5AH 36V 810WH women’s

 3.349,00

Category: Tags: , Brand:

Description

Product Description

Item no. S0ZE60O3BIG
  • Powerful 810 Wh battery for long-distance rides or city tours
  • Sensitive torque sensor, smooth shifting, natural riding experience
  • Lightweight aluminium frame in elegant white and grey-blue
  • Hydraulic disc brakes and Shimano 7-speed gears
  • Practical luggage rack, automatically flashing rear light
Weniger anzeigen

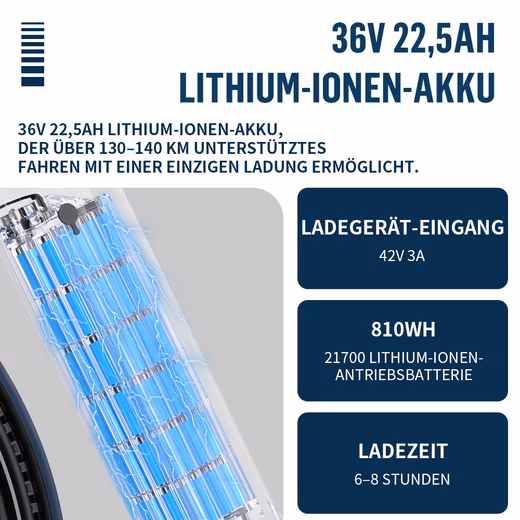

Strong battery with long range

The 36V 22.5Ah lithium-ion battery with 810 Wh enables a range of up to 140 km – ideal for daily rides and long tours. Equipped with high-quality 21700 cells as well as a 42V 3A charging input. The charging time is 6-8 hours.

0

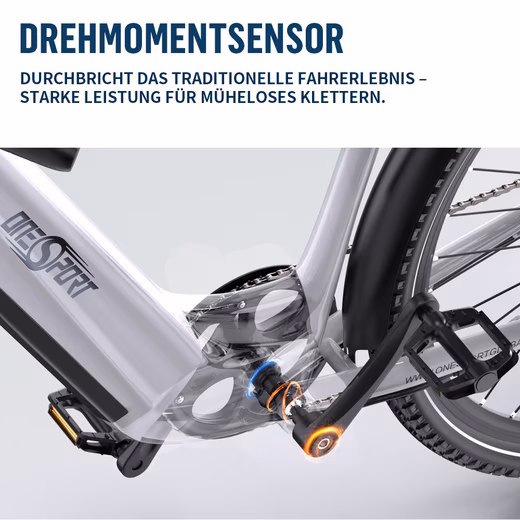

Responsive motor support through torque sensor

An integrated torque sensor precisely detects the force exerted on the pedals and regulates the motor power in real time. This ensures gentle, powerful support without delay – especially noticeable when starting off, accelerating and driving uphill.

Compared to motion sensors, this system offers a more natural and dynamic ride – ideal for city and off-road.



Intelligent control via app & display

The e-bike can be comprehensively controlled via an app via Bluetooth connection: battery level, riding modes, speed, light – everything at a glance.

The handlebar-mounted LCD display complements the control with simple button operation. The result: modern, networked control over all important driving data – anytime and anywhere.

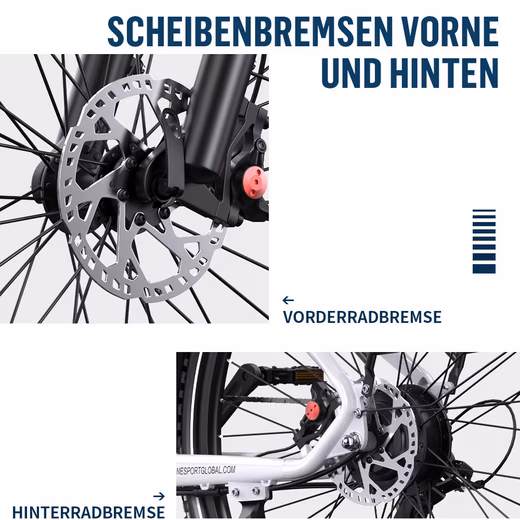

Safe front and rear disc brakes

The bike is equipped with disc brakes on the front and rear wheels. They ensure stable braking performance in all weathers, shorten braking distances and increase safety – both at high speeds and on uneven surfaces.



Ergonomic design for many body sizes

Suitable for riders of 160-200 cm tall, the bike can carry up to 100 kg of payload. Despite a dead weight of 29 kg, it is easy to maneuver.

The well thought-out geometry with 1900 mm overall length, 300 mm bottom bracket height and 800–1100 mm seat height ensures a comfortable and stable sitting position – ideal for everyday life, commuting and leisure.

Details

Weniger anzeigen
Motor / Battery
Type Engine Rear engine
Engine position Rear engine
Engine power 250 W
Engine power in V 36 V
Engine power in Nm 40 Nm
Engine Details Brushless
maintenance-free
Number of support levels 4
Type: Power supply Battery
Battery position Downtube
Battery Details Removable
maintenance-free
Battery/rechargeable battery technology Lithium-ion (Dongci 21700)
Battery Performance 810 Wh
Voltage battery 36 V
Battery capacity 22500 mAh
Battery charging time 8 hrs
Battery range 140 km
Details Range Battery depending on driving style max. 140km depending on temperature and circumstance depending on assistance level
Driving aids Push aid
Frame
Material Frame Aluminium
Frame design Trapezoidal frame
Details Frame Type Aluminium
Colour Frame white

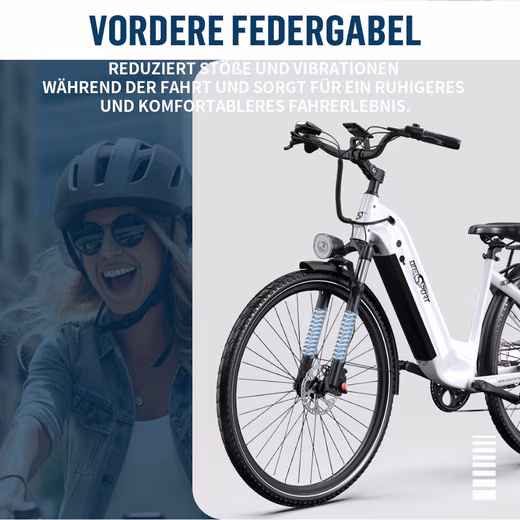

Fork
Material Fork Aluminium
Fork design Suspension fork
Travel 80 mm
Damping fork Mechanical
Details Damping Fork open
Fork color black
Gears / Drive
Drive form Chain drive
Number of gears 7
Type Circuit Derailleur gear
Details of the circuit Shimano 1×7 speed
Brand: Rear derailleur SHIMANO
Number of chainrings 1
Number of sprockets 7
Type: Chain guard none
Details Pedals non-slip
Brake
Type Front Brake Disc brake
Front brake design hydraulic
Diameter front brake disc 180 mm
Type Rear Brake Disc brake
Rear brake design hydraulic
Rear brake disc diameter 180 mm
Wheels
Wide tires in inches 2 “
Details Tyres Puncture protection
Handlebars
Handlebar color black
Handlebar height 108 cm
Maximum handlebar height 108 cm
Handlebar grip features non-slip
ergonomically shaped
Features Stem not adjustable
Saddle
Type Saddle City Saddle
Saddle colour black
Seat height minimum 92 cm
Maximum seat height 110 cm
Seatpost features Height adjustable
Lighting
Type of bulb front light LED
Reflectors Spoke reflectors
Details Rear Light With brake light/High brightness when braking
Product details
Type: E-Bike City bike
Application area Everyday
Short Distance
Excursion
Day Trip
Display Training Computer Battery Level
Speed
Support Level
Kilometers
Languages Menu navigation EN
Special features City bike 7 speed Shimano, hydraulic disc brake, derailleur gear
Facilities Lighting
Bicycle
Rack Luggage Rack
Bell Mudguards
Weight bike 29 kg
Bike racks Rear Wheel Stand
Remarks
Scope of Delivery Battery Charger
Tool
Installation instructions The bike is 85% assembled
Still to be assembled Pedals
Front Wheel
Age recommendation from 16 years
Warnings Use not permitted for children under 14 years of age
Area of use within the StVZO
Required driving licence none
Legal obligations Helmet requirement
Permissible total weight 100 kg
Languages Instruction manual EN
Technical data
WEEE-Reg.-Nr. DE 63584020

Additional information

Weight 29 kg
