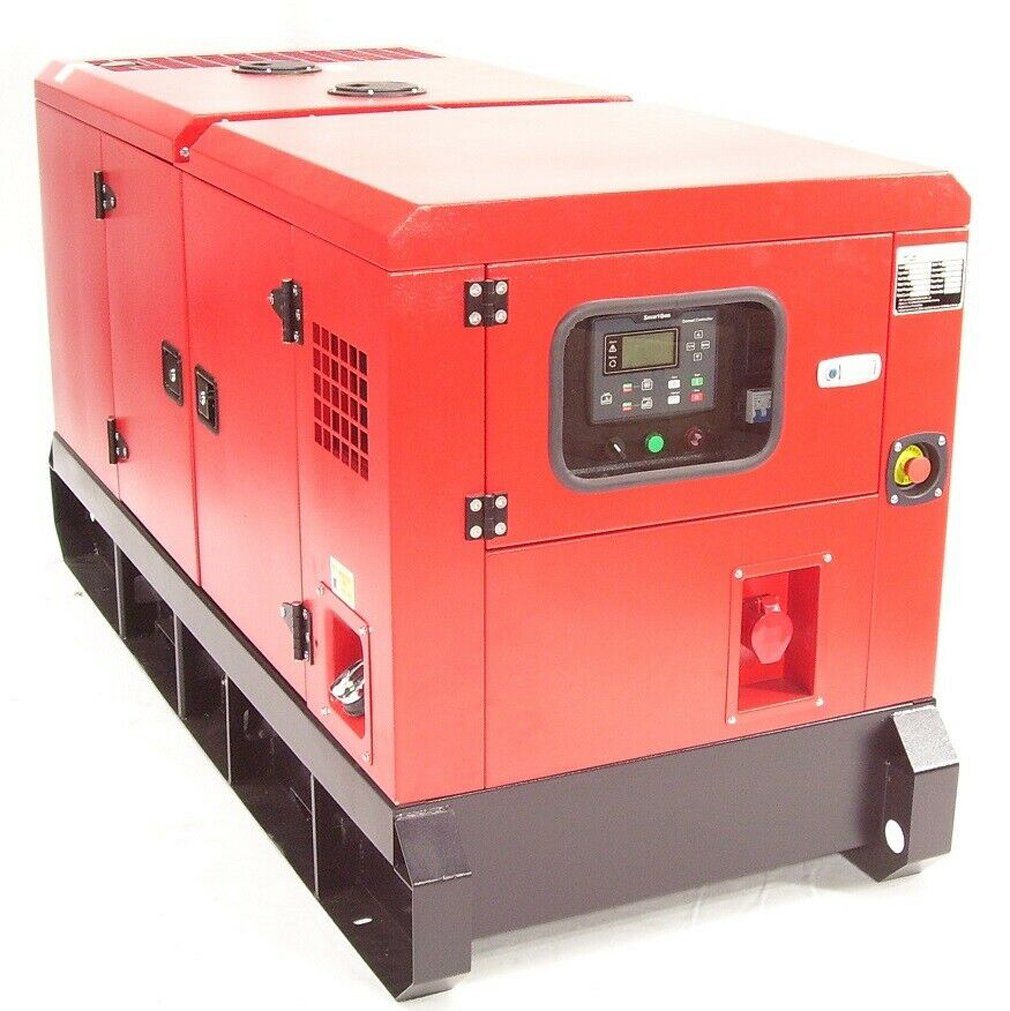

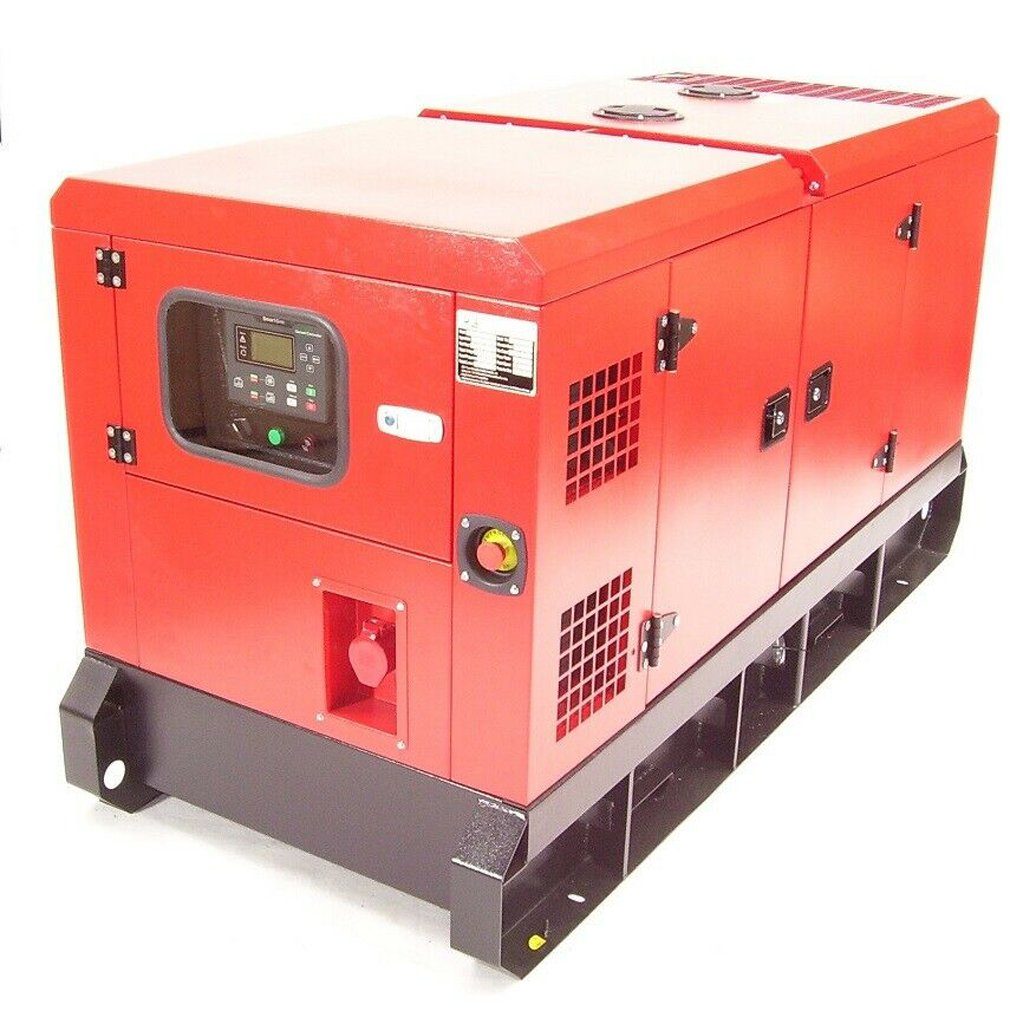

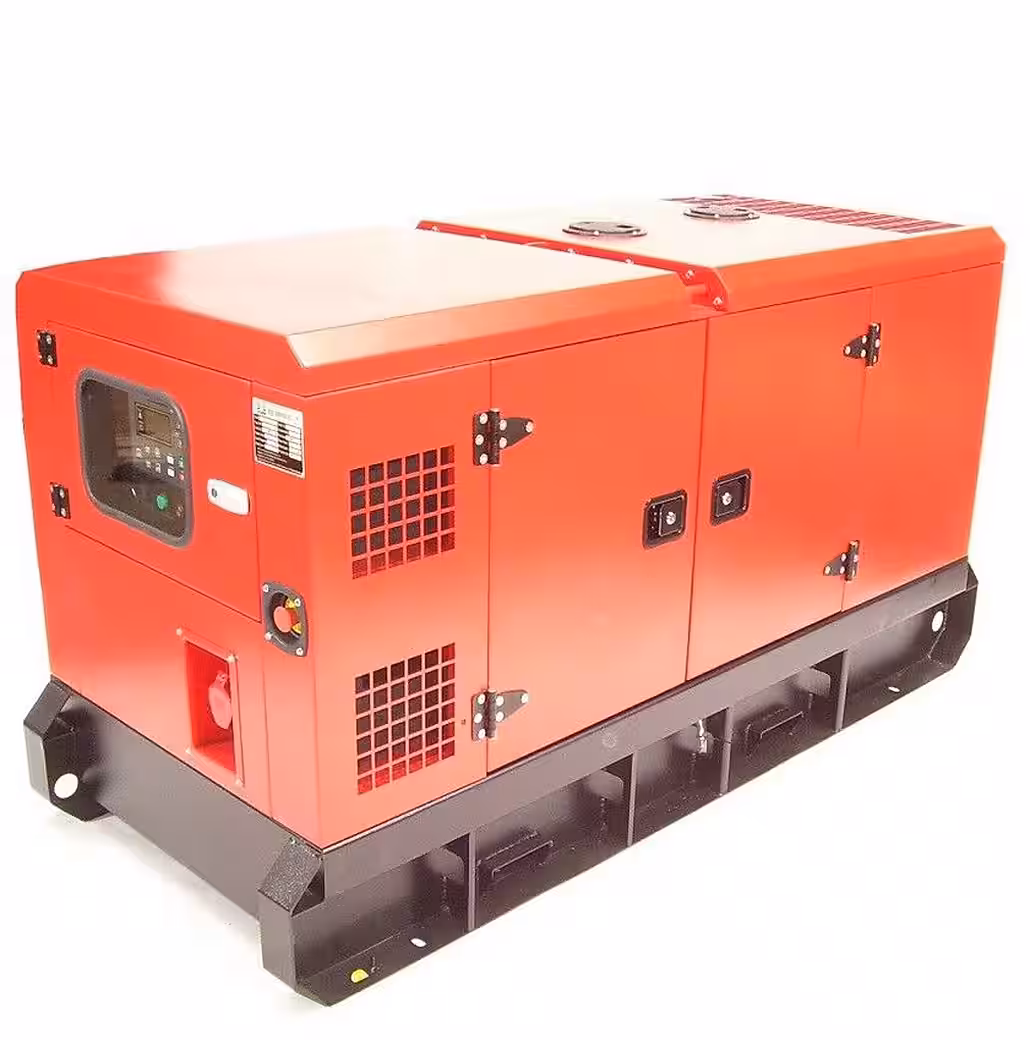

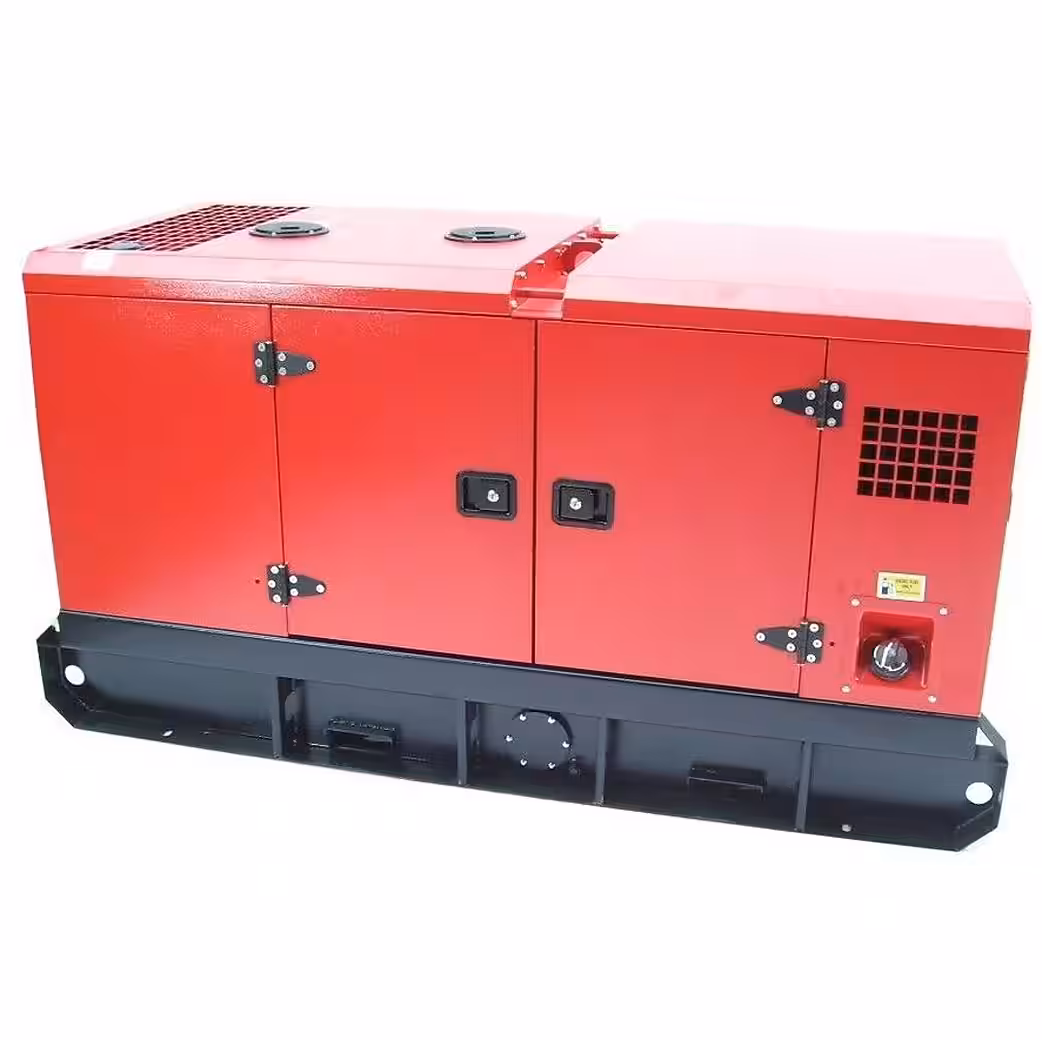

Diesel generator, 19.8kVA 400V emergency power generator 66260

Water-cooled diesel generator
with economical 2,417 cc 4-cylinder diesel engine, 400V/32A, 19.8 kVA max. output, LCD generator control.

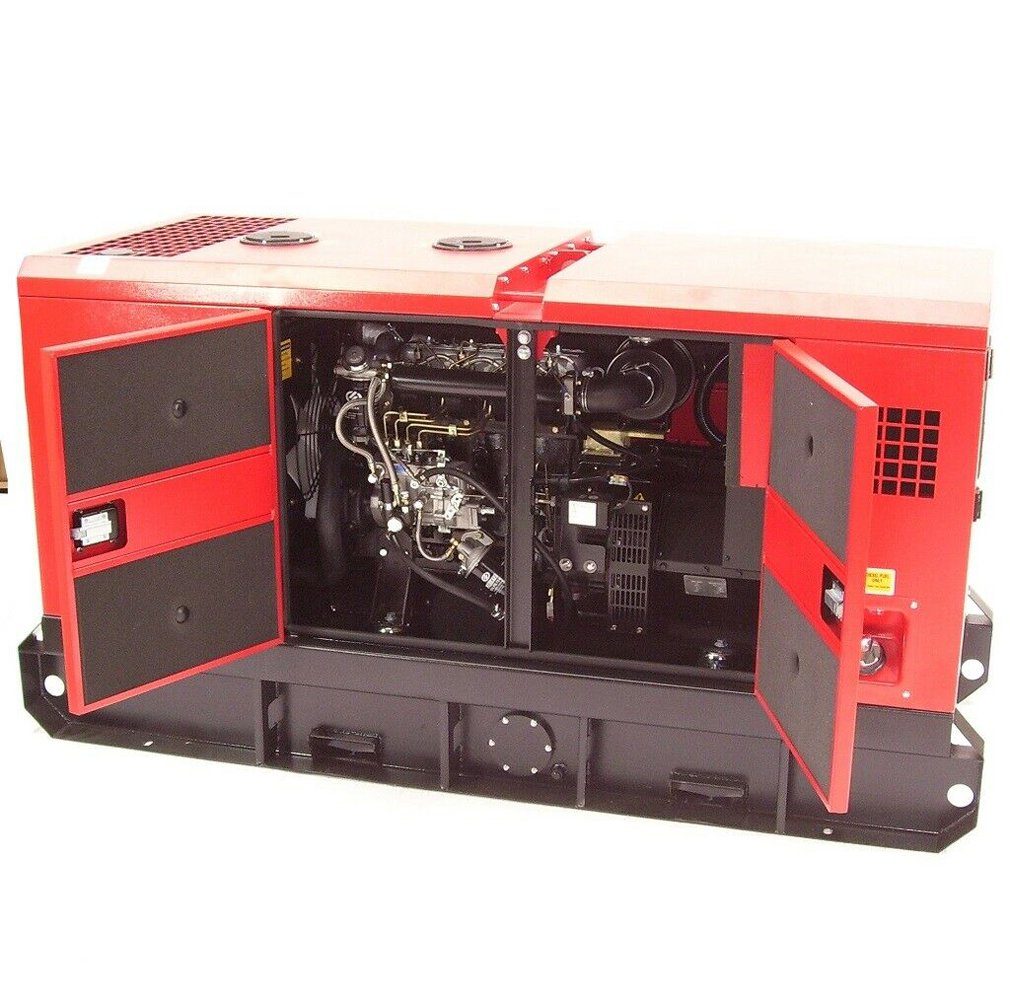

The robust and quiet water-cooled D+L generator with a 4-cylinder diesel engine is specially soundproofed and offers a maximum output of 19.8 kVA. Power is drawn directly via a 32A 400V CEE plug connector. The powerful 4-cylinder in-line diesel engine with a displacement of 2,417 cc features direct injection and offers an economical, low rated engine speed of 1,500 rpm, ensuring very smooth operation and a long generator lifespan. The integrated electric start via the electronic LCD engine control unit guarantees reliable starting even in low temperatures. The brushless synchronous generator used has a maximum output of 25 kVA at a nominal voltage of 400 V/50 Hz. The integrated electronic voltage regulator ensures excellent voltage stability. Thanks to its special winding design, this robust generator is suitable for unbalanced loads. Therefore, phases can also be loaded unevenly. The digital, central engine control unit clearly displays all generator and engine data. In addition to the operating hours counter, all typical generator data such as current grid and phase voltages, grid current, generator grid frequency, power factor (cos φ), current total active power (kW), and energy output in kWh are displayed. Engine data such as oil pressure, coolant temperature, and alternator voltage are also shown. The control unit monitors not only the engine characteristics but also the generator data such as voltage, current, frequency, and current power. The generator can be started and stopped directly via the control unit. Delay times and alarm thresholds are variably adjustable via a menu-driven, plain-text display.

Product advantages:
– Water-cooled, high-performance 4-cylinder diesel generator, 19.8 kVA, with electric start and LCD display
– Smooth-running, economical, water-cooled 4-cylinder 2,417 cc diesel engine
– Low engine/generator speed of 1,500 rpm for long service life
– Menu-driven LCD control with plain text display
– 3-phase brushless 400V/25 kVA industrial generator section with electronic voltage regulation (AVR controlled)
– The generator is suitable for unbalanced loads, CEE-32 A socket, phase loads can vary
– Extra-large, integrated 70-liter tank
– Economical diesel engine with low fuel consumption, only approx. 0.33 L/kWh at full load
– Electronic engine control unit with plain text display
– Digital LCD display and monitoring of voltage, current, frequency, power, etc.
– Automatic engine stop in case of engine/generator malfunctions

Technical data:
Generator type: Synchronous
Generator mains voltage: 400 V / 50 Hz
Max. output: 16.5 kW / 19.8 kVA (400 V)
Continuous / Apparent output: 15 kW / 18 kVA (400 V)
Nominal voltage: 400 (230) V, 50 Hz
Plug connector: CEE – 400V/32 A
Generator type: 3-phase brushless synchronous generator in star connection with neutral conductor
Voltage regulation: Electronically controlled AVR voltage regulator,
max. phase current: 27.1 A
Engine type: 2,417 cc 4-cylinder in-line diesel engine, direct injection
Engine output at 1,500 rpm: 18.0 kW
Engine cooling: Water cooling with forced-air radiator and coolant pump
Fuel: Diesel
Fuel consumption at idle: approx. 1.5 l/h
Fuel consumption at 7.5 kW electrical load approx.: 3.0 l/h (353 g/kWh)
Fuel consumption 15 kW electrical load approx.: 4.9 l/h (270 g/kWh)
Tank volume: 70 liters
Noise level Lpa: 71 dB (A) (at 7 meters)
Sound power level LwA: 85 dB (A)
Ambient temperature min./max.: -10°C to 40°C
Engine control: electronic LCD
Dimensions (L x W x H): 2135 x 915 x 1110 mm
Weight: 250 kg

Scope of delivery:
1 piece, water-cooled 4-cylinder diesel generator 400V, 2417ccm
1 piece, tool bag

Notes:
– Delivery does not include operating fluids such as oil, diesel, and battery. Fill with oil and diesel before first start.
– Shipping via freight carrier, therefore please provide us with a telephone number where you can be reached daily.
– No shipping to parcel lockers, no shipping to islands.
