Deep well pump TDP 5500 E

Independent through natural resources.

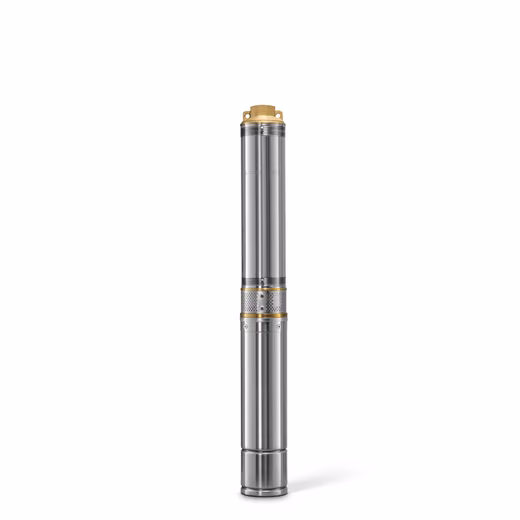

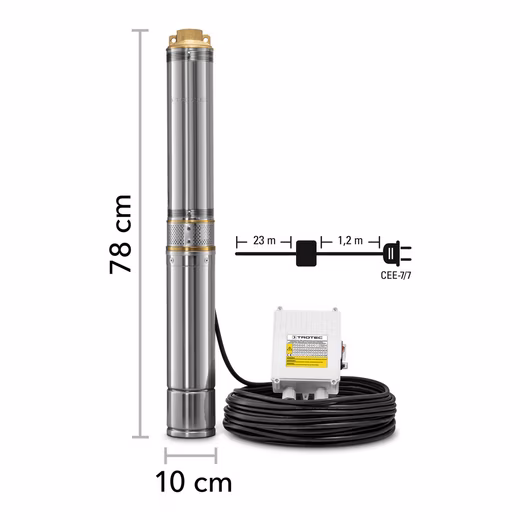

The slim TDP 5500 E deep well pump, made of stainless steel, delivers up to 6,000 liters of usable water per hour from wells, reservoirs, rainwater cisterns, or drainage shafts, thanks to its 1,100 watts of power and a delivery head of 58 meters. Trotec’s deep well pumps are specially designed and highly efficient submersible pressure pumps, whose unique construction and high-quality technology allow them to be used in very narrow boreholes, starting at a diameter of 11 centimeters. For easy pumping from greater depths, the standard equipment includes a 23-meter-long connection cable and suspension eyes for lowering the pump into wells, cisterns, drainage shafts, or similar depressions. With a powerful maximum pressure of 5.8 bar and an immersion depth of up to 20 meters, the TDP 5500 E is optimally equipped. Due to its compact diameter of only 100 mm, the pump is particularly suitable for narrow borehole diameters of 110 mm and above. The TDP 5500 E deep well pump is completely dustproof and waterproof according to protection class IP68. This means the pump can remain permanently in the well even when not in use. Thanks to its IP44 protection rating, the splashproof control box allows for installation in rain-protected outdoor areas.

Practical advantages:

• For effortless supply of domestic water or irrigation purposes for the house (washing machine, toilet) and gardens (lawn sprinklers, irrigation systems)
• Pump housing made of stainless steel

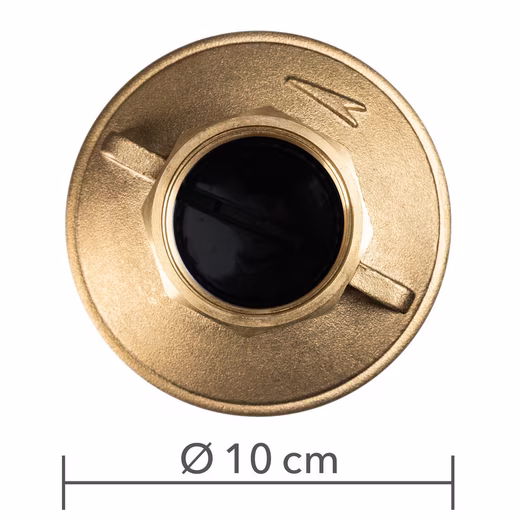

• Robust pressure connection with brass insert
• Extremely durable thanks to rust-free stainless steel housing and copper motor
• Maintenance-free motor with integrated thermal protection circuit in case of overheating
• Stainless steel dirt filter
• External switch box
• Reliable valve to prevent the water in the suction line from freezing in winter.
