DC1-ECO, Dashcam in 1080p (Full-HD) resolution, WLAN reversing camera

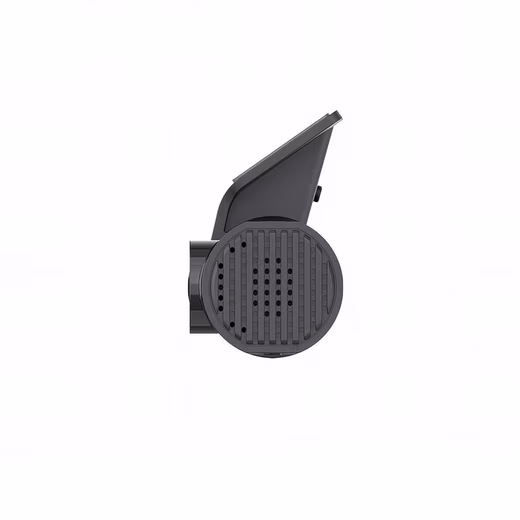

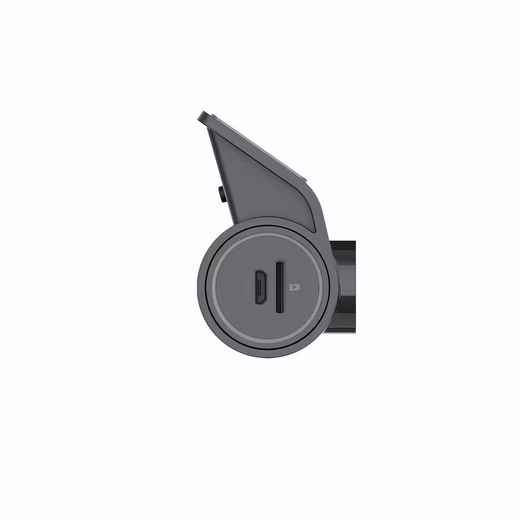

Visually, the matte black DC1-ECO dashcam is rather small and inconspicuous. It deliberately omits an LCD display, unnecessary buttons, and lighting. Installed behind the rearview mirror, the camera is barely noticeable.

Features

• 120° wide-angle lens (diagonal)
• 1920×1080 pixel resolution (2MP)
• 30fps frame rate
• Integrated 3-axis G-force sensor (adjustable)
• Integrated Wi-Fi for control via smartphone
• Micro-USB 2.0 Hi-Speed ​​interface
• Storage on optional microSD card (Class 10)
• Integrated microphone for sound recording (can be switched off)
• Voltage stabilization via supercapacitor
• German/English voice messages (can be switched off)
• Parking mode

Scope of delivery

• 1x camera
• 1x Micro-USB power supply ACC3 (voltage monitoring and power-off delay)
• 1x User manual DEU/ENG
• 1x CE Declaration of Conformity DEU/ENG

Options

• Memory card min. 32GB/ max. 128GB (SanDisk Max Endurance)

Technical specifications Dashcam

• Viewing angle: H: 100°, V: 52°, D: 120°
• Image sensor: GC2083, 1/3.0″, 2M pixels
• Resolution: 1920×1080 pixels (2MP)
• Aspect ratio: 16:9 format
• Operating temperature: -20°C to 65°C
• Storage temperature: -30°C to 80°C
• Frame rate: 30 FPS
• Flash memory: 8 MB
• Dimensions: 36 x 41 x 95 mm (W x H x L)
• Power consumption 410mA (Boot Time)
• Power consumption 290mA (operation)
• Time until recording starts: ~8 seconds.

Technical specifications Power supply

• Adjustable cut-off voltage 11.6/11.9/12.2/12.5 volts (cars) or 23.6/23.9/24.2/24.5 volts (trucks)
• Adjustable shut-off time after: 1h, 2h, 4h, 6h, 12h, 24h and permanent
• Operating voltage 12 or 24 volts DC
• Max. input current 2000mA@12VDC, 1000mA@24VDC
• Output connector MICRO-USB
• Output voltage 5 volts, 2A
• Dimensions 60 x 26 x 18 mm
• Storage temperature -20°C to 85°C at 0-90% RH
• Operating temperature -10°C to 60°C
• 2A/30V fuse
• Efficiency 85%

Smartphone App
The following languages ​​are supported by the AMPIRE DC2 app for this dashcam: German, English, Spanish, Chinese, Estonian, Greek, Latvian, Polish, Russian, Slovak, Czech, Ukrainian

PC App:
To view downloaded videos on a PC, we recommend the free VLC video player. Some Windows video players do not output sound.

Technical specifications Fixed-mount power supply

The permanently installed power supply (item no. ACC3) for the DC1-ECO dashcam enables the so-called parking mode. In parking mode, the dashcam remains switched on and “monitors” your vehicle even when the ignition is off. To prevent the starter battery from being drained, the ACC3 automatically switches off the dashcam when the input voltage drops to 11.9 volts (23.9 volts). The dashcam shuts down completely 5 minutes after this low voltage threshold is reached.

Technical specifications for memory card (optional)

• Memory card type: microSD
• Transfer rate: up to 40 MB/s
• Speed ​​class: min. Class 10
• Storage capacity: minimum 32GB to maximum 128GB
• Recording time for 32GB is approximately 6 hours.
