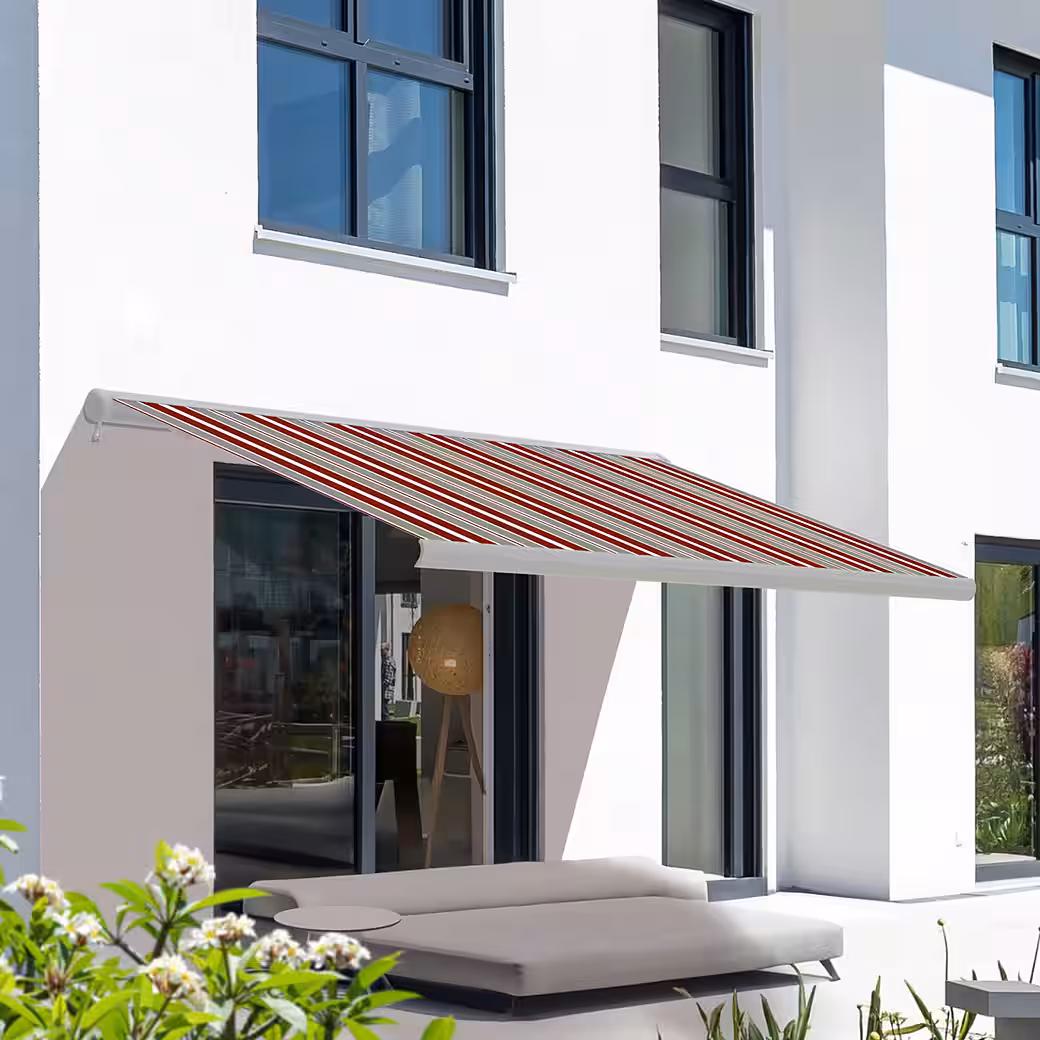

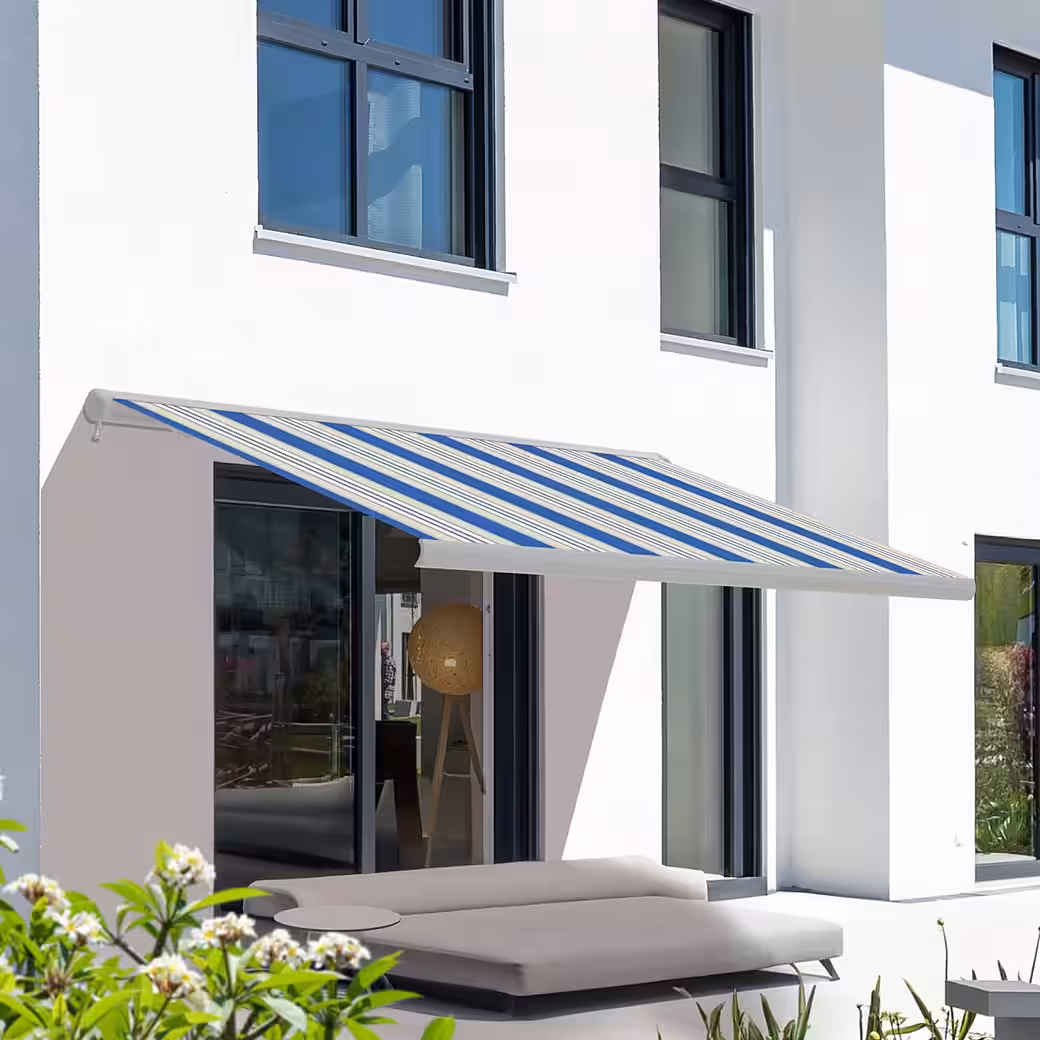

Cassette awning size: 3.00 x 2.50 meters Electric awning, 3×2.5 m, full cassette awning

Features of the awning:

• Ours includes a high-quality , smart home-compatible Dooya brand motor.
• Our high-quality polyacrylic (PA) cloths, weighing 320 g/m² , have a coating that ensures a UV protection factor of 50+ and thus reduces the risk of sunburn.
• The lightfastness (resistance of the fabric to the effects of light) of the cloth corresponds to class 6 (very good) according to ISO 105 B02.
• The cloth has a water column rating of over 300 mm according to ISO 811-1981.
• The awning can withstand a wind force of 5 , which corresponds to wind resistance class 2.
• Overheating and overload protection of the motor, for an operating period of several years.

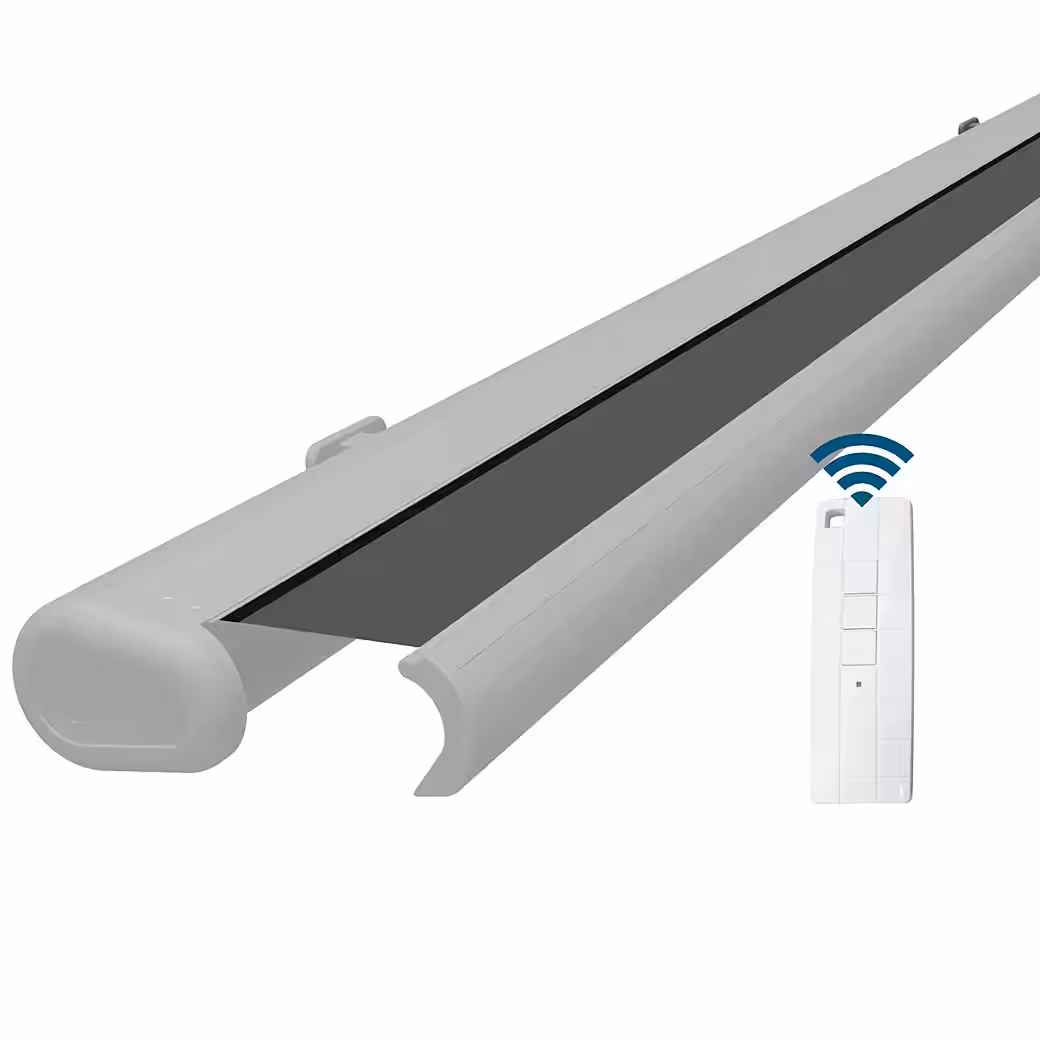

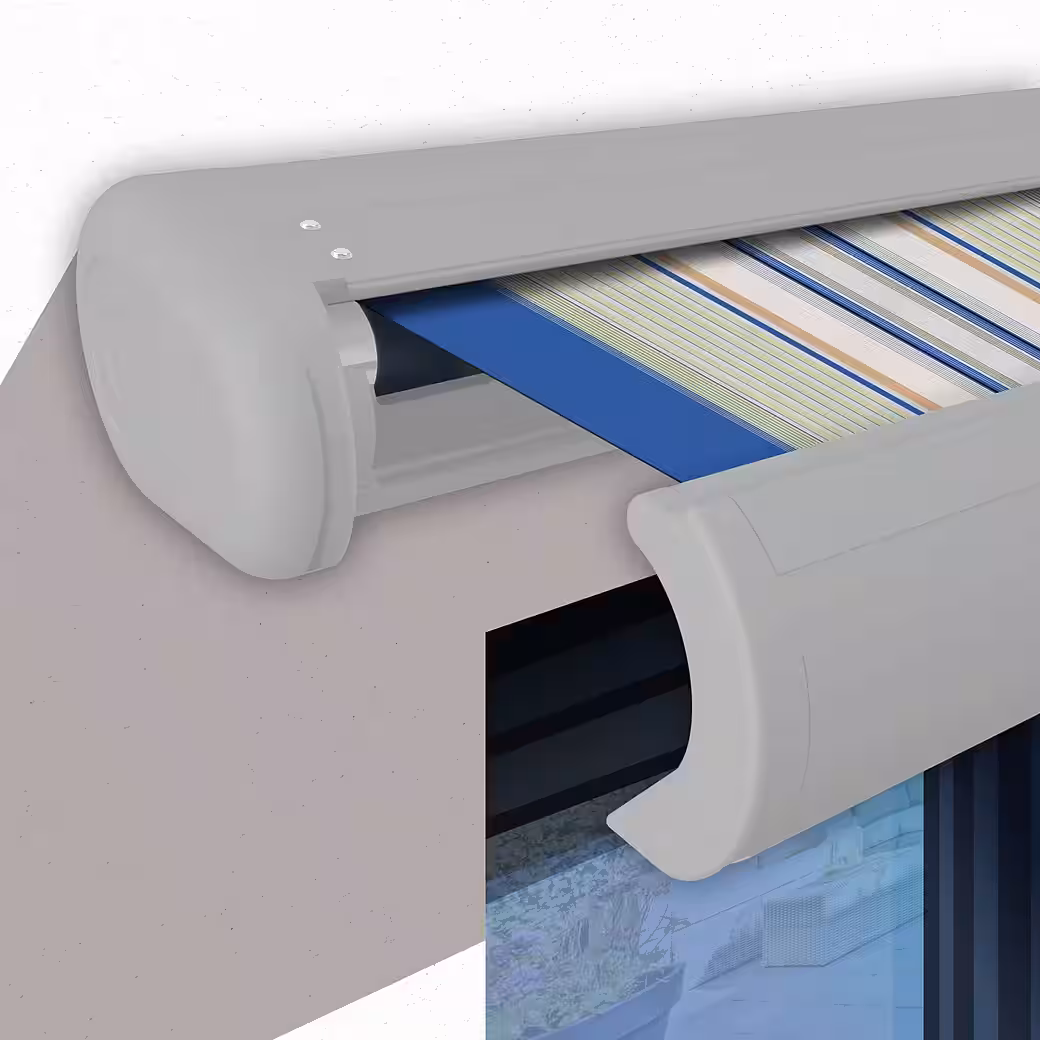

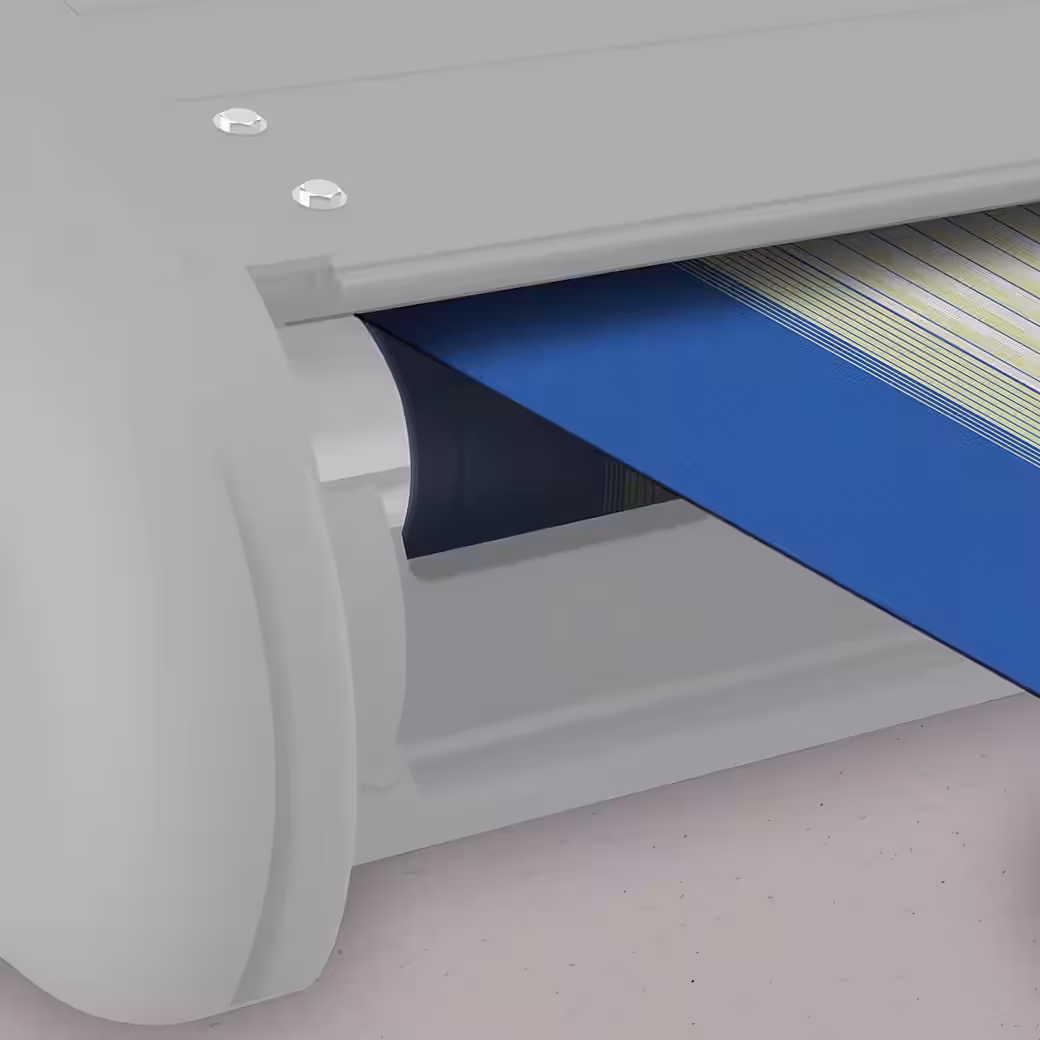

• The low-maintenance full cassette housing protects the awning fabric all year round.
• Sheathed double cable pulleys in stable aluminum articulated arms

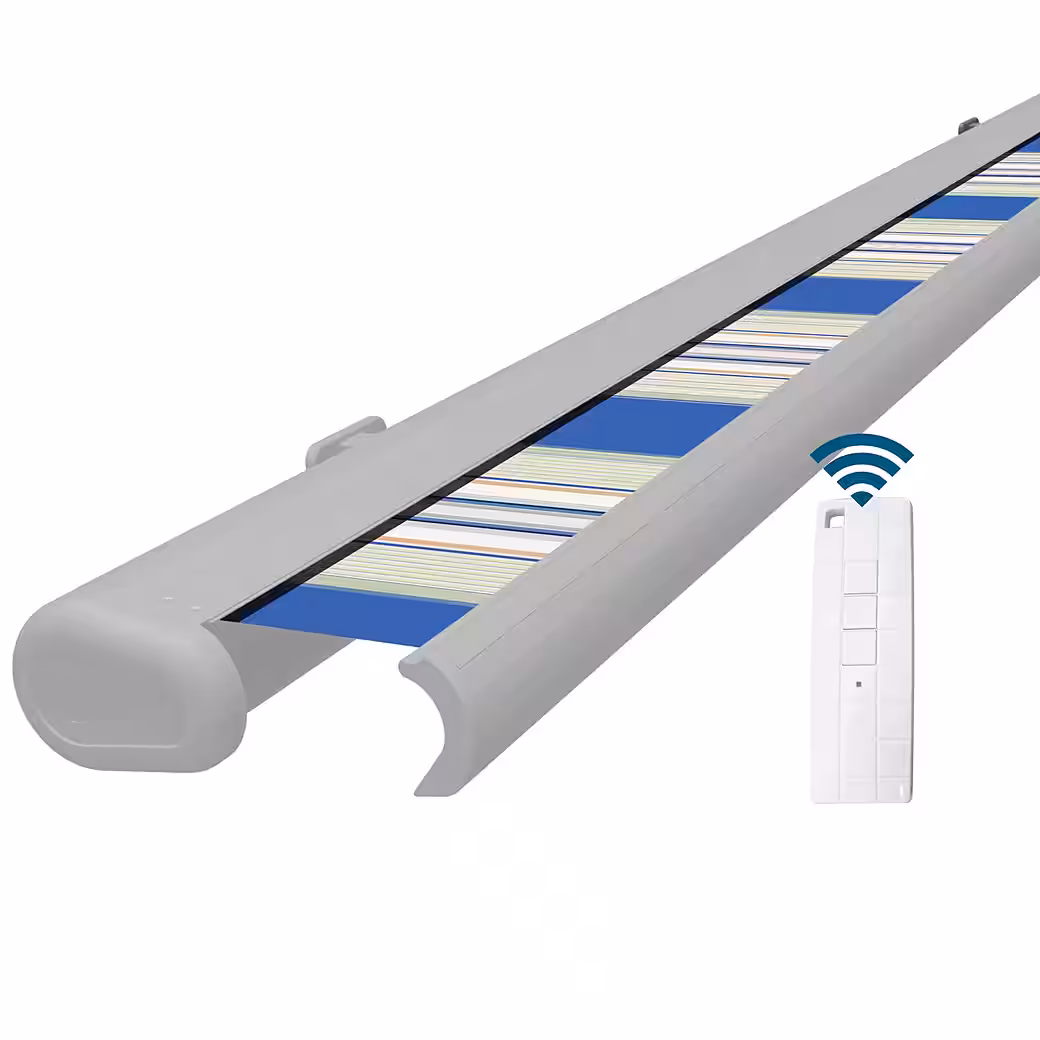

• Convenient extension and retraction of the awning using the included remote control.
• including emergency hand crank for possible power outages
• When looking at the awning from the outside, the motor/power connection and the emergency crank handle are on the left.
• Power connection with Schuko plug (220V), cable length 1.5 m
• The tilt angle of the awning on the wall bracket is continuously adjustable from 0° – 40° (manufacturer’s recommendation 15° – 35°)
• The projection/extension of the awning can be individually adjusted up to the maximum projection length.
• Easy assembly of the entire awning
• Wall brackets are made of aluminum, coated with powder coating in the same color as the awning.
• Control unit integrated into the awning motor, therefore no extra connection is required.
• Screw connections only with stainless steel screws
• weather-resistant awning housing made of aluminum
• Delivery includes remote control, wall mounts and emergency hand crank
• Awning fabric with water and dirt repellent coating
• Housing color white (RAL 9010)
• Weight including bracket approx. 55 kg

Awning dimensions:

• Total width of awning: 300 cm
• Total fabric width: approx. 290 cm
• Total drop: 250 cm
• Total weight: approx. 55 kg

Standardized quality product:

Our awnings have a GS certificate and are awarded the GS label. They are also TÜV-tested.

“The GS mark means that a testing body authorized by the German state has tested the product using a prototype and carries out production monitoring.”

Source: Wikipedia

High-quality fabric made of polyacrylic:

Our awning fabrics are made from 100% polyacrylic.

Good awning fabrics and sun sails in Europe are made from this material, as these fabrics were specifically developed for outdoor use.

Our awning fabrics offer shade and very high UV protection of over 50. Only specially treated fabrics provide this level of protection. With some other shade providers, you might experience an unpleasant surprise in the evening – discovering you’ve suffered a painful sunburn while thinking you were safely in the shade. This won’t happen with our awning fabrics. You can relax under the shade provided by the awning without worry, even if you have very sensitive skin.

A good quality polyacrylic fabric differs from a cheaper one in that, during the manufacturing process, the threads are first solution-dyed. These dyed threads are then woven into a fabric. This process ensures significantly higher lightfastness and colorfastness than that of cheaply produced fabrics.

Because of the way they are woven and because the fabrics are treated with a special impregnation after weaving, our fabrics have a water-repellent effect. They achieve a water column rating of 300 mm (a value commonly used in outdoor clothing), meaning that water will not penetrate the fabric for an extended period, giving you time to retract the awning.

Therefore, our awning fabrics do not get soaked immediately in the rain and can be closed without exposing the internal electrical components to the risk of damage from moisture.

The water-repellent lotus effect also provides resistance to other environmental influences, such as dust and pollen; these small particles can combine with water and bead up.

Our tightly woven polyacrylic fabrics also have excellent tear resistance; the fabric withstands moderate winds for years. Even strong winds won’t easily tear the fabric. Therefore, it’s especially important to retract your awning in strong winds and protect the mechanism.

Since polyacrylic is a fully synthetic material, it is also resistant to rot and offers a long life cycle with this property as well.

This ensures that your awning fabric will look beautiful for a long time.

In summary, we can say that we process really good polyacrylic awning fabrics with these properties:

• High UV protection, UV50+ against unwanted sunburn
• high tear resistance and high stability
• Threads are solution-dyed before weaving, therefore they have very high lightfastness.
• water-repellent due to a special coating on the fabric
• Water column 300
• Lotus effect, resistant to dirt
• high resistance to rot

A standard awning fabric has a width of 120 cm. This width is obviously insufficient, so the fabric panels for our awnings are adjusted and sewn accordingly. This is done in the direction of the awning’s projection. As a result, the fabric may have slight waves or minor creases, which in no way affect its lifespan, quality, or function.

Scope of delivery:

• Awning in selected size
• Wireless remote control with wall mount included
• Hand crank included (for emergency operation without power)
• Aluminum wall brackets included
• Wall mount in matching housing color
• Assembly and operating instructions

wall mount

• 2.0 meters – 3.5 meters: 2 sturdy aluminum wall brackets
• 4.0 meters – 5.0 meters: 3 sturdy aluminum wall brackets

The wall brackets are made of aluminum and then powder-coated in the appropriate color. This protects them from adverse weather conditions and ensures they can support your new awning for a long time.

High-quality DOOYA motor (220V)

• Easy adjustment of the end points (extension and retraction)
• quiet engine noise (below 42 dB)
• iSmartControl & iSmartHome ready
• integrated receiver for the remote control
• Motor easily replaceable
• 50 Nm
• 12 rpm
• 50/60 Hz
• IP44
• 0.89A
• 205W

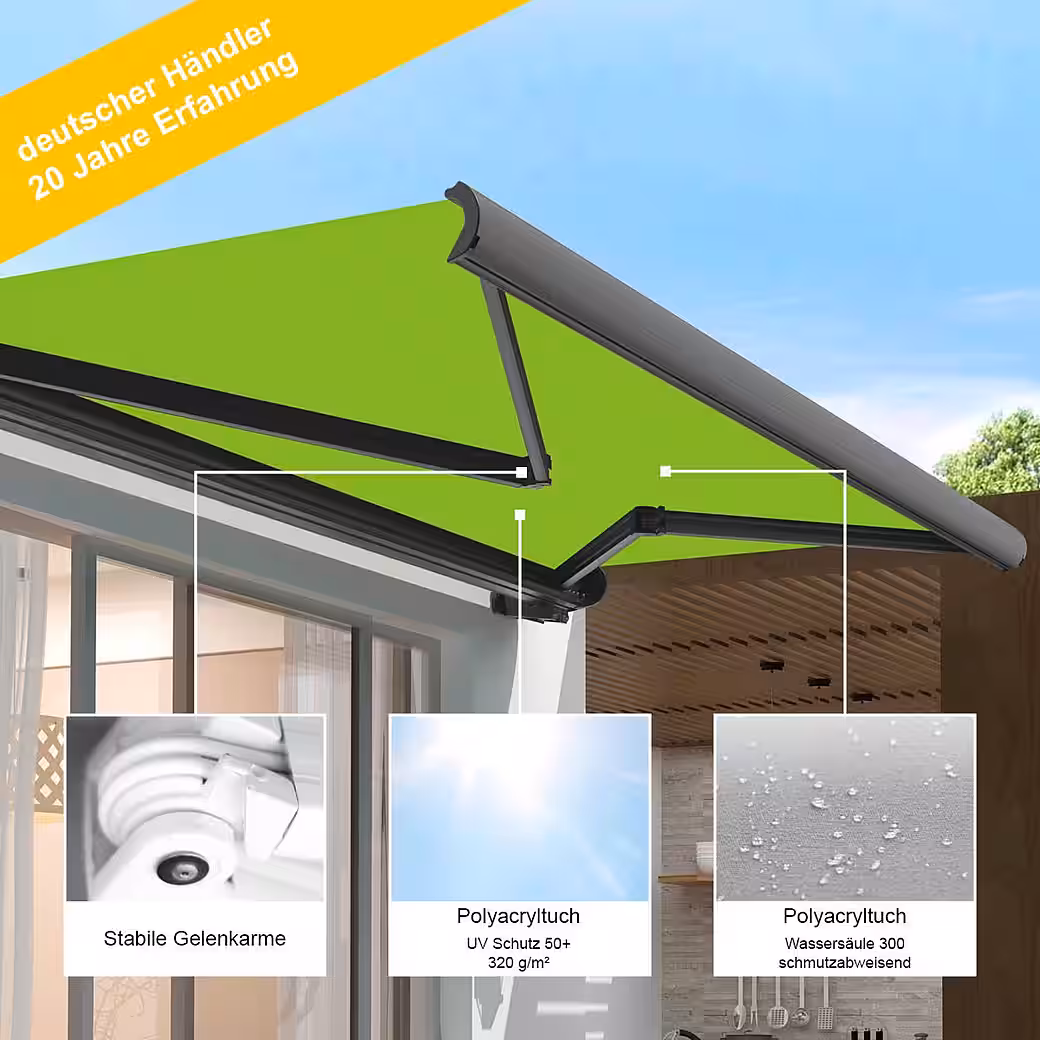

Sturdy aluminum arms & double cable pull:

• 4-sided profile
• drawn aluminum
• Powder-coated in housing color
• Double steel cable with plastic coating
• 2-strand rope
