Car jack Mobile scissor lift 3500 kg 3 t lifting platform 06303

Scissor lift 3.5 t with electric release and wheel set,
tire service scissor lift, 100 cm lift, electric release, 230 volts, 2200 W

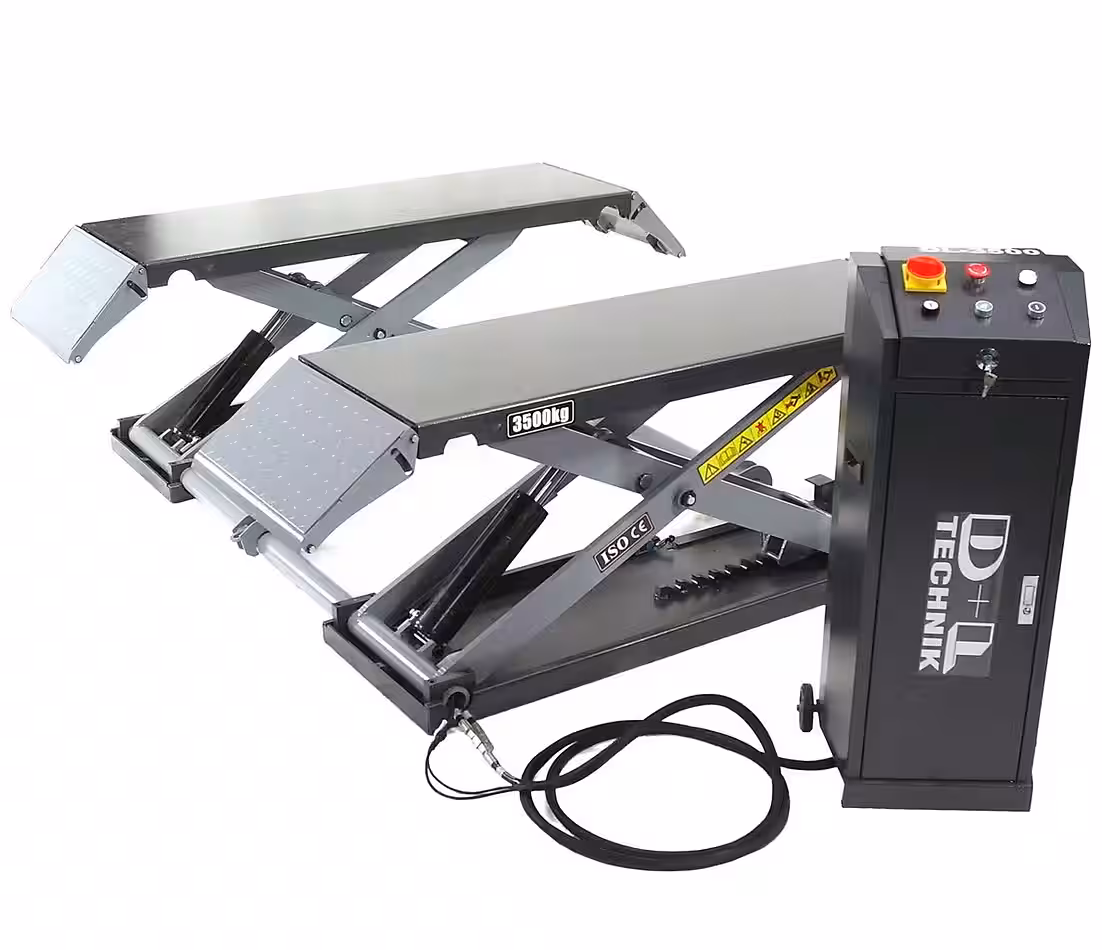

Mobile, electro-hydraulic short-stroke scissor lift with a 3500 kg lifting capacity for cars and vans, including electric safety release and wheel set.
This D+L mobile tire service scissor lift with a 1 m lift is ideal for tire services, body shops, and vehicle detailing.
Thanks to the integrated wheel set, the scissor lift is easily movable and can therefore be used as an additional workstation on any sufficiently firm, level surface.
The clearly laid-out control panel allows for electric raising and lowering of the lift, with automatic safety locking.
The scissor lift locks and unlocks electromagnetically,
eliminating the need for a compressed air connection.
The lift is ideal for mobile work in garages or workshops, and its mobility makes it perfect for use even in small workshops with limited space.
The integrated wheel set allows the lift to be positioned anywhere in the workshop.
The sturdy swivel arms are adjustable and telescopic. The lift offers a low drive-over height.

Product advantages:
– stable, mobile scissor lift 3.5 ton incl. electric. Unlocking and wheel set
– low drive-over height, mechanical synchronization control of both tracks for perfect synchronization
– fully automatic lifting and lowering at the touch of a button, no compressed air required
– the 3500 kg scissor lift is delivered with a mobility kit and can therefore be easily moved
– stable deflection system on the hydraulic cylinder for powerful lifting in the lower range
– safety locking system with monitoring of the locking position
– large support surface thanks to lockable ramps
– high-quality and robust construction

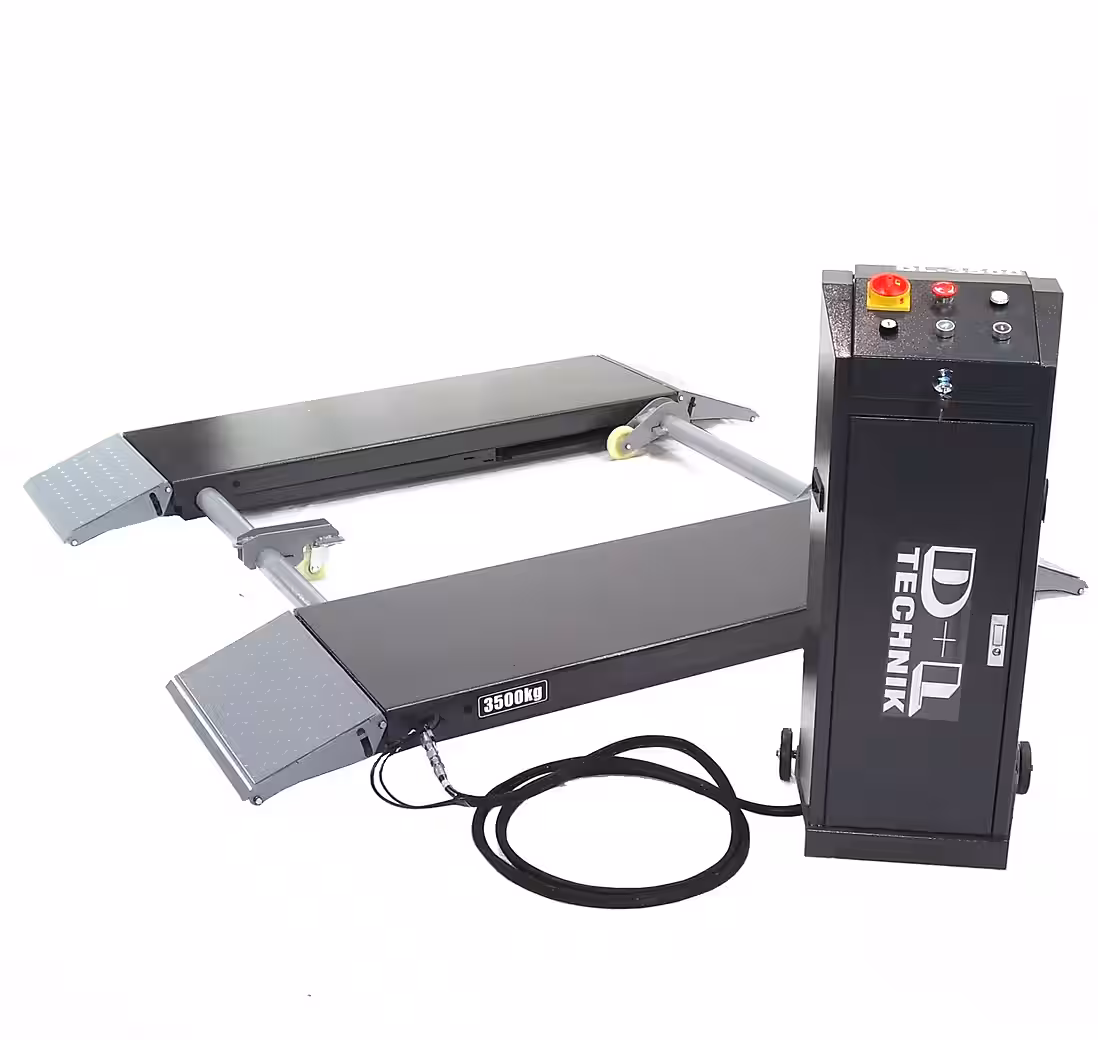

– low drive-over height, only 115 mm
– automatic safety locking and unlocking
– high-quality powder coating, including wheel set and rubber pads
– small footprint, electronic lifting limit via limit switches.

Technical data:
Mains voltage: 230V / 50Hz
Motor power: 2.2 kW, 3HP
Fuse: 16A, C-type Load
capacity: 3500 kg
Drive-over height: 115 mm
Maximum lifting height: 1000 mm
Platform width: 1850 mm
Platform length: 1440–2030 mm
Track width: 500 mm
Track spacing: 850 mm
Installation width: 1860 mm
Lifting time: approx. 35 sec. (unloaded)
Control panel (L x W x H): 470 x 370 x 890 mm
Platform dimensions (L x W x H): 2030 x 1860 x 115 mm
Weight: 525 kg

Scope of delivery:
1 piece, mobile scissor lift 3500kg
1 piece, control panel
1 piece, hydraulic hose 3.5 m
, 3 pieces, wheels 100 mm / 80 mm
, 1 piece, drawbar,
8 pieces, rubber pads.

Notes:
– Fill with hydraulic oil before use, not included.
– Shipping via forwarding service, please provide your telephone number after purchase.
– No shipping to parcel lockers. – No shipping to islands.
