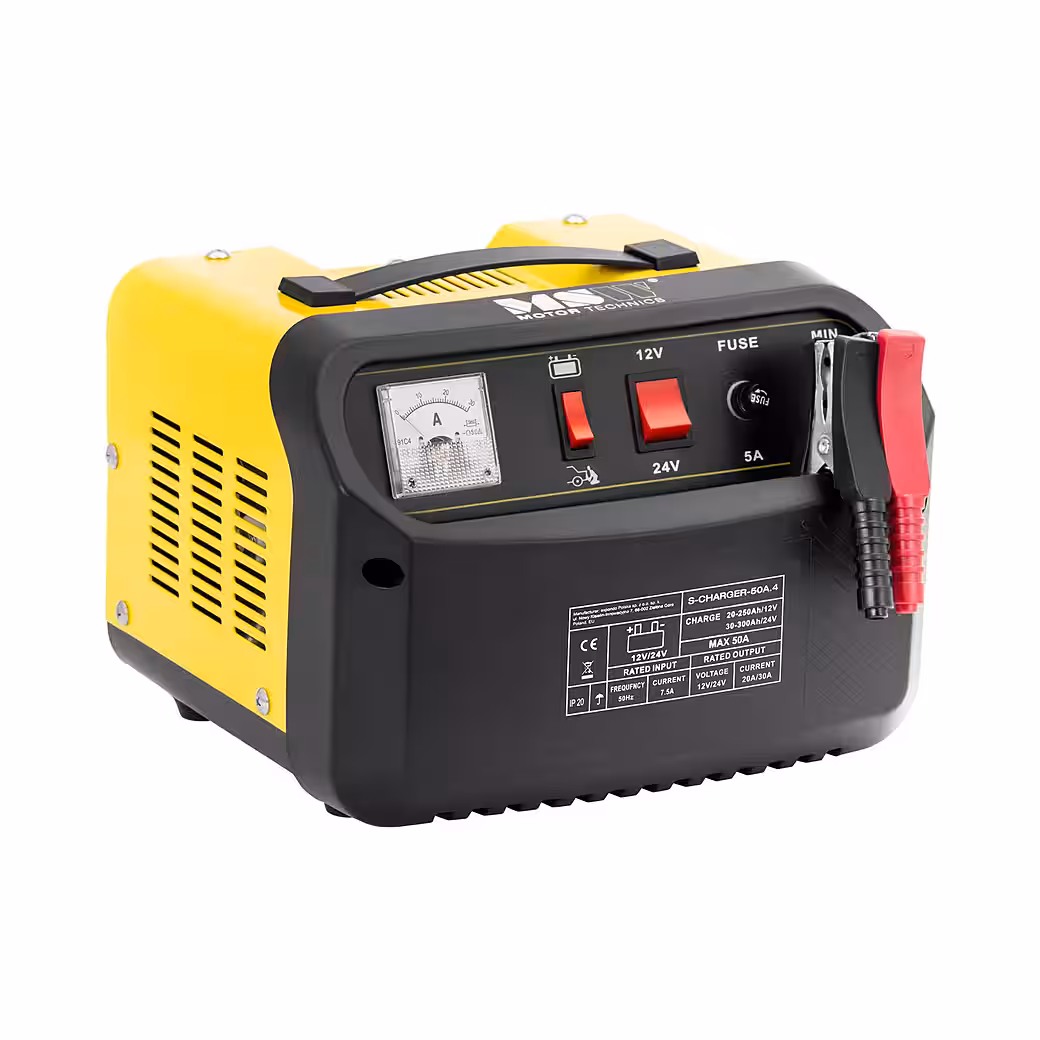

Car battery charger with cable compartment for 20-300 Ah (12/24 V) 45 A car battery charger

Car battery charger – jump starter – 12/24V – 45A

This handy car battery charger will get your vehicle running smoothly again!

Who hasn’t experienced this? You’re often on the road, but only for short trips of less than five minutes. Especially in winter, the battery can quickly give out. With the professional yet compact car battery from MSW, you can quickly and easily jump-start your vehicle so it’s back on the road. Even better, prevent it from getting to that point and recharge your car battery as soon as its performance starts to decline.

Charge your car battery quickly and effectively!

Whether you’re starting a gasoline engine or preheating a diesel engine, the jump starter has you covered. With a maximum starting current of 130 A, this charger reliably ensures that the engine restarts quickly, even with a dead car battery. Especially in automotive workshops, where engines are often only started briefly, the battery rarely has a chance to charge properly. This device provides a fast jump start, consuming a maximum of 2200 W during the process.

This charger reliably charges car batteries with a nominal capacity of 12V 20-250Ah and 24V 30-300Ah. With a charging current of 45A, it achieves particularly fast charging times. With an output voltage of 12V or 24V, the device can also be used for the required voltages in larger vehicles such as trucks. This means the battery is ready for use again quickly after charging. Always check that your battery meets the recommended capacity before charging.

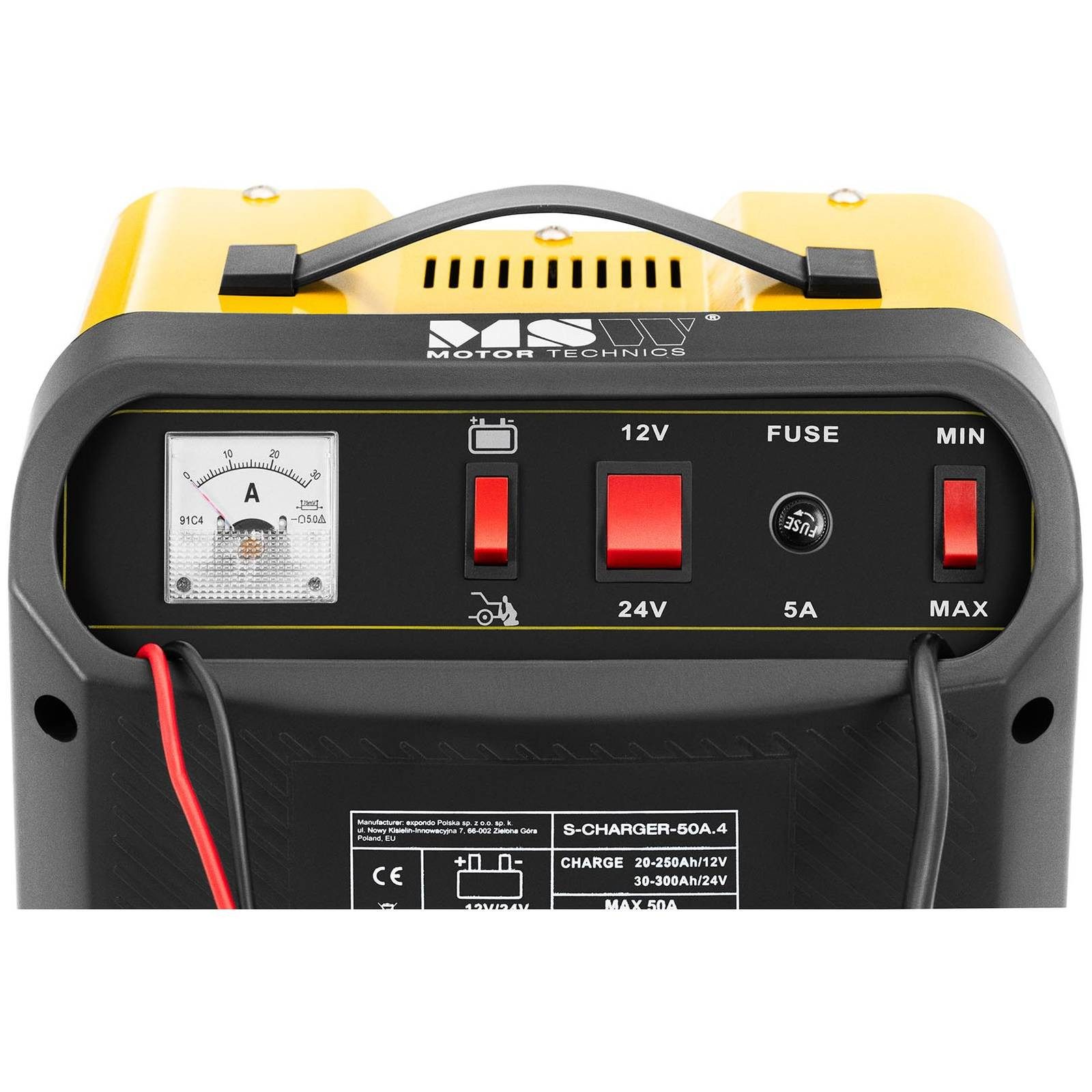

You can easily control the charging power with a single switch in just two stages: MIN for normally discharged batteries, and MAX for deeply discharged batteries at their lower limit. Whether the battery is only weakened by frequent short trips or nearly discharged by power-hungry extras like windshield or seat heaters, the MIN and MAX settings ensure you’re prepared for any charging situation. Thanks to the built-in fuse, it’s protected against short circuits should you accidentally connect the cables with the wrong polarity.

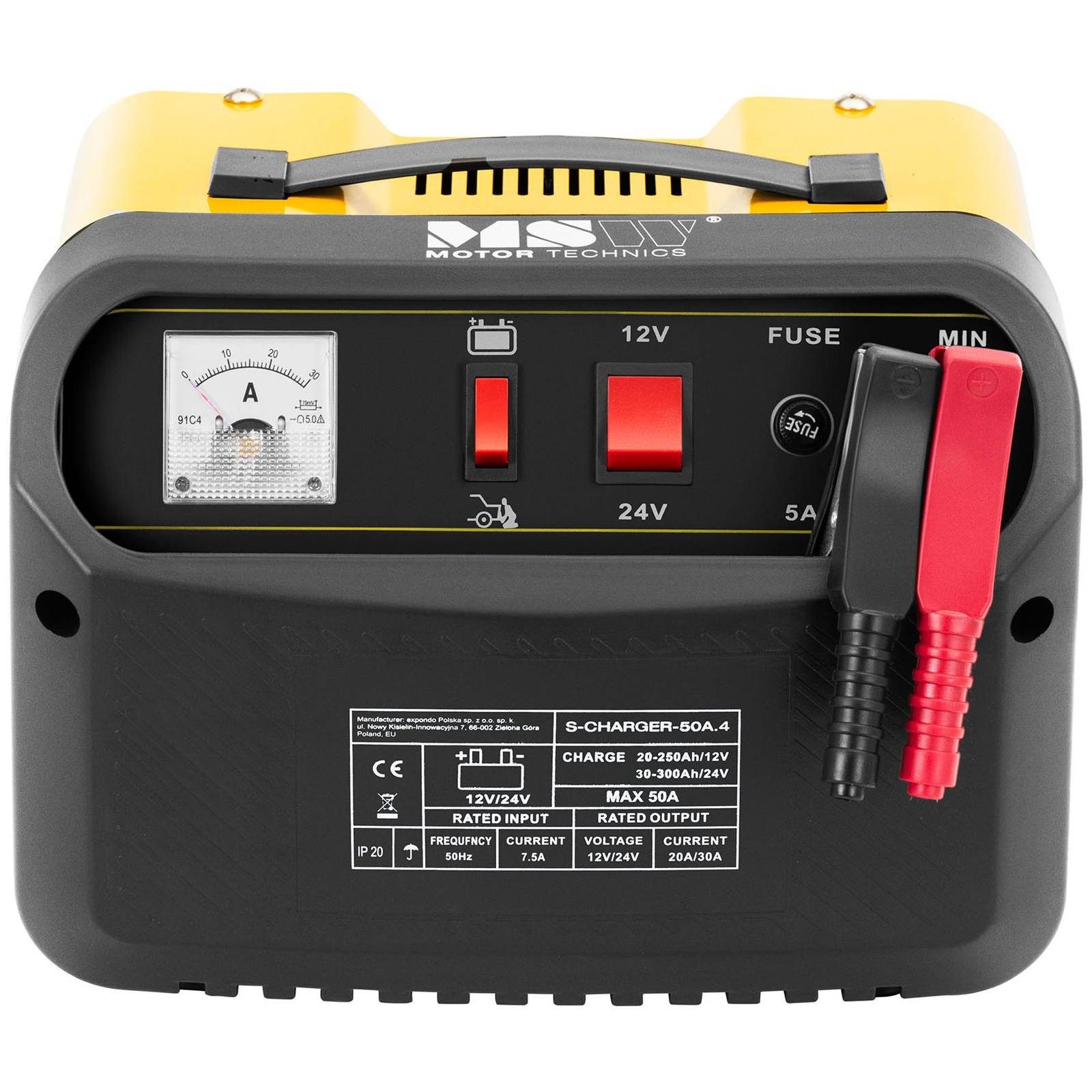

This car battery charger impresses not only with its compact design but also with numerous practical details. The battery connection cables are integrated into the device, so they won’t get lost. They can also be neatly stored in a compartment. Thanks to a sturdy handle, you can easily transport the battery charger from one car to another.

• Effective – jump-start function for discharged car batteries
• Powerful – high charging current up to 45 A for fast charging
• Compatible – for batteries with a capacity of 12 V 20 – 250 Ah; 24 V 30 – 300 Ah
• Practical – cable permanently installed in the device plus cable compartment
• Variable – MIN/MAX switch for different charging levels

Product features:

• Battery operated: No
• Battery type: AGM, EFB, GEL
• Charging current [A]: 45
• Functions: Charging, Jump-start
• Insulation class: F
• IP protection rating: IP20
• Maximum charging current during jump-starting [A]: 130
• Power consumption jump start max. [W]: 2200
• Maximum power consumption [W]: 720
• Output current [A]: 25 – 30
• Output voltage [V]: 12 / 24
• Power cable [m]: 1.8
• Recommended battery capacity [Ah]: 12 V 20 – 250 Ah; 24 V 30 – 300 Ah
• Voltage [V]: 230
• Cable with terminal (+) [m]: 1.7
• Cable with clamp (-) [m]: 1.7

Scope of delivery:

• Car battery charger S-CHARGER-50A.4

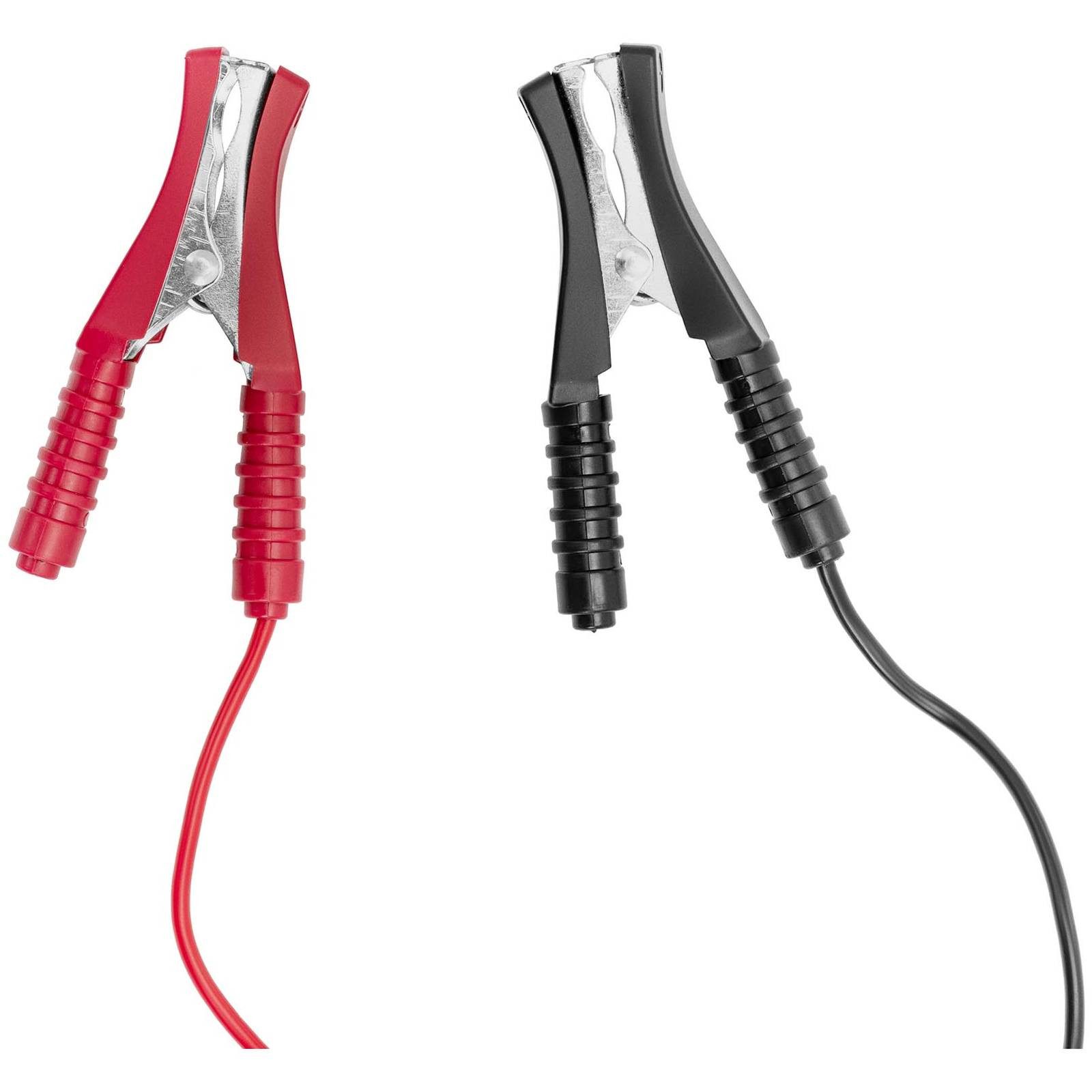

• Black connection cable (1.7 m)
• Red connecting cable (1.7 m)
• Power cable (1.8 m)
