Canopy Glass Center Hagen 230×90 cm Glass Canopy Clear BK-STB

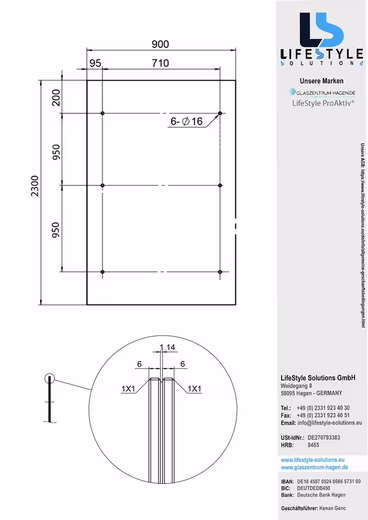

Choose a modern and functional glass canopy that impresses both aesthetically and technically. Our glass canopy consists of two layers of high-quality laminated safety glass (VSG), each 6 mm thick, bonded together by a 1.14 mm thick PVB interlayer. This special construction ensures outstanding stability, safety, and a long service life.

Product features of the glass canopy:

• Robust laminated safety glass: The use of two 6 mm thick layers of laminated safety glass (VSG) with a PVB interlayer provides increased safety. In the event of breakage, the glass remains intact, minimizing the risk of injury from glass shards.
• Modern stainless steel brackets: The stainless steel brackets not only offer an elegant appearance but are also weather-resistant and exceptionally durable. They blend harmoniously into various architectural styles and protect the canopy from the elements.
• High load-bearing capacity: Our glass canopy can support up to 90 kg per square meter, making it suitable for safe use in entrance areas, patios, or commercial applications.
• Weatherproof and UV-resistant: The glass canopy is UV-resistant, water-repellent, and withstands a wide range of weather conditions.
• Easy installation: The glass canopy comes with all necessary mounting hardware and is quick and easy to install thanks to detailed assembly instructions.
• Aesthetic design: The modern and minimalist design gives your entrance area or patio an elegant and contemporary look that integrates perfectly with any architectural style.

Available sizes:

•120×90 cm = 38 kg, package dimensions 125x7x95 cm
•130×90 cm = 40 kg, package dimensions 135x7x95 cm
•140×90 cm = 43 kg, package dimensions 145x7x95 cm
•150×90 cm = 45 kg, package dimensions 155x7x95 cm
•160×90 cm = 49 kg, package dimensions 165x7x95 cm
•170×90 cm = 54 kg, package dimensions 175x7x95 cm
•180×90 cm = 57 kg, package dimensions 185x7x95 cm
•190×90 cm = 59 kg, package dimensions 195x7x95 cm
•200×90 cm = 63 kg, package dimensions 205x7x95 cm
• 200×90 cm with three brackets = 63 kg, package dimensions 205x7x95 cm
• 230×90 cm with three brackets = 73 kg, package dimensions 235x7x95 cm
• 250×90 cm with three brackets = 79 kg, package dimensions 255x7x95 cm

Glass color selection Optional in other offers:

• Clear glass Transparent
• Frosted glass Opaque
• Graphite gray Transparent

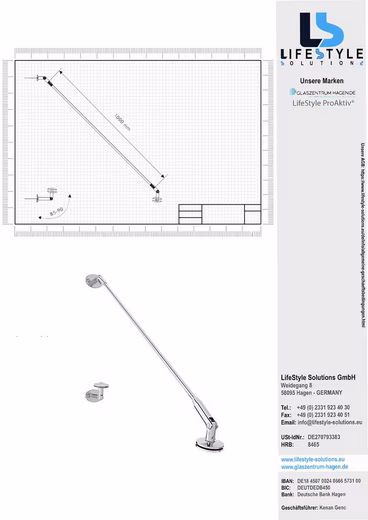

Bracket selection Optional in other offers:

• L-shape V2A 304 Total height approx. 450 mm, package dimensions 100x5x30 cm, 5 kg
• V-shape V2A 304 Total height approx. 400 mm, package dimensions 90x5x30 cm, 5 kg
• Struts V2A 304, total height approx. 750 mm, package dimensions 100x5x10 cm, 5 kg
• Sword (S) V2A 304, total height approx. 250 mm, package dimensions 100x10x30 cm, 5 kg
• L-bend V2A 304, total height approx. 450 mm, package dimensions 100x5x30 cm, 5 kg

Scope of delivery:

• 1x glass panel
• 1x set of glass holders
• Mounting material not included (available separately in our shop)

Optional side panel for glass canopy – Optimal protection from wind and rain

Our high-quality side panel offers a cost-effective and durable solution for protection against lateral wind and rain. With robust laminated safety glass and sturdy stainless steel fittings, it provides added comfort and safety in your outdoor area.

Product features of the side panel:

• Durable laminated safety glass: The side panel consists of two 4 mm thick tempered safety glass panes and a 1.54 mm PVB interlayer, providing additional stability and resistance.
• Stainless steel fittings: Two wall brackets and a stainless steel base ensure secure and stable installation of the side panel.
• Available colors: Clear glass, frosted glass, gray/transparent glass
• Angle: The top edge of the side panel has a 5° angle, ensuring optimal water drainage.

Scope of delivery:

• 1x side panel, approx. 35 kg, package dimensions 200 x 7 x 85 cm
• 2x wall brackets
• 1x base bracket
• Mounting hardware not included.

Optional aluminum rain gutter – Effective protection for your glass canopy.

Our high-quality aluminum rain gutter protects your glass canopy from water accumulation and ensures effective rainwater drainage. The silver gutter blends seamlessly into the canopy’s design.

Product features of the rain gutter:
• Material: Aluminum with a silver finish
• Dimensions: 50 x 27 mm (length depends on the canopy size; can be shortened upon request)
• Compatibility: Suitable for glass thicknesses from 10.8 mm to 17.5 mm
• Installation: With silicone or double-sided adhesive tape (rain gutter must be bonded to the glass)

Scope of delivery:
• 1x rain gutter (silver, top and bottom sections), also available in black

Why choose our glass canopy?
• High quality: Robust laminated safety glass and stainless steel brackets offer maximum protection and stability.
• Weatherproof: UV-resistant and durable for reliable use in all weather conditions.
• Aesthetic: Modern design that perfectly complements any architectural style.
• Safe: Laminated safety glass provides safety in case of breakage and minimizes the risk of injury.
• Easy installation: Includes detailed assembly instructions and all necessary components.

For further information or individual inquiries, please feel free to contact us at any time. Let us convince you of the quality and design of our products.
