New look for heating: HARK wood-burning stove, ceramic, 6 kW, special ceramic
You have this image in your mind’s eye: the fire slowly grows tall, the wood begins to glow. Now you can turn your heating project into reality: with this »Avenso GT ECOplus 6 KW« wood- burning stove from HARK .
How much nominal heat output do I need?
With a nominal heat output of 6 kW and a maximum heating capacity of 118 m³, it keeps a medium-sized living area comfortably warm. The stylish steel body gives the stove a harmonious look. The attractive ceramic cladding makes it a real eye-catcher in the room. This fireplace boasts an efficiency rating of 80.8%.
Beautiful, high-quality and technical details – what does this oven offer?

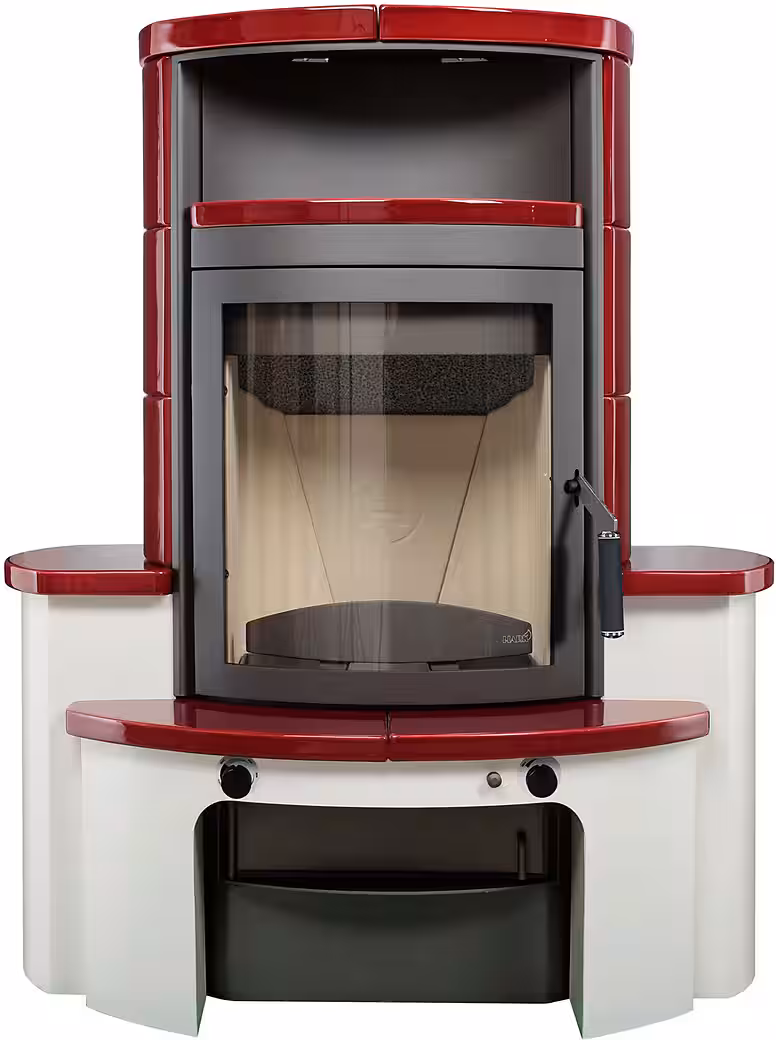

The rounded, 43 x 39 cm (H x W) glass-ceramic viewing window offers an unobstructed view of the fire. Thanks to the tertiary air supply, frequent cleaning of the firebox window is virtually eliminated, as the glass practically keeps itself soot-free. The 47 x 37.4 x 36.5 cm (H x W x D) combustion chamber is lined with special ceramic. The stove automatically regulates its air supply, ensuring optimal and virtually complete combustion. Even lighting the fire is effortless. The integrated wood storage compartment allows you to store your split logs, ensuring you have enough fuel on hand for the evening. A grate and ash pan are also integrated into this stove.
The semi-circular wood-burning stove »Avenso GT ECOplus 6 KW« from the manufacturer HARK – a secret recipe for more coziness.
You can find stove pipes and accessories under »Accessories for fireplaces«
Details
Product details
| Model designation |
Avenso GT ECOplus |
| functions |
Windscreen cleaning system,
automatic air control |
| equipment |
Ash container,
fine dust filter
, cast
iron tray, wood compartment
, shaking grate
, side elements
, viewing window
, top plate
, warming compartment |
| Characteristics |
Suitable for continuous burning,
external combustion air supply |
| Type of fuel |
Wood |
| Heat transfer |
air-conducting |
| combustion air |
dependent on room air |
| Type of oven |
Continuous burning |
| glazing |
front |
| Shape of viewing window |
rounded |
| Oven-shaped mold |
semicircular |
| Type of door lock |
2-point door locking |
| Flue pipe connection |
top
rear |
Technical data
| Nominal heat output |
6 kW |
| efficiency |
80.8% |
| Maximum room heating capacity |
118 m³ |
| design |
A1 |
| Type of air supply |
Primary air supply,
secondary air supply
, tertiary air supply |
| Required delivery pressure at nominal heat output |
0.12 Pa |
| Standards |
BimSchV 2nd stage
DIN EN 13240
Düsseldorf Standard
Ecodesign 2022
VKF (Switzerland)
§ 15a B-VG (Austria) |
| Maximum exhaust gas temperature at the nozzle |
315 °C |
| Dust emissions according to the Federal Immission Control Ordinance (BImSchV) |
18 mg/m³ |
| Maximum exhaust gas mass flow |
5.2 g/s |
| CO emissions |
0.87 g/m³ |
| Test number |
FK-4013220 |
| Maximum heating output |
6 kW |
| Energy efficiency class (scale) |
A+ (A++ to G) |
Dimensions & Weight
| Wide oven |
97 cm |
| Deep oven |
72 cm |
| Oven height |
119.5 cm |
| Weight |
219.5 kg |
| Wide firebox |
37.4 cm |
| Deep firebox |
36.5 cm |
| Firebox height |
47.0 cm |
| Pipe diameter for external air supply |
12.5 cm |
| Height from bottom edge to center of external air supply |
255 mm |
| Flue pipe diameter |
150 mm |
| Height from bottom edge to center of flue pipe connection |
1025 mm |
| Deep rear edge to center of flue pipe connection |
240 mm |
| Maximum length of fuel |
30 cm |
| Safety distance in front |
80 cm |
| Safety distance behind |
20 cm |
| Safety distance lateral |
20 cm |
| Wide viewing windows |
39.0 cm |
| Height of viewing window |
43 cm |
| Base height |
36.5 cm |
Color & Material
| Body material |
Steel |
| Body color |
titanium-colored |
| Cladding material |
Ceramics |
| Color trim |
Bordeaux red |
| Material firebox |
Special ceramics |
| Glazing material |
Glass ceramic |
Notes
| Manufacturer’s warranty |
5 years according to the warranty conditions |
| Article notes |
All information is approximate.
Before connecting the fireplace, the responsible district chimney sweep must always be consulted. |
| Scope of delivery |
Assembly instructions,
operating instructions
, oven glove,
cold hand |
| Note: Scope of delivery |
The smoke pipes and decorations shown are not included in the delivery. |
| Languages Operating/Assembly Instructions |
German (DE) |
