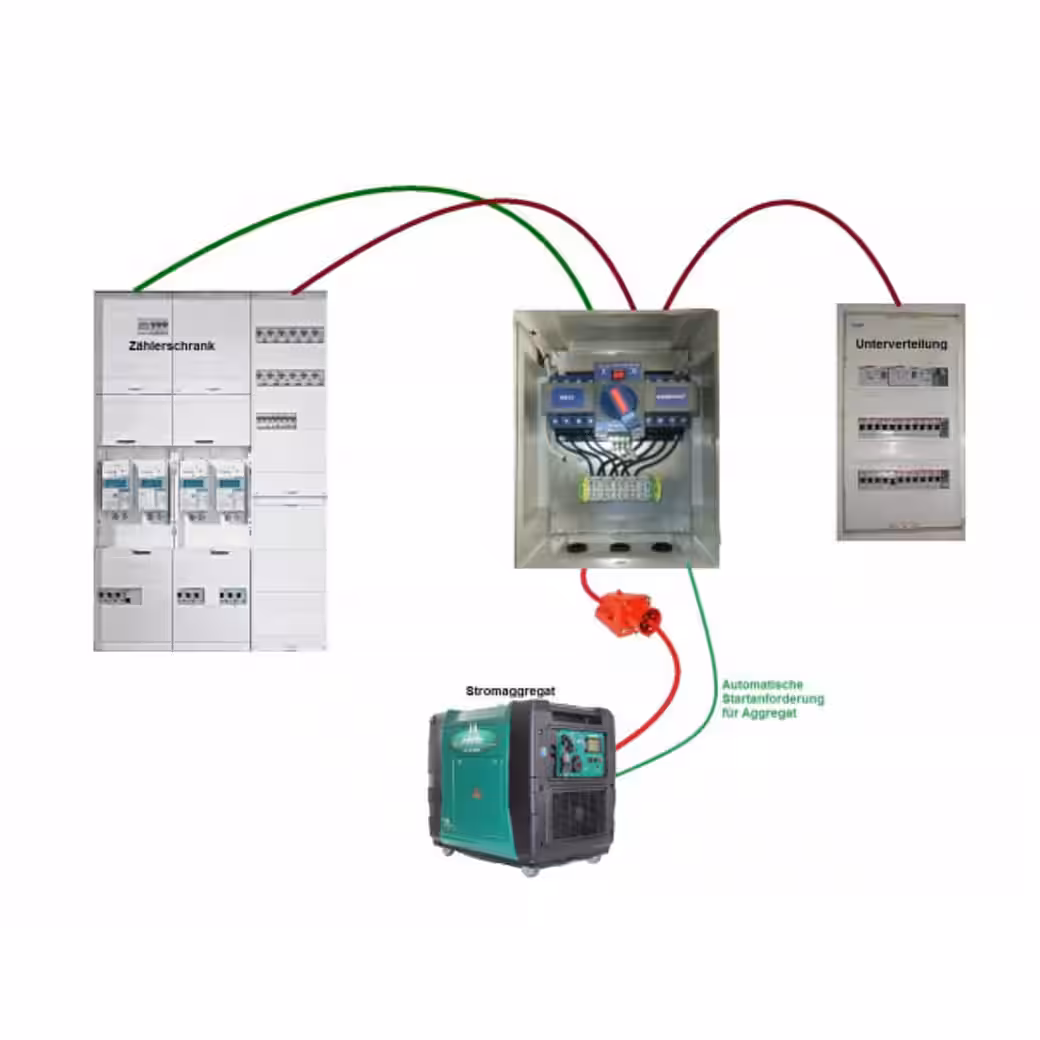

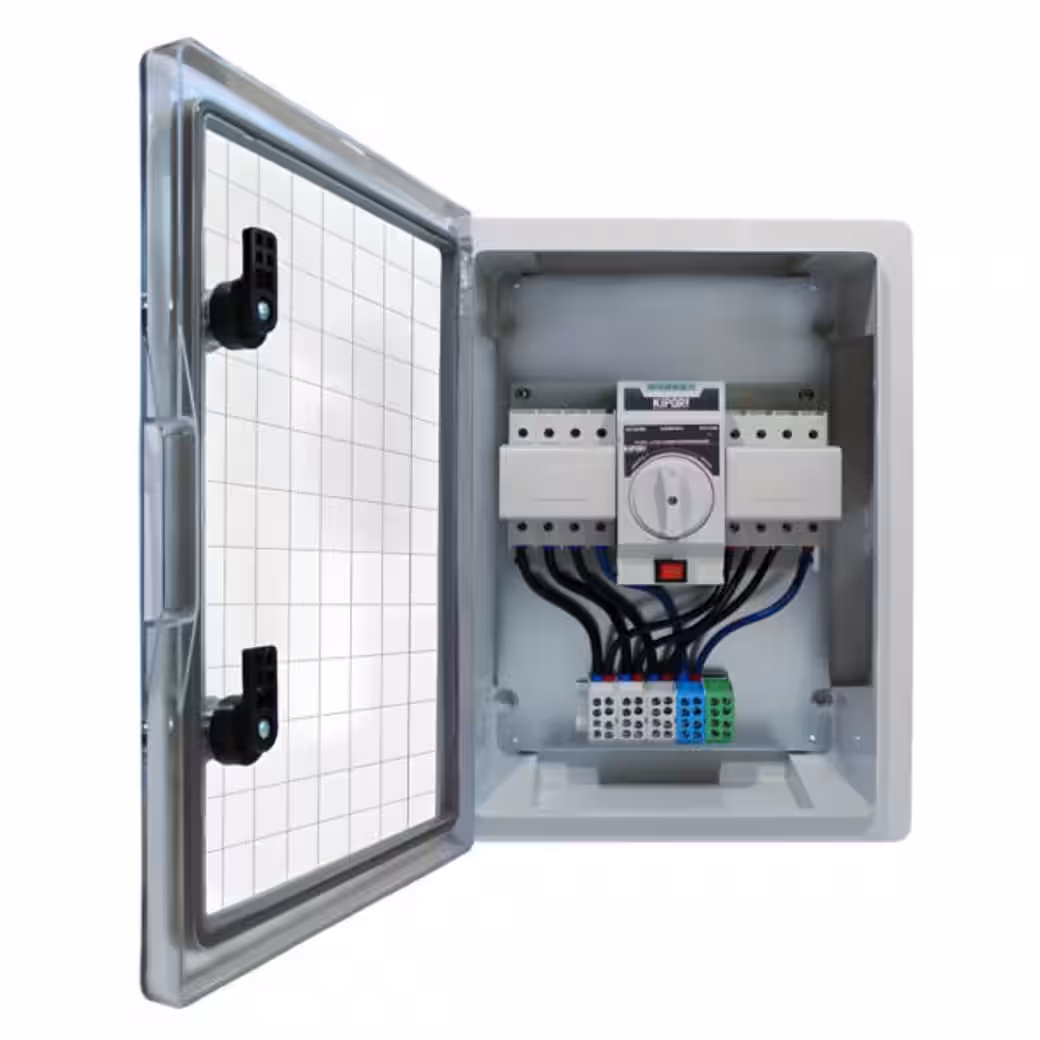

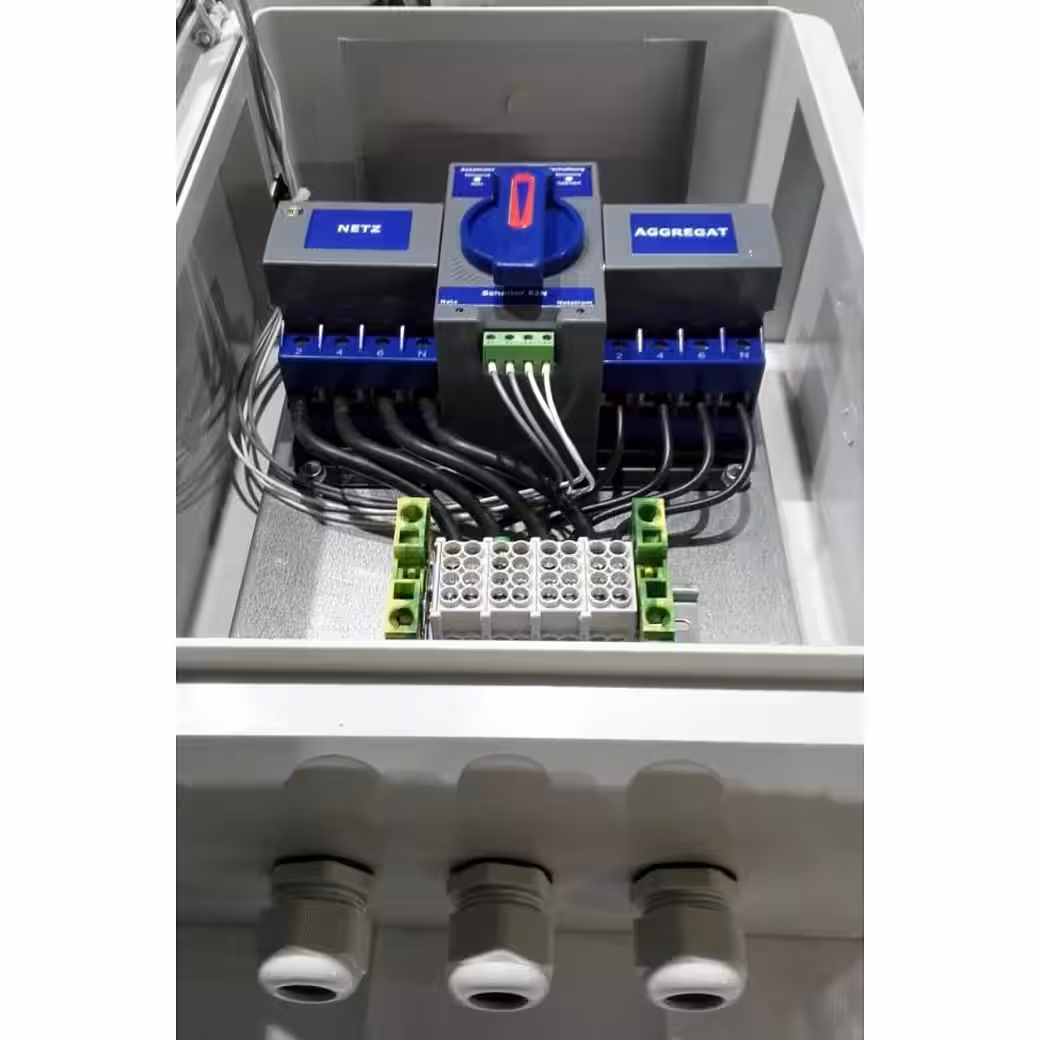

ATS Box for Automatic Home Emergency Power Supply – Reliable and Universal. The ATS Box (Automatic Transfer Switch) is the universal solution for effortless home emergency power supply. With an impressive response time of 2-7 seconds, it switches on automatically as soon as the mains power fails, ensuring uninterrupted operation of the home. Automatic Transfer Switch with Manual Adjustment. The ATS Box offers the flexibility of manual adjustment and has a switching time of approximately 2 seconds. Manufactured in Germany, it is suitable for both single-phase and three-phase systems. Connection is made with the same phases between the mains power and the emergency power supply. Function when Mains Power is Available. In the event of mains power being available, the ATS Box automatically switches off the generator power and supplies the home with mains power. Technical specifications of the ATS box: • Dimensions: 400 x 300 x 170 mm • Protection class: IP54 • Housing material: ABS • Cable diameter: Main line 4-25 mm² / 4-16 mm², Control line 0.5-2.5 mm² / 0.5-1.5 mm² Scope of delivery: • ATS box • 3 cable glands • Wiring diagram • Installation and operating instructions • Declaration of conformity Installation and operating conditions: The ATS box is designed for indoor use and can be operated at temperatures from -5 to 40°C and at altitudes up to 2000 m above sea level. The tightening torque of the terminals is 2.8 Nm for main conductor terminals and 0.5 Nm for control terminals. Technical parameters: • Mains current: 63A • Rated mains current: 32A • Tripping current: 5-10In (Type C) 10-15In (Type D) • Mains voltage: 230V / 400V 4-pole ± 10% • Mains frequency: 50/60Hz • Rated short-circuit current Icm (peak): 6.615kA • Rated short-circuit current Icn (RMS): 4.5kA • Utilization category: AC 33B • Switching time: <2sec • Power consumption normal operation: <1W • Maximum power consumption: <2sec approx. 30W Important note: The ATS box should only be connected to the generator and fuse box by qualified personnel. It should be noted that the ATS box is universally compatible with all generators with an electric starter. Depending on the model, a time delay relay may be required, which can easily be installed by a qualified electrician. The ATS box is the ideal solution for a reliable and automatic home emergency power supply – easy to install and flexible in use.
