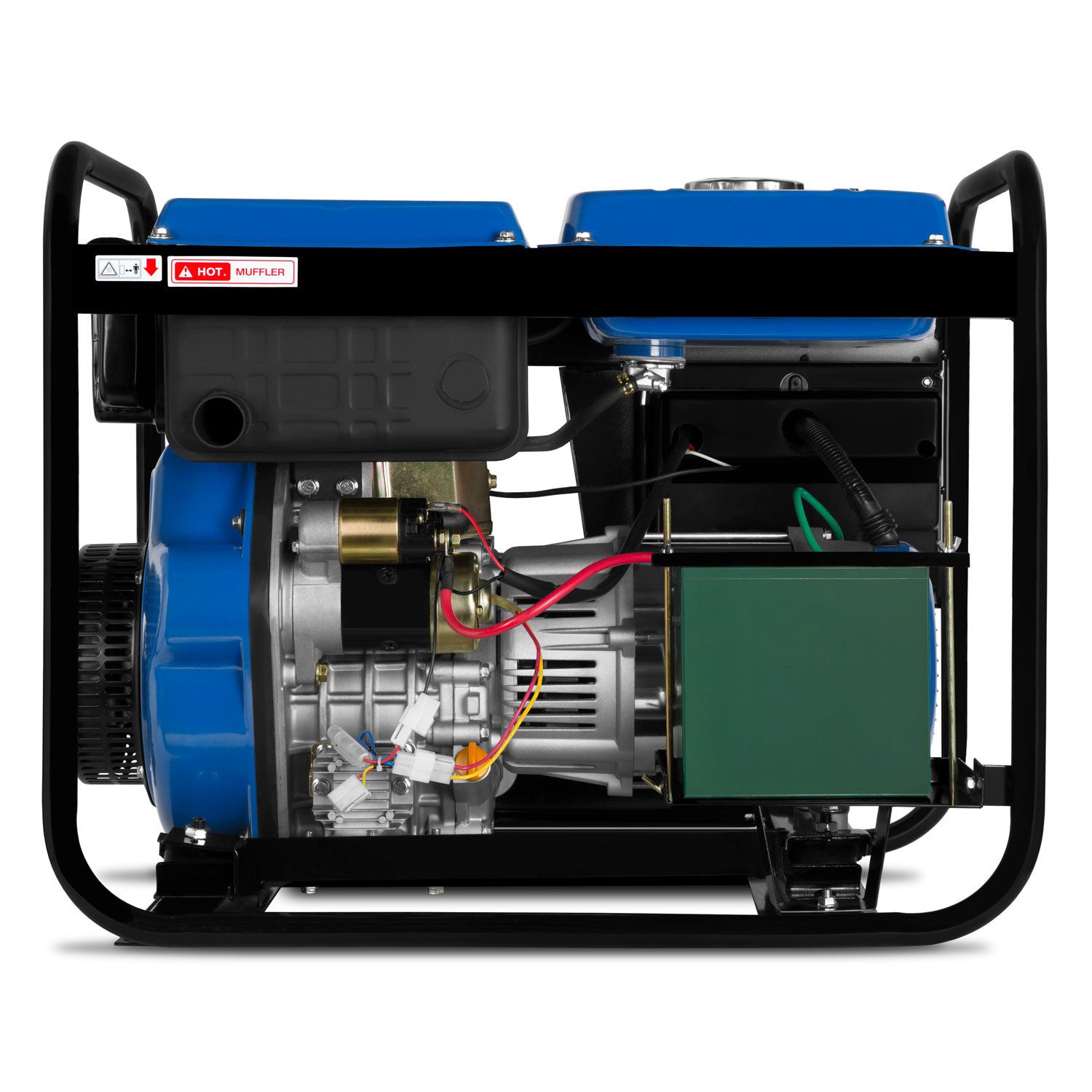

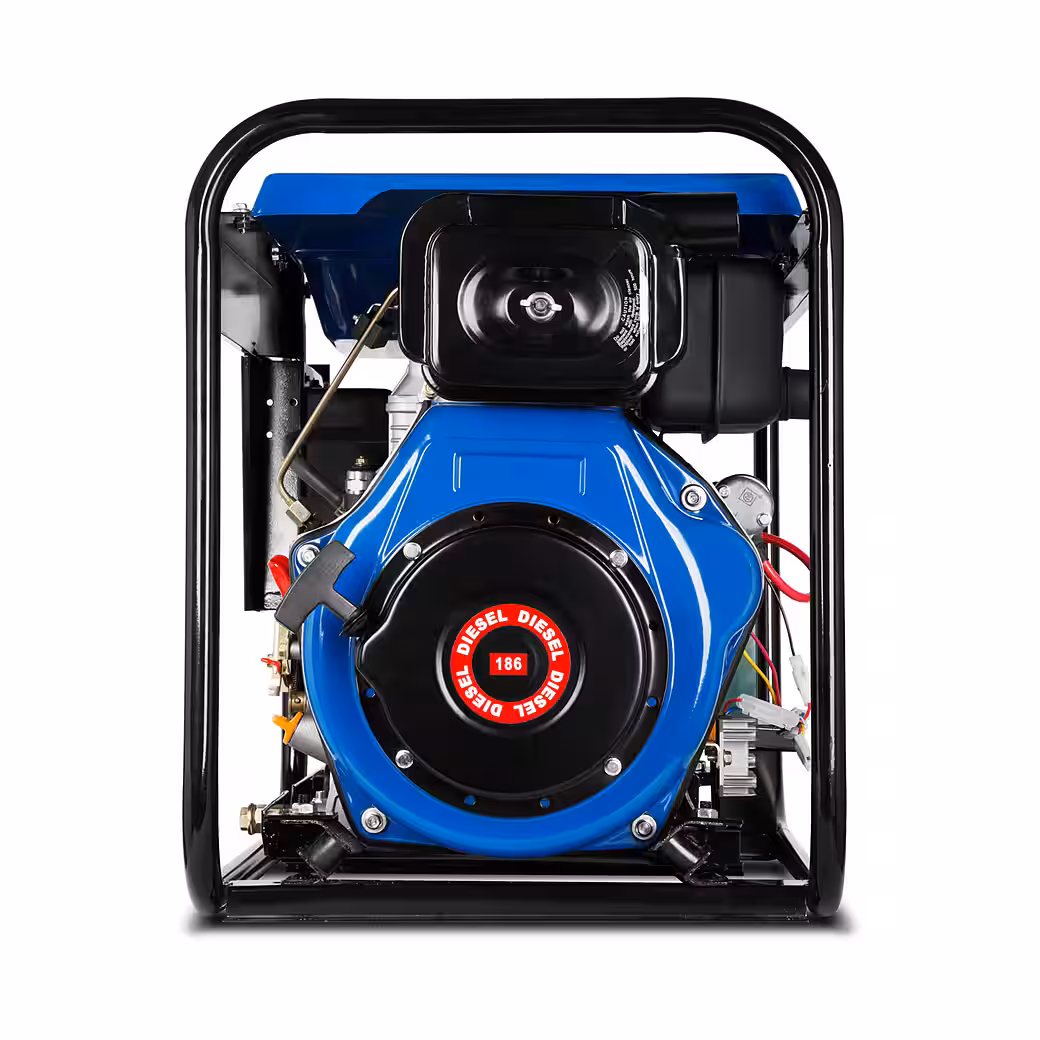

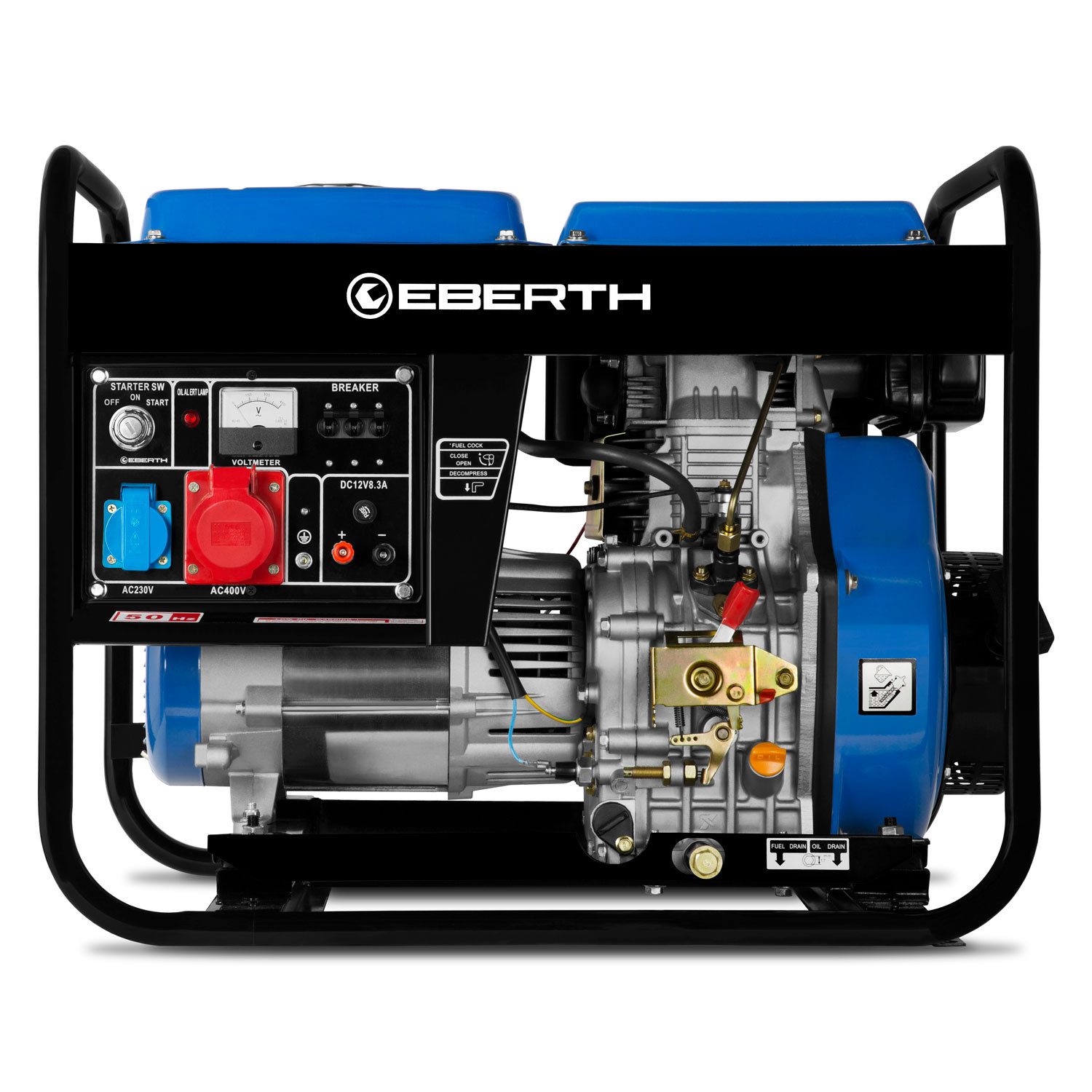

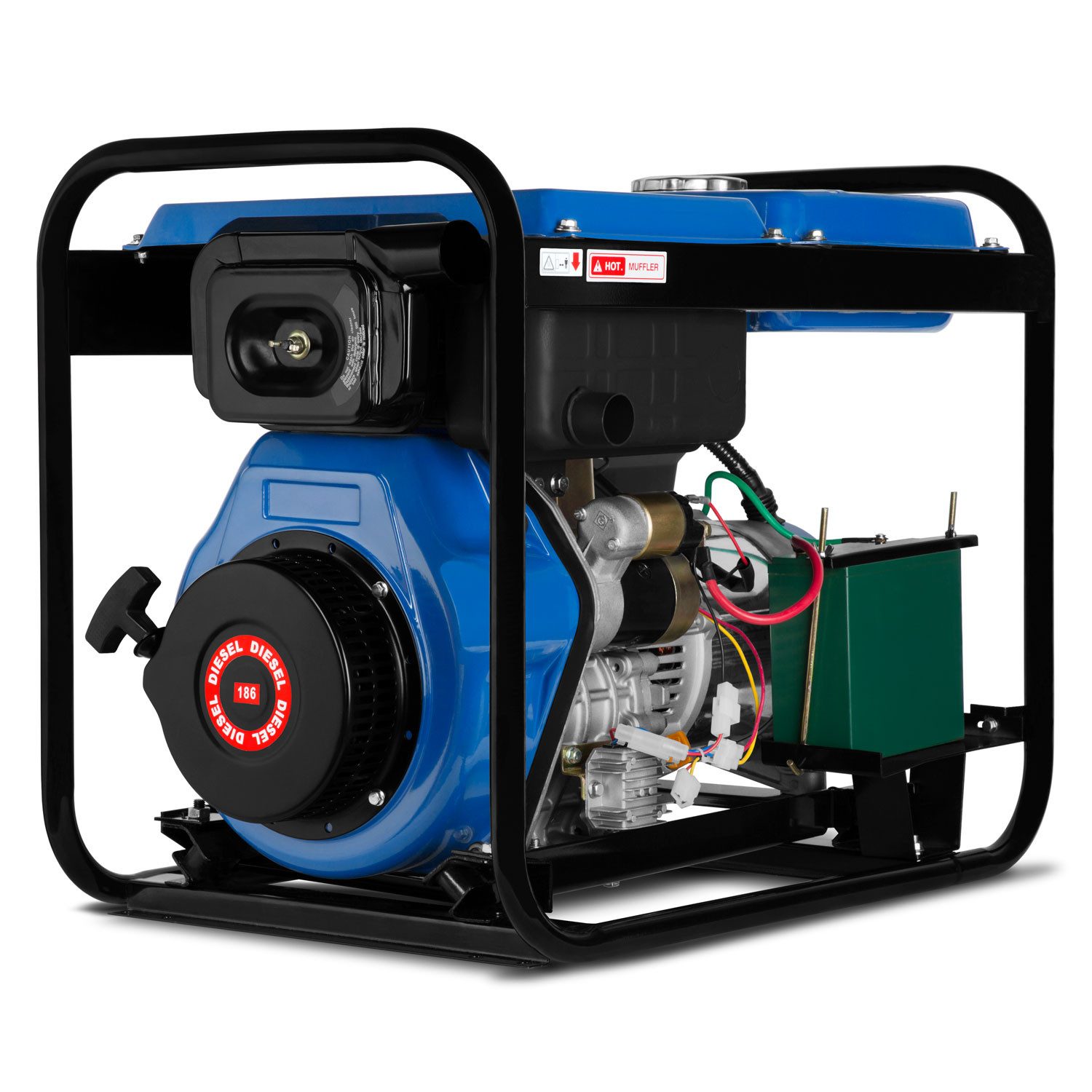

5000 Watt Diesel Emergency Power Generator, 10 HP Power Generator

It’s a 3-phase generator . The maximum output of 5000 watts is only available when connected to a high-voltage outlet .

The generator can be conveniently started with the electric starter or, as usual , with a recoil starter . An automatic voltage regulator (AVR) ensures a stable output voltage . Additionally, the generator features a low-oil shutdown to protect the engine. With this generator, you’re purchasing a product that, with proper maintenance and care, offers the best conditions for reliable operation and a long service life .

It is delivered without oil and fuel; use only diesel fuel

!

• Engine type: 4-stroke diesel engine, air-cooled
• Engine displacement: 406 cc
• Engine power: 10 hp / 6.6 kW
• Fuel: Diesel

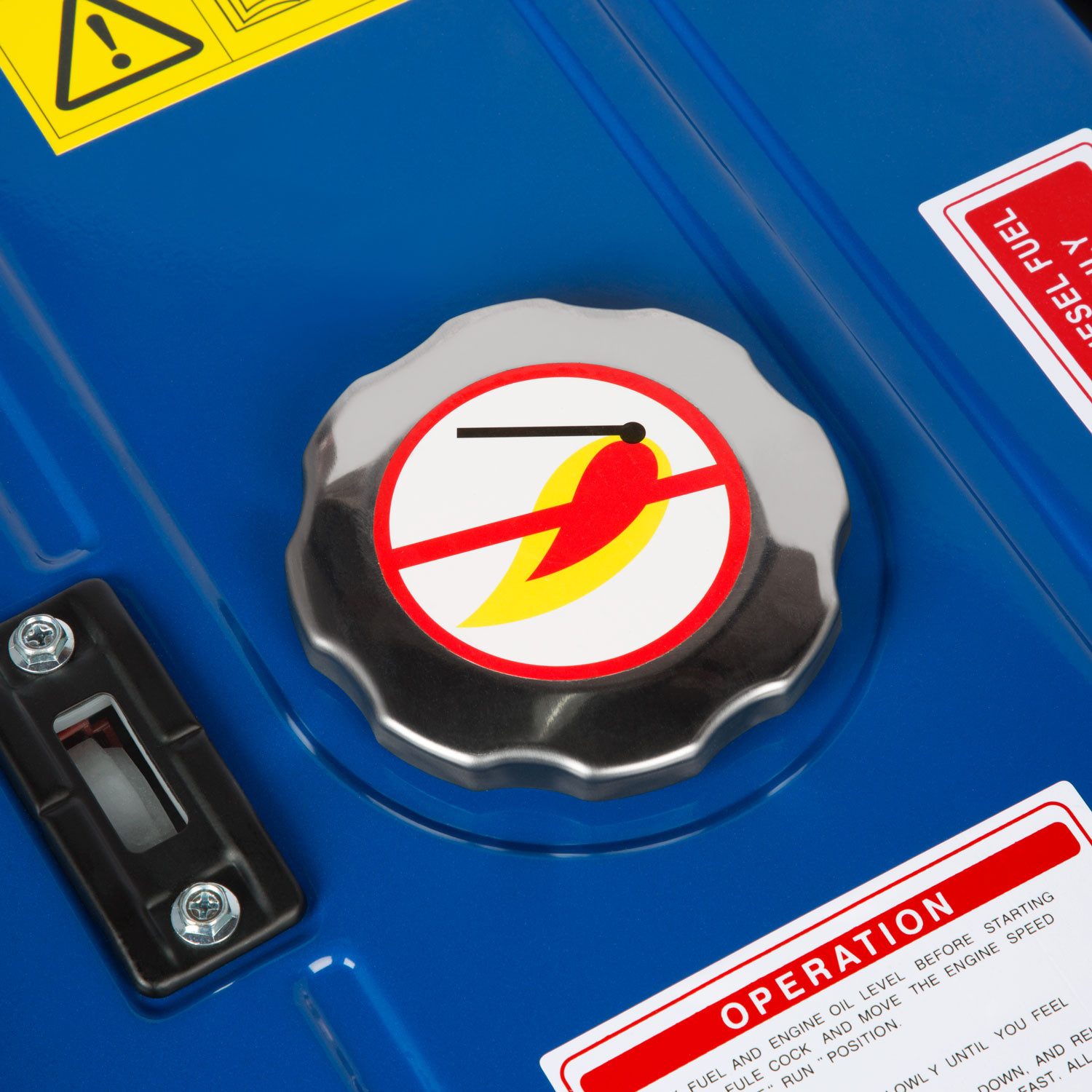

• Tank capacity: 10 liters
• Oil quantity: 1.65 liters
• Running time: 6-7 hours
• Volume (7m): 71 dB

Datasheet

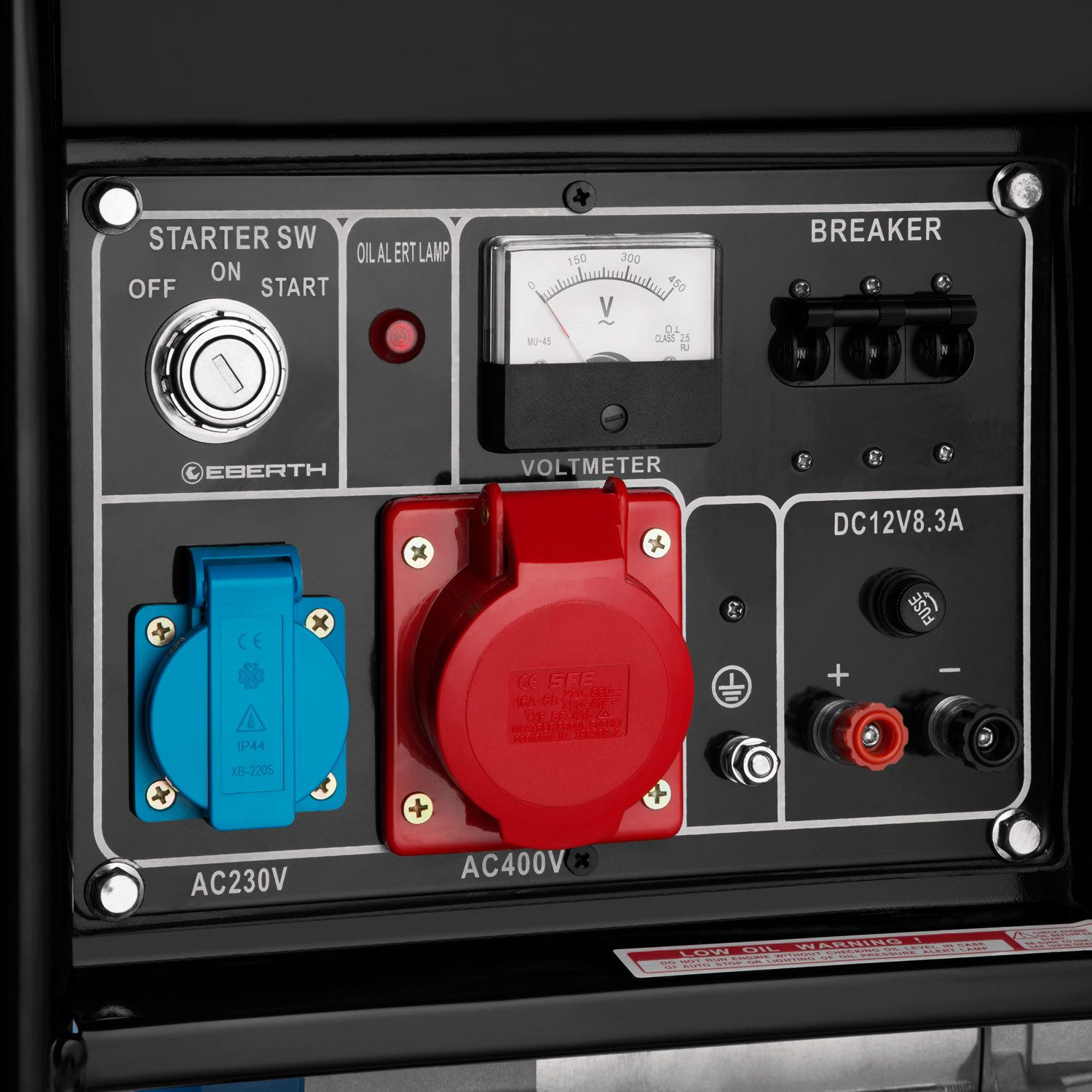

• Continuous power output: 3600 watts
• Maximum power: 5000 watts
• Maximum output power from a 400V socket: 5000 watts
• Maximum output power from a 230V socket: 2000 watts (8.4 A)
• Nominal voltage (1 phase / 3 phase): 230V / 400V / 50Hz
• Direct current (DC): 12 volts (max. 8.3 A)
• Rated current: 16 A / 1
• Dimensions (LxWxH): 720x480x580 mm
• Weight: 95 kg

Delivery

• 1x EBERTH GG1-ERD5000E-3 generator
• 1x battery for starting
• 1x on-board tool kit for operation/maintenance
• 1x Instruction manual
