Description
Item description
- Lightweight and portable: only 22 kg, foldable for easy storage and transport
- Stylish: 3 colors to choose from, a splash of color in the city
- Powerful: 250-watt motor, 7-speed gearbox, 45nm torque, easy climbing
- Seatpost battery: Optimized battery position for added durability and safety
- Safe and robust: Abrasion-resistant 20×2.125″ city tires, reflective and safe
From January 1st to January 31st, you’ll receive a free waterproof storage bag for the folding bike with the purchase of this model. The bag allows you to completely store the folded bike and reliably protects it from dust, moisture, and wear and tear. The bag measures 89 cm × 48.5 cm × 73 cm . This offer is valid only while supplies last; first come, first served.

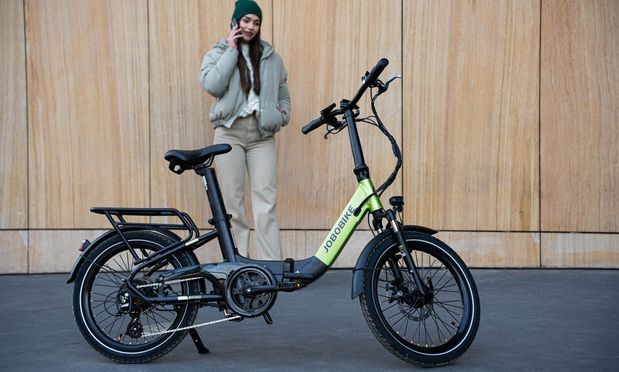

Ace – Lightweight foldable e-bike: Your perfect companion in the city
The Ace series offers three elegant color options. Thanks to its foldable design, the bike can be easily folded. Weighing only 22 kg, it is lightweight and compact, requiring little space. Perfect for storage at home or in the office and easy to transport on public transport or in a car, it effortlessly solves the “last mile”.
Excellent performance at a light weight
The Ace series is characterized by outstanding performance despite its low weight of only 22 kg. The 250W brushless motor and 45 Nm of torque ensure a smooth ride and effortless climbing in the city. The 7-speed gear system adapts precisely to different road conditions, providing comfort on both flat and rough terrain.
Attention to detail and user-friendliness
The developers have also considered smaller details. The seat tube battery improves balance and stability, especially on uneven terrain. Its visually appealing placement in the seat tube protects the battery from environmental influences, thus extending its lifespan. The puncture-resistant, reflective, and robust CST tires ensure safety and durability.
Intelligent features and comfort
The LCD display shows important riding information at a glance. Thanks to Bluetooth, the bike can be connected to your smartphone. This allows you to use navigation and fitness tracking, making your ride safer, more interesting, and more enjoyable, despite its light weight of only 22 kg.
Technical data:
Motor: 36V 250W rear motor 45 Nm
Battery: Samsung 36V 10Ah Â
Frame: 6061 aluminum alloy

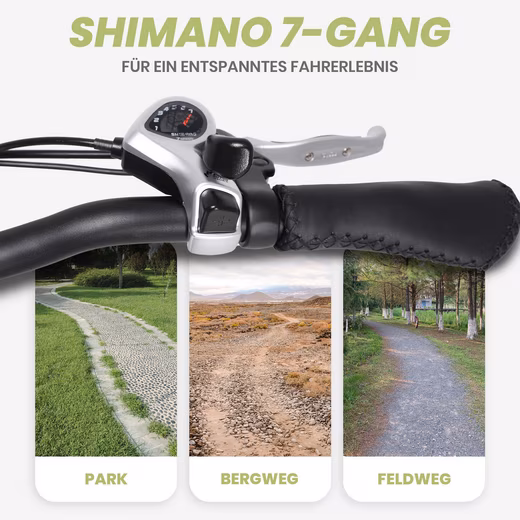

Rear derailleur: Shimano 7-speed
Tires: 20×2.125 inches
Brakes: Tektro mechanical disc brakes
Display: LCD with Bluetooth
Range: 50-90 km
Load capacity: 120kg
Weight: 22kg
Details
| Type of engine | rear engine |
| Motor position | rear engine |
| Engine performance | 250 W |
| Motor power in V | 36 V |
| Motor power in Nm | 45 Nm |
| Type of power supply | Battery |
| Battery brand | Samsung |
| Battery position | seat tube |
| Battery details |
Removable, maintenance-free seat tube battery |
| Battery/accumulator technology | Li-ion |
| Battery performance | 360 Wh |
| Battery voltage | 36 V |
| Battery capacity | 10000 mAh |
| Battery charging time | 6 hours |
| Battery range | 90 km |
| Details Battery Range | depending on driving style, depending on several factors under optimal conditions |
| Driving aids | Starting aid |
| Frame design | Low-entry frame |
| Details Frame type | Trapezoidal frame |
| Finish frame | painted |
| Frame color | green |
| Brand Fork | ZOOM |
| Type Fork | Unicrown |
| Fork design | suspension fork |
| Details Suspension Fork | not adjustable |
| Details Damping Fork | open |
| Color fork | black |
| Drive type | Chain drive |
| Number of gears | 7 |
| Circuit type | chain drive |
| Circuit details | RapidFire |
| brand derailleur | Shimano |
| Chain guard | Chain guard |
| Type of chain guard | Chain guard |
| Pedal details | non-slip |
| Pedal type | platform pedal |
| Front brake brand | TEKTRO |
| Front brake type | disc brake |
| Front brake design | mechanically |
| Front brake disc diameter | 160 mm |
| Rear brake brand | TEKTRO |
| Rear brake type | disc brake |
| Rear brake design | mechanical |
| Rear brake disc diameter | 160 mm |
| Tire width in inches | 2.13 |
| Tire brand | CST |
| Type of tire | pneumatic tires |
| Rear tire type | pneumatic tires |
| Tire details | Puncture protection reflective strips |
| Handlebar type | City handlebars |
| Handlebar color | black |
| Handlebar height | 100 cm |
| Maximum handlebar height | 112 cm |
| Features of handlebar grip | non-slip, ergonomically shaped |
| Saddle type | City saddle |
| Saddle features | ergonomically designed |
| Saddle color | black |
| minimum seat height | 75 cm |
| Maximum seat height | 94 cm |
| Seatpost features | height adjustable |
| Seatpost fixation | seat clamp |
| Frame properties | light |
| Type of light source: front light | LED |
| reflectors | pedal reflectors |
| Type E-bike | Folding bike |
| Area of ​​application | Everyday use, excursion , short trip , long trip |
| Display Training computer | Battery charge level, speed, mileage, support level |
| Special features | Foldable electric bicycle for men and women, disc brakes |
| equipment | Lights, bell, mudguards, bicycle stand, luggage rack |
| Weight of bicycle | 22 kg |
| bicycle rack | rear wheel stand |
| Scope of delivery | Battery charger |
| Assembly instructions | Straighten the handlebars |
| Age recommendation | Ages 14 and up |
| Area of ​​use | within the German Road Traffic Licensing Regulations (StVZO) |
| Required driver’s license | no |
| Legal obligations | Helmet required |
| maximum weight allowed | 120 kg |
| WEEE Reg. No. DE | 50971293 |
