12V 200Ah PLUS LiFePO4 Battery Energy Storage for WOMO UPS 2560Wh Solar Batteries

Description

Product Description
Item no. S0TFK0S9ADS
Integrated 200A BMS with comprehensive protection against overcharging, over-discharging and short-circuiting
With 2560W continuous power, weighs only 22.5kg, saving 50% space and 68% weight compared to lead-acid batteries
4000~15000 cycles and up to 10 years shelf life, with high-quality automotive-grade LiFePO4 cells
Supports up to 40.96 kWh (4P4S) battery systems for indoor and outdoor applications
IP65 protection class against dust and water, stable operation at -20°C to +60°C

Weniger anzeigen
Powerful, sustainable and durable
The LiTime 12V 200Ah PLUS LiFePO4 battery is equipped with industry-leading LiFePO4 EV Grade-A cells and offers over 4000 life cycles at 100% DOD. It is certified according to UL1973, FCC, CE and UN38.3 and ensures stable maximum performance as well as reliable energy and safe protection.

More energy, less effort
The LiTime 12V 200Ah PLUS LiFePO4 battery outperforms lead-acid batteries in all aspects, especially capacity. It weighs 21.89 kg, which is only a third of a 12 V 200 Ah lead-acid battery, but offers twice the usable energy. This makes it easier to install and transport – both indoors and outdoors.

Meeting all needs
The long-lasting and powerful LiTime 12V 200Ah PLUS LiFePO4 battery provides reliable power for RVs, caravans, home storage, off-grid systems, solar arrays, marine, trolling motors (30-70 lb), and more. You don’t have to worry about a power outage, even if the power goes out suddenly.

Fast and flexible charging
The LiTime battery is more efficient than lead-acid batteries and supports various fast charging options to ensure continuous peak performance. Since there is no memory effect, you can charge the battery partially or fully at any time via a LiFePO4 charger, solar panel, or generator/alternator.

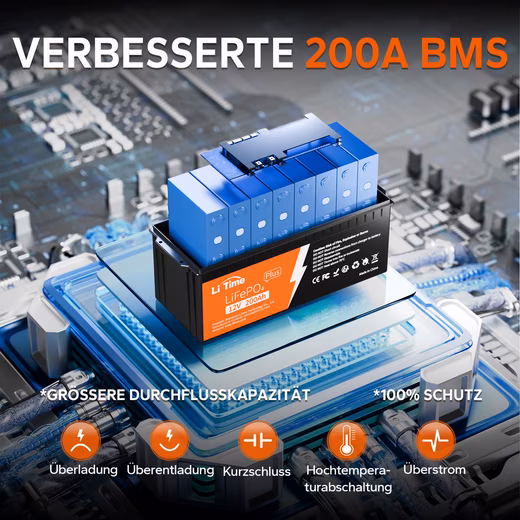

Greater BMS & Higher Continuous Load Power
Compared to the LiTime 12V 200Ah battery with 2560 Wh energy, 100A BMS and a maximum continuous load power of 1280 W, the BMS of our 12V 200Ah Plus lithium battery has been increased to 200A, and the maximum continuous load power has been increased to 2,560 W. Thus, the battery is also suitable for larger loads with higher current and higher power.

Good value for money, 90% less cost
The LiTime 12V 200Ah Plus LiFePO4 battery with 2560Wh energy, 100% depth of discharge, 4000 – 15000 cycles and a lifespan of 10 years helps you save 90% of the cost compared to a lead-acid battery with only 2400Wh energy, 50% depth of discharge, 200 – 500 cycles and a lifespan of only 2 years. The lifespan of a LiTime 12V 200Ah Plus LiFePO4 battery is equivalent to the lifespan of 10 12V 100Ah lead-acid batteries. This is a cost-effective investment.

5x longer service life & up to 30x more cycles
The LiTime LiFePO4 battery can reach 4,000 to 15,000 cycles and has a lifespan of 10 years, while lead-acid batteries only reach 200 to 500 cycles and only last 2 years. The LiTime Lithium battery is definitely worth a try.

50% less space required & 68% less weight
A single LiTime 12V 200Ah Plus LiFePO4 battery weighs only 22.5 kg (dimensions: L521mm × W217mm × H238mm), while a lead-acid battery weighs up to 70 kg (dimensions: L400mm × W180mm × H280mm). A single LiTime battery saves 50% space and weighs 68% less.

Package Includes:

12V 200Ah PLUS Lithium Battery *1
Instruction Manual *1
Guide Card *1
Connector Covers for Bolts *2
M8-16mm Connection Screws *2
Washer *2

*Important notes:

(1)If you are interested in buying a solar battery for home use tax-free, please contact us for more details; If you are planning to use our battery to start an engine or golf cart, please contact us for further assistance.

(2)If the OT terminals are fixed directly with screws and are less than 2mm thick, please add the gaskets we offer to ensure secure fastening.



SPECIFICATIONS



BATTERY

Cell Type

LiFePO4 Prismatic

Warranty

5 years

Cycle Lifetime

4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15000 cycles at 60% DOD

Nominal voltage

12.8V

Nominal Capacity

200Ah

Energy

2560Wh

Max. Expansion (Parallel & Series)

4P4S

Internal resistance

≤40mΩ

Certifications

UL-1973, FCC, CE, UN38.3



BMS

BMS

200A

Max. Continuous Output Power

2560W

Max. Continuous Charging Current

200A

Max. Continuous Discharge Current

200A

Max. discharge current 1 seconds

600A



CARGO

Method of charging

CC/CV

Charging voltage

14.4±0.2V

Recommended charging current

40A(0.2C)



TEMPERATURE

Temperature Range – Charge

0°C – 50 °C / 32°F – 122 °F

Temperature Range – Discharge

-20°C – 60°C / -4°F – 140°F

Temperature Range – Storage

-10°C – 50°C / 14°F – 122°F

Recommended Storage Temperature

10°C – 35 °C / 50°F – 95 °F



OTHERS

Connection terminals

M8 Screws

Weight approx.

21 kg

Size

L532*W207*H215mm;

(L21*W8.2*H8.5 in)

Housing material

Plastic(ABS)

Protection class

IP65

Details

Weniger anzeigen
Product details
Facilities Handle
Life cycles 4000
Suitable for RVs Caravans

Home Storage
Off-Grid Systems
Solar Systems
Marine
Trolling Motors (30~70 lb)
Features Maintenance-free
expandable
Color black
Number of batteries 1 pc.
Technical data
Voltage 12 V
Charging voltage maximum 14.6 V
Degree of protection IP65
Technology Lithium-ion (Li-ion)
Battery/rechargeable battery technology Lithium-ion
Power supply
Battery capacity 200000 mAh
Battery Performance 2560 Wh
Voltage battery 12 V
Battery capacity in Ah 200 Ah
Dimensions & Weight
Weight 21770 g
Remarks
Languages Instruction manual German
Manufacturer’s warranty 5 years
Warnings The batteries are not to be used as starter batteries
